Description

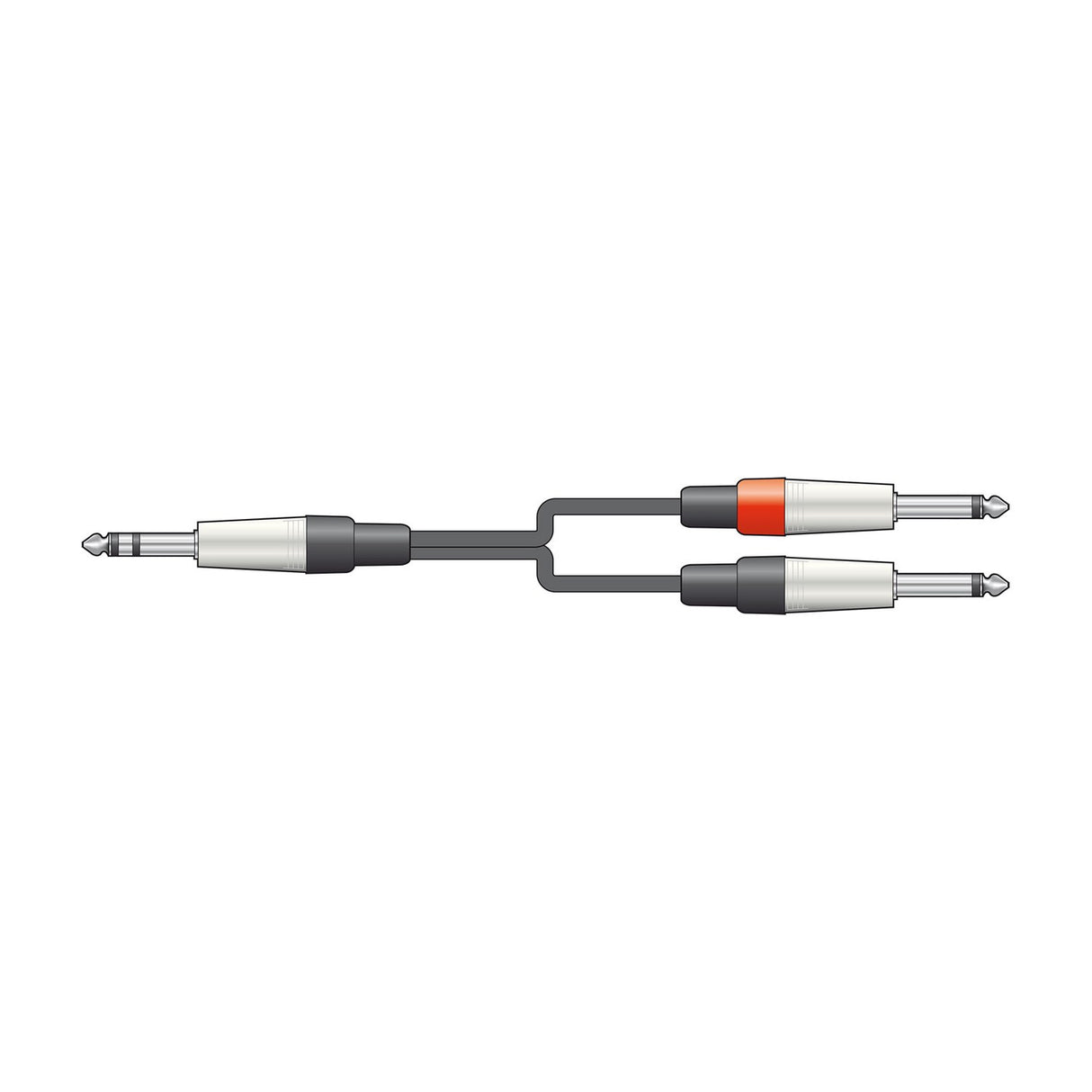

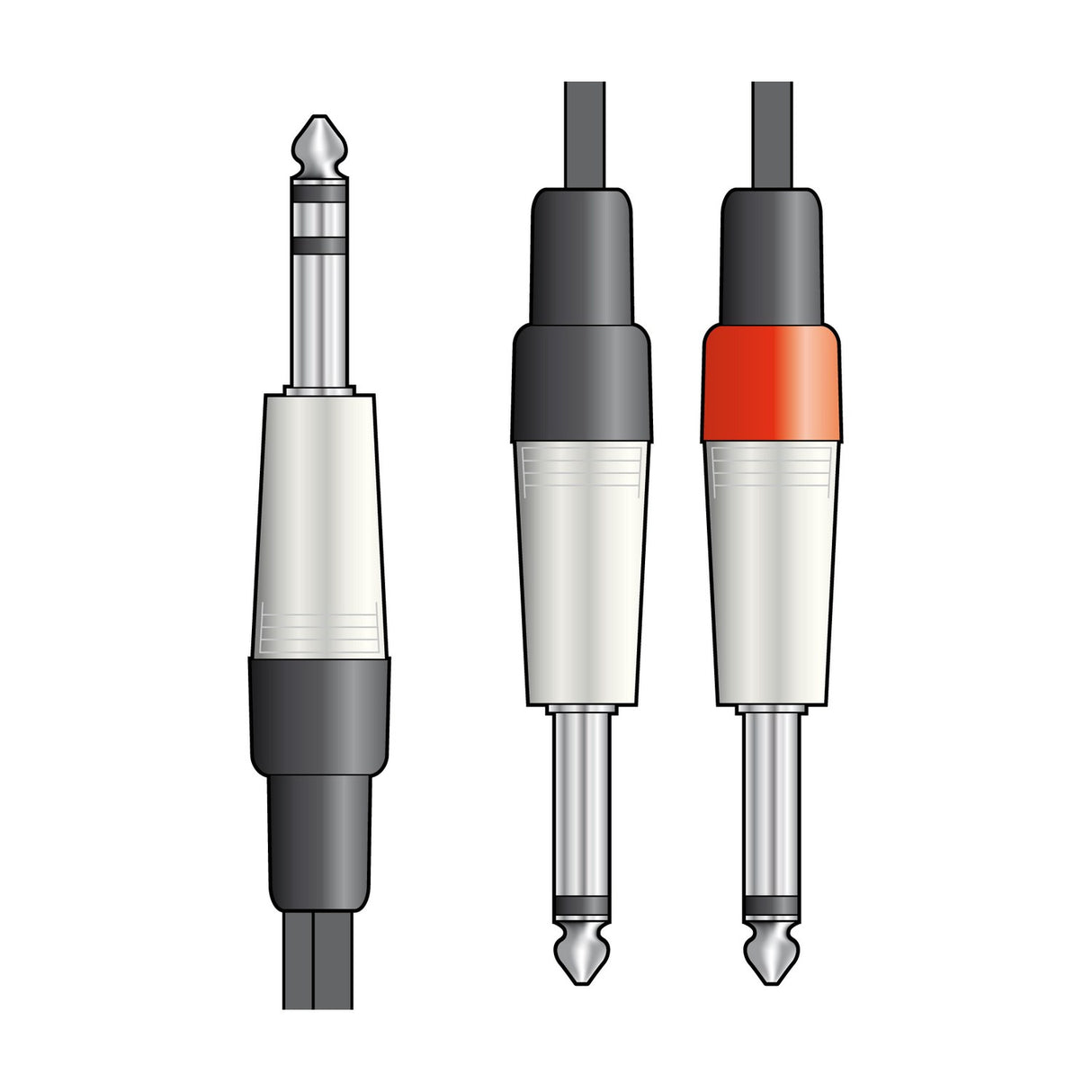

This Citronic audio lead splits a single 6.3mm stereo (TRS) jack plug out to two 6.3mm mono jack plugs, giving you a straightforward way to send a balanced or stereo signal into two separate mono inputs. It runs to 6.0 metres, so there's enough length to reach across a stage, studio desk or rack without pulling tight. The 6.3mm size is the standard large jack, sometimes called a 1/4 inch jack, used on mixers, amps, DI boxes and instrument gear.
We've built this lead to hold up to regular use. The connectors are die-cast for a solid feel, and the joints are machine-soldered for consistent, reliable connections. Inside, the twinned cable uses pure copper conductors, with 2 x 12 strands at 0.1mm each, backed by cotton reinforcement to help the cable cope with movement and repeated coiling.
The outer jacket is a soft-grip, rubberised finish that resists tangling and stays flexible when you wrap the lead away. The twin cable measures 5mm in diameter (5 x 10mm across the pair) and the shielding helps keep unwanted noise out of your signal. It's a sensible choice for connecting a stereo source to two mono destinations, or for splitting a signal where your setup calls for it. Everything about the lead is aimed at clean sound and steady performance over time, whether it lives in a fixed install or gets packed down after every gig.
Specification
| Length |
6.0m |
| Cable : diameter |
Twin 5mmØ (5 x 10mm) |
| Conductors |
2 x 12 strand, 0.1mmØ pure copper |
| Connectors |
6.3mm stereo (TRS) jack plug, 2 x 6.3mm mono jack plug |
Frequently Asked
What does this lead connect to?
It takes one 6.3mm stereo (TRS) jack plug and splits it to two 6.3mm mono jack plugs, so you can feed a stereo or balanced source into two separate mono inputs.
How long is the cable?
The lead is 6.0 metres long, giving you room to reach across a stage, studio or rack setup.
Is a 6.3mm jack the same as a 1/4 inch jack?
Yes. The 6.3mm jack is the standard large jack, often listed as a 1/4 inch jack in the US, and fits the same sockets.
What are the conductors made from?
Each side uses 2 x 12 strands of 0.1mm pure copper, with cotton reinforcement for durability.
Is the cable shielded?
Yes, it's a shielded lead, which helps keep unwanted noise out of your audio signal.
Will the lead resist tangling?
The rubberised, soft-grip jacket is anti-tangle and stays flexible, so it coils and packs away neatly.
