Citronic QP1600 Quad Power Amplifier 4 x 400W

£37699
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
14 Day Returns
Flexible payment options

A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.

  • Fully balanced signal path
  • Stable down to 2 Ohms
  • 2U rack-mountable
Power supply 230Vac, 50Hz (IEC)
Controls 4 x channel gain
Dimensions 483 x 439 x 88mm
Input : line 4 x XLRF balanced
Output : line 4 x XLRM (parallel from inputs)
Speaker : outputs 4 x SPK connectors
Input impedance 20k Ohms
Frequency response 5Hz - 50kHz
THD 0.05%
Slew rate 40V/usec
S/N ratio 103dB
Circuit protection Short-circuit, DC, overload, soft-start
Input sensitivity 0dB @ 0.775Vrms
Power rms @ 8 Ohms 4 x 200W
Power rms @ 4 Ohms 4 x 300W
Power rms @ 2 Ohms 4 x 400W
Weight 22kg
Fuse rating F8A

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

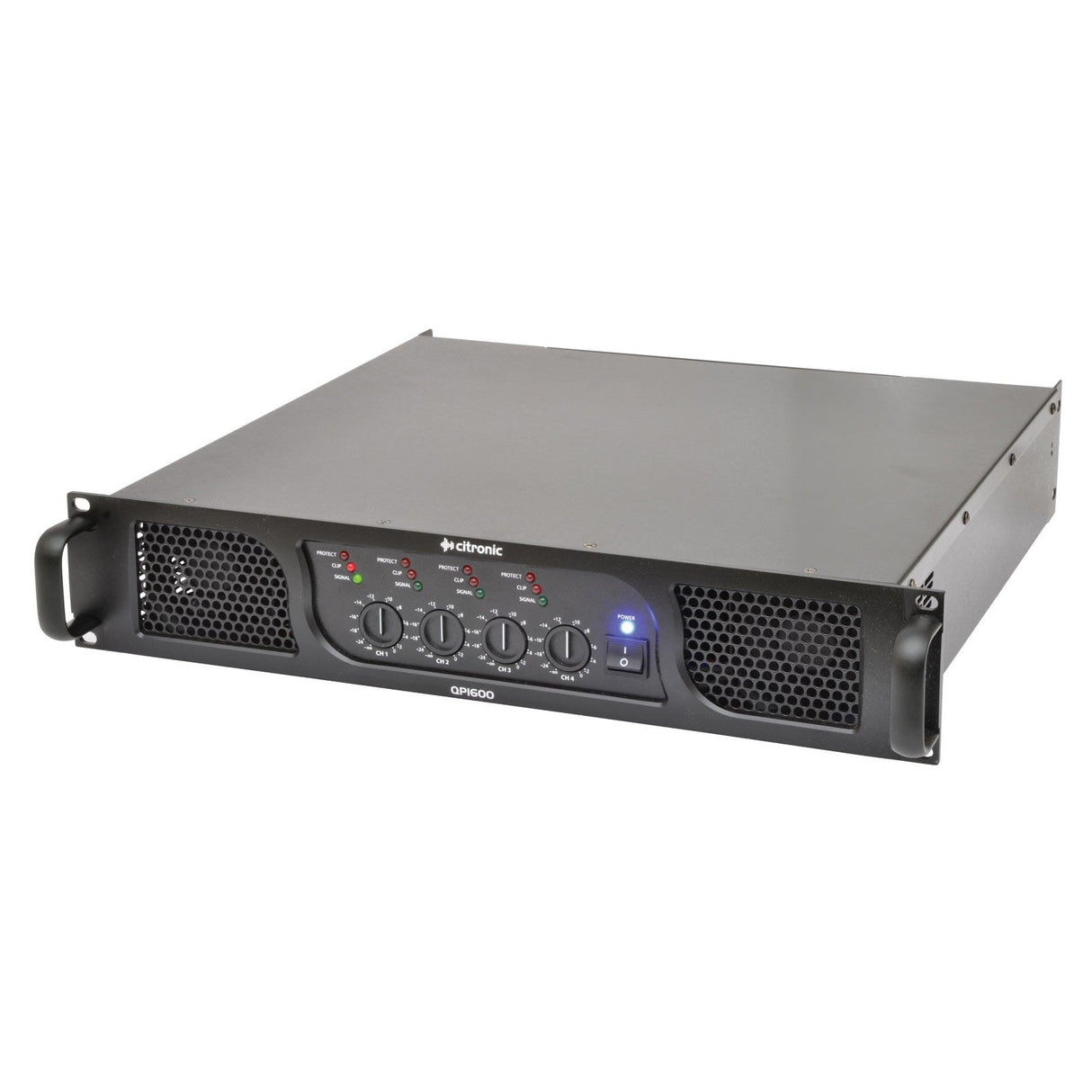

    The Citronic QP1600 Quad Power Amplifier 4 x 400W, designed for multi-speaker installations, comes in black and features large handles on each side. The front panel is equipped with multiple control knobs, indicator lights, ventilation grilles, and balanced line inputs to ensure superior sound management.
