Description

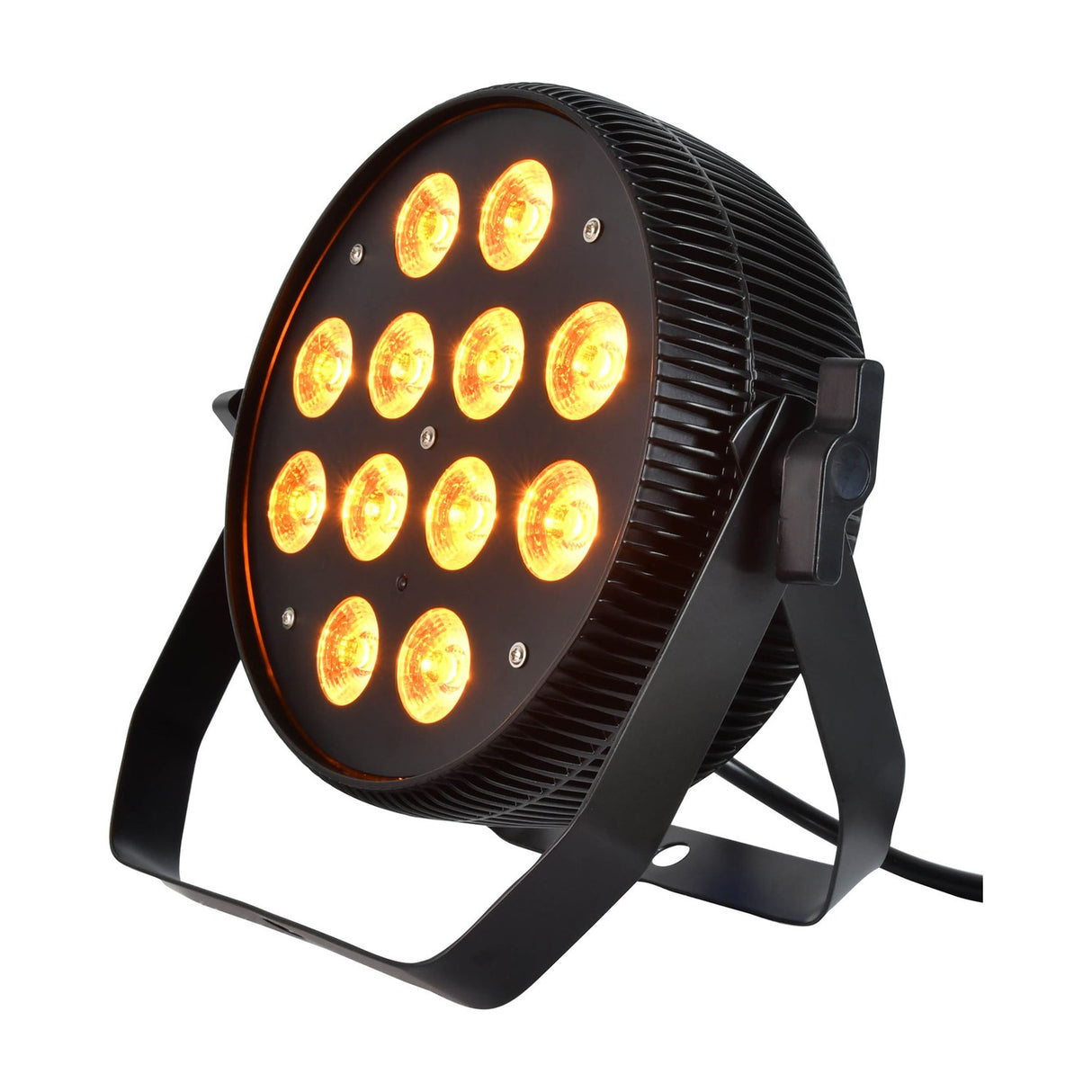

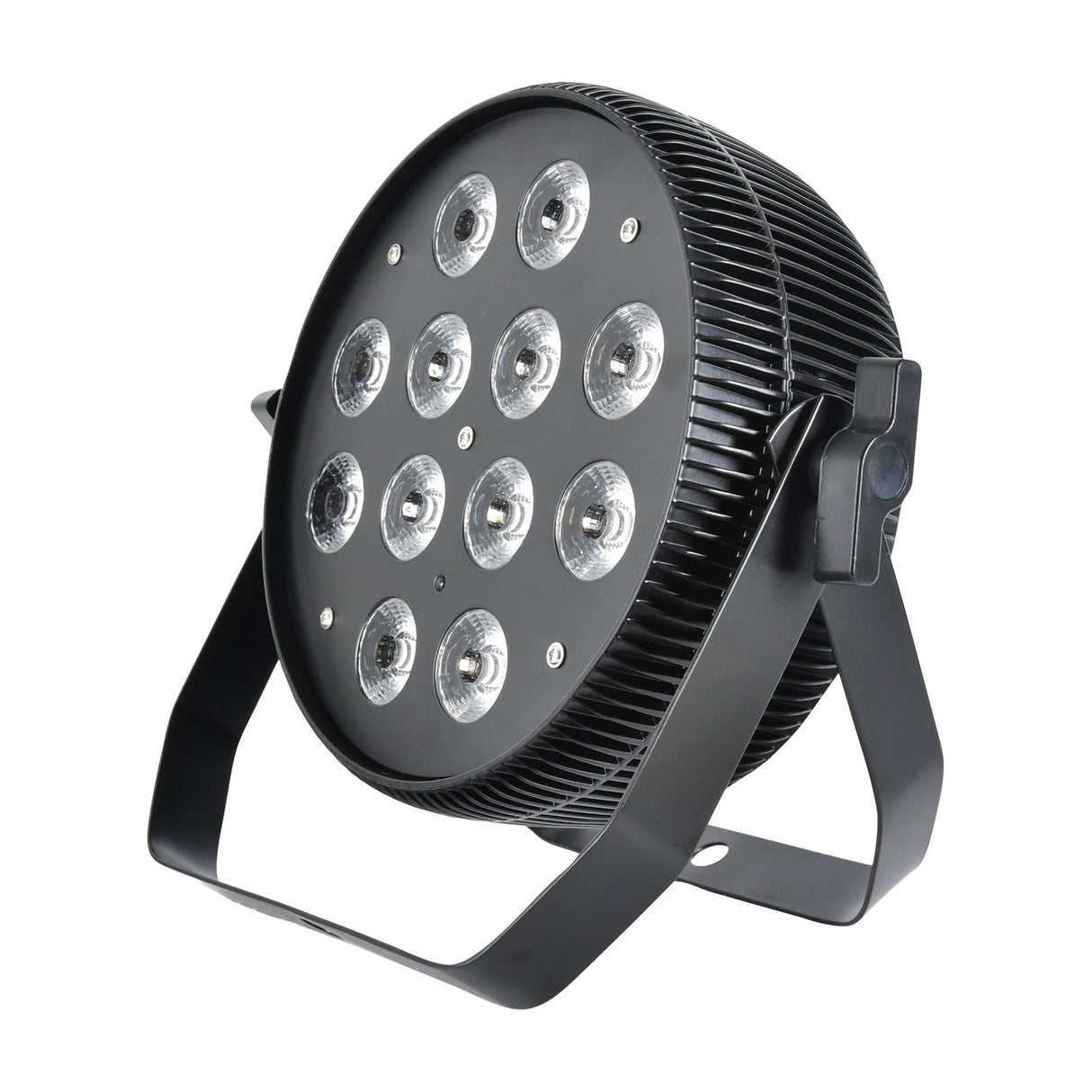

The Citronic MagicPAR-80B is a fanless PAR can (uplighter/wash light) built around 12 x 12W 6-in-1 RGBWA/UV LEDs. Because it runs without a fan, it stays completely silent, which makes it a sensible choice for places of worship, study spaces and any room where noise would be a problem. Heat is dealt with using a range of internal and external heatsinks, so the fixture keeps its cool while still throwing out bright, colourful washes. The 25° beam angle suits both spot uplighting and broader coverage across a stage or wall.
You can run the unit however suits your setup. There are internal auto, sound-activated and static programs that you control from the panel on the back, or you can use the supplied IR remote (US: RF remote) if you would rather adjust things from a distance. For larger rigs, the MagicPAR-80B works over DMX-512 with a choice of 6 or 10 channel modes, connected via 3-pin XLR in and out. This makes it easy to link several fixtures together and control them from a lighting desk.
Build quality is a strong point here. The heavy duty metal chassis and stand/bracket give the fixture real strength and rigidity, and the twist and lock power connections on the back let you daisy-chain units securely. Power runs on AC100-240V at a consumption of 80W, and the whole thing weighs 2.21kg with dimensions of 210 x 210 x 185mm. The MagicPAR-80B is part of a wider range and comes in black, with a white version also available, so you can match the fixture to your room.
Specification
| Power supply |
AC100-240V, 50/60Hz |
| Power consumption |
80W |
| LED : power |
12 x 12W RGBWA/UV LEDs |
| DMX channels |
6 or 10CH |
| Beam angle |
25° |

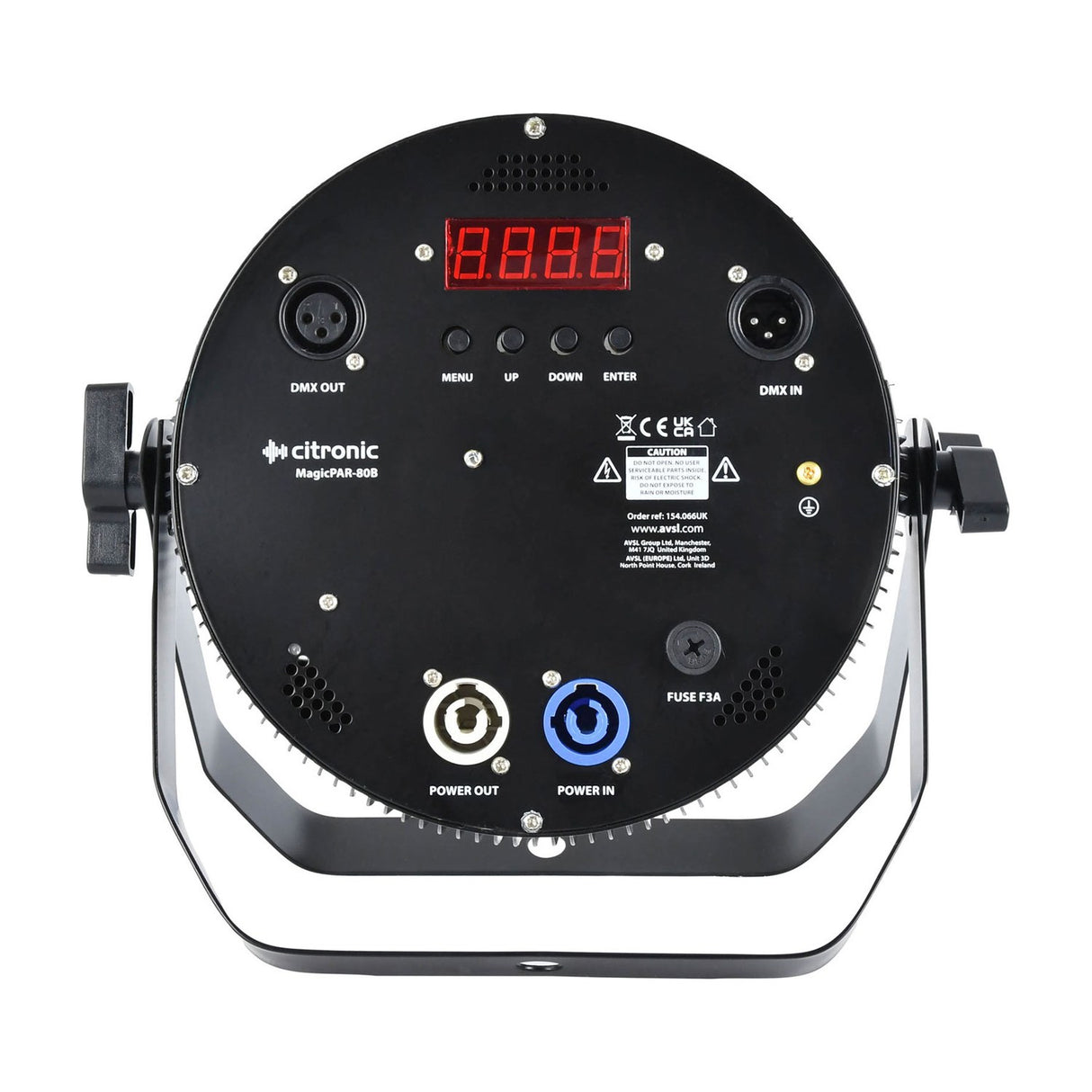

| Connections |
Power in/out (twist and lock), DMX in/out (3pin XLR) |
| Dimensions |
210mm x 210mm x 185mm |
| Weight |
2.21KG |
| Remote : battery |
CR2025 (supplied) |
| Fuse rating |
F3A |
Downloads
Product Manual
Frequently Asked
Is the MagicPAR-80B really silent?
Yes. It has no fan and instead uses internal and external heatsinks to dissipate heat, so it runs with no operating noise. That makes it well suited to places of worship, study rooms and other quiet environments.
How can I control the fixture?

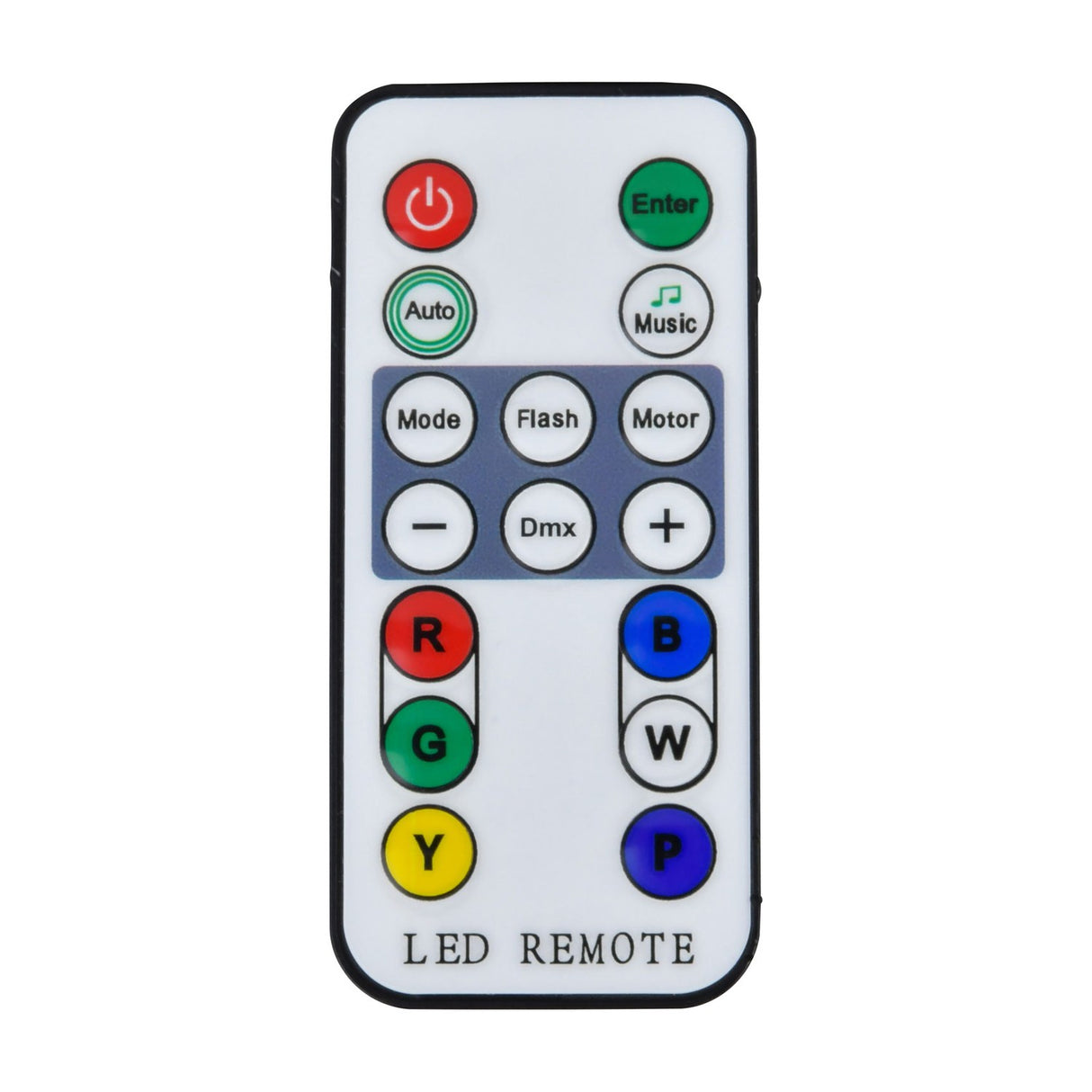

You have four options: the control panel on the back, internal auto programs, sound-activated mode, and DMX-512. It also ships with an IR remote control for adjustments from a distance.
What DMX modes does it support?
The MagicPAR-80B runs in either 6 or 10 channel DMX-512 mode, connected through 3-pin XLR in and out sockets.
What LEDs does it use?
It uses 12 x 12W 6-in-1 RGBWA/UV LEDs, giving you red, green, blue, white, amber and UV colour mixing from a single fixture.
Can I link several units together?
Yes. The twist and lock power connections allow you to daisy-chain power in and out, and the DMX in/out lets you control multiple fixtures from one desk.
What colours is it available in?
It comes in black and white, so you can choose the finish that best suits your space.
