Citronic LHF-CM10 Coaxial 10in Full Range Driver

£11299
RRP £11900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

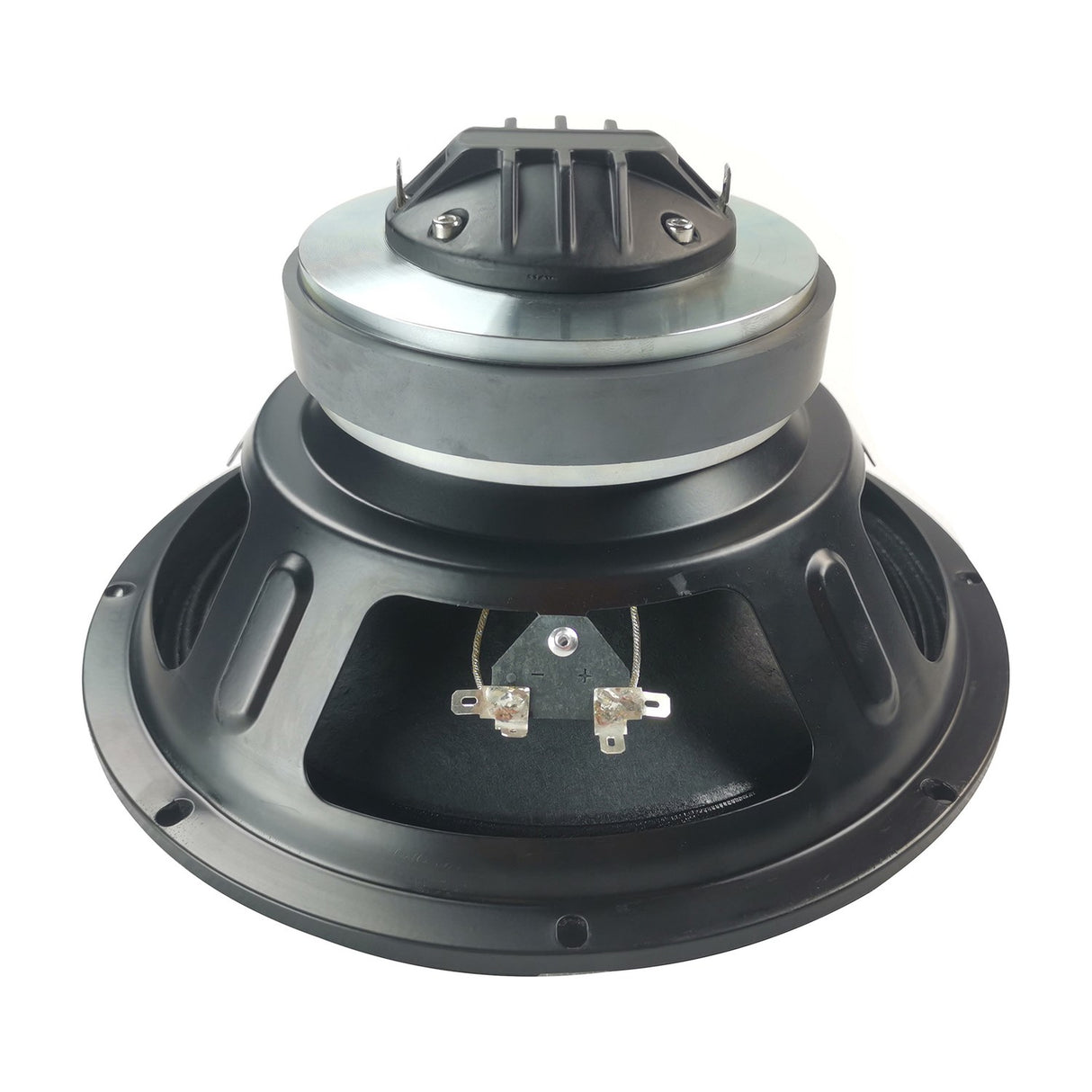

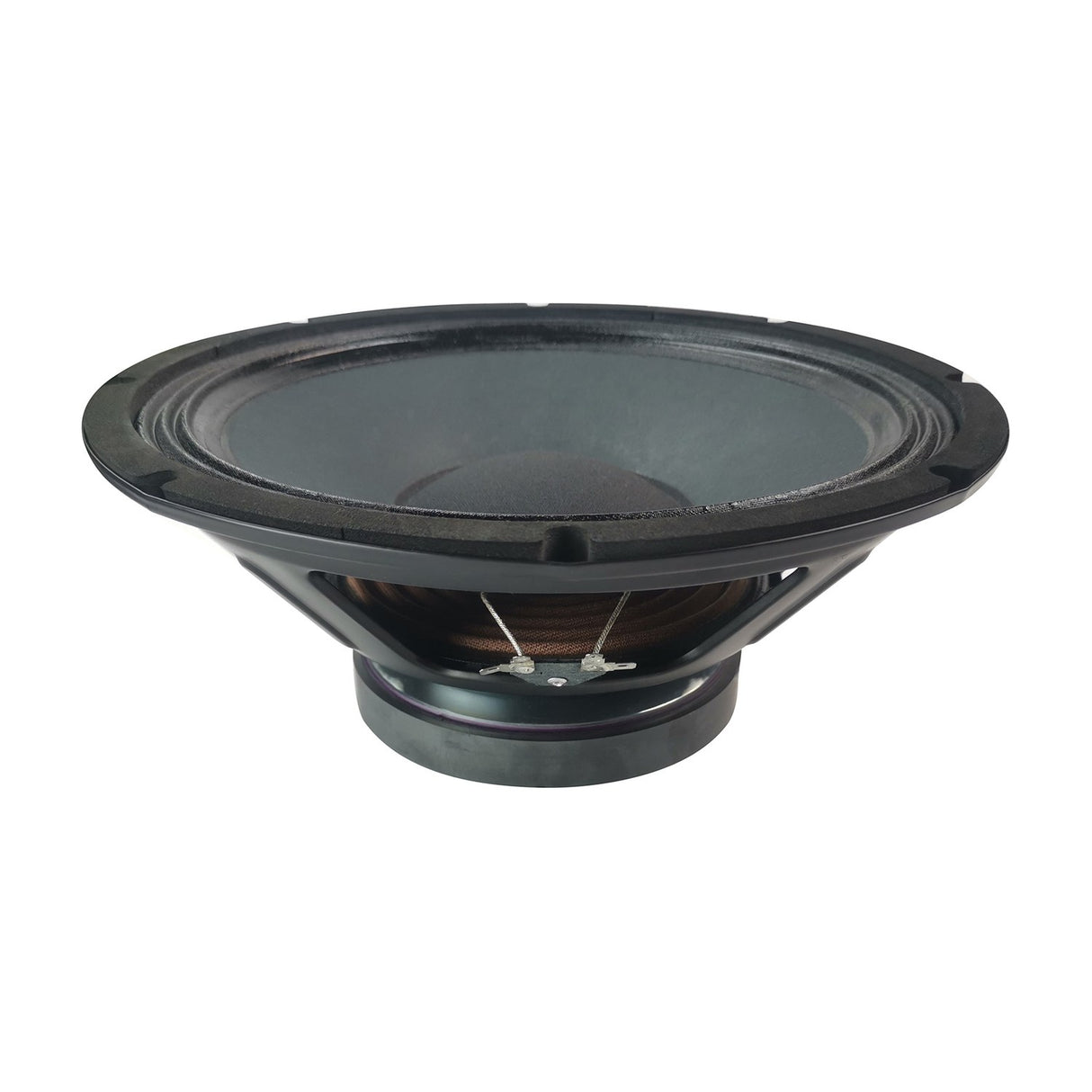

The Citronic LHF-CM10 is a dual coaxial driver built for full range cabinets. It pairs a high power 10in woofer (US: 10" woofer) with a concentric tweeter driver, so both the low and high frequencies come from a single point. A mesh dust cap covers the tweeter to keep it protected while the woofer does its work.

Because the tweeter sits inside the woofer, you get phase alignment across the range, which helps the sound stay consistent whether you are using it for foldback (stage monitoring) or general PA duties. This driver handles 250W and is a direct replacement for the CM-series active and passive wedge monitors, so it drops into your existing cabinet without fuss.

The impedance depends on your setup. Use the 4ohm option for CM active cabinets and the 8ohm option for CM passive cabinets. Getting this right matters for both output and amp compatibility, so check which CM model you have before ordering. As a coaxial design, the LHF-CM10 keeps the cabinet layout simple while still giving you full range output from a compact footprint.

Specification
Weight 1.80KG
Dimensions 165mm x 250mmØ
Frequency response 50Hz - 20kHz
Sensitivity 94dB (LF), 106dB (HF)
Power handling : max 500W (LF), 80W (HF)
Power handling : rms 250W (LF), 40W (HF)
Impedance 8 Ohm
HF driver 44mmØ (1.75") Ti compression driver
Main driver 250mmØ (10") reinforced paper cone
Frequently Asked

What is a coaxial driver?

A coaxial driver combines the woofer and tweeter on a single axis, with the tweeter mounted at the centre of the woofer. This gives you full range sound from one point and helps with phase alignment.

Which impedance should I choose?

Use the 4ohm version for CM active cabinets and the 8ohm version for CM passive cabinets. Check your CM model before ordering.

What cabinets does this fit?

It is a direct replacement for the CM-series active and passive wedge monitors, so it fits straight into those cabinets.

What is the power handling?

The LHF-CM10 handles 250W.

Can I use this for stage monitoring?

Yes. The phase alignment makes it suitable for foldback (stage monitoring) as well as general PA applications.

Does the tweeter have any protection?

Yes, the concentric tweeter driver is covered by a mesh dust cap to guard against damage.
