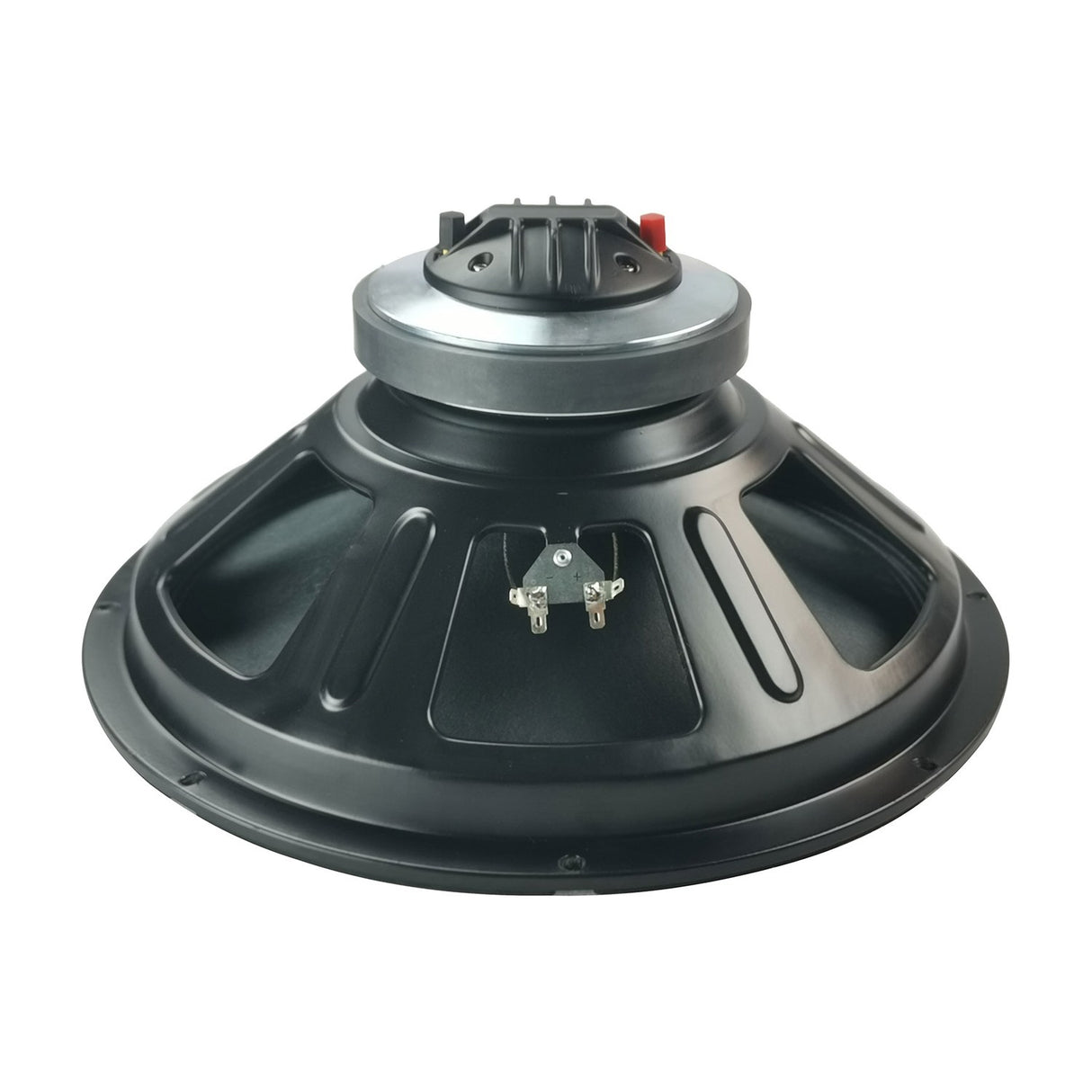

Citronic LFHF-CM15A 15in 350W Coaxial Speaker Driver

£11499
RRP £14900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Citronic LFHF-CM15A is a dual coaxial driver that pairs a high power main woofer with a concentric tweeter (treble driver) mounted at the centre. The tweeter sits behind a mesh dust cap, so both low and high frequencies come from a single point. This gives you full range output with phase alignment, which keeps the sound coherent whether you are using it for foldback or general PA work.

We designed this driver as a direct replacement for the CM-series active and passive wedge monitors. The 4ohm version suits the CM active cabinets, while the 8ohm version matches the CM passive models, so you can pick the right impedance for your setup. It handles 350W of power and measures 15 inches (also written as 15in) across, making it a solid choice for rebuilds or repairs on existing full range enclosures.

Because the low frequency and high frequency sections are combined in one coaxial unit, fitting is straightforward and you avoid the alignment issues you get with separate drivers. If you run Citronic CM wedge monitors and need to bring a unit back to working order, this component slots straight in. It is a practical, like-for-like part rather than an upgrade, so the fit and performance stay true to the original cabinet design.

Specification
Weight 5.05KG
Dimensions 185mm x 380mmØ
Frequency response 40Hz - 20kHz
Sensitivity 97dB (LF), 108dB (HF)
Power handling : max 700W (LF), 90W (HF)
Power handling : rms 350W (LF), 45W (HF)
Impedance 4 Ohm
HF driver 44mmØ (1.75") Ti compression driver
Main driver 380mmØ (15") reinforced paper cone
Frequently Asked

What impedance should I choose?

The 4ohm version is for the CM active cabinets and the 8ohm version is for the CM passive cabinets. Match it to the model you are fitting it into.

What size is the woofer?

It is a 15 inch (15in) main woofer with a concentric tweeter mounted at the centre.

How much power does it handle?

The driver is rated at 350W, making it suitable for full range PA and foldback use.

What is a coaxial driver?

A coaxial driver combines the low frequency woofer and high frequency tweeter in one unit, with the tweeter mounted at the centre. This gives full range output from a single point with phase alignment.

Which cabinets does this fit?

It is a direct replacement for the Citronic CM-series active and passive wedge monitors.

Can I use this for foldback monitoring?

Yes. The phase-aligned coaxial design suits foldback monitors as well as general PA applications.
