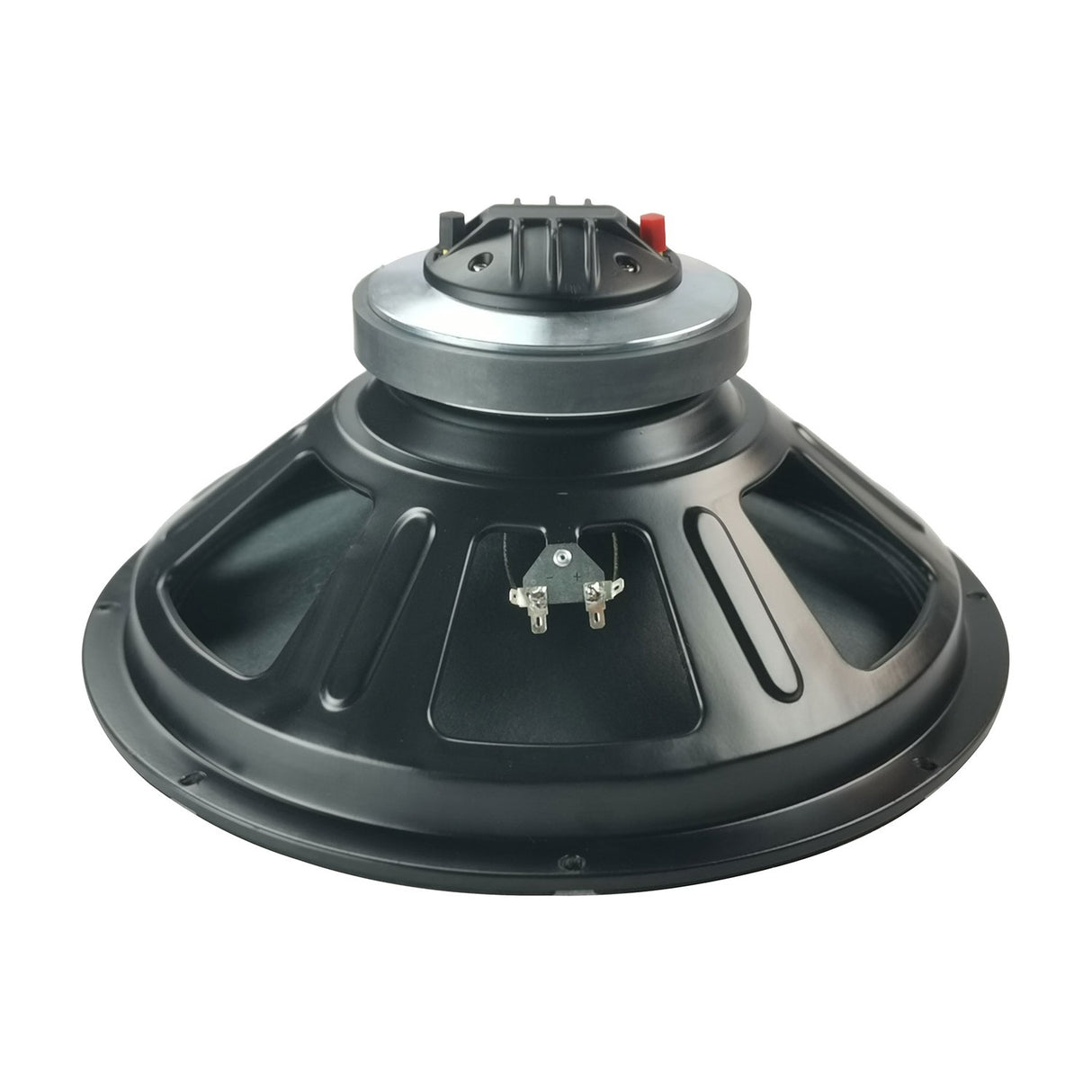

Citronic LFHF-CM15 15in Coaxial LF+HF Speaker Driver

£11499
RRP £14900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Citronic LFHF-CM15 is a dual coaxial driver built for full range cabinets. It pairs a high power 15 inch main woofer with a concentric tweeter (high frequency driver), so both low and high frequencies come from a single point. The tweeter sits at the centre and is covered by a mesh dust cap, which keeps it protected while the woofer does the heavy lifting below.

Because the two drivers share the same axis, output stays phase aligned across the range. That makes this a sensible choice for foldback wedges and PA use, where you want clear, consistent sound whether you are standing right in front of the cabinet or off to one side. The driver handles 350W and comes in an 8ohm version for passive setups, with a 4ohm option suited to the CM active cabinets.

We supply the LFHF-CM15 as a direct replacement for the Citronic CM-series active and passive wedge monitors, so you can swap out a failed or tired driver without reworking the cabinet. If you run CM wedges for stage monitoring or general PA duties, this keeps them going and matches the original spec. Check whether your cabinet is active or passive before ordering, as this determines whether you need the 4ohm or 8ohm version.

Specification
Weight 5.05KG
Dimensions 185mm x 380mmØ
Frequency response 40Hz - 20kHz
Sensitivity 97dB (LF), 108dB (HF)
Power handling : max 700W (LF), 90W (HF)
Power handling : rms 350W (LF), 45W (HF)
Impedance 8 Ohm
HF driver 44mmØ (1.75") Ti compression driver
Main driver 380mmØ (15") reinforced paper cone
Frequently Asked

Should I choose the 4ohm or 8ohm version?

Use the 4ohm version for the CM active cabinets and the 8ohm version for the CM passive cabinets. Check your monitor before ordering.

What size is the woofer?

It is a 15 inch main woofer paired with a concentric high frequency driver on the same axis.

What power does it handle?

The driver is rated at 350W.

What does coaxial mean here?

Coaxial means the tweeter sits at the centre of the woofer, so low and high frequencies come from a single point and stay phase aligned.

Which cabinets does it fit?

It is a direct replacement for the Citronic CM-series active and passive wedge monitors.

Is it suitable for stage monitoring?

Yes. The phase aligned full range output suits foldback wedges as well as general PA applications.
