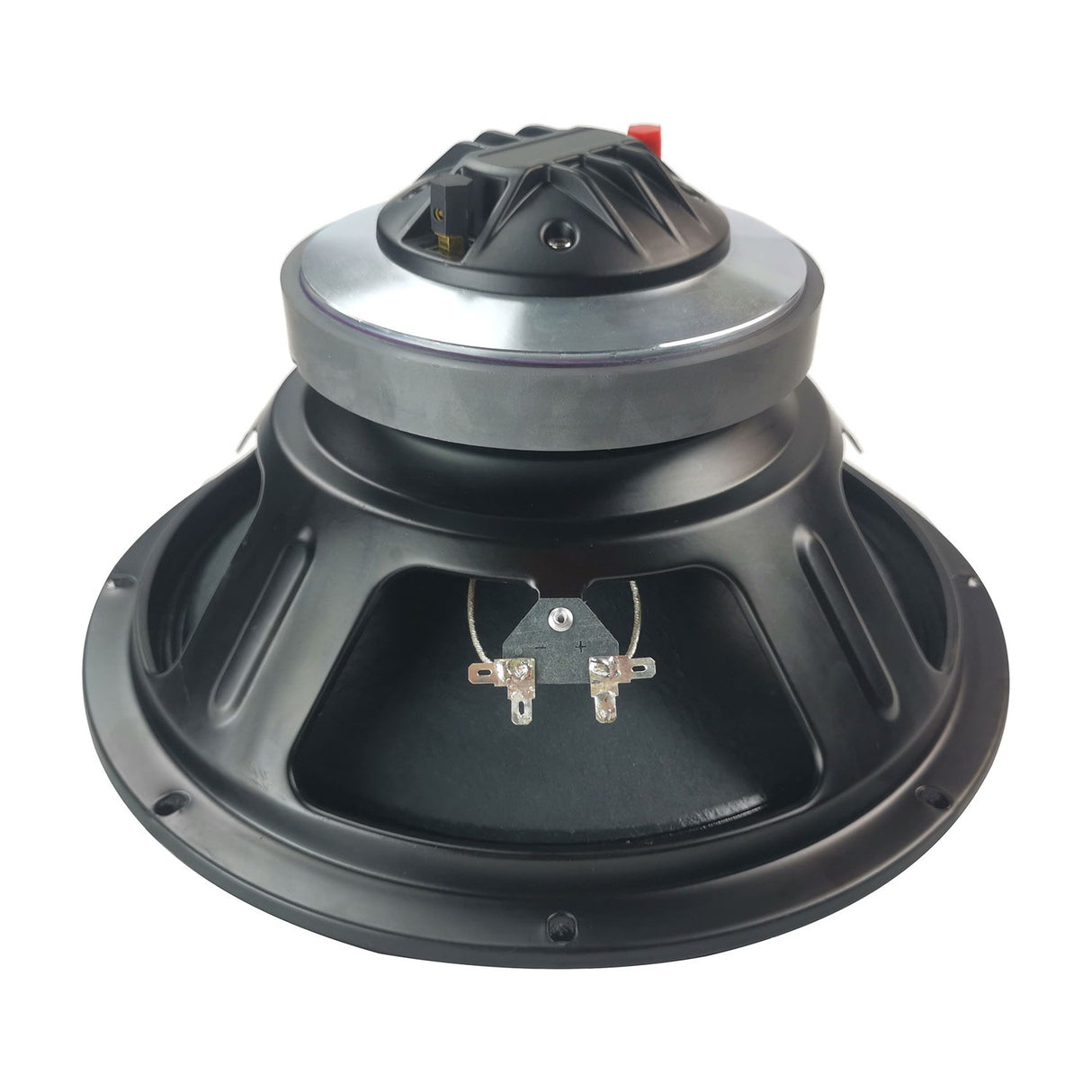

Citronic LFHF-CM12A 12in Coaxial LF+HF Driver

£10499
RRP £12900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Citronic LFHF-CM12A is a dual coaxial driver built around a high power 12 inch main woofer with a concentric high frequency tweeter driver. The tweeter sits behind a mesh dust cap at the centre of the cone, giving you full range output from a single unit. This is a direct replacement part for the CM-series active and passive wedge monitors, so it drops straight in when you need to service or repair a cabinet.

Because the low and high frequency sections share the same axis, the driver keeps phase alignment across its range. That makes it a sensible choice for foldback (stage monitor) and PA work, where you want consistent coverage and clear vocals without a separate horn cluttering the cabinet. The 300W handling gives you plenty of headroom for live use.

Impedance depends on which cabinet you are fitting. The 4ohm version suits the CM active wedges, while an 8ohm version is used for the CM passive models, so check your monitor before ordering. Fitting is straightforward for anyone comfortable working inside a speaker enclosure, and matching the original driver keeps the tuning and response of the cabinet as the maker intended.

Specification
Weight 4.70KG
Dimensions 165mm x 300mmØ
Frequency response 45Hz - 20kHz
Sensitivity 96dB (LF), 108dB (HF)
Power handling : max 600W (LF), 90W (HF)
Power handling : rms 300W (LF), 45W (HF)
Impedance 4 Ohm
HF driver 44mmØ (1.75") Ti compression driver
Main driver 300mmØ (12") reinforced paper cone
Frequently Asked

What is the LFHF-CM12A designed to replace?

It is a direct replacement driver for the Citronic CM-series active and passive wedge monitors.

What impedance should I choose?

Use the 4ohm version for CM active wedges and the 8ohm version for CM passive models. Check your cabinet before ordering.

What size is the woofer?

It is a 12 inch (12in) main woofer with a concentric high frequency driver mounted at the centre.

What is the power handling?

The driver is rated at 300W, giving good headroom for live PA and monitor use.

Why is it called a coaxial driver?

The tweeter shares the same axis as the woofer, sitting behind a mesh dust cap in the centre of the cone. This gives full range output and keeps the phase aligned.

Is it suitable for stage monitors?

Yes. The phase alignment makes it well suited to foldback (stage monitor) and general PA applications.
