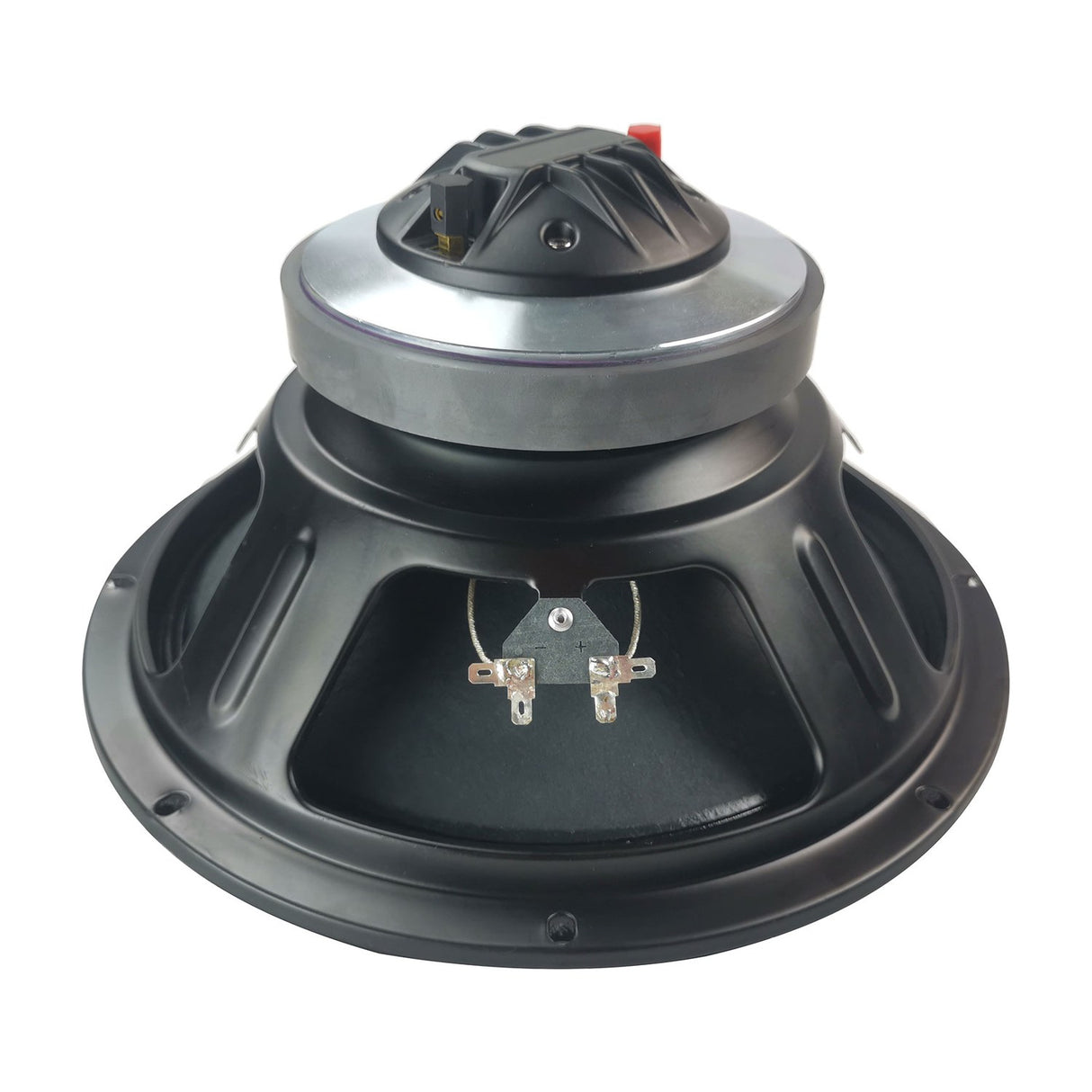

Citronic LFHF-CM12 Coaxial 12in Full Range Driver

£10499
RRP £12900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Citronic LFHF-CM12 is a dual coaxial speaker driver that pairs a high power main woofer with a concentric high frequency (HF) driver. The tweeter (US) or HF unit sits behind a mesh dust cap at the centre of the cone, so both frequency bands share the same acoustic axis. This gives you full range output from a single 12 inch driver, with phase alignment kept intact across the crossover point.

We supply this as a direct replacement for the CM-series active and passive wedge monitors. It handles 300W and comes in two impedance versions to suit your setup: 4ohm for CM active cabinets and 8ohm for CM passive cabinets. The coaxial layout works well for foldback (stage monitor) and PA duties, where a wide, even dispersion matters more than sheer size.

Because the woofer (US) or bass driver and the HF unit are concentric, you get a tighter, more coherent sound than you would from separate drivers spaced apart on a baffle. That coherence is useful on a monitor wedge, where the performer sits close to the cabinet and off-axis colouration can be a problem. If you are rebuilding or repairing a CM-series wedge, this driver drops straight in without any modification to the enclosure. Check the impedance on your existing cabinet before ordering so the replacement matches the amplifier or crossover already fitted.

Specification
Weight 4.70KG
Dimensions 165mm x 300mmØ
Frequency response 45Hz - 20kHz
Sensitivity 96dB (LF), 108dB (HF)
Power handling : max 600W (LF), 90W (HF)
Power handling : rms 300W (LF), 45W (HF)
Impedance 8 Ohm
HF driver 44mmØ (1.75") Ti compression driver
Main driver 300mmØ (12") reinforced paper cone
Frequently Asked

What impedance do I need?

Choose 4ohm for CM active cabinets and 8ohm for CM passive cabinets. Check your existing driver or cabinet spec before ordering.

Is this a direct replacement?

Yes. It is a direct replacement for the CM-series active and passive wedge monitors and fits without enclosure modification.

What size is the driver?

It is a 12 inch coaxial driver with a main woofer and a concentric HF unit.

What is the power handling?

The driver handles 300W.

What applications is it suited to?

It is designed for foldback (stage monitoring) and PA use, giving full range output with phase alignment.

Why coaxial rather than separate drivers?

A coaxial layout keeps both frequency bands on the same axis, giving more coherent sound and better off-axis behaviour, which helps on close-range monitor wedges.
