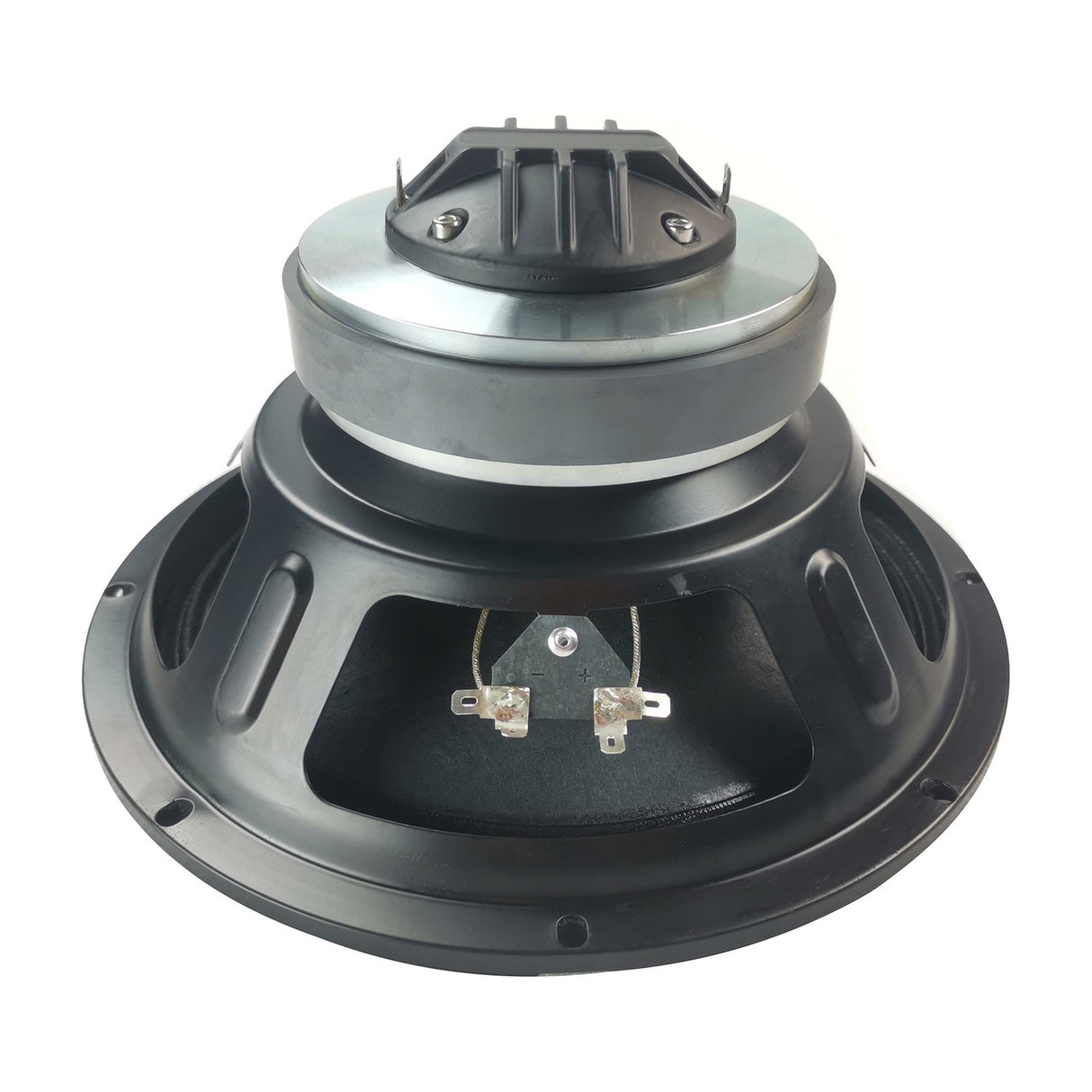

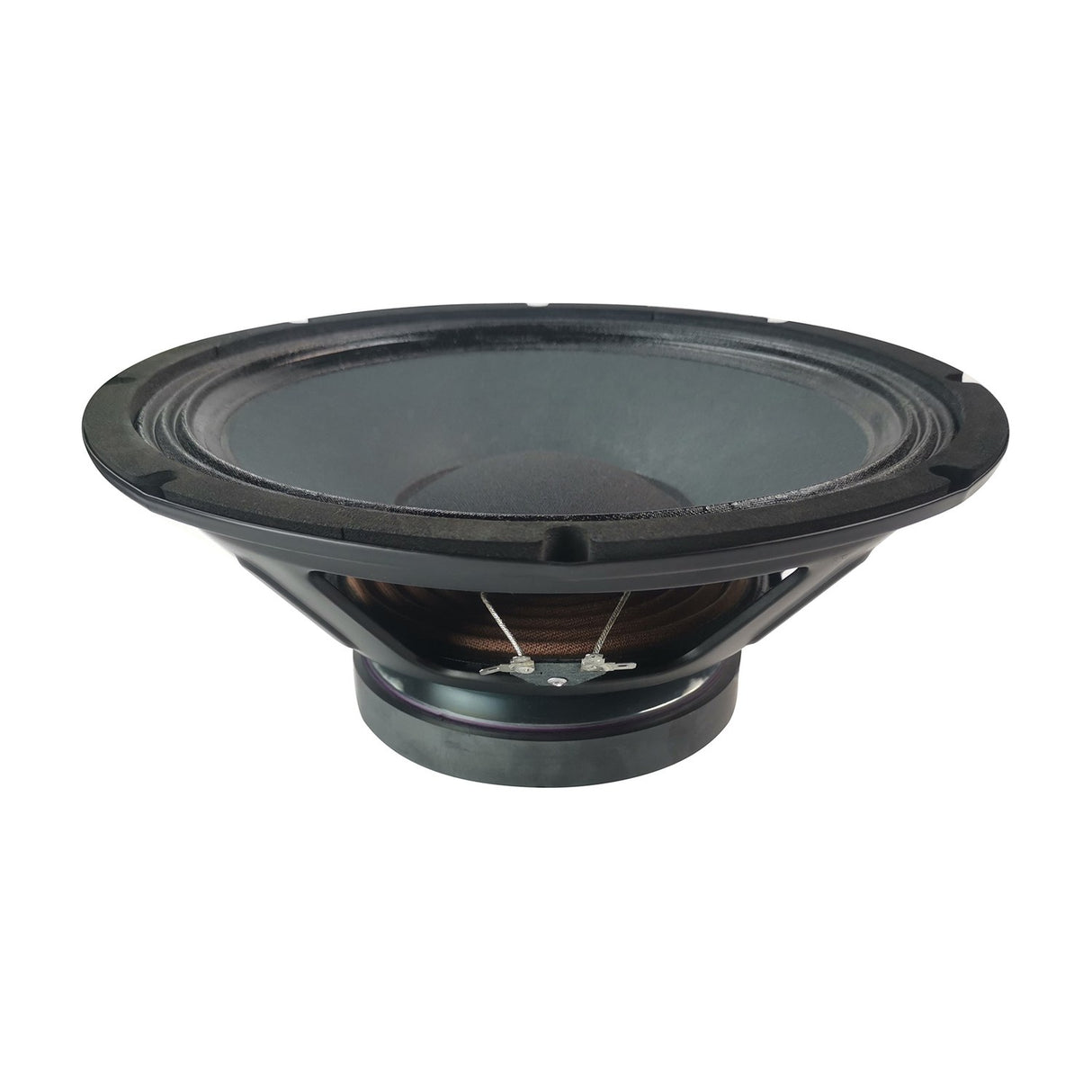

Citronic LFHF-CM10A Coaxial 10in Full Range Driver

£11299
RRP £11900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Citronic LFHF-CM10A is a dual coaxial driver built around a high power main woofer with a concentric tweeter (called a treble driver or HF driver) mounted at its centre. The tweeter is covered by a mesh dust cap, giving you full range output from a single unit. It is rated at 250W and comes in a 4ohm version for CM active cabinets.

This driver is a direct replacement for the CM-series active and passive wedge monitors, so it drops straight into those cabinets without modification. The 10in size suits compact foldback and PA use, and the coaxial layout keeps the low and high frequencies aligned on the same axis. That phase alignment helps the sound stay coherent whether you are standing right in front of the monitor or off to one side.

Because the woofer and tweeter share a single point, you get consistent coverage without the timing differences you can find in separately mounted drivers. This makes the LFHF-CM10A a sensible choice for foldback (stage monitor) work or general PA duties where space is tight. Note the impedance: use the 4ohm option for CM active cabinets and the 8ohm version for CM passive cabinets, so check which you need before ordering. As a like-for-like spare it saves you sourcing matched woofer and tweeter units separately, keeping repairs straightforward.

Specification
Weight 1.80KG
Dimensions 165mm x 250mmØ
Frequency response 50Hz - 20kHz
Sensitivity 94dB (LF), 106dB (HF)
Power handling : max 500W (LF), 80W (HF)
Power handling : rms 250W (LF), 40W (HF)
Impedance 4 Ohm
HF driver 44mmØ (1.75") Ti compression driver
Main driver 250mmØ (10") reinforced paper cone
Frequently Asked

What impedance do I need?

Use the 4ohm version for CM active cabinets and the 8ohm version for CM passive cabinets. Check which cabinet you have before ordering.

Is this a direct replacement?

Yes. The LFHF-CM10A is a direct replacement for the Citronic CM-series active and passive wedge monitors and fits without modification.

What does coaxial mean here?

The main woofer and a concentric tweeter share the same central point, so low and high frequencies stay aligned on one axis for coherent sound.

What is the power rating?

This driver is rated at 250W, suited to compact foldback and PA applications.

What size is the woofer?

It is a 10 inch (10in) woofer with a coaxial HF driver at its centre, covered by a mesh dust cap.

Can I use it for stage monitoring?

Yes. It suits foldback, also called stage monitoring, as well as general PA use where full range output from a single driver is needed.
