Citronic HFCASA-15/15A 44mm Titanium HF Compression Driver

£2699
RRP £2799
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

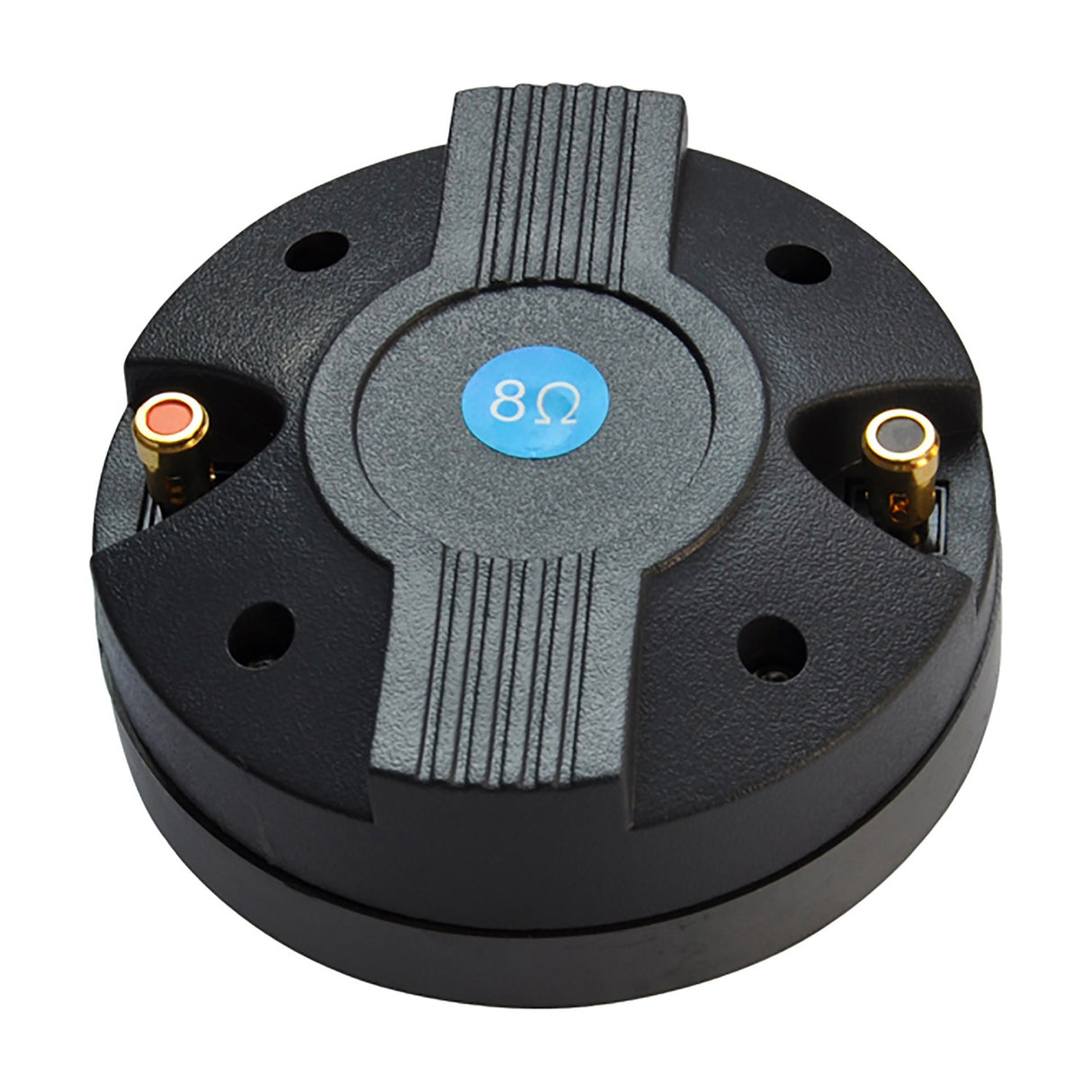

The Citronic HFCASA-15/15A is a high frequency titanium compression driver built as a direct replacement for the CASA series full range active cabinets. If a tweeter in one of these speakers has failed or lost output, this driver drops in without any modification, so you can get a working PA cabinet back into service quickly. The titanium diaphragm measures 44mm (1.75") and handles 60W RMS.

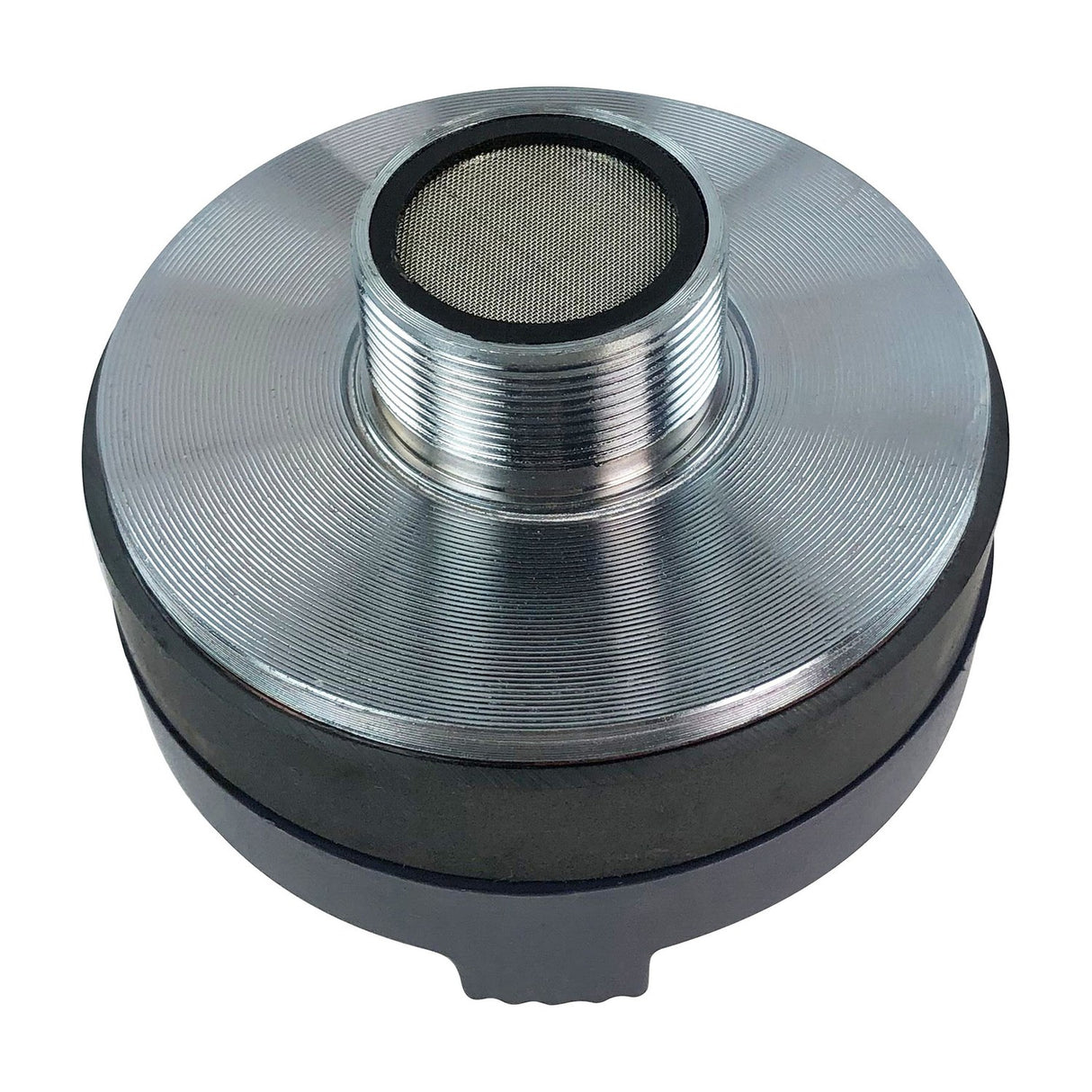

The driver uses a standard 34mm diameter threaded exit, which lets it couple directly with the tweeter flare (also called a horn) already fitted in your cabinet. The throat measures 25mm diameter (1") and the unit runs at 8 Ohms, matching the crossover network in full range PA speakers. This combination is designed for accurate high frequency reproduction across vocals, cymbals and other detail that sits at the top of the audio range.

Compression drivers work by pushing sound through a narrow throat before it reaches the flare, which raises efficiency and output compared with an ordinary dome tweeter. That makes them well suited to live sound and other jobs where you need volume without distortion. We supply the HFCASA-15/15A as a straight swap part, so if you are maintaining or repairing Citronic CASA cabinets you have the correct spare to hand. Check your existing driver against the throat, thread and impedance figures before ordering to confirm the fit.

Specification
Weight 1.65KG
Dimensions 68mm x 115mmØ
Sensitivity @ 1W/1m 110dB
Diaphragm Titanium
Magnet Ceramic
Voice coil 44.4mmØ (1.75")
Frequency response 600Hz - 20kHz
Power handling : max 120W
Power handling : rms 60W
Throat 25mmØ (1")
Impedance 8 Ohm
Thread 34mmØ
Frequently Asked

Which speakers does this driver fit?

It is a direct replacement for the Citronic CASA series full range active cabinets. Check the throat, thread and impedance against your existing driver to confirm compatibility.

What is the power handling?

The driver handles 60W RMS. This suits the high frequency section of a full range PA cabinet fed through its crossover.

What thread and throat size does it use?

It has a standard 34mm diameter threaded exit and a 25mm diameter (1") throat, so it couples directly with the tweeter flare in your cabinet.

What impedance is the driver?

It is rated at 8 Ohms, matching the crossover network in full range PA speakers.

What is a compression driver?

It is a high frequency unit that pushes sound through a narrow throat into a horn or flare. This raises efficiency and output compared with a standard dome tweeter.

Is the diaphragm titanium?

Yes, the 44mm (1.75") diaphragm is titanium, which helps with accurate high frequency reproduction and durability.
