Description

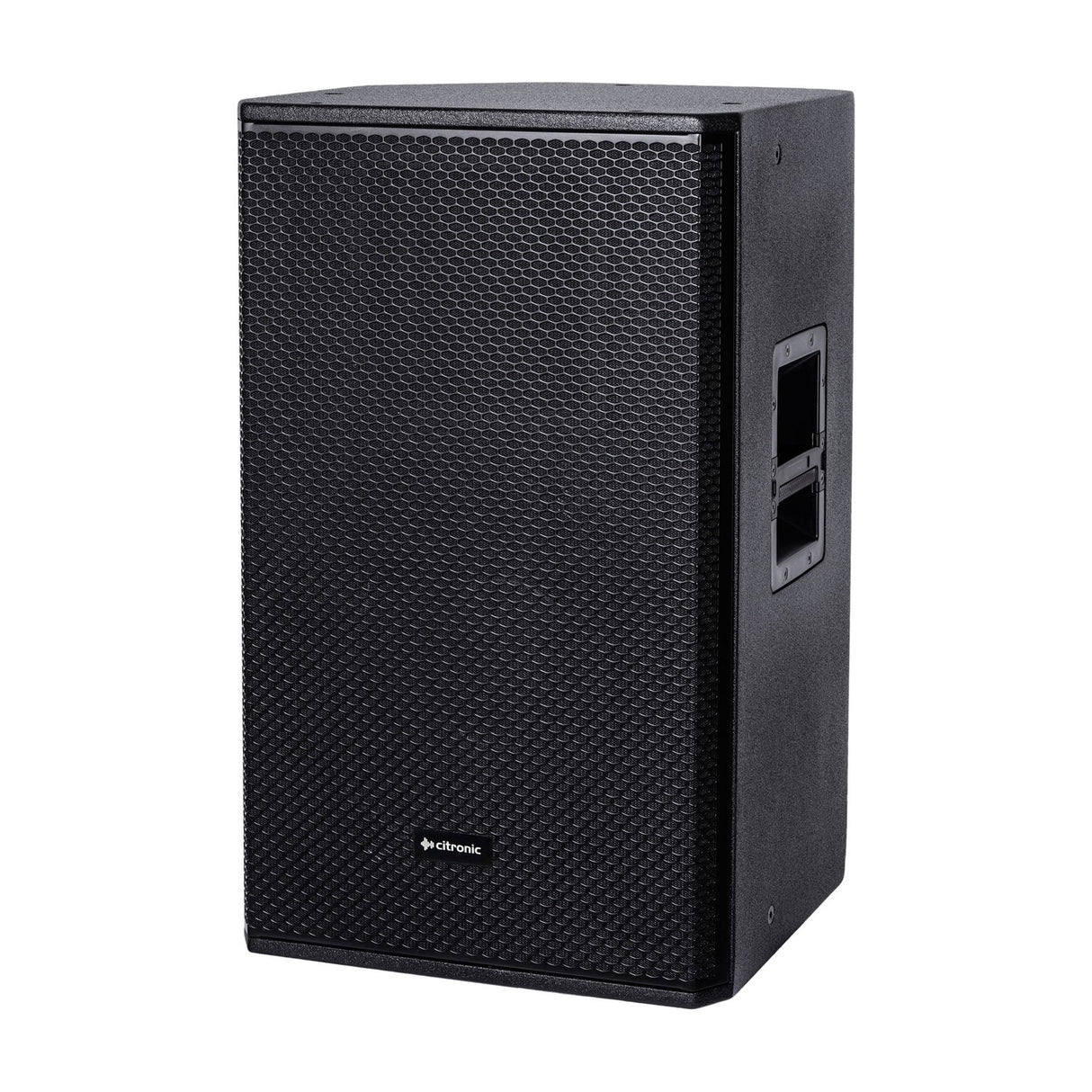

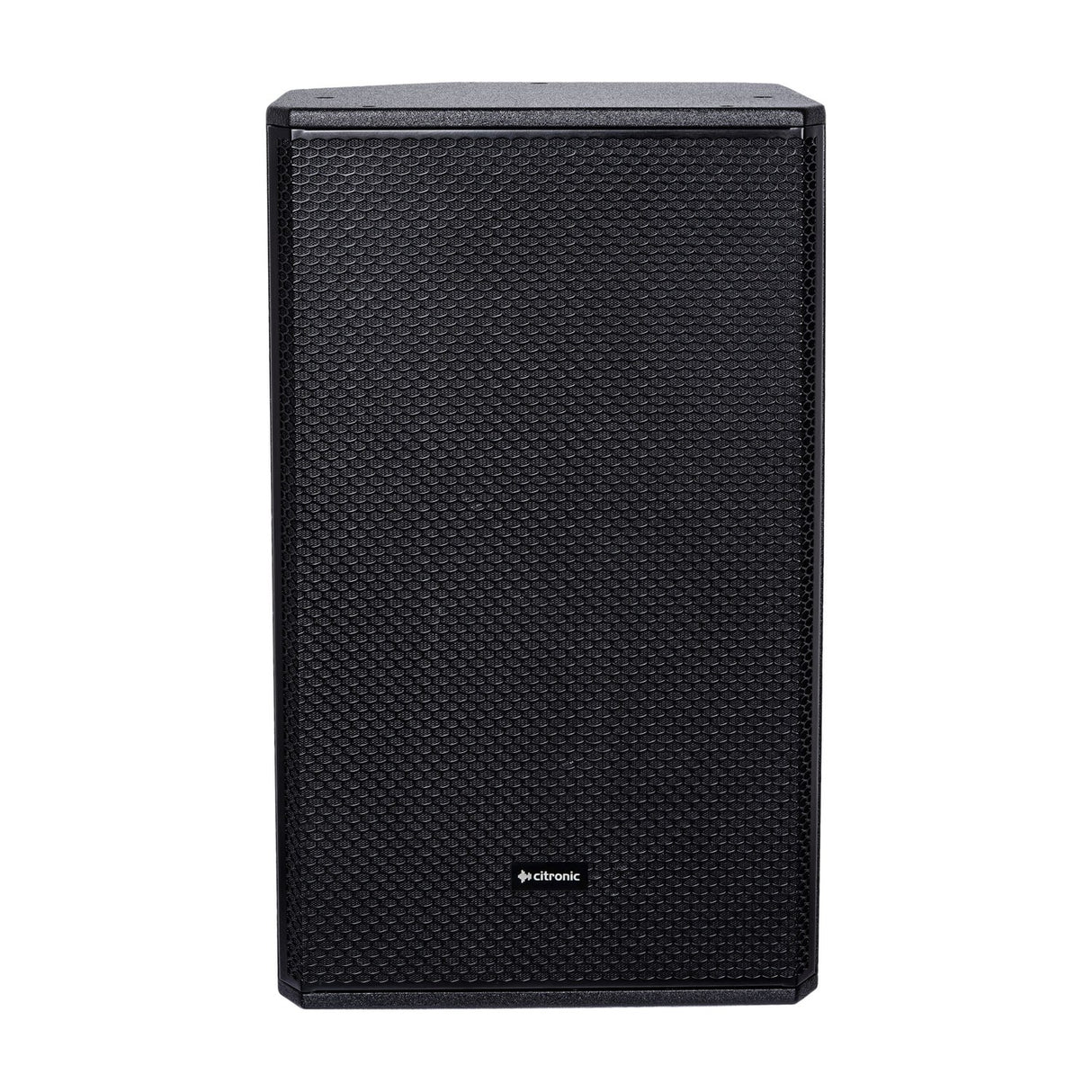

The Citronic CORVA-15A is a high power active PA cabinet built for serious sound reinforcement. It delivers 900W of output and offers more than twice the power of our CUBA range, making it suited to outdoor events, fixed installations, and large scale professional hire. Specially developed heavy duty driver components handle high SPL levels, while the sturdy plywood enclosure with a polyurea finish stands up to regular use on the road.

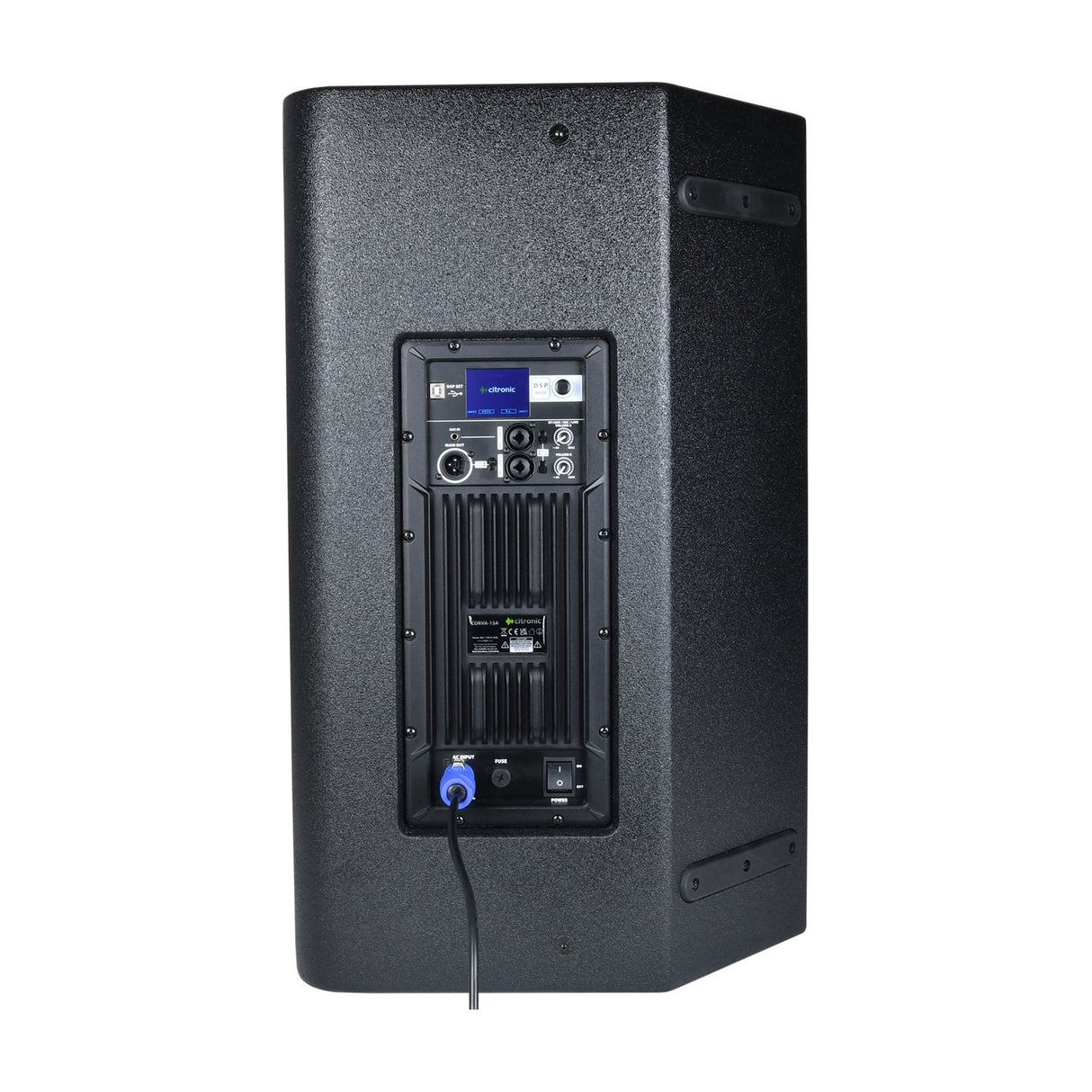

At the heart of the cabinet is an inbuilt high power Class-D amplifier under DSP control. A menu driven display in colour gives quick access to EQ, dynamics, and gain settings, so you can dial in the sound on site. For more detailed work, a USB-PC interface lets you edit, test, and save custom DSP profiles from a computer. Inputs cover 2 x Mic/Line on combined XLR and 6.3mm jack sockets plus an Aux input on 3.5mm, with an XLR line output for linking cabinets together.
Rigging and mounting are straightforward. The CORVA-15A includes 12 x M8 flying points for suspended installs, along with a 35mm pole socket for stand mounting or stacking. The main driver and HF driver both run at 8 ohms. Built for long-term reliability, this cabinet gives you flexible, powerful performance whether you are running a hire stock or a permanent setup. In the US these are often called PA speakers or powered loudspeakers; here we refer to them as active PA cabinets.
Specification
| Weight |
33.00KG |
| Dimensions |
715mm x 440mm x 410mm |
| SPL max. |
132dB |
| Sensitivity @ 1W/1m |
100dB |
| Frequency response |
45Hz - 20kHz |
| Output power : max. |
1800W |
| Output power : rms |
900W |
| HF driver |
75mmØ (3") Ti compression driver |
| Main driver |
380mmØ (15") with 100mm voice coil |
| Fuse rating |
T10AL |
| Power supply |
100-240Vac, 50/60Hz (Powercon) |
| Inputs |
2 x Mic/Line (XLR/6.3mm) + Aux (3.5mm) |
| Line output |
XLR |
| Amplifier : construction |
Class-D, DSP controlled |
| Impedance |
8 Ohm (main driver and HF driver) |
Downloads
Product Manual
Frequently Asked
How much power does the CORVA-15A deliver?
It delivers 900W from its inbuilt high power Class-D amplifier, more than twice the power of our CUBA range.
Can I mount it on a speaker pole?
Yes. It has a 35mm socket for pole mounting or stacking, plus 12 x M8 flying points for suspended rigging.
What inputs and outputs does it have?
There are 2 x Mic/Line inputs on XLR and 6.3mm jack, an Aux input on 3.5mm, and an XLR line output for linking cabinets.
Can I adjust the sound settings?
Yes. The DSP is controlled through a menu driven colour display for EQ, dynamics, and gain, and a USB-PC interface lets you save custom profiles.
Is it suitable for outdoor use?
Yes. The plywood enclosure has a polyurea finish for durability, making it suited to outdoor events, fixed installations, and hire.
What is the impedance of the drivers?
Both the main driver and HF driver run at 8 ohms.
