Description

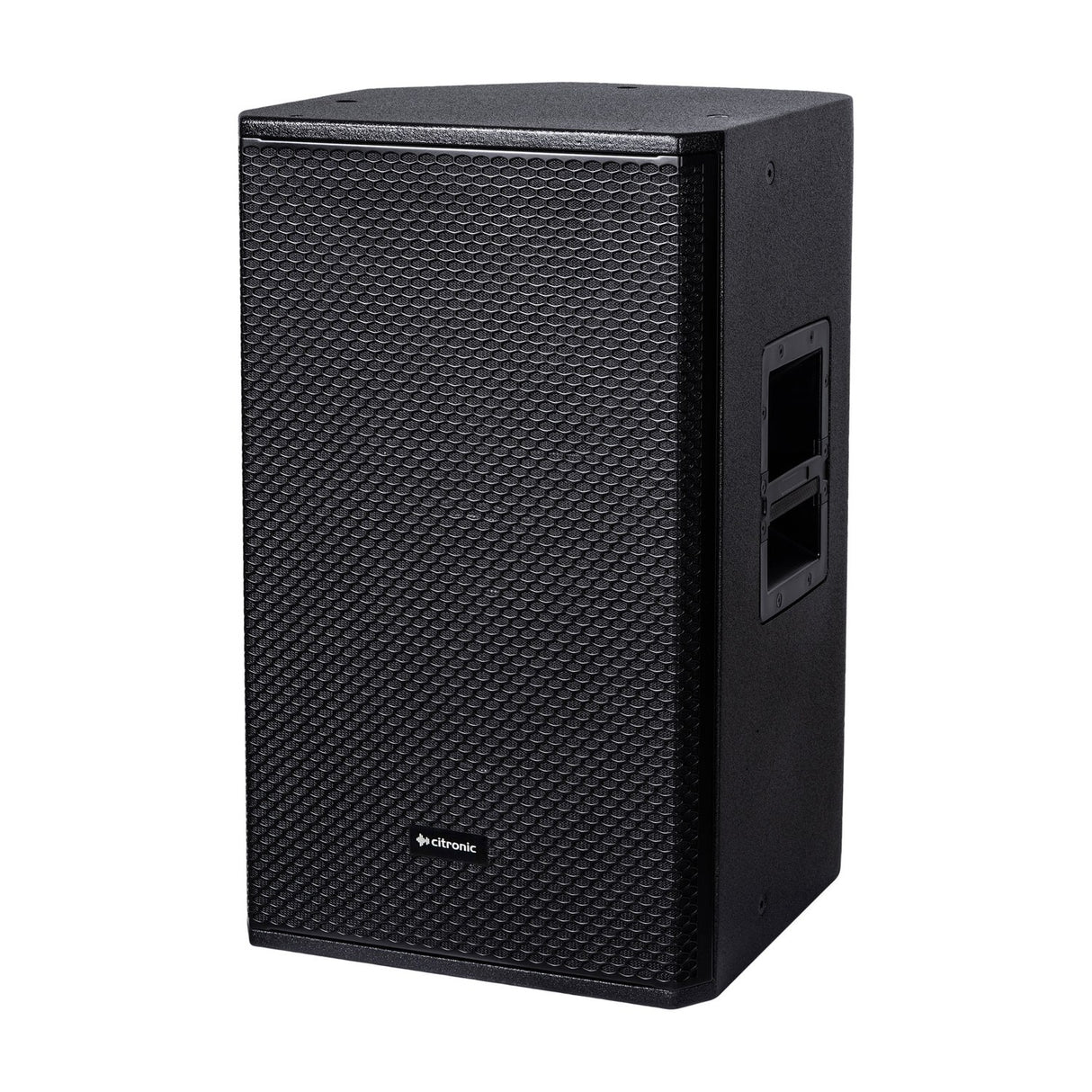

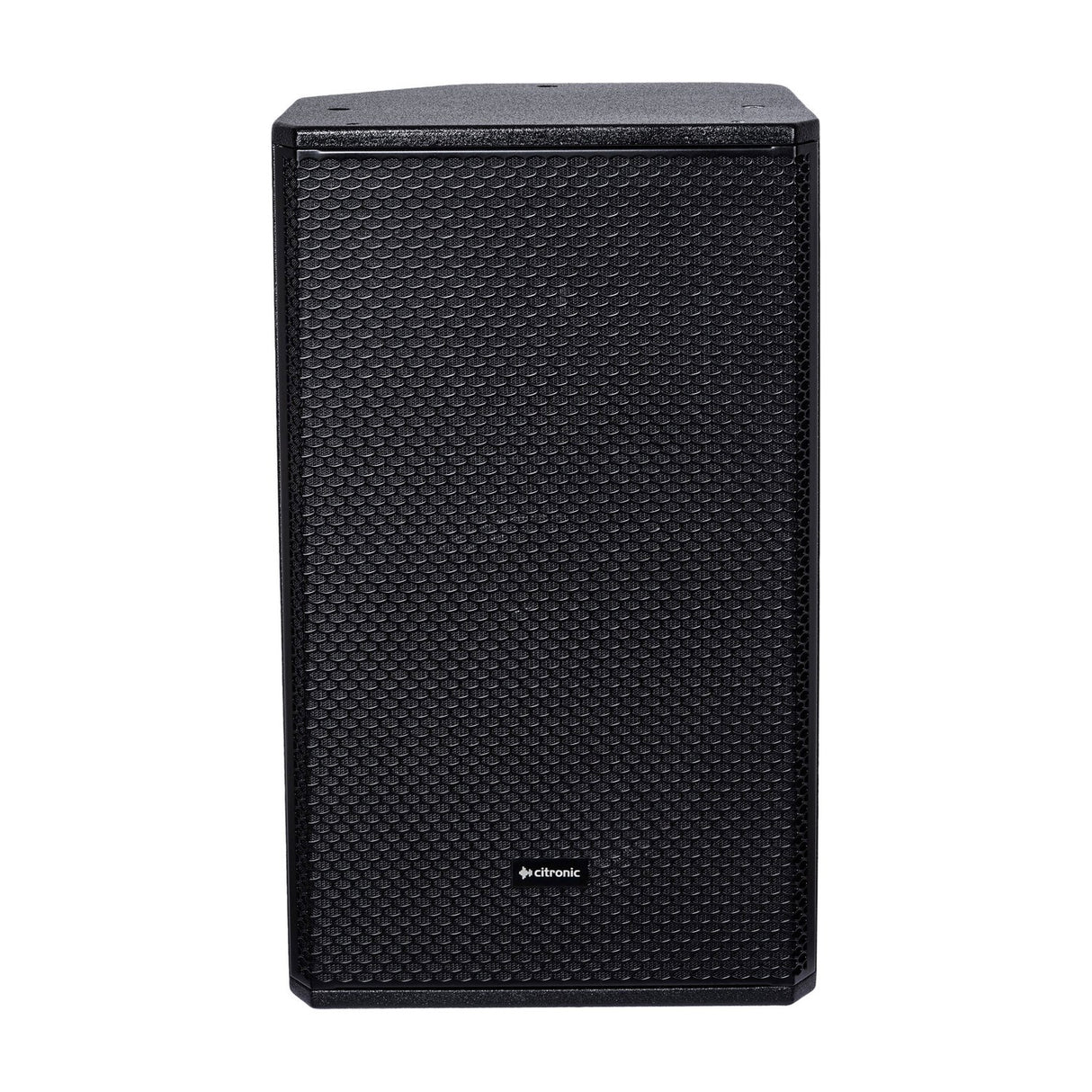

The CORVA-12 is a passive full-range PA cabinet built for larger installations and events where high volume and clarity matter. It handles 700W RMS and uses custom heavy-duty driver components developed for this range, so it copes well with the output of high-powered amplifiers. Because it's passive, you'll need a separate amplifier to drive it, which gives you the freedom to match power to the job rather than being tied to a fixed onboard amp.

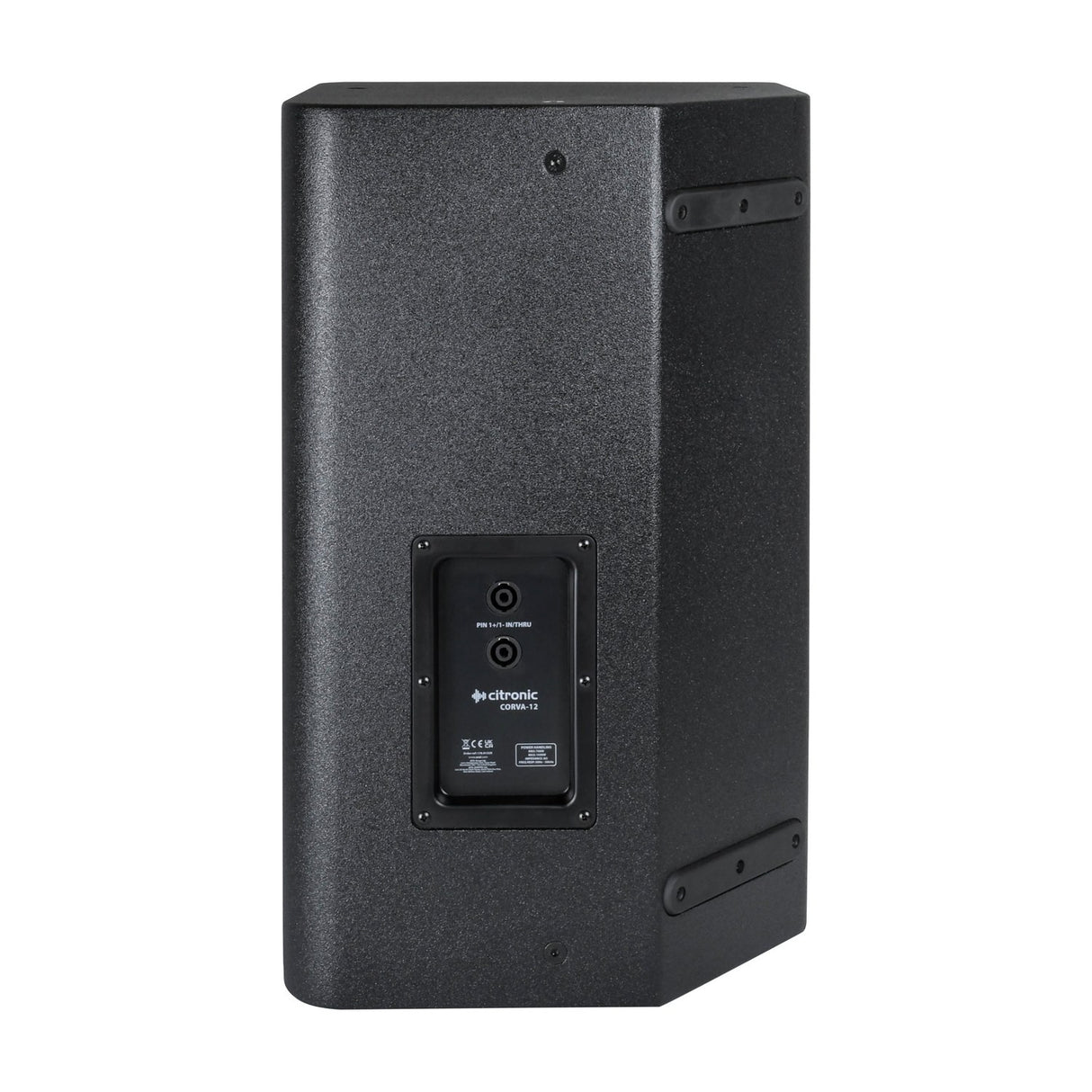

The enclosure is made from 15mm plywood with a polyurea finish, a hard-wearing coating that stands up to knocks on the road and in busy venues. Two parallel Speakon-style SPK sockets let you daisy-chain cabinets or feed the signal onward, and the nominal impedance is 8 ohms. Integral handles make lifting and positioning straightforward, and the finish keeps the cabinet looking tidy through repeated use.
Mounting is flexible. You can stack the cabinets, use the pole-mount socket to raise them on a stand (pole in UK English, sometimes called a speaker pole in the US too), or fly them at height using the 12 integrated M8 flying points. That range of options suits mobile setups, fixed installs and stage work alike. Paired with the right amplification, the CORVA-12 gives reliable, concert-level performance for professionals who need precision and durability from their rig.
Specification
| Weight |
25.00KG |
| Dimensions |
640mm x 380mm x 370mm |
| SPL max. |
130dB |
| Sensitivity @ 1W/1m |
99dB |
| Frequency response |
50Hz - 20kHz |
| Power handling : max |
1400W |
| Power handling : rms |
700W |
| HF driver |
75mmØ (3") Ti compression driver |
| Main driver |
300mmØ (12") with 100mm voice coil |
| Construction |
15mm plywood with polyurea finish |
| Input |
2 x parallel SPK socket |
| Impedance |
8 Ohm (nominal) |
Frequently Asked
Does the CORVA-12 need a separate amplifier?
Yes. It's a passive cabinet, so you'll need an external amplifier to drive it. Match the amp to the 700W RMS rating and 8 ohm impedance for best results.
What power can it handle?
The CORVA-12 handles 700W RMS, which suits high-powered amplification for larger rooms and outdoor events.
How can I mount the cabinet?
You can stack it, pole-mount it using the integral socket, or fly it at height via the 12 built-in M8 flying points.
What connectors does it use?
It has two parallel SPK (Speakon-style) sockets, so you can link multiple cabinets or pass the signal through.
What is the enclosure made from?
The cabinet is built from 15mm plywood with a polyurea finish, which is tough enough for regular transport and heavy use.
What is the impedance?
The nominal impedance is 8 ohms. Check this against your amplifier's specification when planning your setup.
