Citronic CL22 Stereo Compressor/Limiter/Gate

£12699
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

The CL22 is a professional 19" compressor/limiter/gate designed to control the dynamic range of the signal, allowing more overall sound volume before distortion. An enhancer on each channel helps restore high frequencies under heavy compression. Also useful for protecting loudspeakers by curtailing the output once it reaches a preset threshold level. The gate helps to reduce noise in silent passages.

  • Dual or stereo linked compressor/limiter
  • Expander/gate on each channel
  • Variable or Auto attack/release times
  • Enhancer on each channel
  • Balanced and unbalanced inputs and outputs
  • Bypass switch for processed/unprocessed comparison
  • LED attenuation meters
Specification
Power supply 115/230Vac, 50/60Hz (IEC)
Connectors : bal/unbal XLR or 6.3mm jack inputs and outputs L+R
Input impedance : balanced 50k Ohms
Input impedance : unbalanced 25k Ohms
Output impedance 60 Ohms
Operating level +4dBu/-10dBV, switchable
Frequency response 20Hz-20kHz (+0/-0.5dB)
Signal to noise ratio >95dBu
Crosstalk <100dB
THD 0.04% @ +4dBu 1kHz
Dimensions 482 x 44 x 180mm
Weight 3.2kg
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

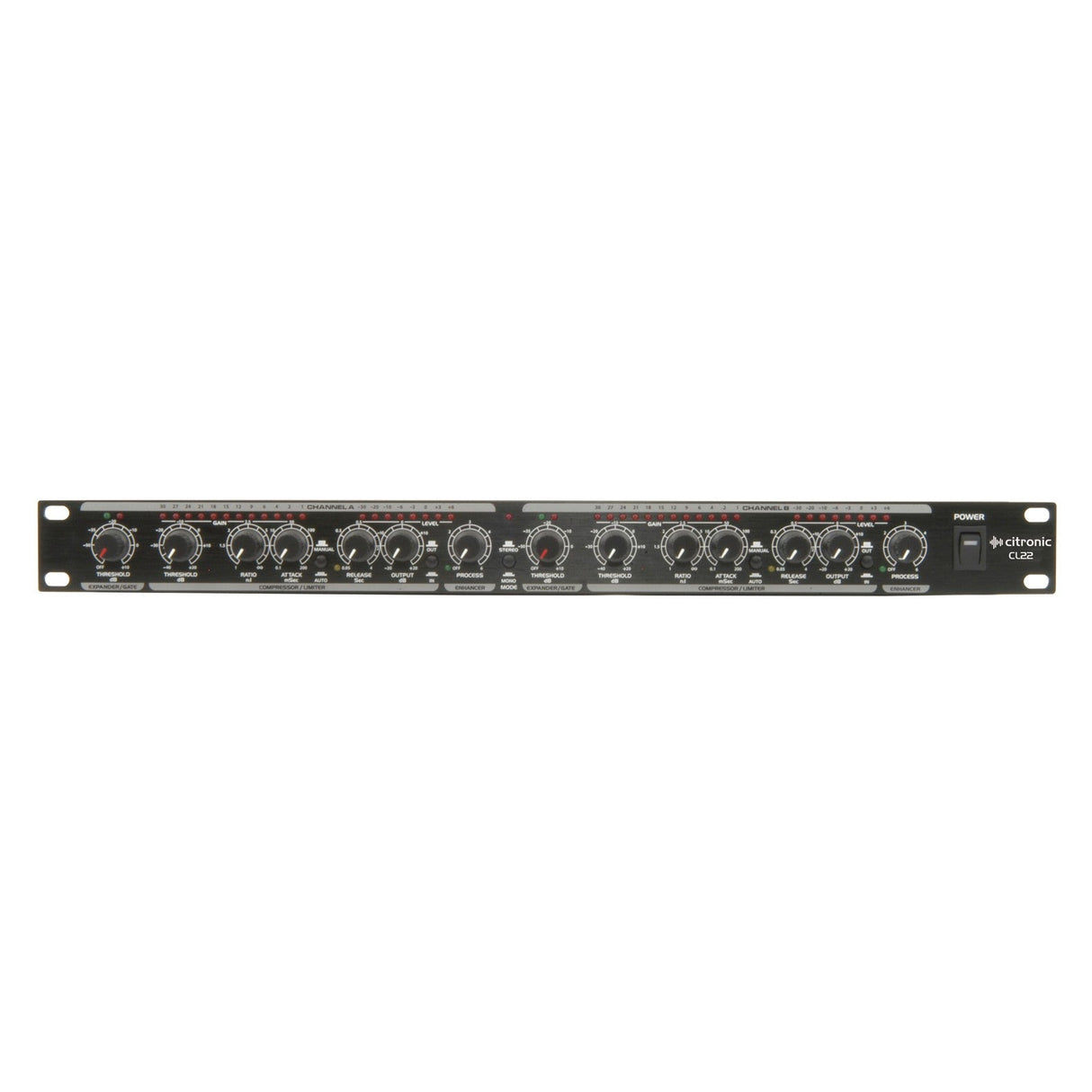

    Image of a Citronic CL22 Stereo Compressor/Limiter/Gate, designed for dynamic range control and noise reduction. It features two rows of knobs, meters, and switches on a black panel, perfect for precise audio signal processing.
