Citronic CEQ231 Dual 31-band Graphic Equaliser

£17999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

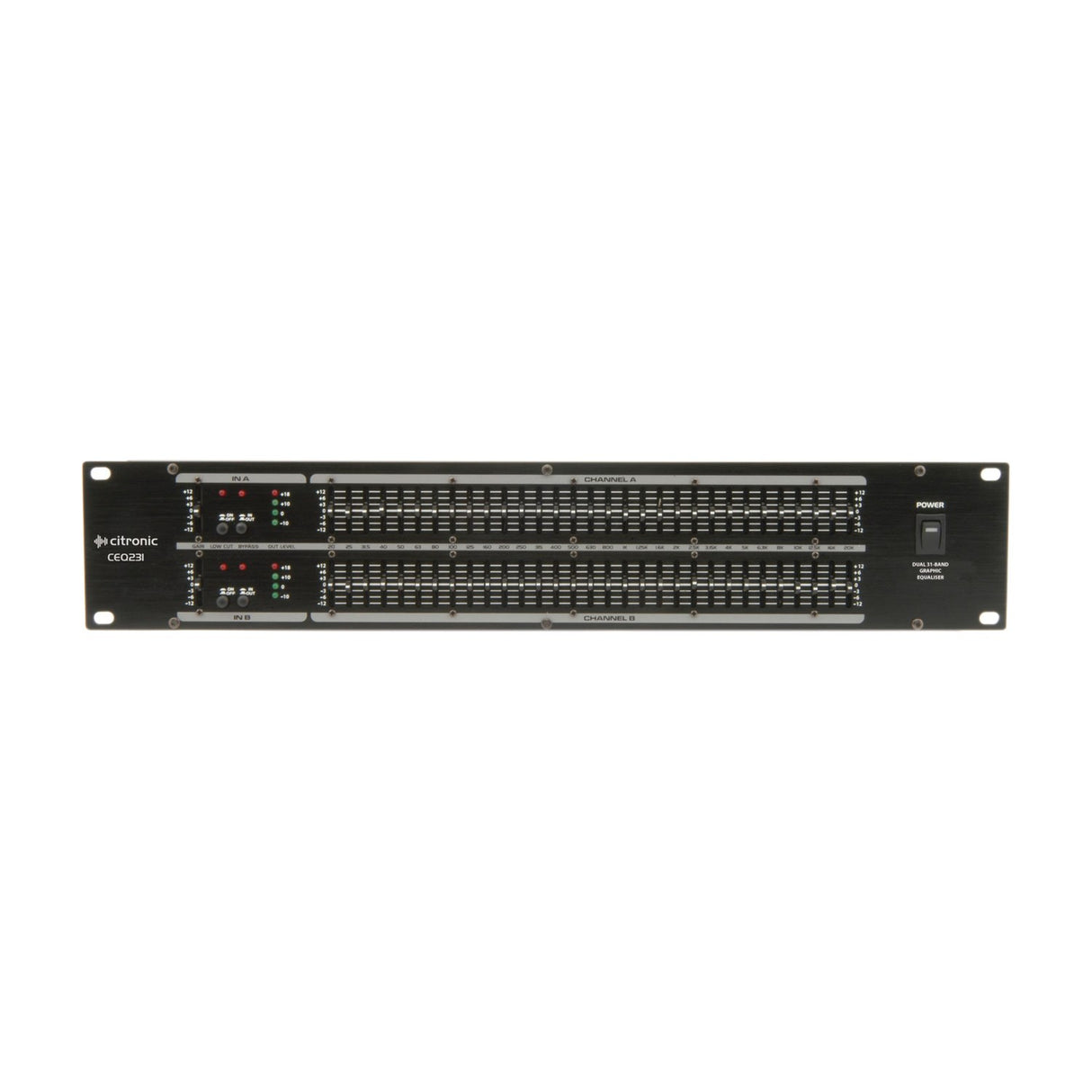

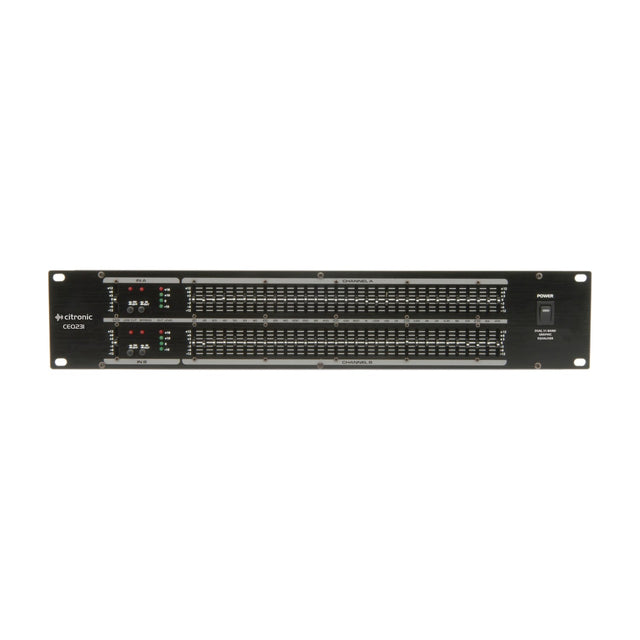

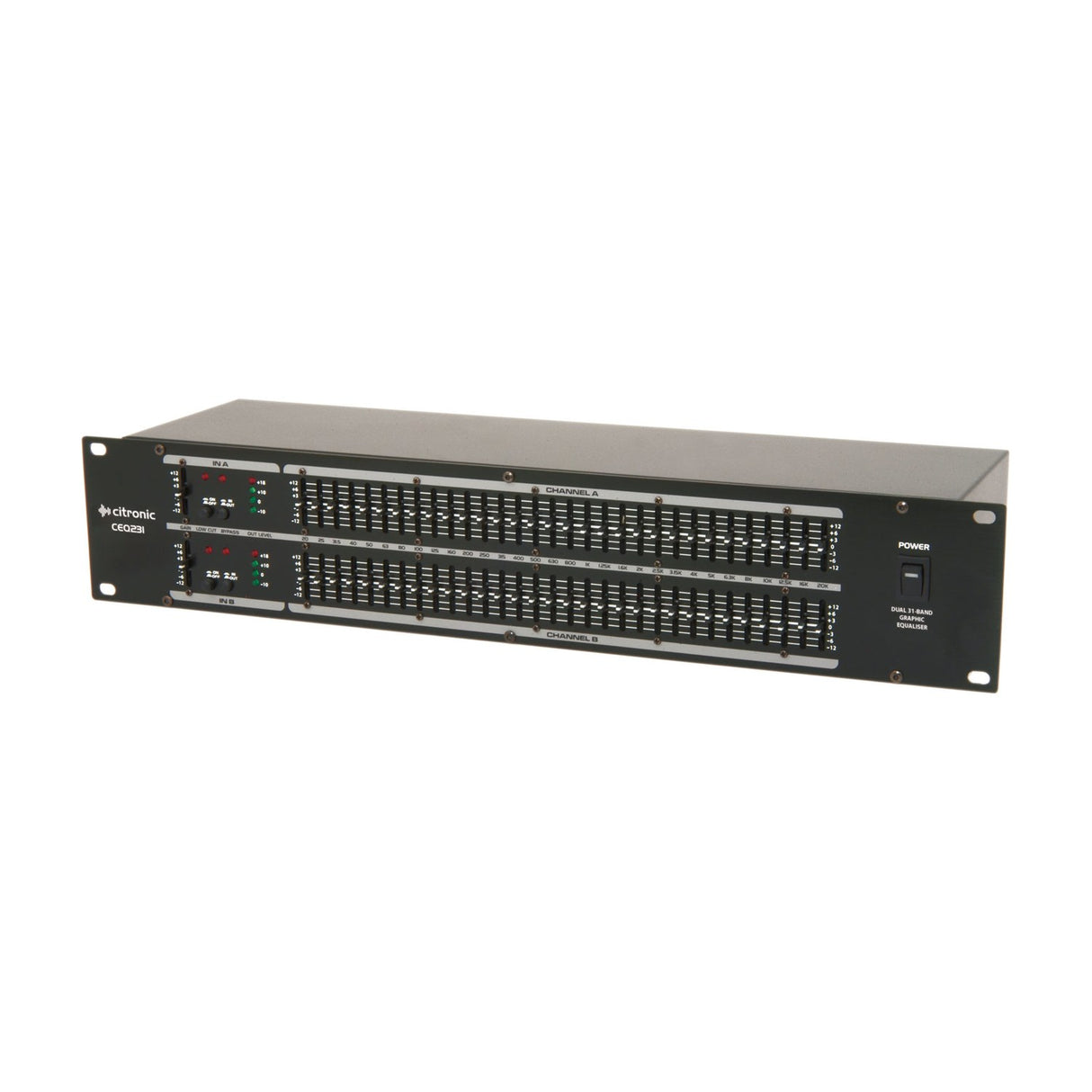

The Citronic CEQ231 is a dual 31-band graphic equaliser (EQ) built into a 19" 2U rackmount chassis. Each of the two channels gives you 31 faders set at 1/3 octave ISO spacing, so you can adjust labelled frequencies across the full 20Hz to 20kHz range. Every band offers up to 12dB of cut or boost, letting you shape the sound of a system with a fair amount of control while keeping each adjustment clear and repeatable.

Both channels use RF filtered, servo-balanced inputs to help keep unwanted noise out of the signal path. Constant Q on each band means the width of each filter stays consistent whether you cut or boost, so the changes you make behave predictably. There's a bypass switch for quick A/B comparison between your EQ setting and the flat signal, plus a low-cut switch on each channel to roll off low-frequency rumble. A gain control per channel lets you match levels, and LED VU meters give you a visual reference for what's passing through.

The CEQ231 runs from a 115/230Vac supply via IEC and covers a frequency response of 20Hz to 20kHz. Balanced input impedance is 40k ohms, unbalanced is 20k ohms, with output impedance of 330 ohms balanced or unbalanced. Channel separation is greater than 50dB, signal to noise ratio is over 102dB and THD sits at 0.005%. The unit measures 482 x 88 x 139mm and weighs 3.3kg, making it a practical choice for live sound, install work or fixed PA setups where a graphic EQ across two channels is needed.

Specification
Power supply 115/230Vac, 50/60Hz (IEC)
Frequency response 20Hz-20kHz
Input impedance : balanced 40k Ohm
Input impedance : unbalanced 20k Ohm
Output impedance : bal/unbal 330 Ohm
Channel separation >50dB
Signal to noise ratio >102dB
THD 0.005%
Dimensions 482mm x 88mm x 139mm
Weight 3.30KG
Downloads

Product Manual

Frequently Asked

How many bands does each channel have?

Each of the two channels has 31 bands at 1/3 octave ISO spacing, covering 20Hz to 20kHz.

How much cut or boost is available per band?

Each band gives up to 12dB of cut or boost, so you can lift or reduce individual frequencies as needed.

What does the bypass switch do?

The bypass switch lets you compare your EQ setting against the flat signal, so you can hear the effect of your adjustments quickly.

Are the inputs balanced?

Yes, the inputs are RF filtered and servo-balanced. Balanced input impedance is 40k ohms and unbalanced is 20k ohms.

How much rack space does it need?

The CEQ231 fits a standard 19" rack and takes up 2U of height, measuring 482 x 88 x 139mm.

What is the low-cut switch for?

The low-cut switch on each channel rolls off low-frequency rumble, which is useful for cleaning up the bottom end of a signal.
