Description

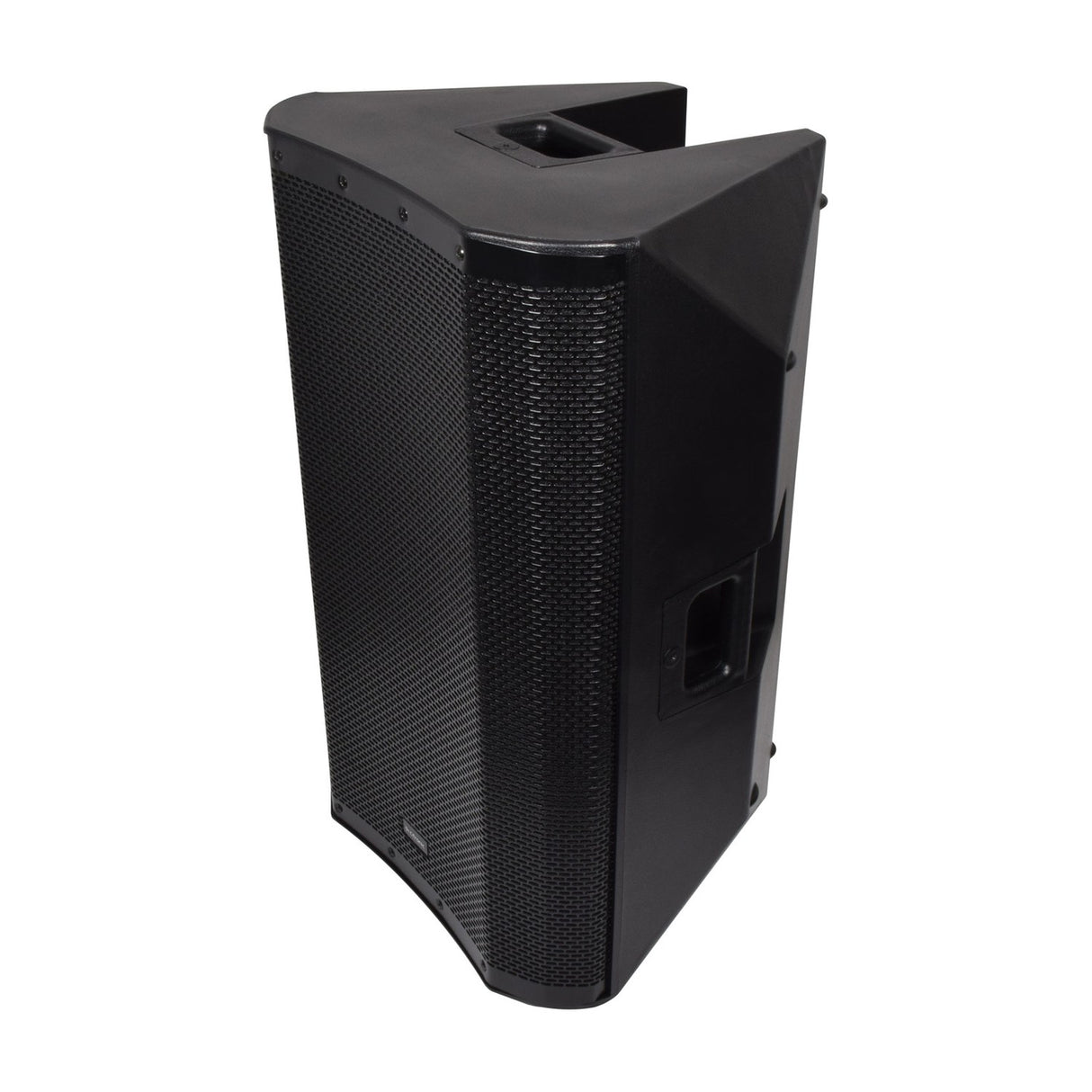

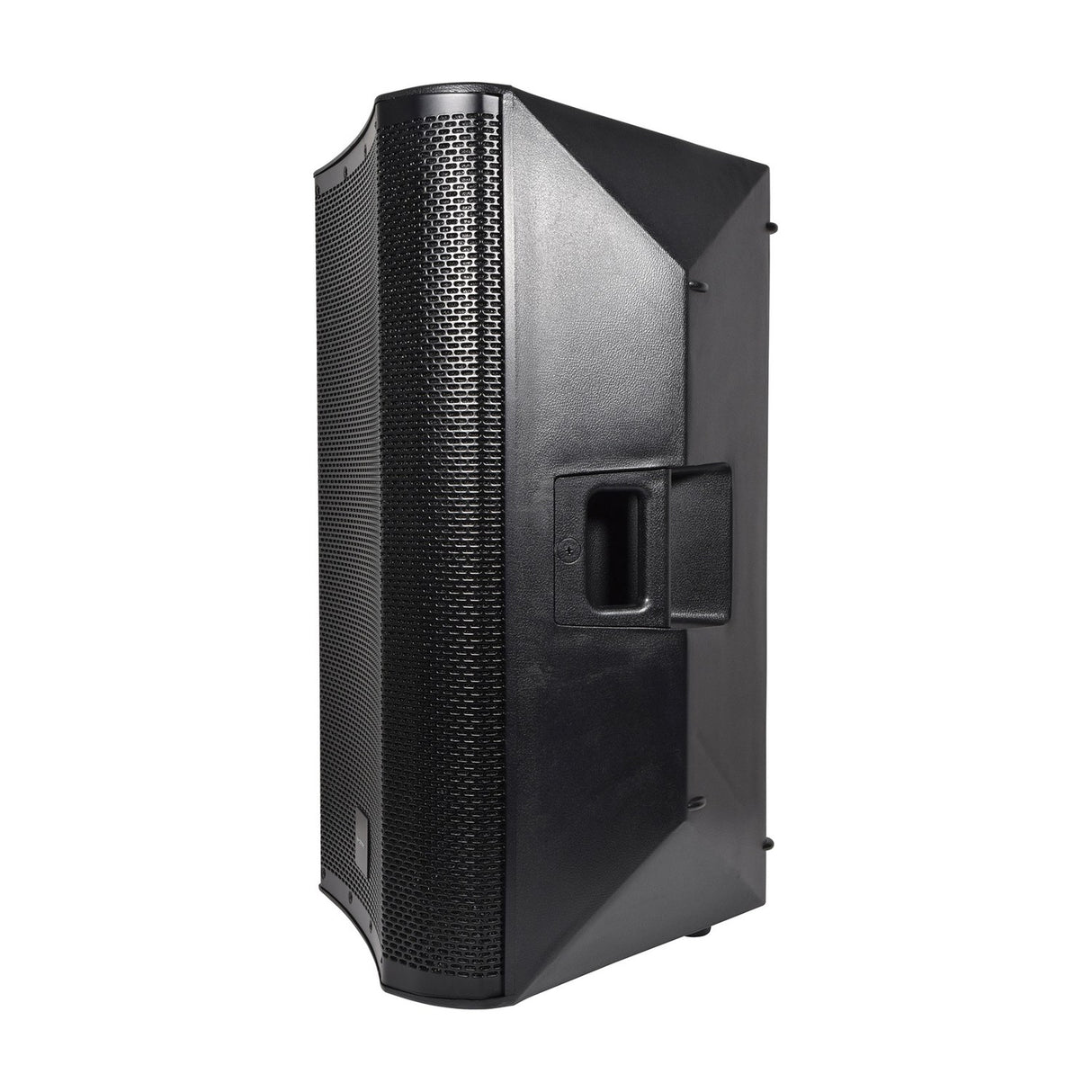

The Citronic CASA-15A is a full-range active PA speaker (or powered loudspeaker) built into a high impact moulded cabinet. It carries a 15" driver rated at 350W RMS, driven by a high efficiency Class D bi-amplifier section. The cabinet has side and top handles for carrying, plus a 35mm pole mount socket so you can raise it on a speaker stand or fit it to one of the CASA series sub cabinets. It runs from a standard 230Vac, 50Hz IEC mains supply.

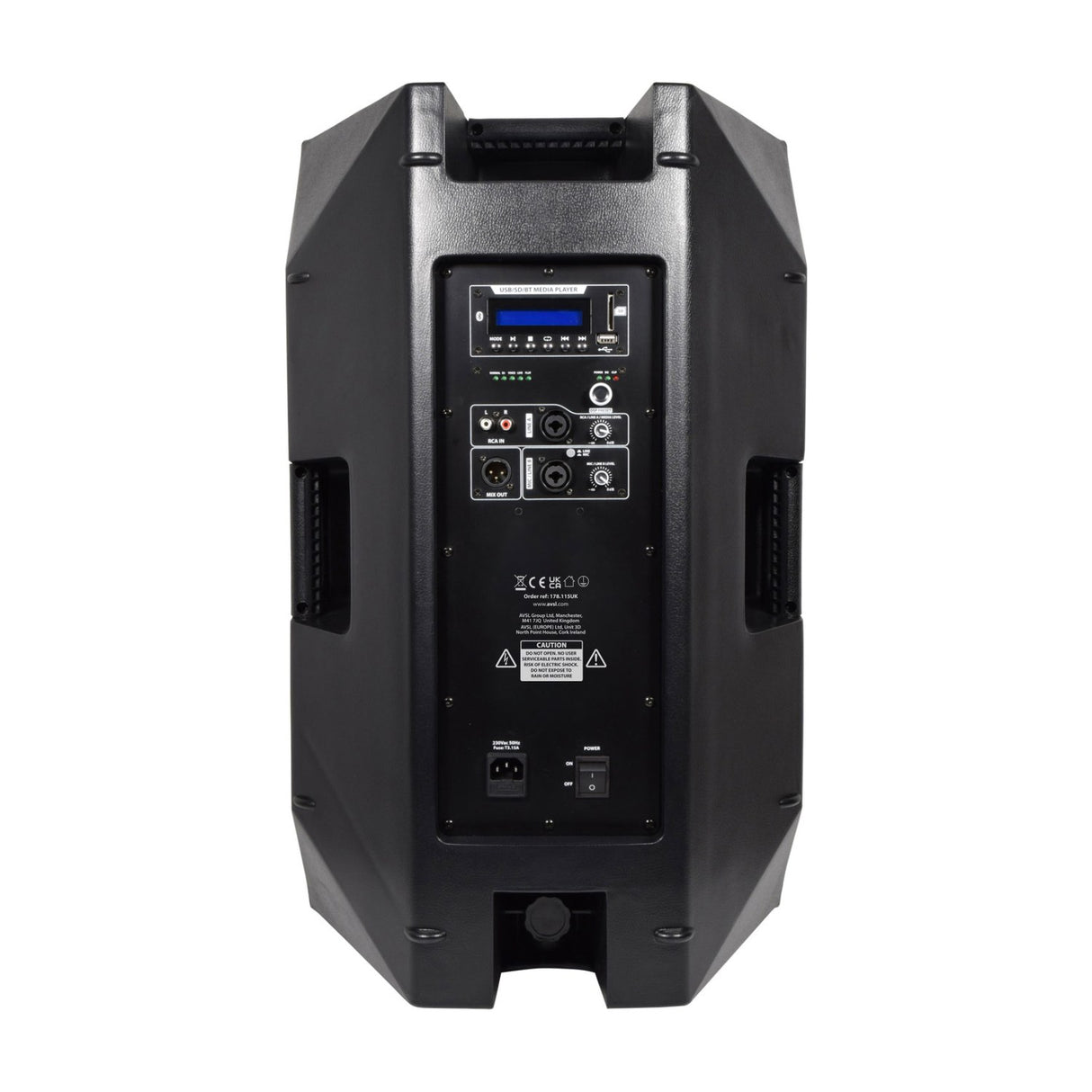

Onboard DSP gives you five selectable profiles: Normal, DJ, Voice, Live and Flat. That lets you match the output to what you're playing, whether that's spoken word, a live band or recorded music for a DJ set. Inputs are provided on combined XLR/jack sockets with mic/line level switching, along with RCA line connectors for adding a second source. A balanced XLR line output lets you link cabinets together or feed a subwoofer.
A built-in audio module handles playback from USB or SD media, and there's Bluetooth wireless pairing for streaming from a phone, tablet or laptop. This makes the CASA-15A a self-contained option for smaller events where you don't want to bring a separate mixer or source. It suits a wide range of PA work, from parties and presentations to mobile setups, and pairs with the CASA series sub cabinets when you need more low end for high energy sound reinforcement.
Specification
| Weight |
22.00KG |
| Dimensions |
705mm x 430mm x 375mm |
| Inputs |
XLR/jack mic/line, XLR/jack/L+R RCA line |
| Frequency response |
45Hz - 20kHz |
| SPL max. |
124.5dB |
| Sensitivity |
97dB |
| Output power peak |
1400W |
| Output power : max. |
700W |
| Output power : rms |
350W |
| HF driver |
44mmØ (1.75") Ti compression driver |
| Voice coil |
63mmØ (2.5") |
| Main driver |
380mmØ (15") |
| Power supply |
230Vac, 50Hz (IEC) |
| Audio source |
USB/SD player + Bluetooth receiver |
| Line output |
XLR |
| DSP settings |
Normal, DJ. Voice, Live, Flat |
Downloads
Product Manual
Frequently Asked
What size driver and power rating does the CASA-15A have?
It uses a 15" driver rated at 350W RMS, powered by a high efficiency Class D bi-amplifier section built into the cabinet.
Can I stream audio wirelessly to this speaker?
Yes. The built-in audio module includes Bluetooth pairing for streaming from a phone, tablet or laptop, plus USB and SD media playback.
What are the five DSP profiles?
The DSP controller offers Normal, DJ, Voice, Live and Flat, so you can match the output to the material you're playing.
What inputs and outputs are provided?
Inputs are on combined XLR/jack with mic/line level switching, plus RCA line connectors. There's a balanced XLR line output for linking cabinets or feeding a sub.
Can I mount it on a stand or pole?

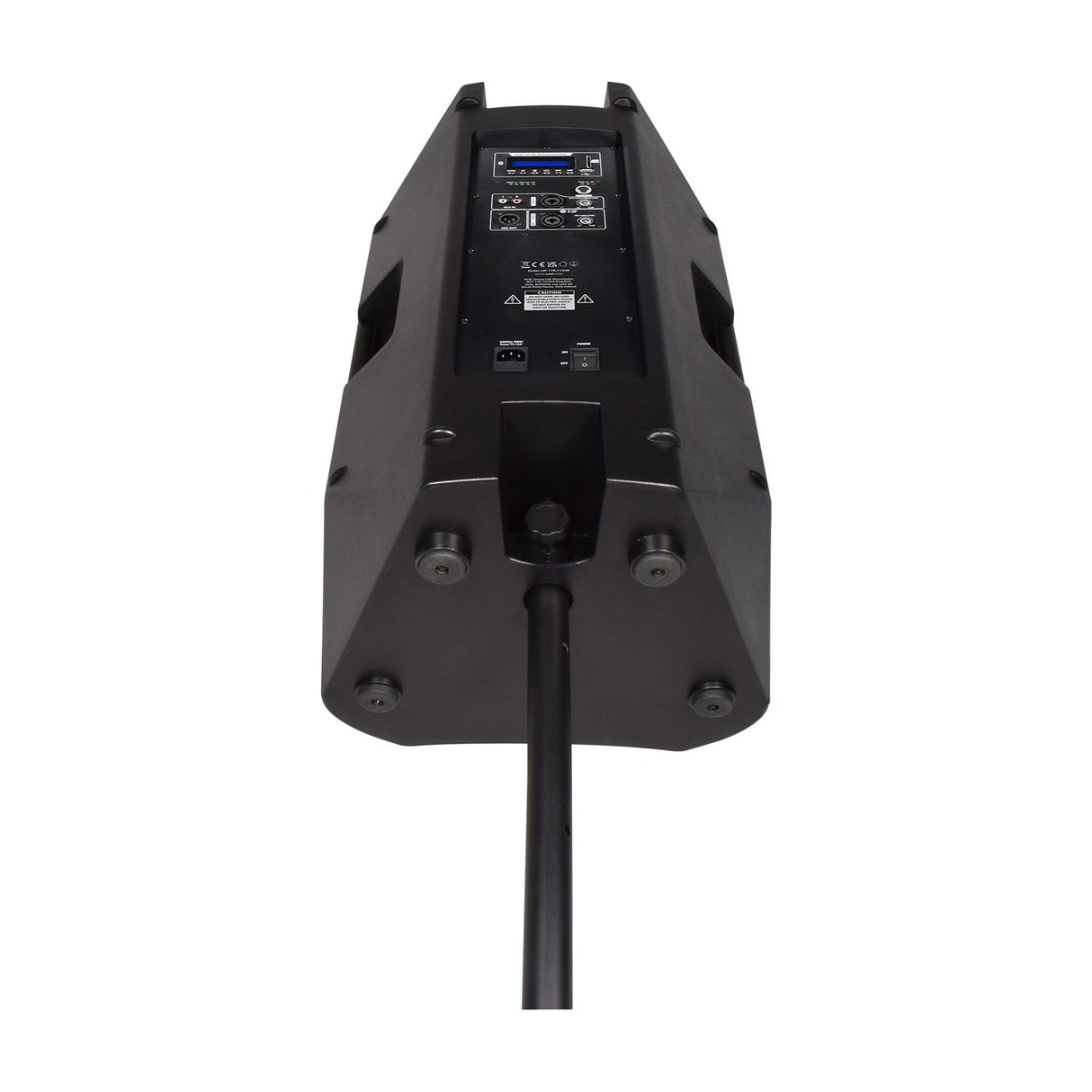

Yes. It has a 35mm pole mount socket for a speaker stand or for fitting to a CASA series sub cabinet.
Does it work with a subwoofer?
Yes. The CASA-15A pairs with the CASA series sub cabinets, and the XLR line output makes it straightforward to link them.
