Description

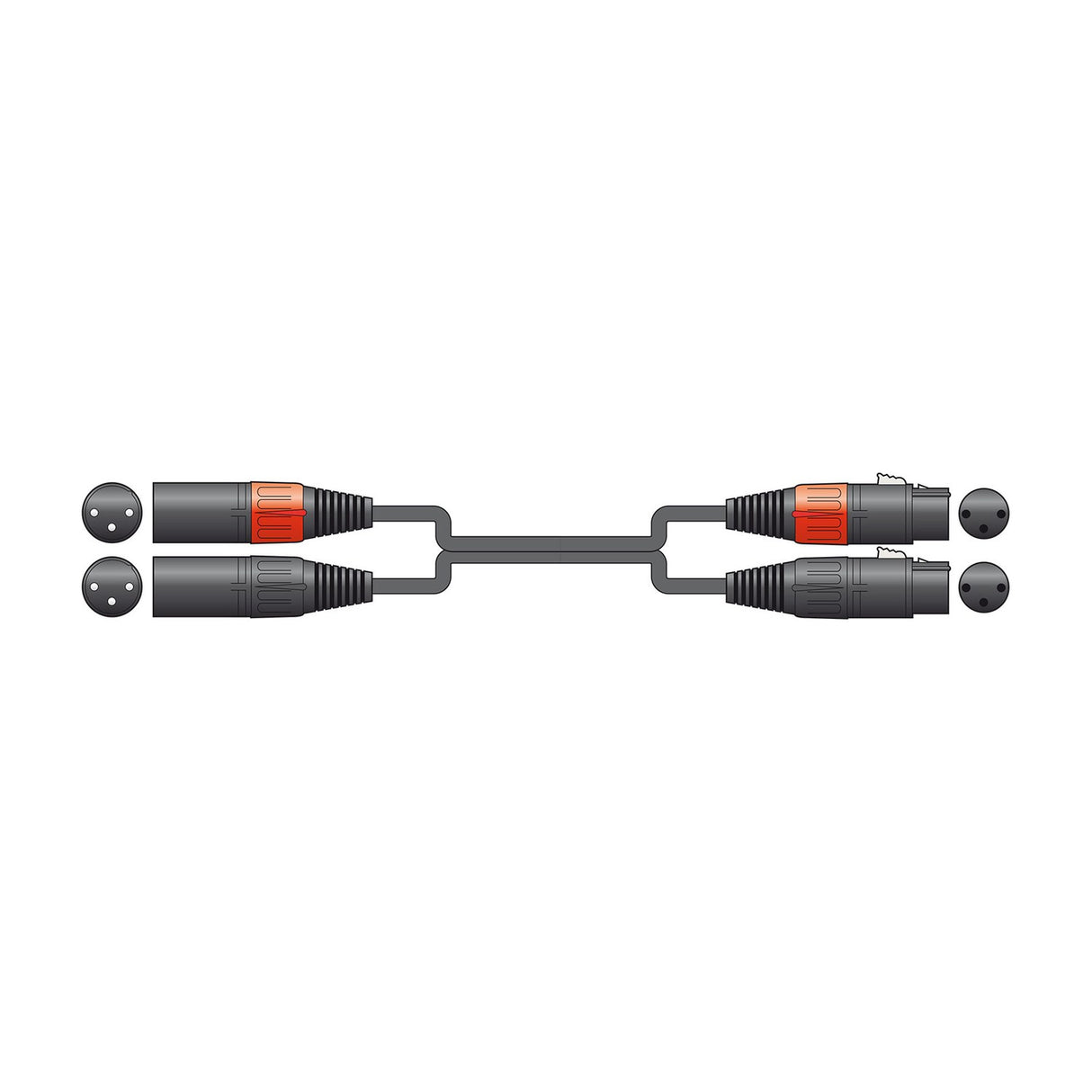

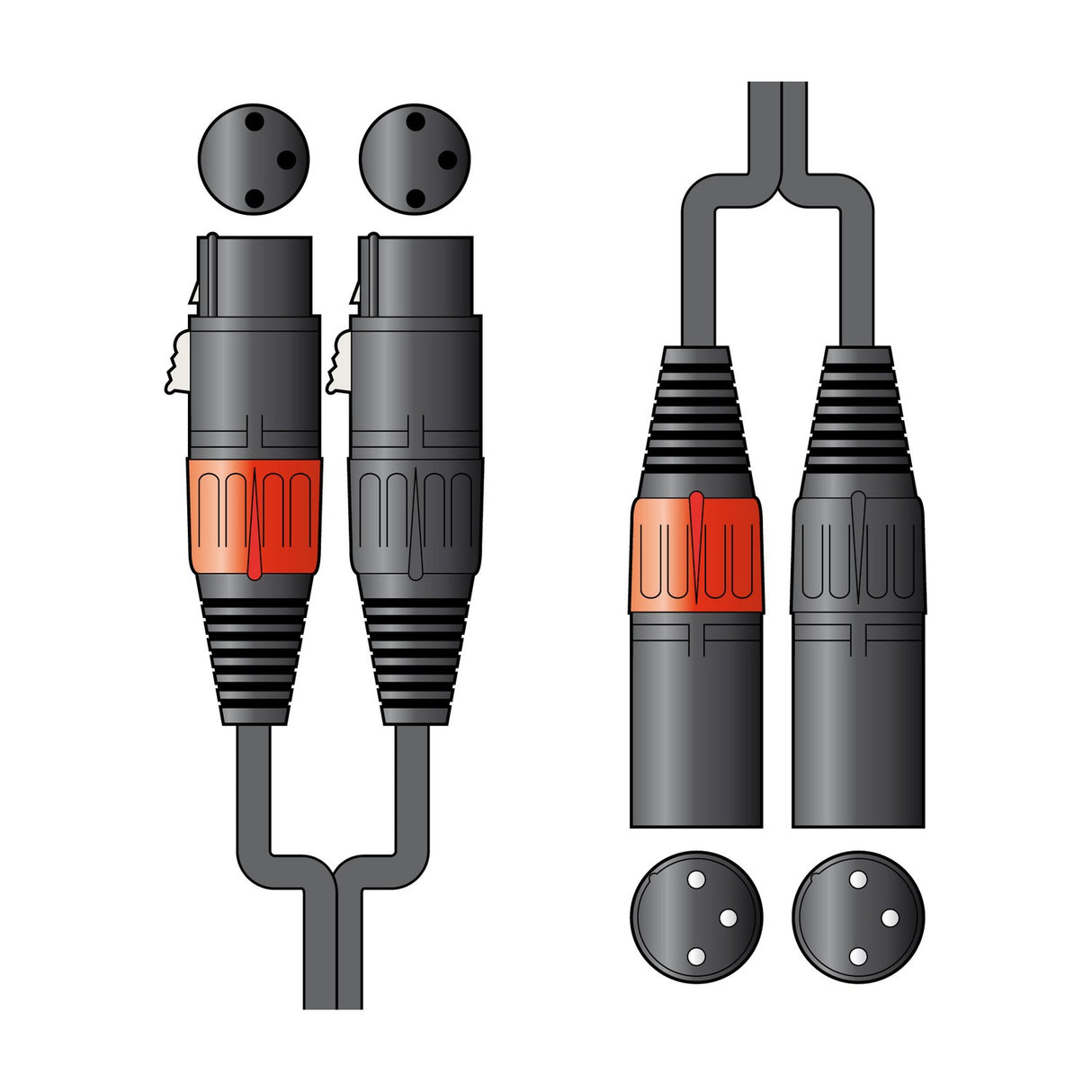

This Citronic audio lead carries two balanced signals in a single twinned cable, with two female XLR connectors at one end and two male XLR connectors at the other. It measures 0.75m, which makes it handy for short runs between mixers, stage boxes and outboard gear where you want to keep two channels tidy and together.
The cable uses pure copper conductors, each made from 12 strands at 0.1mm diameter, with cotton reinforcement to help it stand up to repeated coiling and gigging. The twin cable runs at 5mm diameter (5 x 10mm) under a soft-grip, anti-tangle rubberised jacket. Shielding keeps interference down, so you get clean, quiet signal across both channels. The die-cast XLR connectors are machine soldered for consistent, reliable joints.
Wiring follows the standard balanced pin-out: pin 1 ground, pin 2 hot and pin 3 cold. That means the lead works with balanced inputs and outputs on most professional and semi-professional audio equipment. XLR is the same connector on both sides of the Atlantic, so there is no naming difference to worry about here. If you regularly patch stereo pairs or two mono sources at once, this twin lead saves you carrying two separate cables and keeps your setup neater on stage or in the rack.
Specification
| Length |
0.75m |
| Cable : diameter |
Twin 5mmØ (5 x 10mm) |
| Conductors |
2 x 12 strand, 0.1mmØ pure copper |
| Connectors |
2 x female XLR, 2 x male XLR |
| Pin-out |
Balanced: 1-Ground, 2-Hot, 3-Cold |
Frequently Asked
How long is this cable?
It is 0.75m long, suited to short runs between nearby equipment.
What connectors does it use?
Two female XLR connectors on one end and two male XLR connectors on the other.
Is the lead balanced?
Yes. It follows a balanced pin-out: pin 1 ground, pin 2 hot, pin 3 cold.
What are the conductors made from?
Pure copper, with each run using 12 strands at 0.1mm diameter and cotton reinforcement.
Can I use this for a stereo pair?
Yes. The twin cable carries two channels at once, ideal for stereo or two mono sources.
