Chord XU4-H Quad Handheld UHF Wireless Microphone System

£37599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

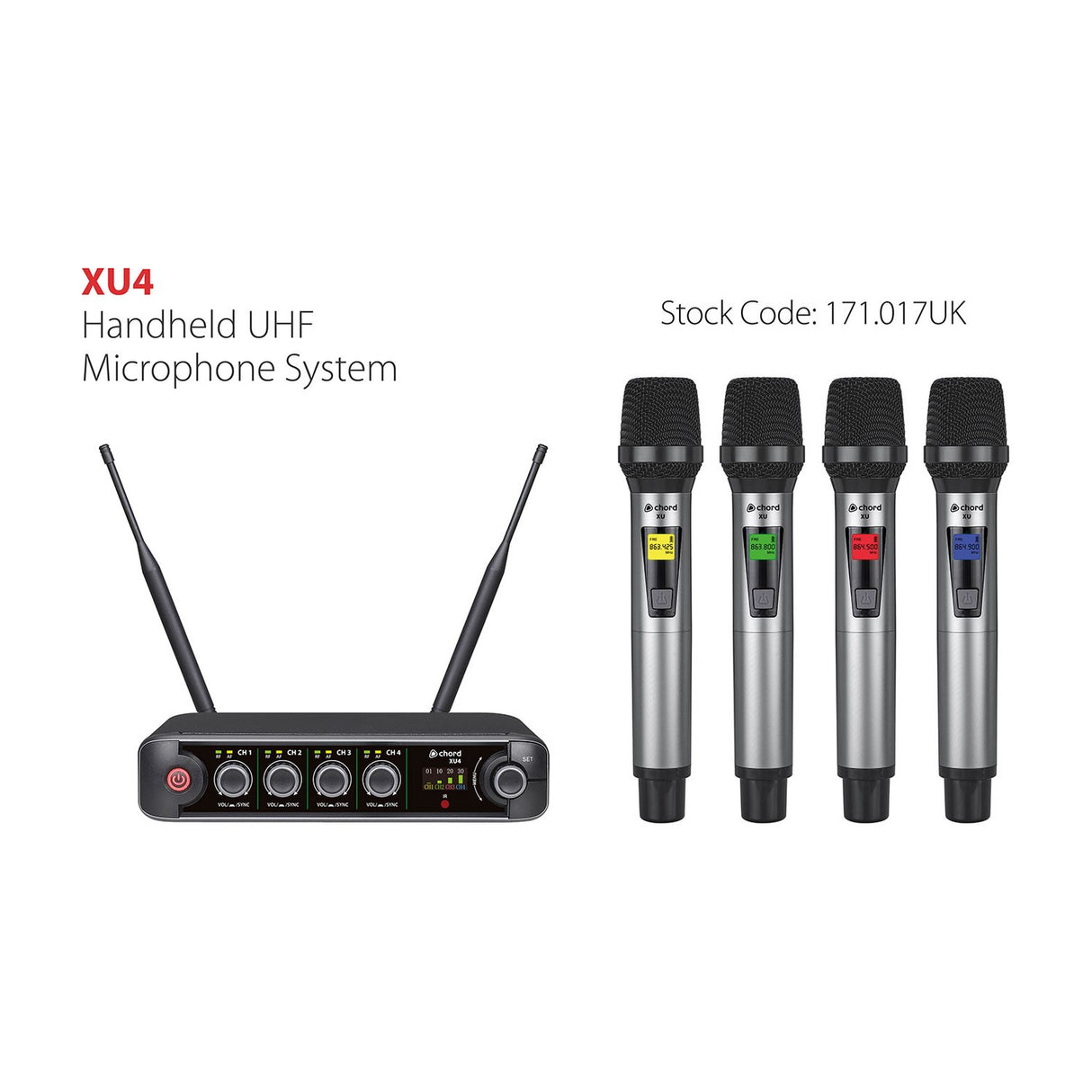

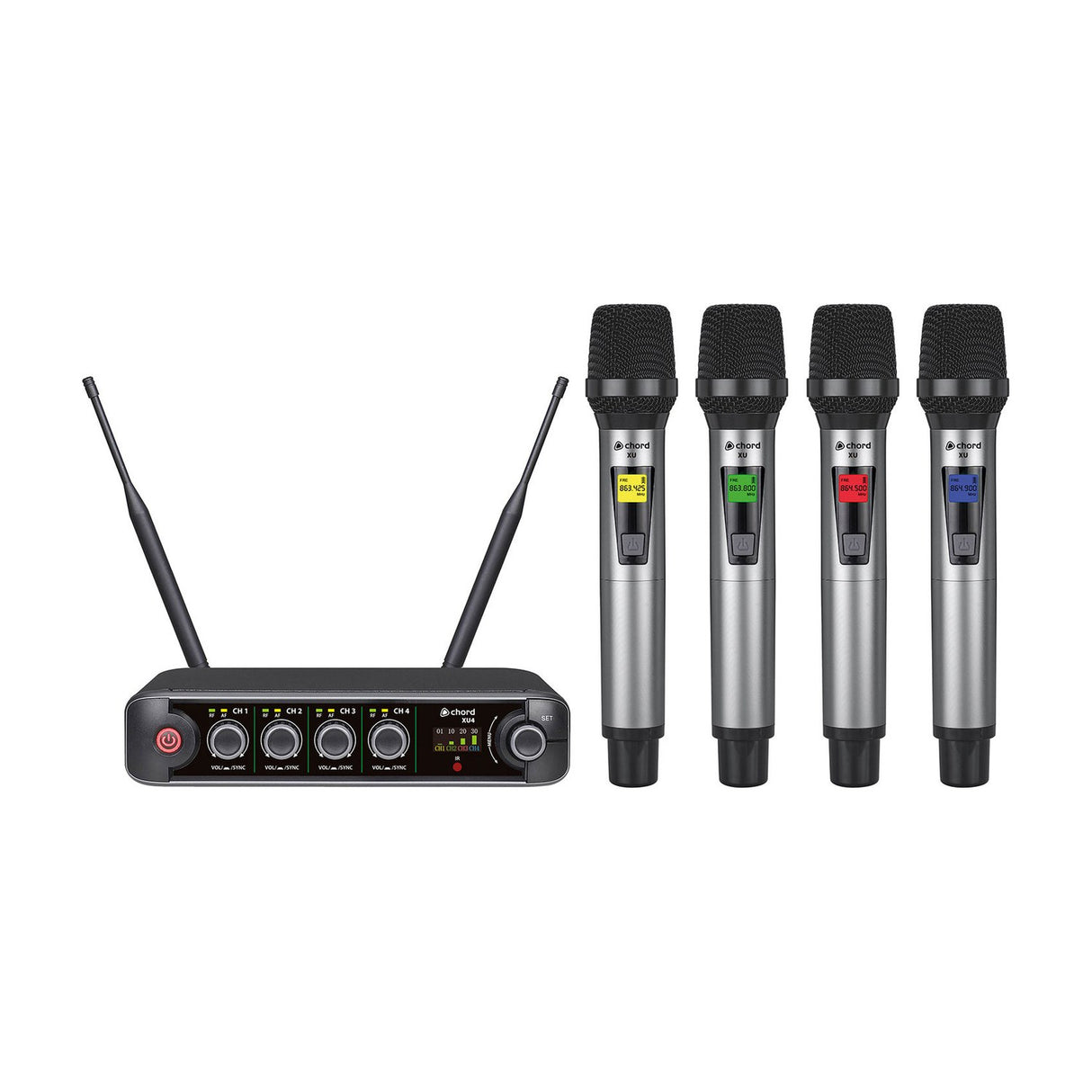

The Chord XU4-H is a four-channel UHF wireless microphone system built around a compact half-width 1U rack receiver and four handheld microphone transmitters. It's aimed at vocalists, presenters and instructors who need reliable wireless operation without a complicated setup. The receiver uses a true diversity design with dual antennas (aerials) and internal distribution, which helps minimise dropouts across the working range of up to 60 metres.

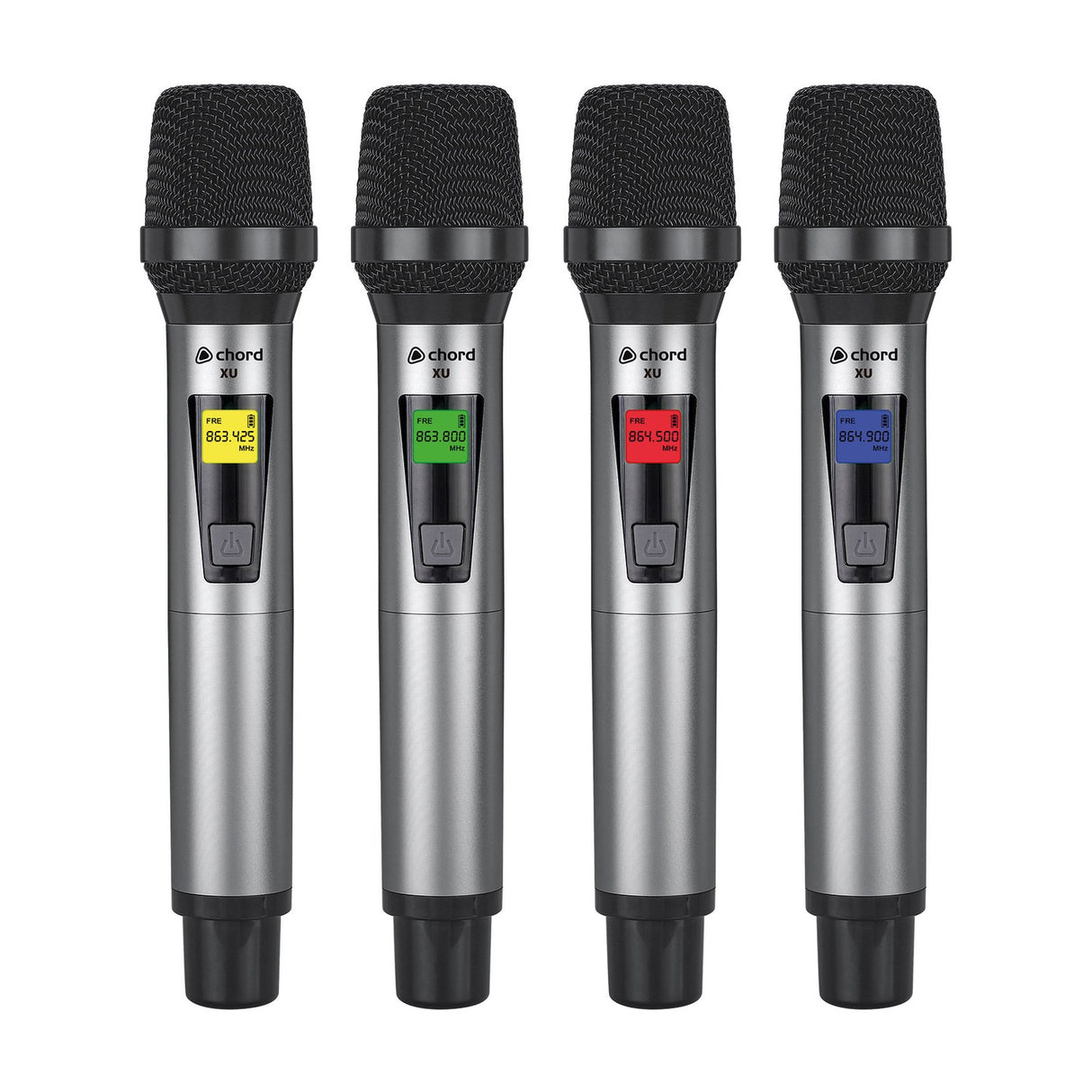

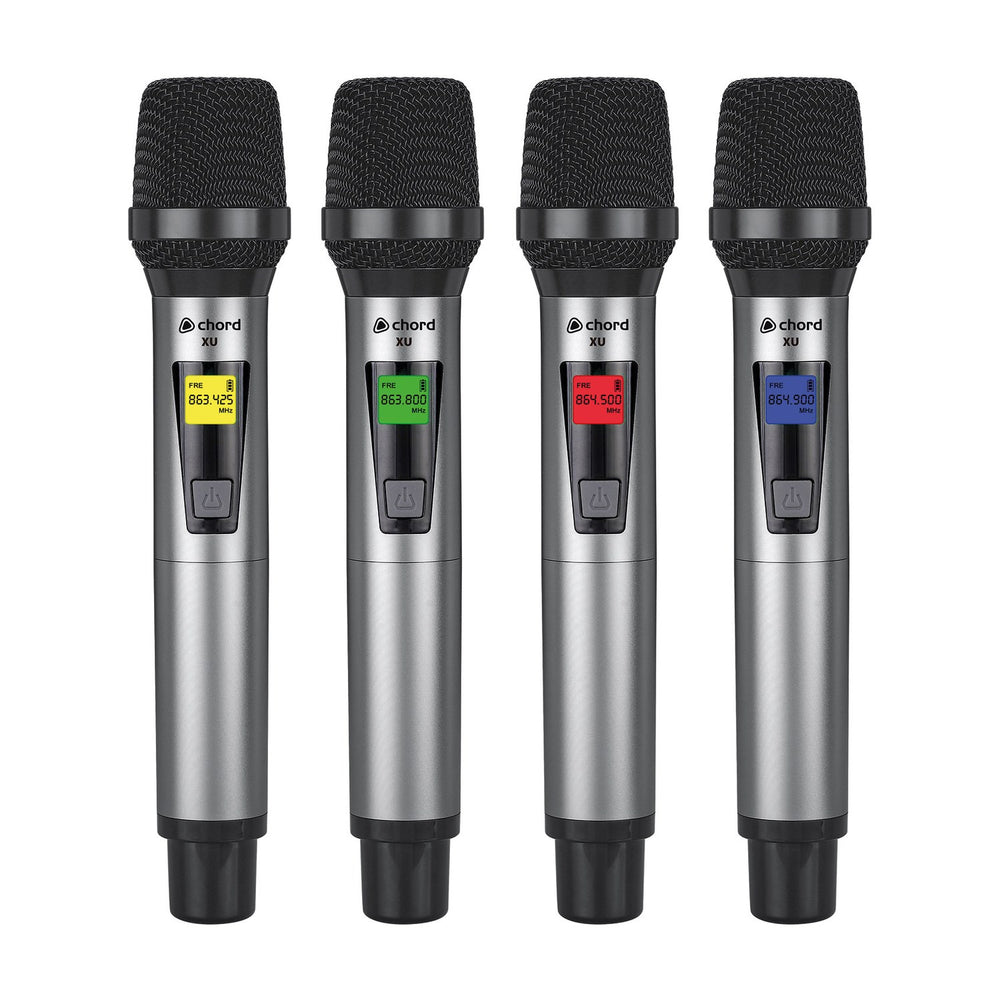

Carrier frequencies are arranged in 10 groups of 9 selectable UHF channels, covering both the UK/EU licence-free band and the PMSE licensed duplex gap, at 823-832 and 863-865MHz. The front panel gives you a volume control and indicator LEDs for each channel, plus a colour TFT display showing levels and letting you set frequencies and backlight colours. Each handheld transmitter has its own LCD showing frequency and battery status, with a backlight you can set to one of 6 colours so each channel is easy to identify. Settings sync from the receiver to the transmitters by infrared, so pairing is quick.

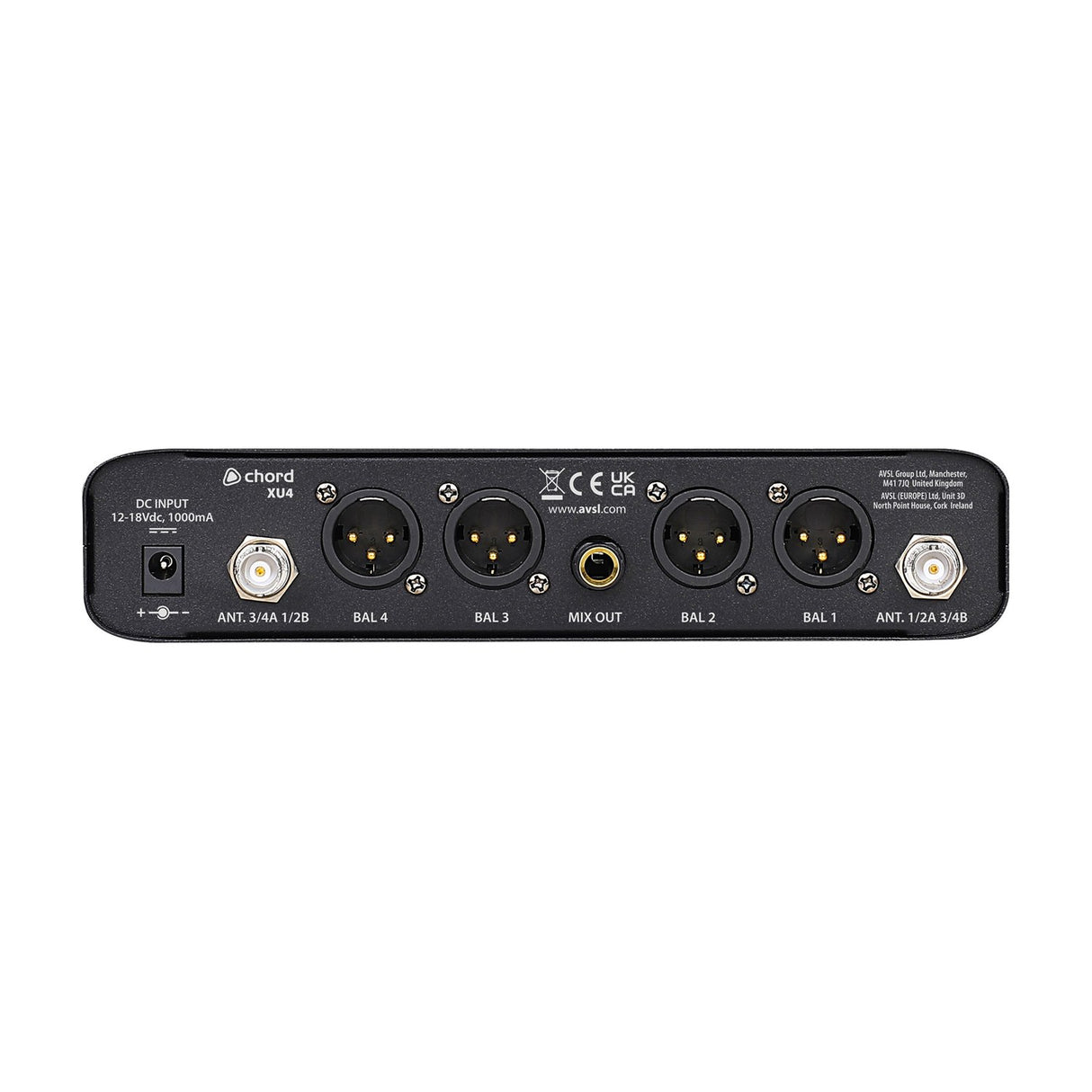

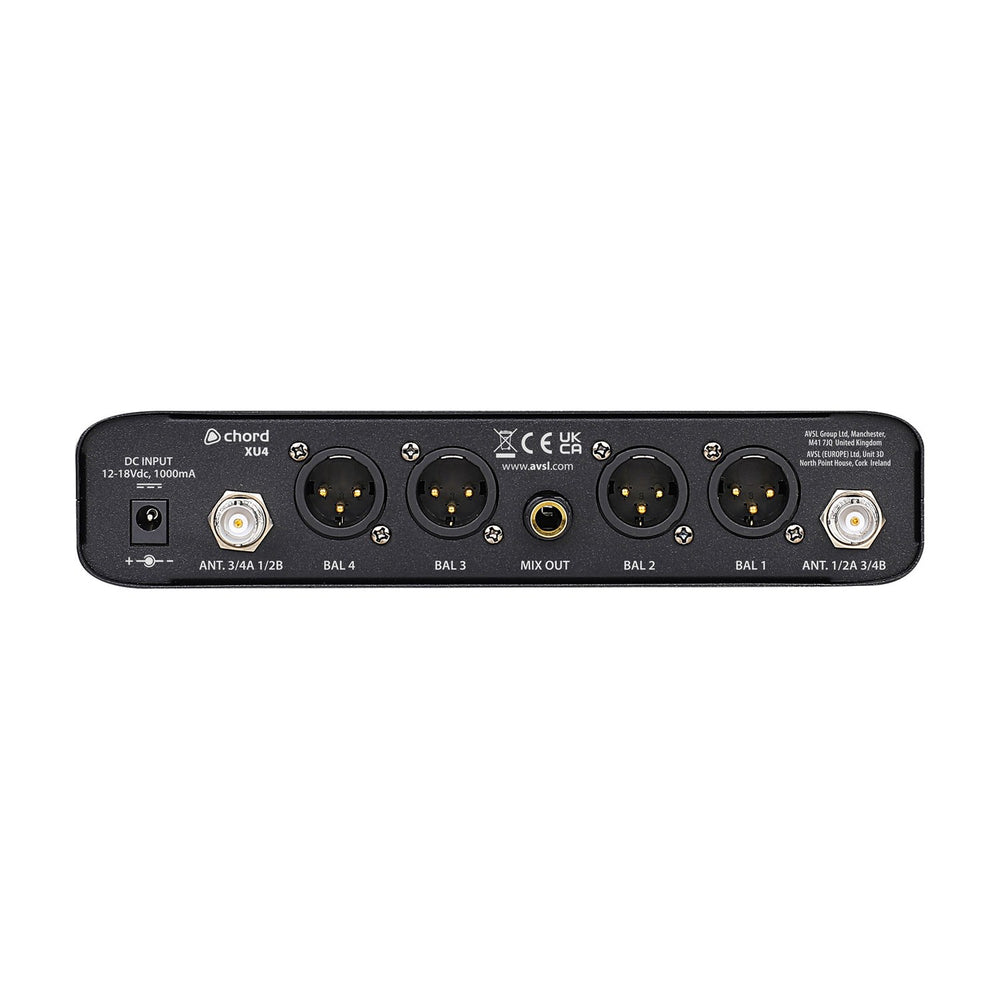

Connections on the receiver include 1, 2 or 4 XLR outputs depending on the version, along with a single 6.3mm mix output for feeding a mixer or amplifier. Each transmitter runs on 2 x AA batteries, and antenna connection is via 2 x BNC. The set ships with hardware for mounting into a 1U rack space, along with extension cables so you can front-mount the antennas if that suits your rack layout. The receiver measures 205 x 205 x 44mm and weighs 755g, keeping the footprint manageable for smaller setups and mobile use.

Specification
Weight : handheld transmitter 0.25KG
Dimensions : handheld transmitter 258mm x 47mmØ
Power supply 12-18Vdc, 1000mA (mains adaptor supplied)
Batteries 2 x AA per transmitter
Carrier frequencies 823-832 / 863-865MHz
Wireless range Up to 60m
Antenna connection 2 x BNC
Dimensions : receiver 205mm x 205mm x 44mm
Weight : receiver 0.76KG
Downloads

Product Manual

Frequently Asked

How many microphones does the XU4-H include?

The XU4-H is the quad version, supplied with four handheld microphone transmitters and a four-channel receiver.

What frequency bands does it use?

It works across 823-832 and 863-865MHz, covering both the UK/EU licence-free UHF band and the PMSE licensed duplex gap. Frequencies are set in 10 groups of 9 selectable channels.

Does it use true diversity reception?

Yes. The receiver is a true diversity type with dual antennas and internal distribution, which helps keep reception steady and reduce dropouts.

What is the wireless range?

The system offers a range of up to 60 metres, depending on your environment and any obstructions between the transmitters and receiver.

What outputs are on the receiver?

The receiver provides 1, 2 or 4 XLR outputs depending on the model, plus a single 6.3mm mix output for connecting to a mixer or amplifier.

What batteries do the transmitters need?

Each handheld transmitter runs on 2 x AA batteries, with an LCD showing battery status so you can keep an eye on power levels.
