Chord XU4-C Quad UHF Wireless Microphone System

£41699
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

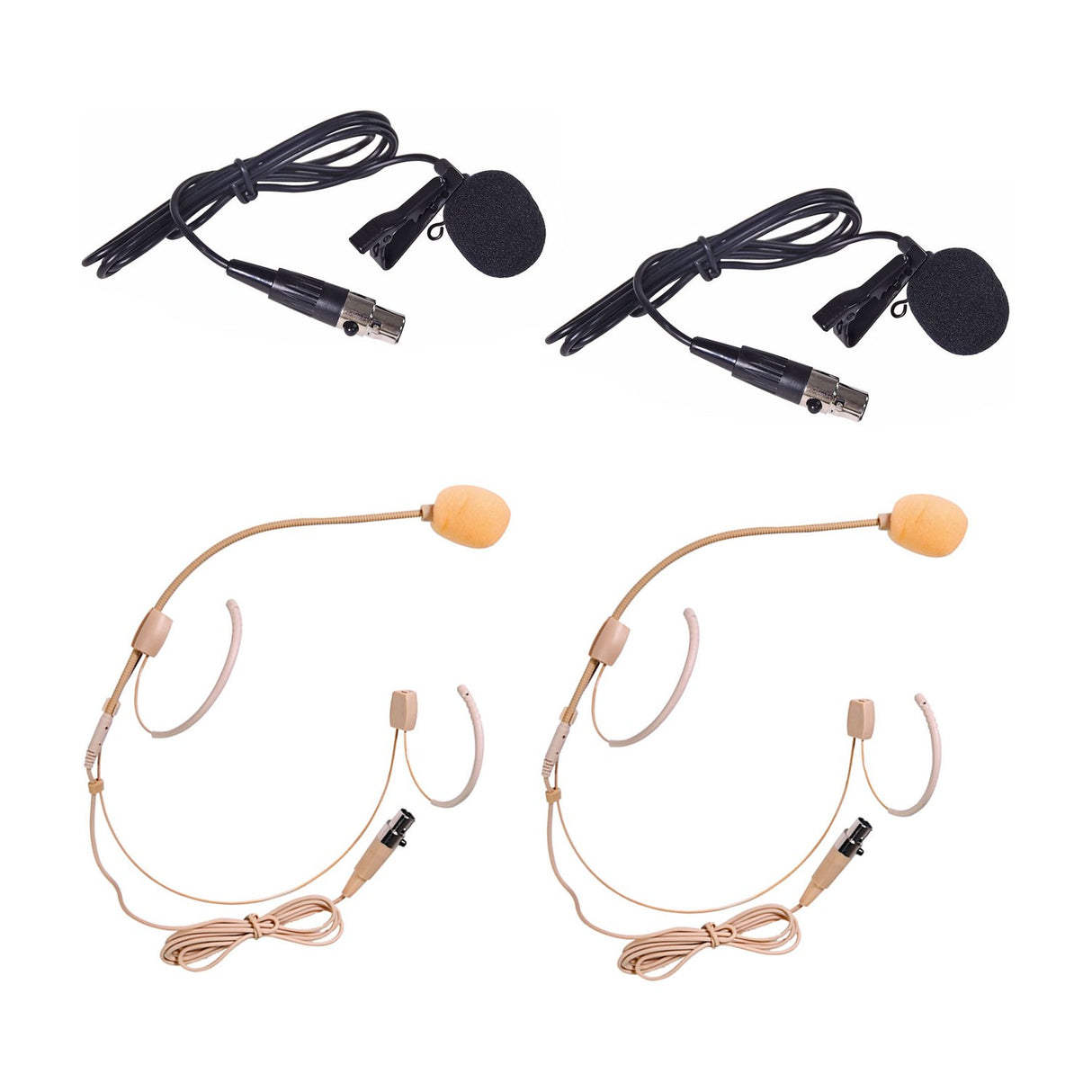

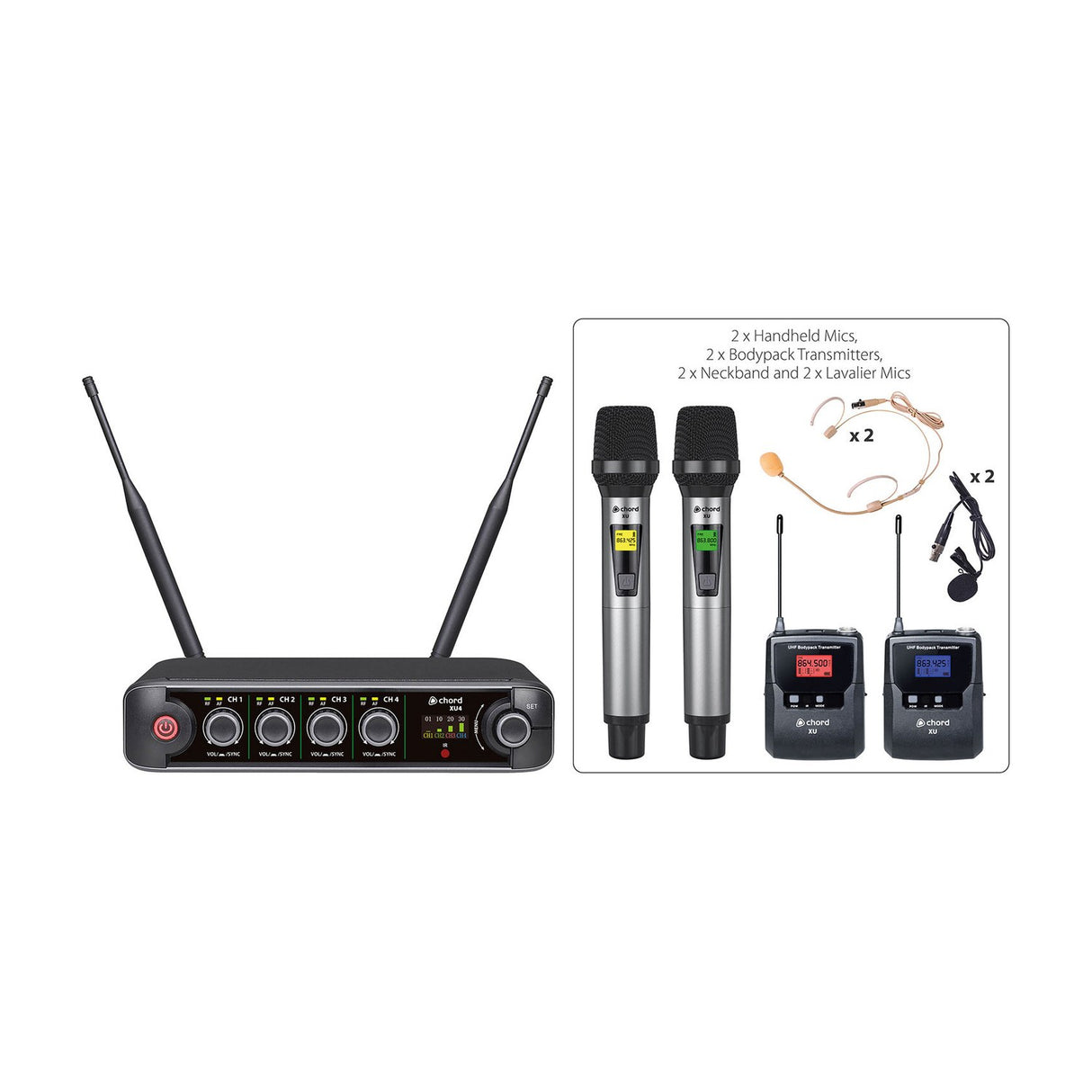

The Chord XU4-C is a four-channel UHF wireless microphone system built for vocalists, presenters and instructors who need reliable operation without a complicated setup. It comes as a combo package with two handheld microphones and two bodypack transmitters, the latter supplied with neckband and lavalier (lapel) mic options. The receiver is a compact half-width 1U rack unit, so it fits neatly alongside other gear or sits happily on a desk.

Reception is handled by a true diversity design with dual antennas (aerials) and internal distribution, which keeps dropouts to a minimum across the working area. You get 10 groups of 9 selectable UHF carrier frequencies, covering both the UK/EU licence-free band and the PMSE licensed duplex gap, giving you room to work in busy RF environments. Wireless range runs up to 60m. A colour TFT display shows level indications for each channel plus the settings menu, and you can set a backlight colour per channel to tell them apart at a glance. Setting up transmitters is quick too, as the receiver syncs settings over infrared.

On the back you'll find flexible outputs: individual XLR outputs for each channel plus a single 6.3mm mix output, so you can feed a mixer or a simpler setup. Each transmitter has its own LCD showing frequency and battery status, running on 2 x AA batteries, with a choice of 6 backlight colours for identification. The system ships with rack-mounting hardware and extension cables so you can front-mount the antennas. It's a straightforward, well-featured package for anyone who wants dependable wireless audio in a compact form.

Specification
Weight : lavalier microphone 0.02KG
Dimensions : lavalier microphone 27mm x 12mmØ
Weight : neckband microphone 0.03KG
Dimensions : neckband microphone 180mm x 140mm x 60mm
Weight : beltpack transmitter 0.07KG
Dimensions : beltpack transmitter 90mm x 60mm x 25mm
Weight : handheld transmitter 0.25KG
Dimensions : handheld transmitter 258mm x 47mmØ
Power supply 12-18Vdc, 1000mA (mains adaptor supplied)
Batteries 2 x AA per transmitter
Carrier frequencies 823-832 / 863-865MHz
Wireless range Up to 60m
Antenna connection 2 x BNC
Dimensions : receiver 205mm x 205mm x 44mm
Weight : receiver 0.76KG
Downloads

Product Manual

Frequently Asked

What's included in the XU4-C system?

You get a four-channel half-width 1U rack receiver, two handheld microphones and two bodypack transmitters. The bodypacks come with neckband and lavalier (lapel) mic options, plus rack-mounting hardware and antenna extension cables.

What is the wireless range?

The system offers a wireless range of up to 60m, depending on your environment and line of sight between the transmitters and receiver.

How many frequencies can I choose from?

There are 10 groups of 9 selectable UHF carrier frequencies, covering 823-832MHz and 863-865MHz. These span both the UK/EU licence-free band and the PMSE licensed duplex gap.

What outputs does the receiver have?

The receiver provides individual XLR outputs for each channel plus a single 6.3mm mix output, so you can connect to a mixer or a simpler audio setup.

How do the transmitters get their settings?

The receiver syncs settings to the transmitters over infrared, which makes matching frequencies quick and avoids manual entry on each unit.

What batteries do the transmitters use?

Each transmitter runs on 2 x AA batteries, with an LCD showing frequency and battery status.
