Chord XU2-H Dual Handheld UHF Wireless Microphone System

£25499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

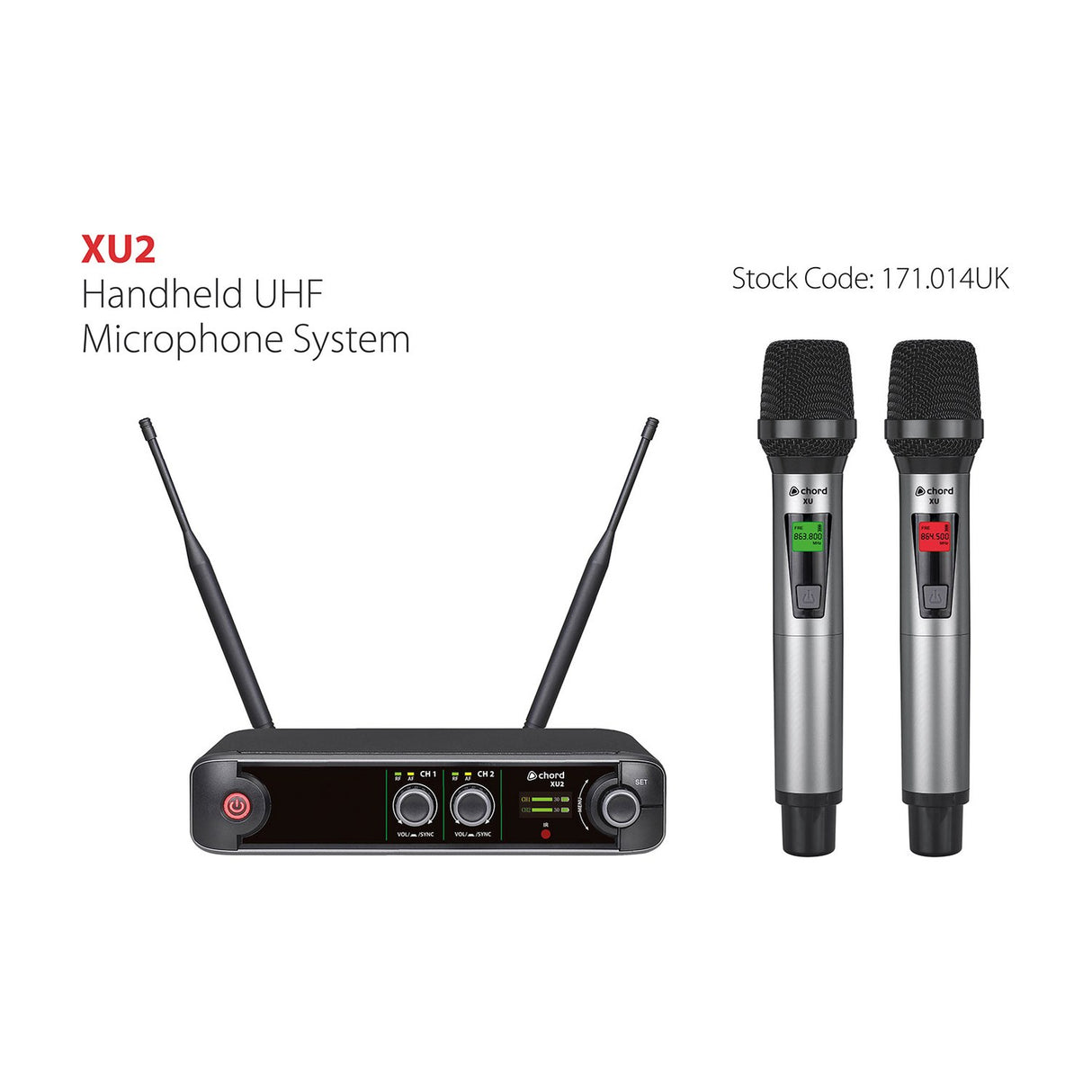

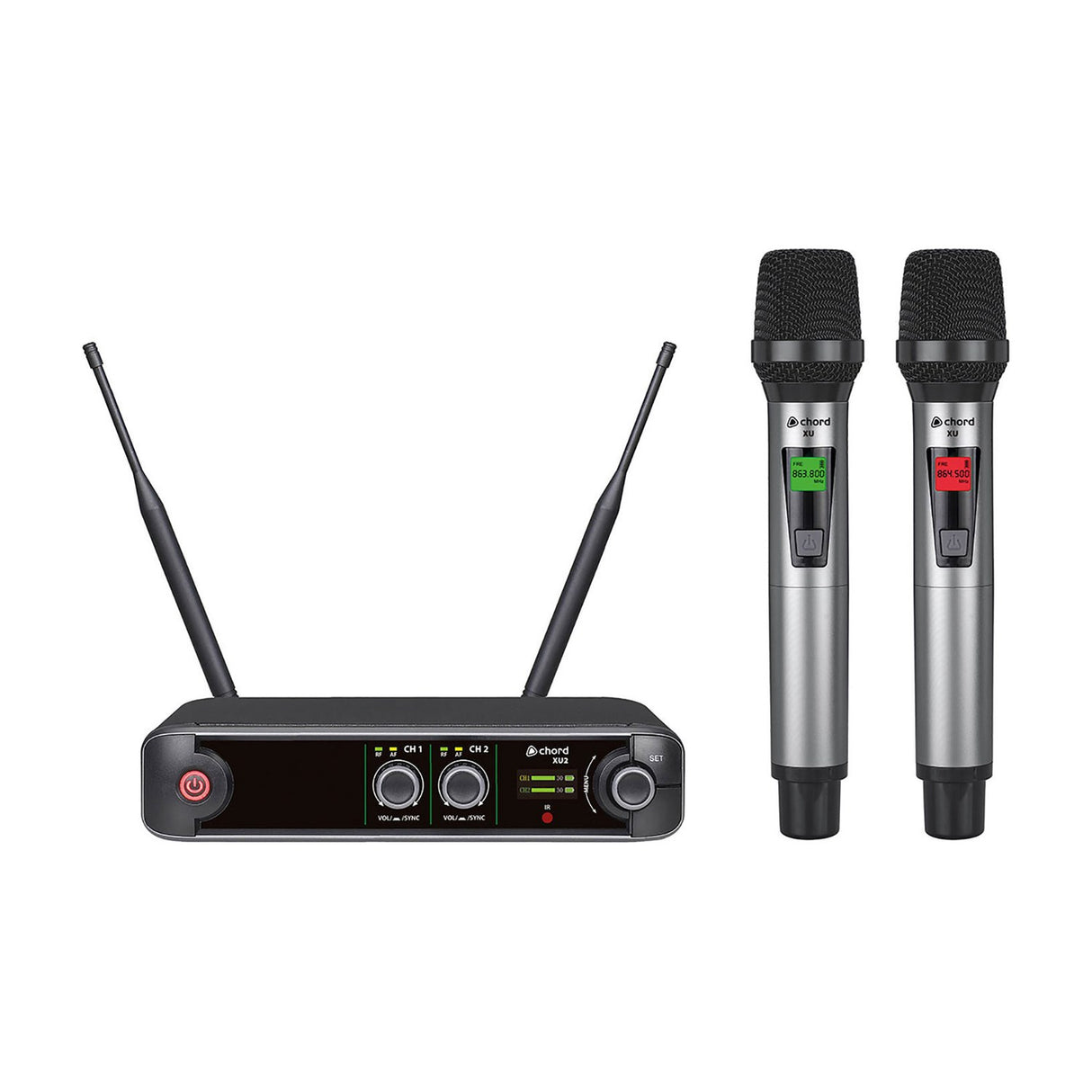

The Chord XU2-H gives you two channels of handheld UHF wireless microphones running from a compact half-width 1U rack receiver. It's built for vocalists, presenters and instructors who want straightforward operation without giving up pro-level features. The receiver uses a true diversity design with dual antennas (aerials) and internal distribution, which keeps reception steady and helps cut out dropouts as you move around the room.

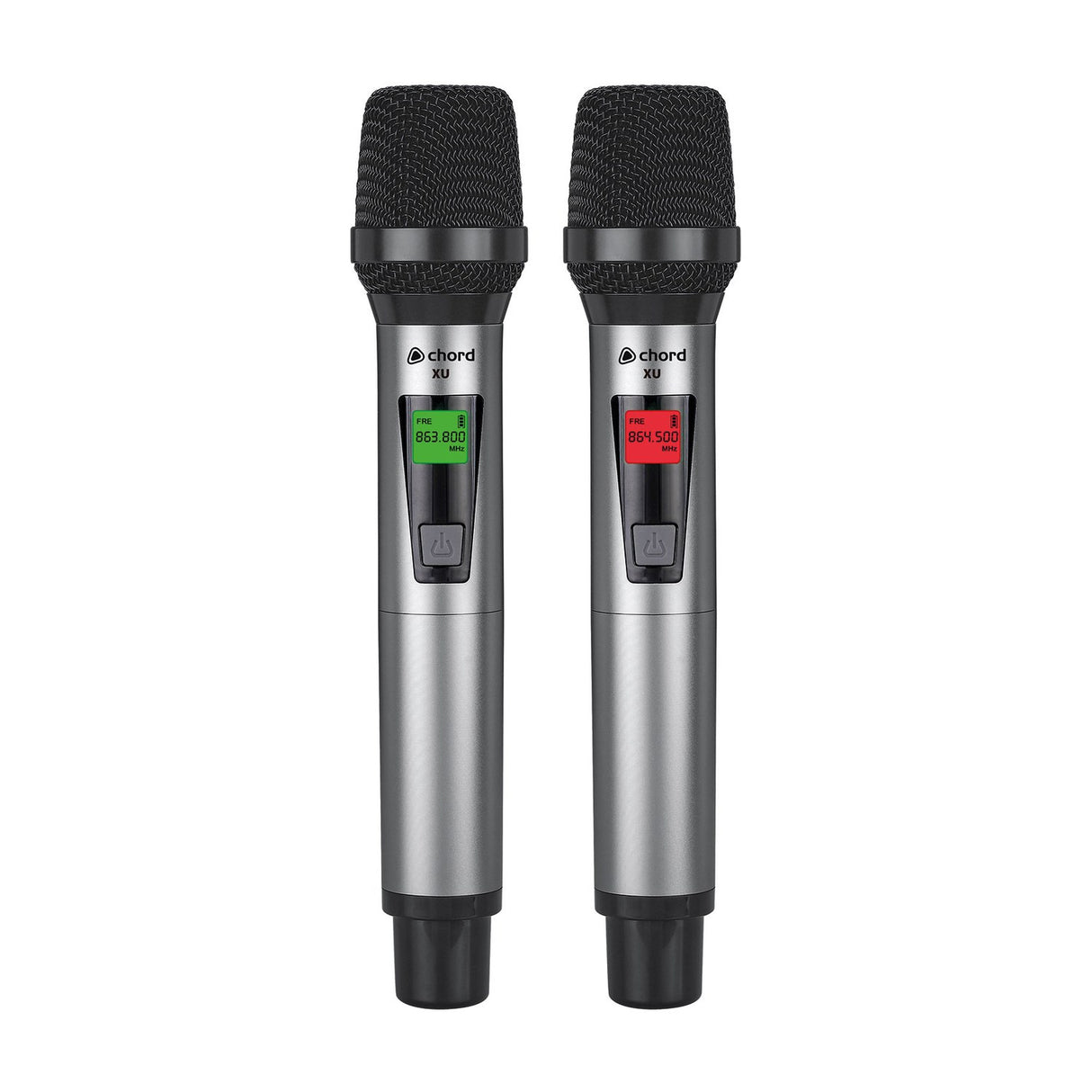

Setup stays simple thanks to 10 groups of 9 selectable UHF carrier frequencies, covering both the UK/EU licence-free UHF band and the PMSE licensed duplex gap. You can sync settings from the receiver to each transmitter over infra-red, so there's no fiddly manual matching. The front panel carries a colour TFT display with per-channel level metering, plus a volume control and indicator LEDs for each channel. Backlight colours are selectable per channel, and each handheld transmitter has its own LCD showing frequency and battery status with a backlight set to one of 6 colours for quick identification.

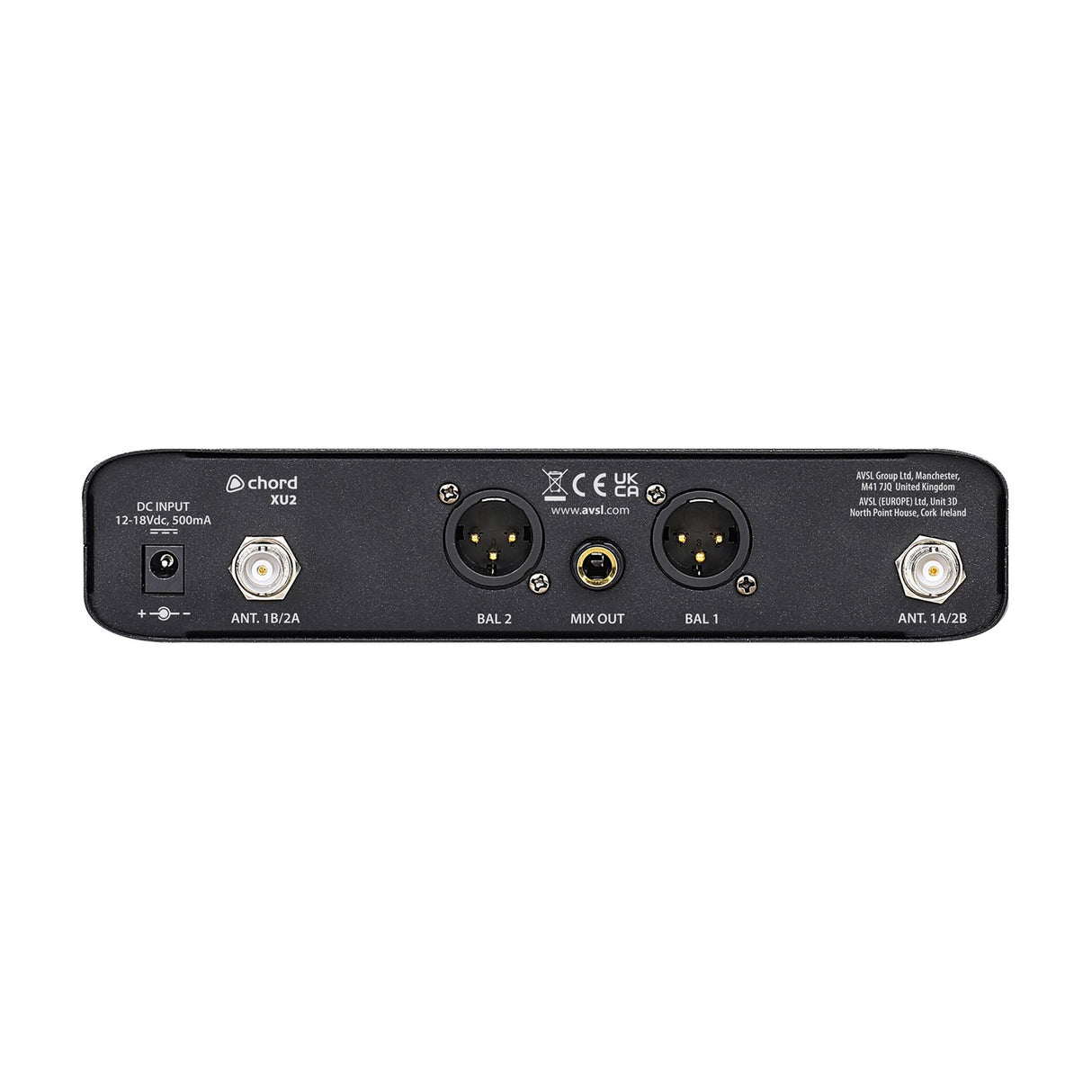

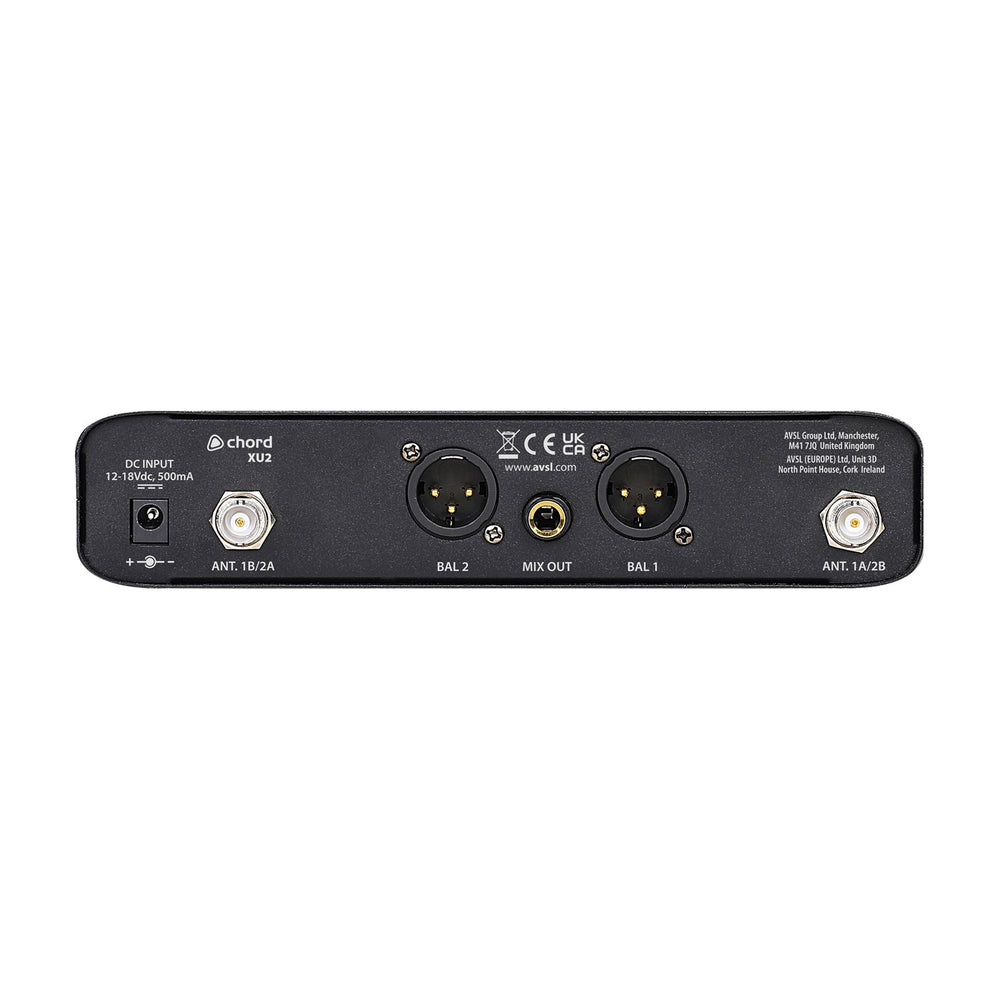

Connections give you flexibility on stage or in a fixed install. The receiver offers XLR outputs per channel along with a 6.3mm mix output, and each set ships with rack-mount hardware plus antenna extension cables so you can front-mount the antennas when you need them. The transmitters run on 2 x AA batteries each, with a wireless range of up to 60m. At 205 x 205 x 44mm and 755g, the receiver slots neatly into a half of a 1U rack space, making it easy to pack alongside the rest of your kit.

Specification
Weight : handheld transmitter 0.25KG
Dimensions : handheld transmitter 258mm x 47mmØ
Power supply 12-18Vdc, 500mA (mains adaptor supplied)
Batteries 2 x AA per transmitter
Carrier frequencies 823-832 / 863-865MHz
Wireless range Up to 60m
Antenna connection 2 x BNC
Dimensions : receiver 205mm x 205mm x 44mm
Weight : receiver 0.76KG
Downloads

Product Manual

Frequently Asked

How many microphones come with the XU2-H?

The XU2-H is a dual-channel system, so it includes two handheld UHF transmitters running to one receiver.

What frequency bands does it use?

It covers 823-832 and 863-865MHz, spanning both the UK/EU licence-free UHF band and the PMSE licensed duplex gap. Frequencies are arranged in 10 groups of 9 selectable carriers.

How do I match the transmitters to the receiver?

Settings sync over infra-red from the receiver to the transmitters, so you don't need to set frequencies manually on each mic.

What is the wireless range?

The system works at up to 60m, depending on your environment and line of sight between transmitter and receiver.

What outputs does the receiver have?

You get XLR outputs per channel plus a single 6.3mm mix output. The wider XU range offers 1, 2 or 4 XLR output configurations.

Can it be rack-mounted?

Yes. The receiver is a half-width 1U unit and comes with rack-mount hardware and antenna extension cables for front-mounting the antennas.
