Chord XU1-B True Diversity UHF Bodypack Microphone System

£19899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

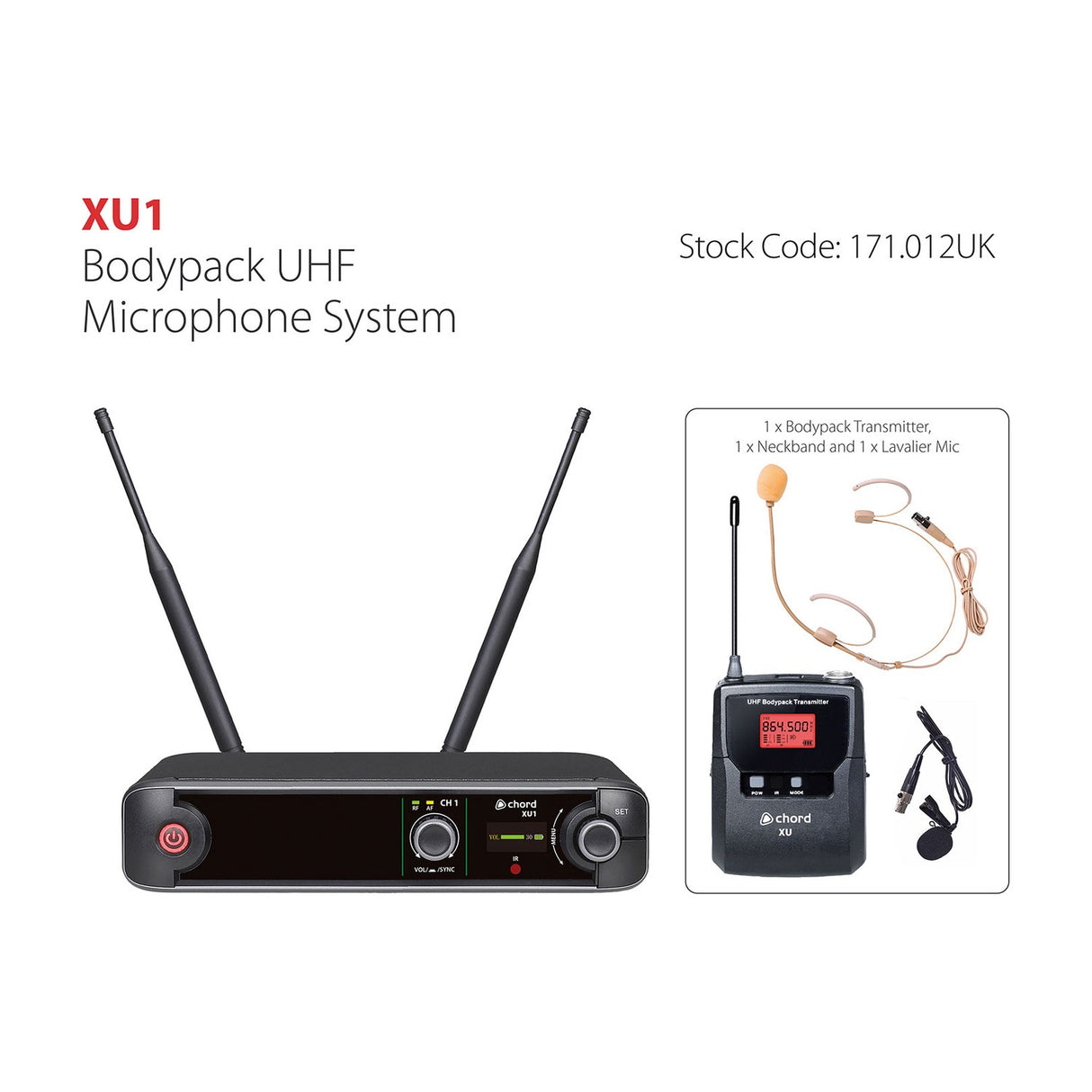

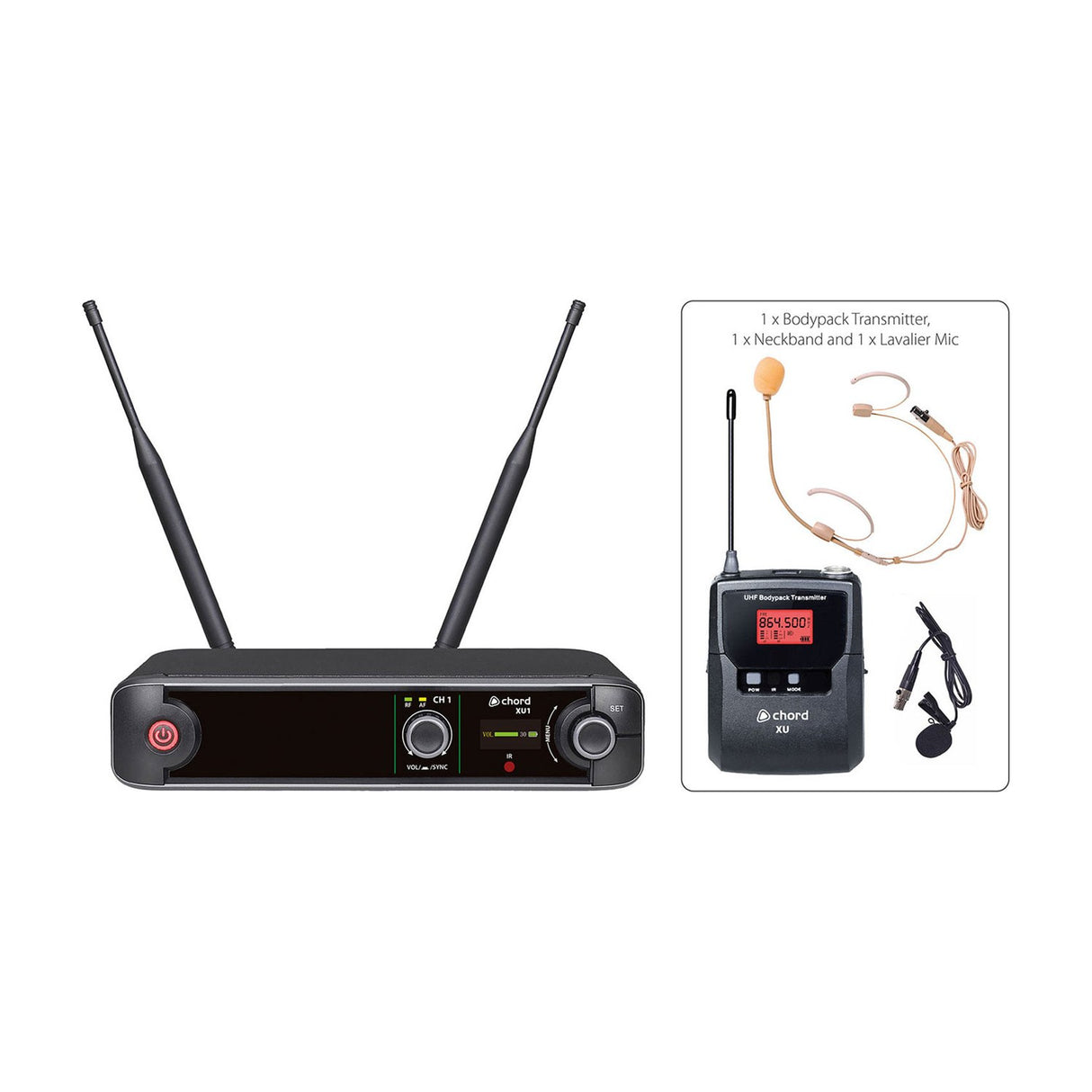

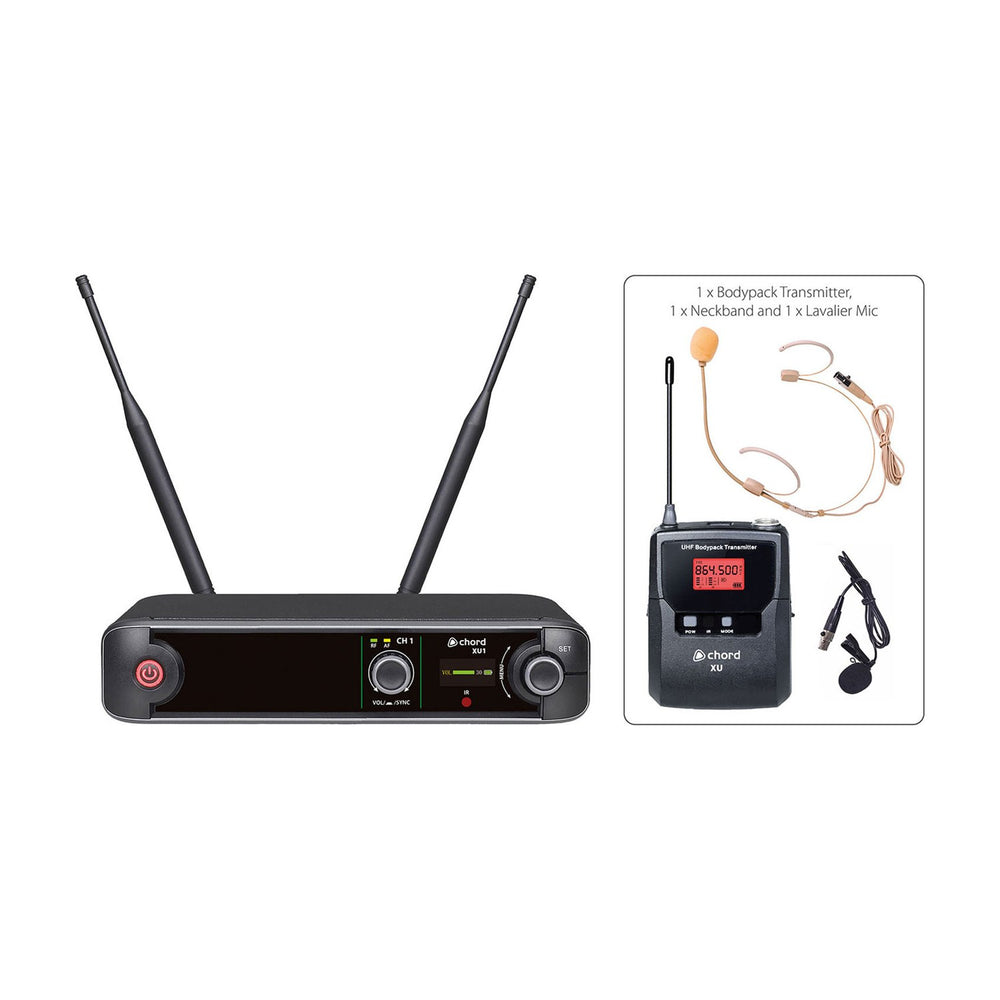

The Chord XU1-B is a single-channel UHF wireless microphone system built around a compact half-width 1U rack receiver and a bodypack transmitter. The bodypack works with a neckband or lavalier (lapel) microphone, making it a good fit for presenters, instructors and vocalists who need to keep their hands free. It uses a true diversity design with dual antennas and internal distribution, which helps keep reception steady and cuts down on dropouts as you move around the room.

The receiver gives you plenty of control from the front panel. There is a volume knob and a set of indicator LEDs, plus a colour TFT display that shows signal levels and lets you set channel frequencies and backlight colours. You get a choice of 10 groups with 9 selectable UHF carrier frequencies in each, covering both the UK and EU licence-free UHF band and the PMSE licensed duplex gap. The transmitter has its own LCD display for frequency and battery status, with a backlight you can set to one of six colours so each channel is easy to identify.

Setup is kept simple. Settings sync from the receiver to the transmitter over infrared, so you can match frequencies without fiddling through menus by hand. Outputs run through XLR, and the set ships with rack-mount hardware and extension cables so you can front-mount the antennas (aerials) when the receiver sits in a rack. The bodypack runs on 2 x AA batteries and offers a working range of up to 60m. It is a practical choice for anyone who wants clear wireless audio in a small, tidy package.

Specification

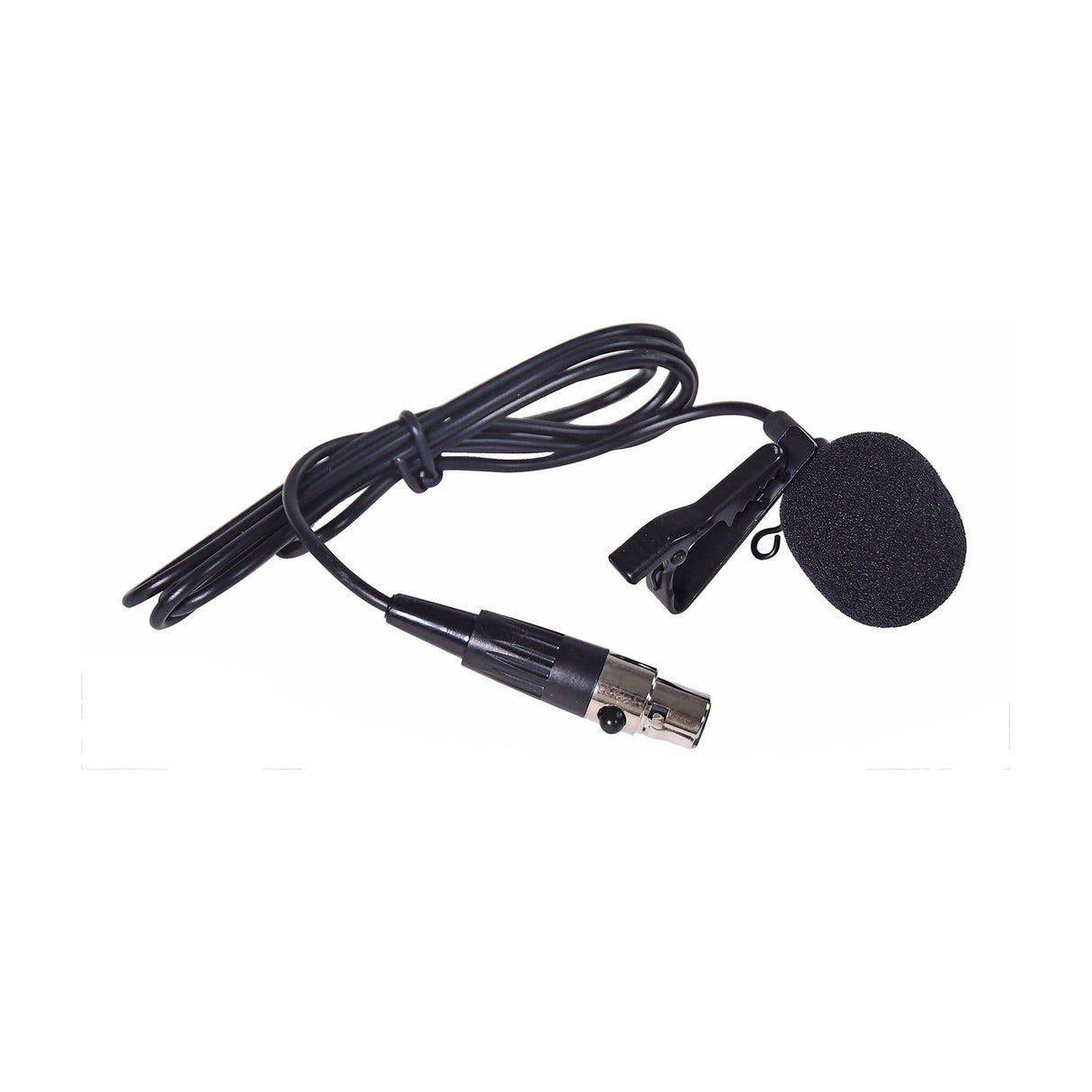

Weight : lavalier microphone 0.02KG
Dimensions : lavalier microphone 27mm x 12mmØ

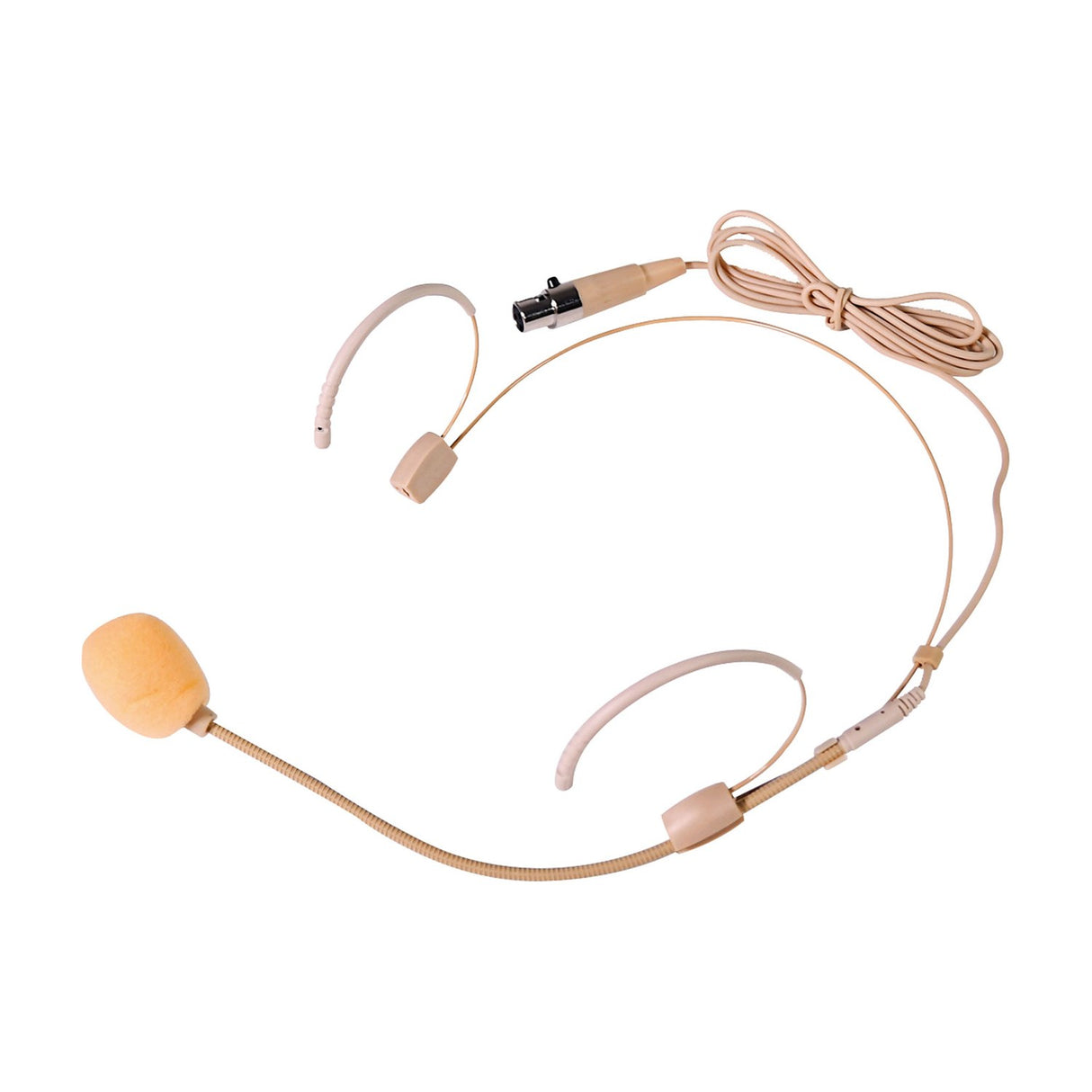

Weight : neckband microphone 0.03KG
Dimensions : neckband microphone 180mm x 140mm x 60mm

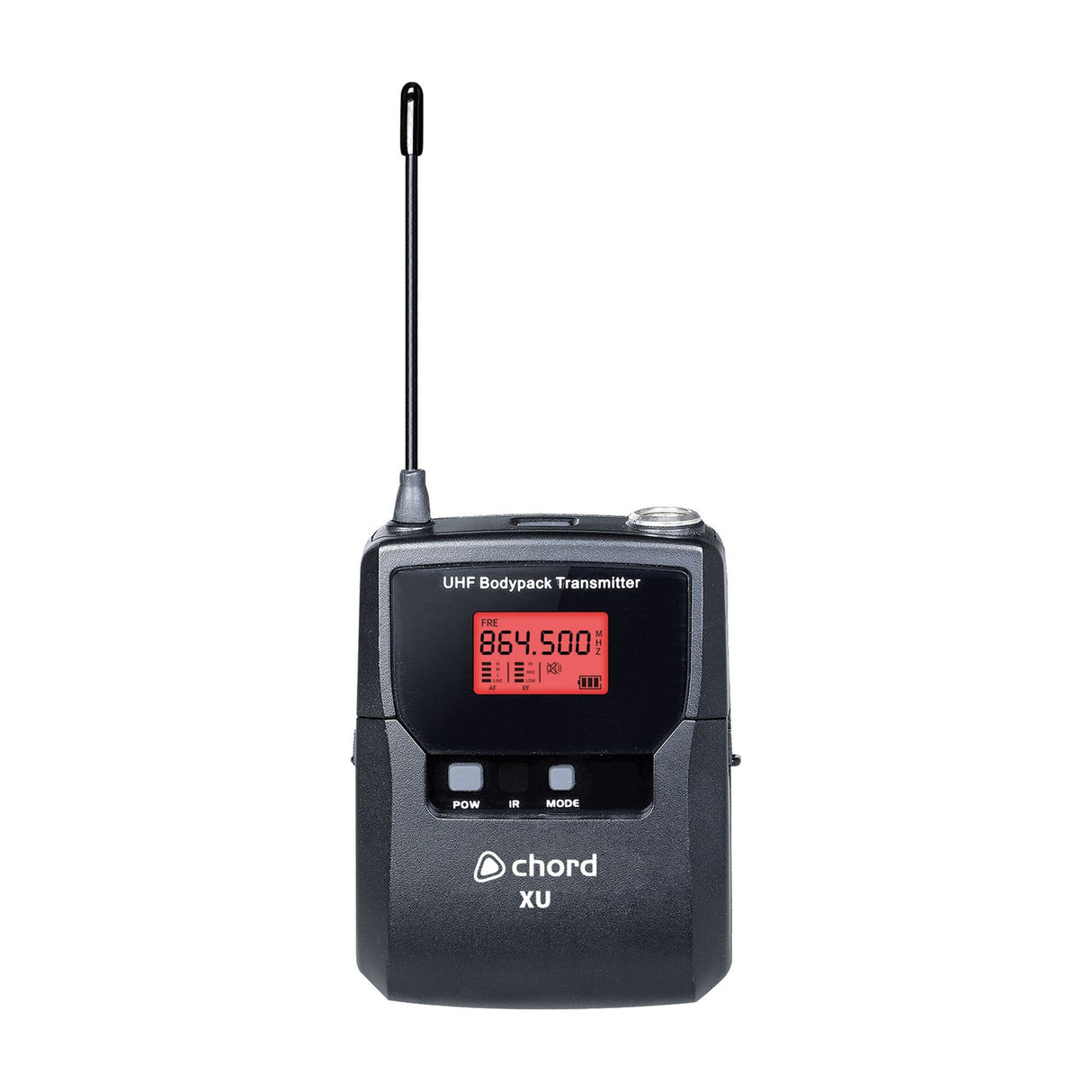

Weight : beltpack transmitter 0.07KG
Dimensions : beltpack transmitter 90mm x 60mm x 25mm
Power supply 12-18Vdc, 500mA (mains adaptor supplied)
Batteries 2 x AA per transmitter
Carrier frequencies 823-832 / 863-865MHz
Wireless range Up to 60m

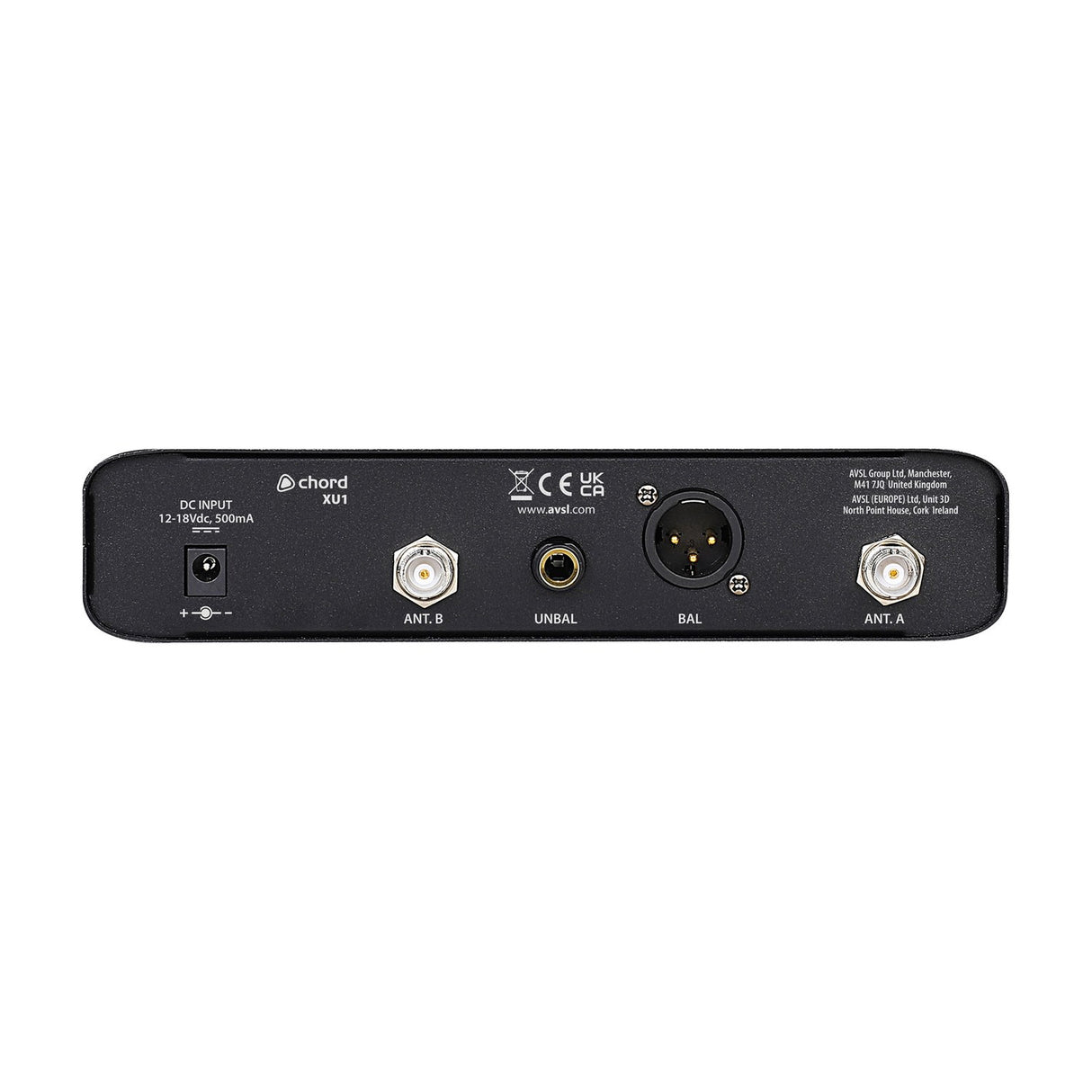

Antenna connection 2 x BNC
Dimensions : receiver 205mm x 205mm x 44mm
Weight : receiver 0.76KG
Downloads

Product Manual

Frequently Asked

What microphone does the bodypack use?

The XU1-B bodypack transmitter works with a neckband or lavalier (lapel) microphone, so you can pick the option that suits your use.

How many channels does this system have?

The XU1-B is a single-channel system. The XU series also offers 2 and 4 channel versions if you need more.

What is the wireless range?

The system offers a working range of up to 60m. Actual range depends on the room and any interference present.

How do I match the transmitter and receiver frequencies?

Settings sync from the receiver to the transmitter over infrared, so you can set frequencies quickly without manual menu work.

Does it fit in a rack?

Yes. The receiver is a half-width 1U unit and ships with rack-mount hardware plus extension cables for front-mounting the antennas.

What batteries does the transmitter need?

Each bodypack transmitter runs on 2 x AA batteries.
