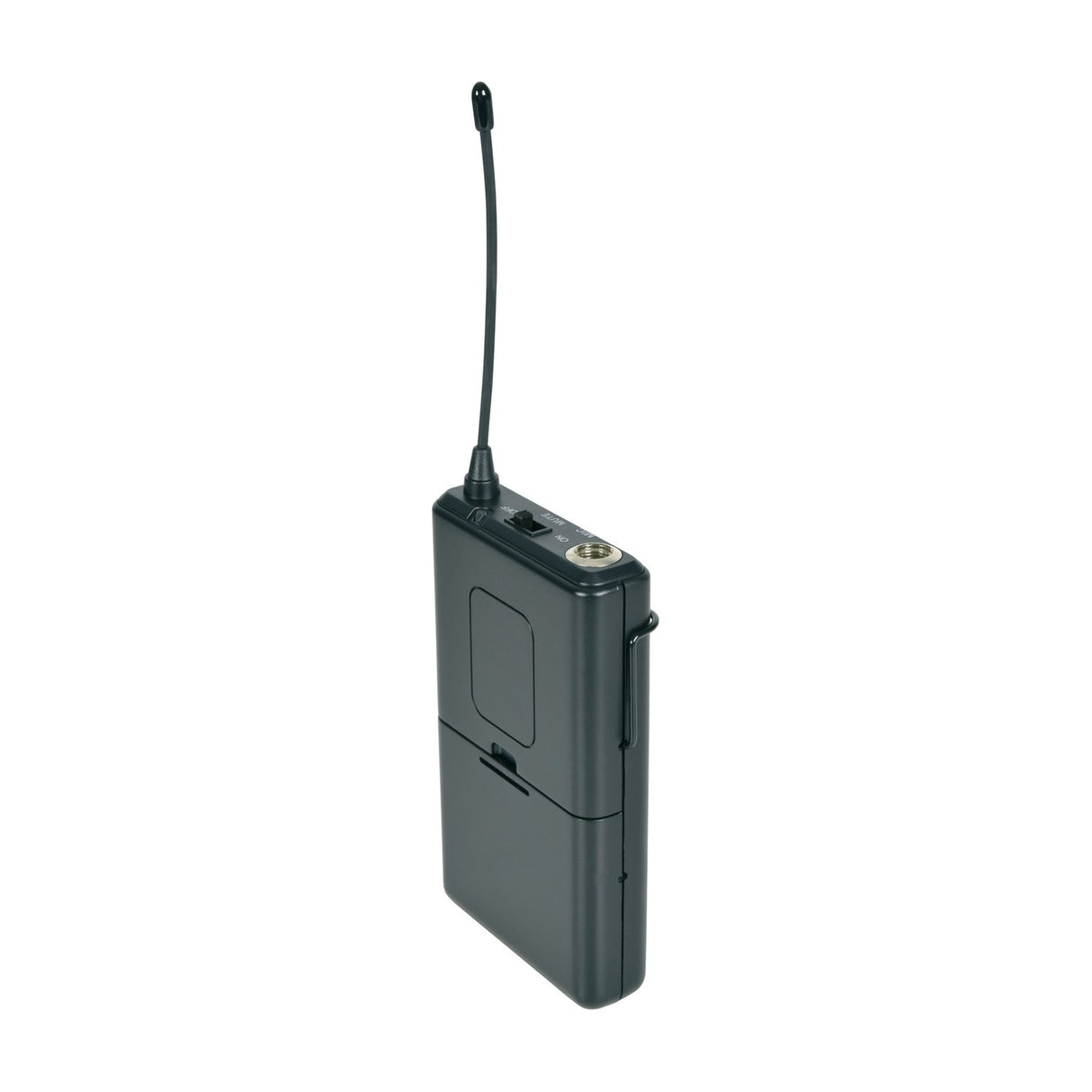

Chord NU20-BT-864.8 Beltpack Transmitter, 864.8MHz

£5099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This is the beltpack transmitter for Chord's NU20 dual channel wireless receivers, running on the 864.8MHz carrier frequency. It clips to a belt or waistband and sends audio to the receiver over UHF, giving you freedom to move around a stage, lectern or classroom without a trailing cable. A pilot tone keeps the link locked to the matching receiver, which helps tuning stay stable and reduces the chance of picking up stray signals.

You get up to 60m of range in open conditions, which covers most halls, worship spaces and event rooms. The transmitter takes a threaded 3.5mm mono jack, so it works with Chord neckband and lavalier microphones (a lavalier is the small clip-on mic sometimes called a lapel mic). The threaded fitting means the connector won't work loose while you present or perform. Power comes from two AA batteries, so replacements are easy to find and quick to swap between sessions.

The unit measures 205 x 68 x 25mm and weighs 76g without batteries, so it sits comfortably on a belt without dragging. It's offered in two carrier frequency versions; this one is fixed at 864.8MHz, so make sure it matches the channel on your NU20 receiver. If you're running a two-channel setup, pair this with a second beltpack on the other frequency to keep both mics clear of each other.

Specification
Carrier frequency 864.8MHz
Power supply 3Vdc (2 x AA batteries)
Maximum range 60m
Connection Threaded 3.5mm mono jack (for lavalier or headset)
Dimensions 205mm x 68mm x 25mm
Weight 0.08KG
Frequently Asked

Which receiver does this work with?

It's made for the Chord NU20 dual channel wireless receiver. The pilot tone keeps the link matched for stable tuning.

What frequency does this version run on?

This unit is fixed at 864.8MHz. A second frequency version is available if you need to run two channels together.

What microphones can I connect?

It uses a threaded 3.5mm mono jack, so it takes Chord neckband and lavalier (lapel) microphones.

How far will it reach?

Up to 60m in open conditions, which suits most halls and event rooms.

What powers the transmitter?

Two AA batteries (3Vdc). They're easy to source and quick to change between sessions.

How much does it weigh?

76g without batteries, and it measures 205 x 68 x 25mm.
