Brillia 3-Phase Trimless Track Middle Power Input - Dimmable 1-10V Black

£3799
The RRP is the manufacturer's recommended retail price of the item.
Available to Order - Contact us for current stock and delivery times
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

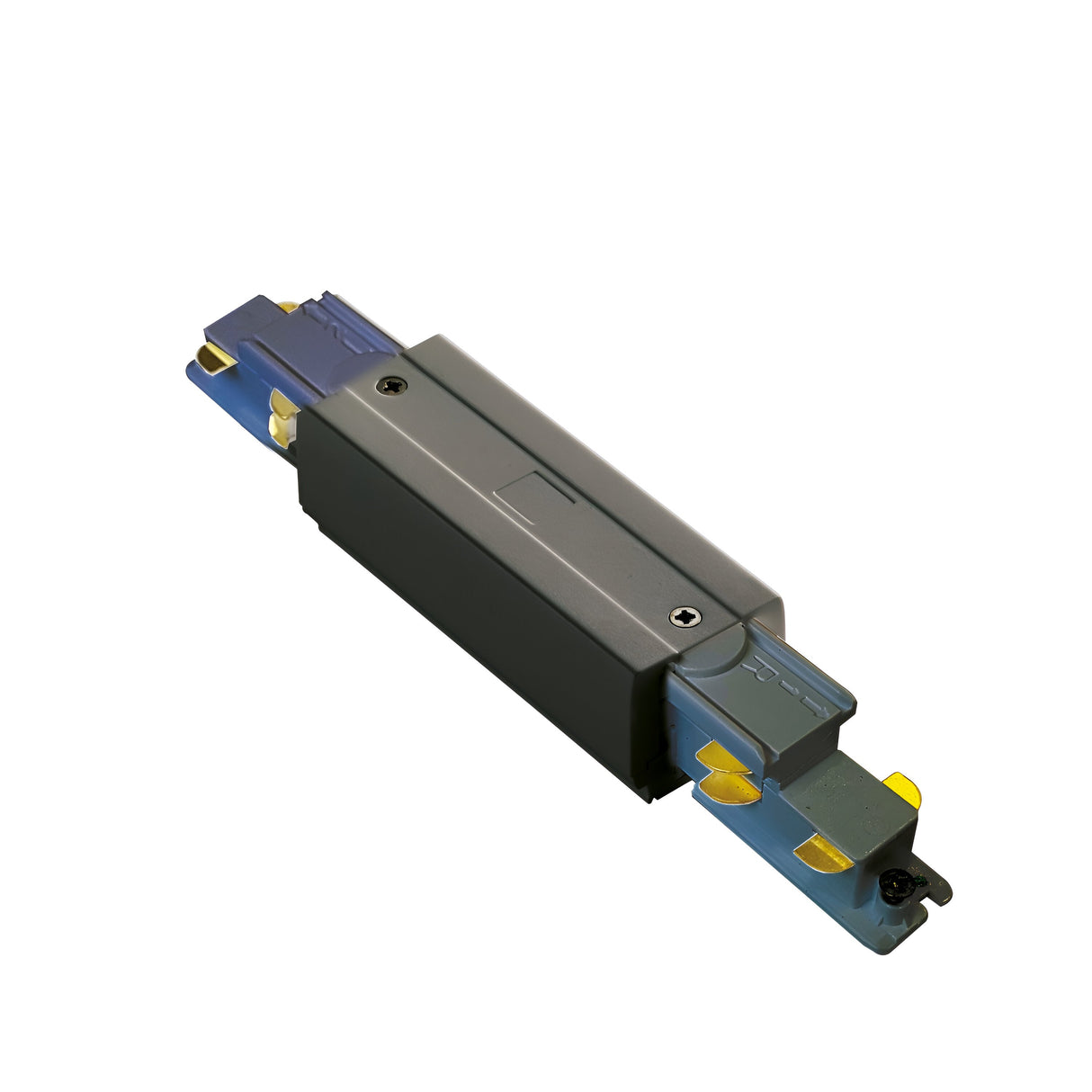

The Brillia 3-phase trimless track middle power input is a 203mm inline connector that feeds mains power into a track lighting circuit at any point along the run, rather than only at the end. It accepts 1-10V dimming control signals, allowing the entire track circuit to be dimmed from a compatible wall controller or lighting management system.

Designed for commercial retail, hospitality and residential track installations where the power feed needs to enter mid-run rather than at a wall end-point, this component suits ceiling layouts where the mains supply drops from above or where extending an existing track requires a new feed point. The trimless profile means the connector sits flush within the track channel with no visible housing projecting below, maintaining a continuous line along the ceiling.

The black polycarbonate housing measures 203mm long, 37mm wide and 34mm high, fitting standard Ideal Lux 3-phase trimless track profiles. The IP20 rating limits use to dry indoor environments only. The connector carries a 5-year warranty and meets UK wiring regulations when installed by a qualified electrician. The 1-10V dimming input requires a separate low-voltage control cable run alongside the mains feed.

Specification
Length (mm) 203
Projection (mm) 37
Height (mm) 34
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

What is a middle power input used for?

A middle power input feeds mains power into a track at any point along its length, rather than only at the end. This is useful when the ceiling supply drops from above mid-run, when joining two track sections that each need independent power feeds, or when extending an existing installation where the original end feed is inaccessible.

Does this work with standard 3-phase track?

This connector is designed specifically for Ideal Lux trimless 3-phase track systems. It will not fit other manufacturers' track profiles or single-circuit track. Confirm your existing track model before ordering to ensure compatibility.

What does 1-10V dimming require?

1-10V dimming requires a separate low-voltage control cable (typically 2-core) run from a compatible dimmer controller to the power input. The dimmer sends a 1-10V DC signal that the power input uses to control the output to connected track fixtures. All fixtures on the circuit must be 1-10V compatible.

Can this be installed outdoors?

No. The IP20 rating limits this connector to dry indoor environments only. It is not rated for outdoor use, bathrooms, or any location exposed to moisture.
