Brillia 3-Phase Trimless Track End Right Power Input - On/Off, Black

£1399
RRP £1920
The RRP is the manufacturer's recommended retail price of the item.
408 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

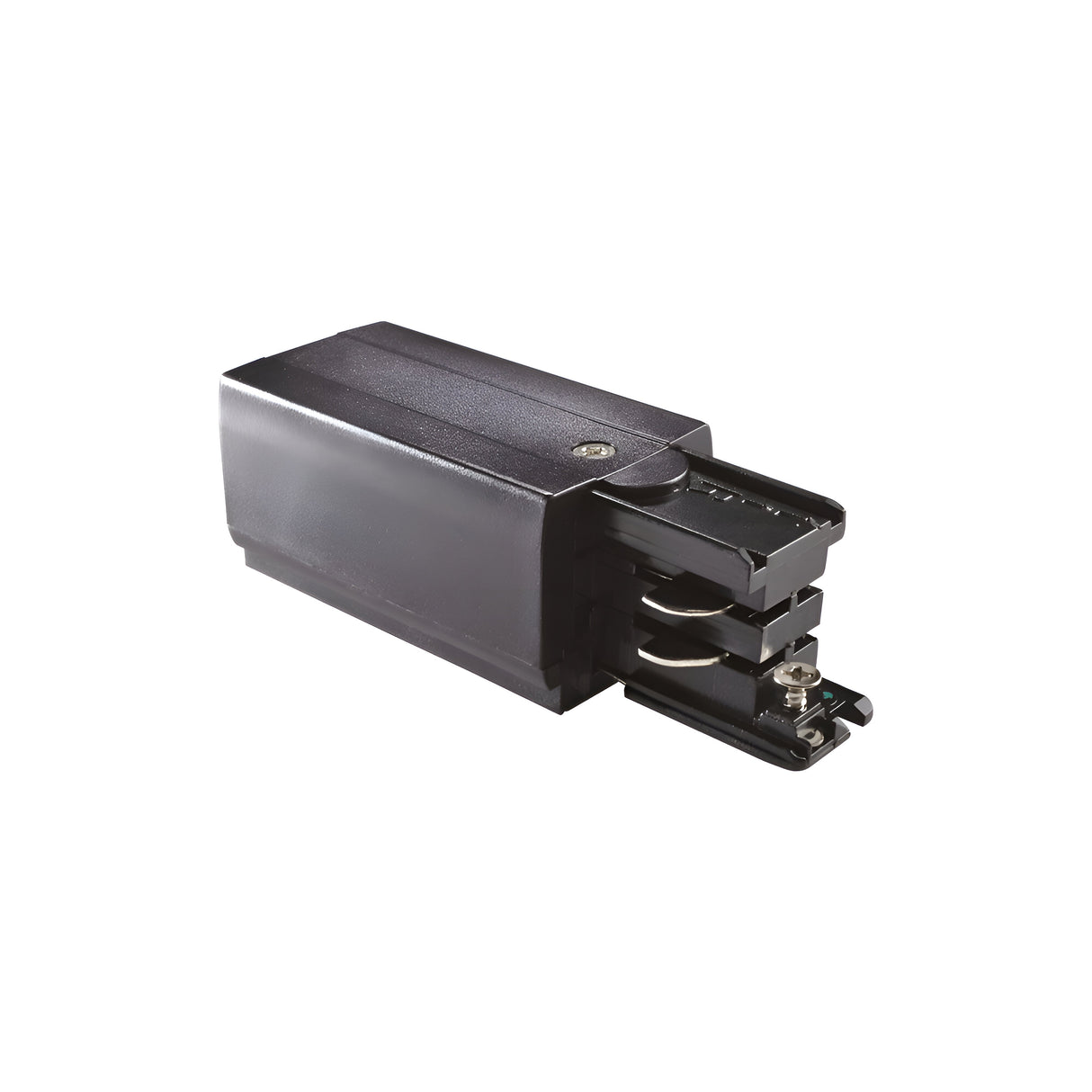

The Brillia 3-phase trimless track end cap is a right-side power input component with integrated on/off switching, finished in black. It terminates one end of a Brillia 3-phase track run while providing the mains connection point, combining the roles of end cap and power feed in a single 99mm-long unit that sits 35mm from the ceiling.

Designed for indoor track lighting installations in retail, office, gallery and residential settings, the trimless profile sits flush with the track without visible fixings or protruding edges. The right-side orientation means the mains cable entry is on the right when facing the track, which determines where the electrician positions the ceiling rose or junction box. The on/off switch provides manual circuit control without needing a separate wall switch, useful for display lighting or temporary installations.

The black finish matches Brillia's black track range and coordinates with matt black or graphite interiors. The IP20 rating restricts use to dry indoor spaces — not suitable for bathrooms, kitchens with steam exposure, or outdoor canopies. The unit accepts standard UK mains wiring and connects to the track via the 3-phase bus bars inside the track channel, with one phase controlled by the switch and the others passing through for downstream connection.

Specification
Length (mm) 99
Projection (mm) 35
Height (mm) 32
Dimmable No
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does 'right-side power input' mean?

The mains cable entry is on the right when you face the track. This determines where your electrician needs to position the ceiling rose or junction box during installation.

Does the on/off switch control all three phases?

No. The integrated switch typically controls one phase only, allowing you to turn off a subset of the track lights connected to that phase while leaving the others on. Check your track lighting plan to understand which fixtures are wired to which phase.

Can this be used outdoors or in bathrooms?

No. The IP20 rating means it is suitable only for dry indoor locations. It is not protected against moisture ingress and should not be used in bathrooms, wet rooms, kitchens with heavy steam, or outdoor installations.

Is it compatible with non-Brillia track?

No. This component is designed specifically for Ideal Lux Brillia 3-phase track systems and will not fit other manufacturers' tracks due to differences in bus bar configuration and mounting profiles.
