Brillia 3-Phase Trimless L-Connector Track Right - On/Off, Black

£2299
RRP £3240
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

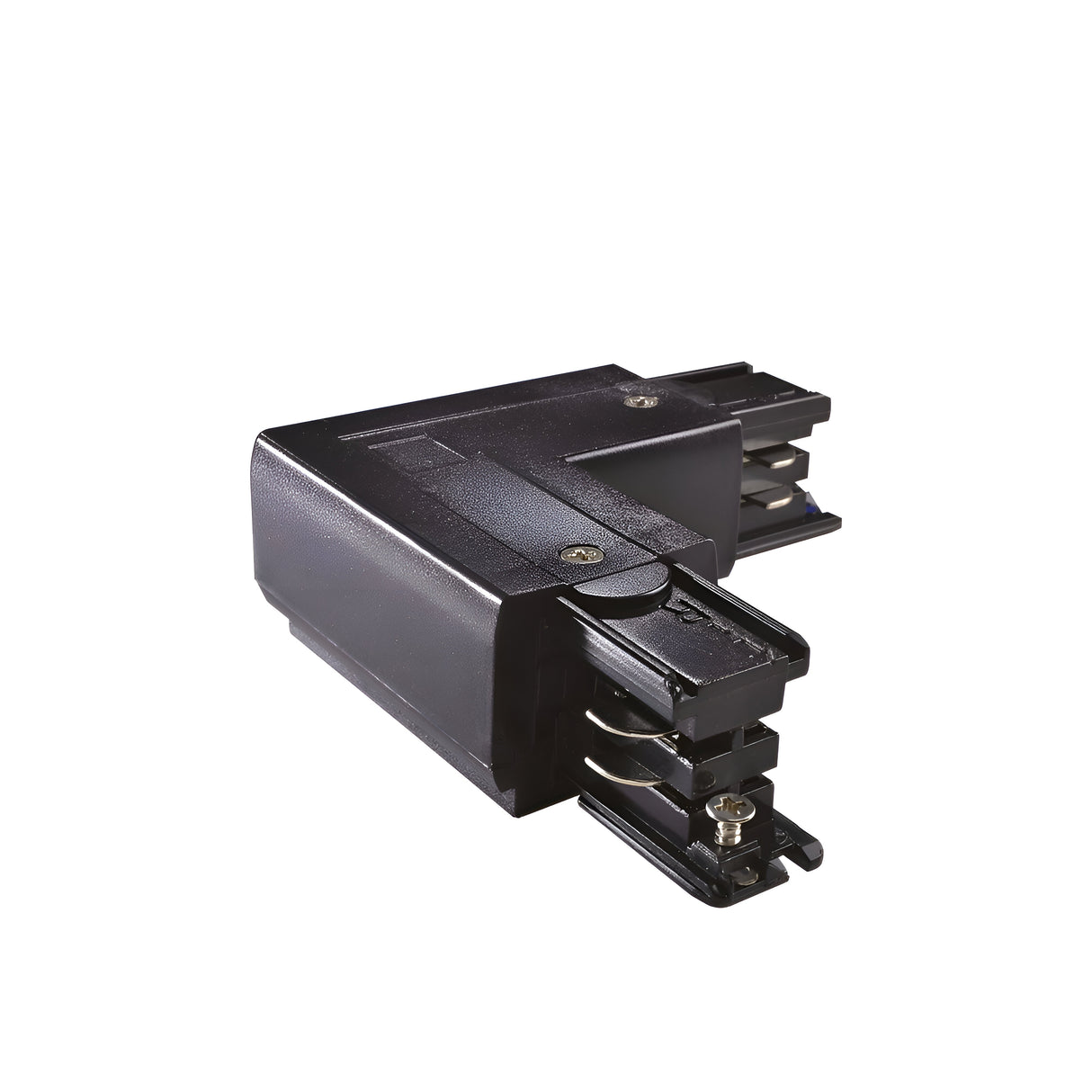

The Brillia 3-Phase Trimless L-Connector Track Right is a right-angle junction piece for 3-phase track lighting systems, combining a 90-degree track join with an integrated on/off switch in a black thermoplastic housing. The connector measures 101mm along each leg of the L, with a 32mm profile height, and fits into recessed track installations where the track sits flush with the ceiling plane.

Designed for retail, gallery, hospitality and residential track lighting layouts, the L-connector allows a track run to turn a corner without breaking the electrical circuit continuity across all three phases. The on/off switch isolates the circuit on the outbound leg, so spotlights mounted beyond the connector can be switched independently from the main run. The trimless design means the connector sits within the ceiling recess rather than proud of it, maintaining a clean visual line across the track system.

The black thermoplastic housing is rated IP20 for indoor use and carries a 5-year warranty from Ideal Lux. The connector is not dimmable itself (dimming is controlled by the circuit or individual spotlights), but it passes dimmed current through to compatible fittings on the track. The compact 101mm x 101mm footprint makes it suitable for corners in smaller rooms where a wide-radius bend would eat into usable ceiling space.

Specification
Length (mm) 101
Projection (mm) 101
Height (mm) 32
Dimmable No
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does the on/off switch control?

The integrated switch isolates the track circuit on the outbound leg of the L-connector. Spotlights mounted beyond the connector can be switched off independently from the main track run, without affecting fittings upstream of the connector.

What's the difference between left and right L-connectors?

The "right" designation indicates the orientation of the 90-degree turn when looking along the track from the power feed. A right connector turns the track to the right; a left connector turns it to the left. Check your ceiling layout before ordering to ensure the correct orientation.

Can it be used on surface-mounted track?

The Brillia Trimless range is designed for recessed track installations where the track sits flush with the ceiling. For surface-mounted track systems, Ideal Lux produces separate non-trimless connectors with a different profile height and fixing method.

Does it support all three phases?

Yes. The connector maintains electrical continuity across all three phases of a 3-phase track system, allowing mixed-phase spotlights to be mounted on either side of the corner join.
