Brillia 3-Phase Track Middle Power Input - On/Off, White

£2499
RRP £3480
The RRP is the manufacturer's recommended retail price of the item.
74 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

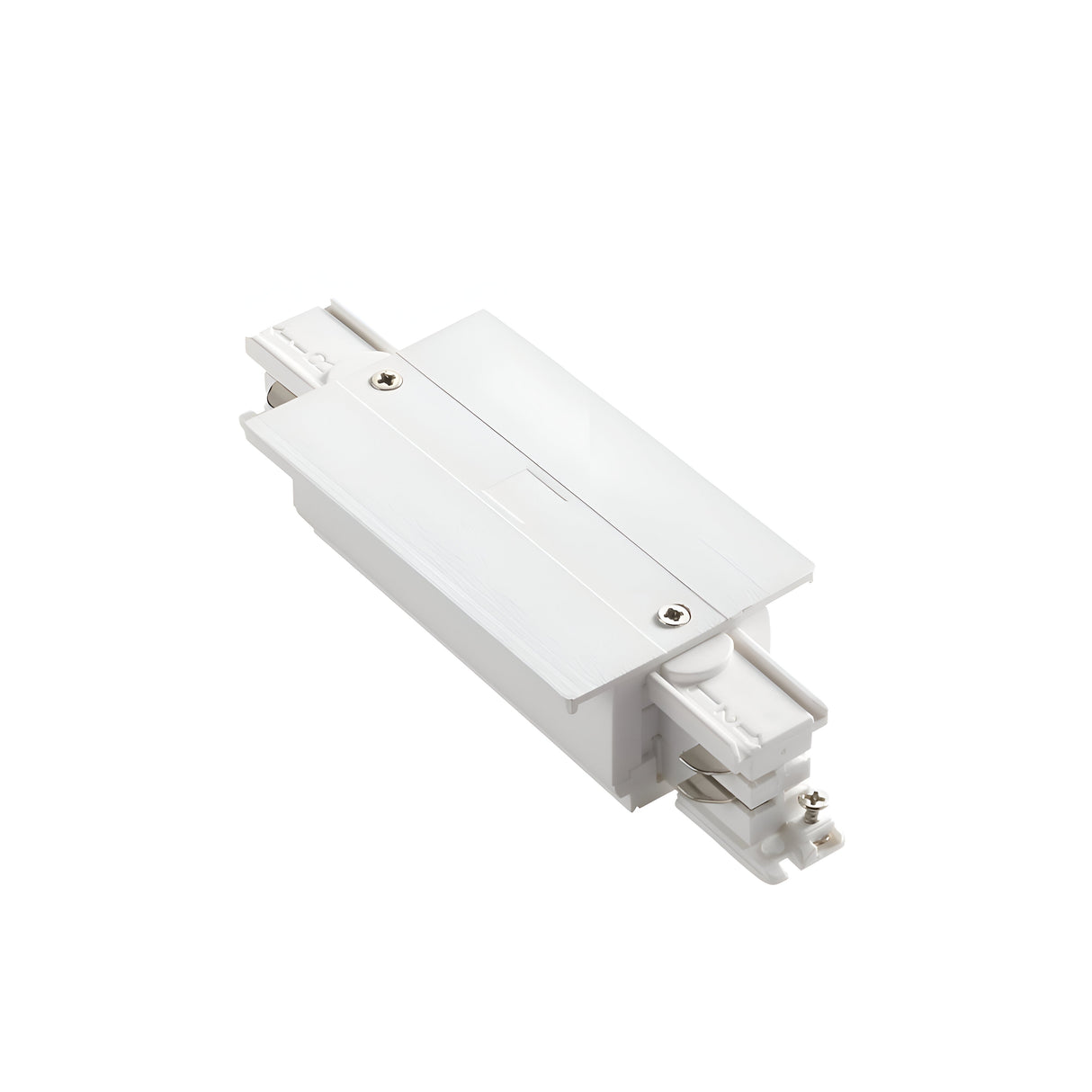

The Brillia 3-phase track middle power input is a white plastic connector unit that feeds mains power into the centre of a 3-phase track lighting rail. It provides on/off switching for non-dimmable track systems, allowing the entire circuit to be controlled from a single point along the rail rather than only at the end feed. The unit measures 168mm in length, 56mm in projection and 35mm in height, fitting standard Ideal Lux 3-phase track profiles.

Designed for commercial retail spaces, galleries, showrooms and hospitality environments where track lighting runs need power input at mid-points rather than only at rail ends, the middle power input allows longer track runs to be built without voltage drop issues. The white finish matches white track profiles, creating a continuous rail appearance when the power input is installed mid-run. The IP20 rating makes it suitable for indoor dry locations.

The plastic housing is rated for indoor use and includes internal connectors that clip into the three live phases within the track rail. The on/off switch provides manual control without requiring a separate wall switch, useful in installations where the track is fed from a permanently-live circuit or where local control at the track itself is preferred. Ideal Lux covers the unit with a 5-year warranty against manufacturing defects.

Specification
Length (mm) 168
Projection (mm) 56
Height (mm) 35
Dimmable No
IP Rating IP20
Warranty 5 Years
Frequently Asked

What is a middle power input used for?

A middle power input feeds mains power into the centre of a track rail rather than only at the ends. This is useful for longer track runs where feeding only from one or both ends would cause voltage drop, or where you want to create two independently-controlled sections on a single rail.

Is this compatible with all 3-phase track systems?

This unit is designed specifically for Ideal Lux 3-phase track profiles. While some 3-phase track systems share similar dimensions, connector pin positions and phase layouts can differ between manufacturers. Use only with Ideal Lux track to ensure proper phase alignment and safe operation.

Can this be used outdoors?

No. The IP20 rating means the unit is protected against solid objects larger than 12.5mm but has no water ingress protection. It is suitable only for indoor dry locations.

Does the on/off switch control the entire track?

Yes, when installed as the sole power input. The switch controls all three phases feeding into the track rail, turning all connected spotlights on or off together. If the track has multiple power inputs, each input's switch controls only the section it feeds.
