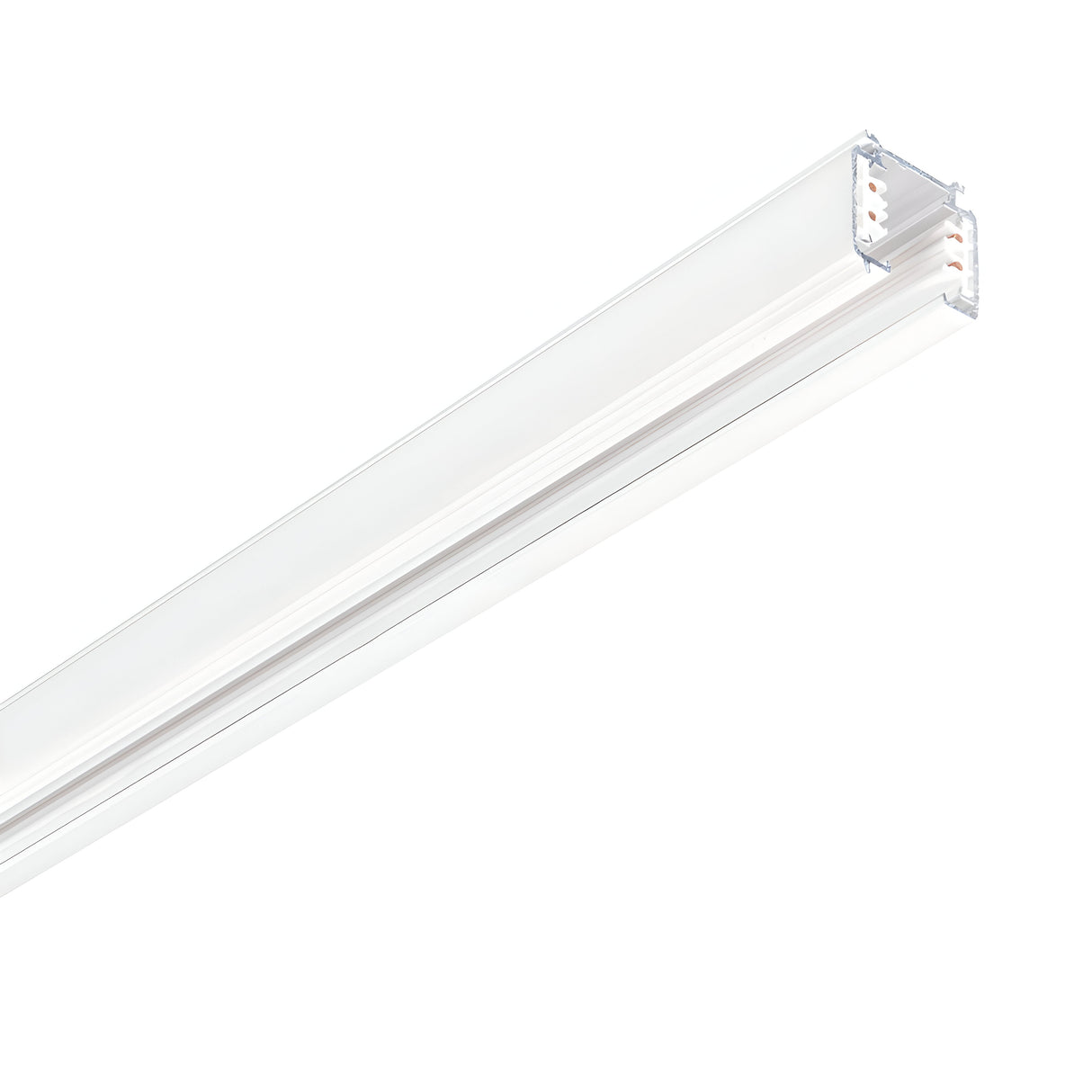

Brillia-2 3-Phase Track Light Rail 1m White Surface Mount

The Brillia-2 is a 1m white aluminium track rail for 3-phase track lighting systems, designed for surface mounting on ceilings or walls. The rail provides three independent circuits within a single 1m length, allowing separate switching or dimming of different groups of track heads fitted along its length. The 35mm projection from the mounting surface gives a low-profile finish suitable for commercial and residential installations where ceiling height is limited.

Used in retail spaces, gallery walls, office corridors, kitchens and living rooms, the Brillia-2 accepts any standard 3-phase track spotlight or pendant adaptor. The rail can be installed individually as a 1m run or joined end-to-end with matching connectors (sold separately) to create longer continuous runs across larger spaces. The surface-mount design means no ceiling cut-outs are required, making it straightforward to retrofit onto existing plasterboard, concrete or timber ceilings.

The white powder-coated aluminium body matches standard white ceilings and minimises visual presence when track heads are not fitted. The IP20 rating restricts use to dry indoor environments only. Each 3-phase circuit is isolated electrically, so track heads on circuit 1 can be controlled independently from those on circuits 2 or 3, giving flexibility to create zoned lighting within a single track run.

What does 3-phase mean in track lighting?

3-phase track contains three separate electrical circuits running along the same rail. This allows track heads fitted to the rail to be assigned to circuit 1, 2 or 3, so they can be switched or dimmed independently. It does not refer to industrial 3-phase power — the track runs on standard 230V single-phase mains.

Can this track be joined to create longer runs?

Yes. Multiple 1m Brillia-2 sections can be joined end-to-end using straight connectors (sold separately) to create continuous runs of 2m, 3m or longer. Power feed connectors are also available to add electrical supply at any point along the run.

What track heads fit this rail?

The Brillia-2 accepts any standard 3-phase track spotlight, pendant adaptor or linear light designed for 3-phase track systems. Check the track head specification confirms 3-phase compatibility before purchasing.

Is the track supplied with fixing screws?

The track typically includes basic surface-mount fixings. For installations onto plasterboard, additional cavity fixings may be needed depending on the combined weight of the track and the number of heads being fitted.
