Description

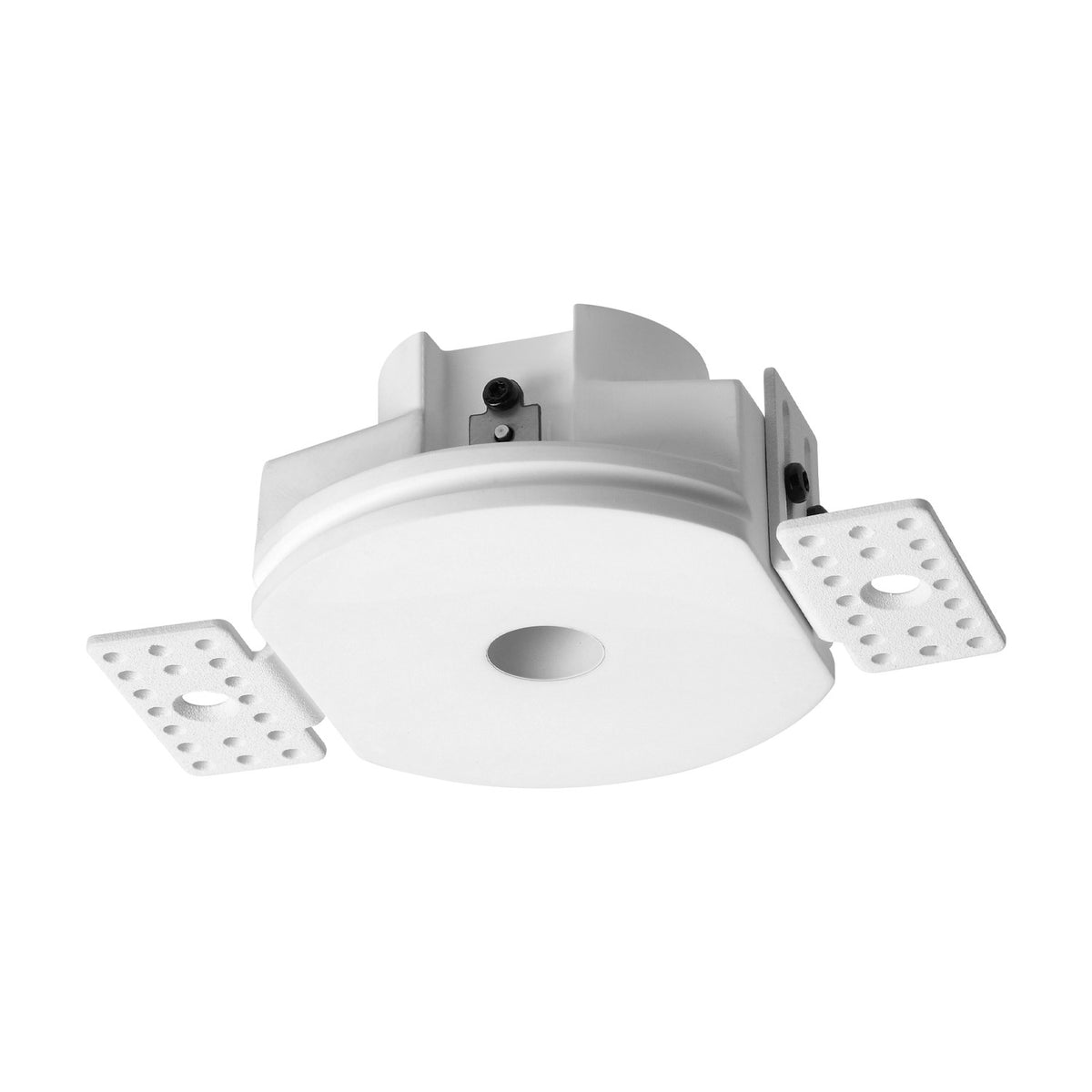

This is the Beyond plaster-in downlight frame in white, a plaster housing made for the range's 7W adjustable downlight source. The source is sold separately and is not in the box, so the frame on its own gives no light: it is the part that sits within the ceiling and holds the source, and the maker lists it as a required accessory for that source. The frame measures 114mm long, 80mm wide and 43mm deep, and weighs just 0.15KG. Its face is a smooth, rounded plate with a small round opening at the centre, and two perforated tabs reach out to either side of the body.
A plaster-in frame suits anyone who would rather see the light than the hardware. Once it is finished into the ceiling, the frame stops reading as a separate part: the plaster runs up to the small opening, and the adjustable source appears to come straight out of the ceiling, with no visible trim or ring around it. It is a clean, architectural way to place a spotlight, and it keeps a plain white ceiling looking plain. Because the frame becomes part of the plasterwork, it is a choice best made while a ceiling is being planned or renewed, before the final coat is applied.
Plaster is a material that takes paint readily, so a frame made of it can sit under the same finish as the ceiling around it. The frame carries no electrics and no light source of its own; all of the light comes from the 7W adjustable downlight source it is made to hold, which you add separately. At 0.15KG it adds very little load to the ceiling. When you plan the job, count one frame for every source you intend to fit, and order the two together so the ceiling can be finished in one go.
Specification
| Length |
114mm |
| Width |
80mm |
| Depth |
43mm |
| Fits |
The range's 7W adjustable downlight source |
| Material |
Plaster |
| Finish |
White |
| Certification |
CE |
| Weight |
0.15KG |
| Warranty |
5 Years |
Frequently Asked
Does the frame come with the downlight source?
No. The 7W adjustable downlight source is sold separately and is not in the box; the frame holds it but gives no light on its own.
Which downlight source does this frame fit?
It is made for the range's 7W adjustable downlight source, which is sold separately, and that is the source it is designed to hold.
How big is the plaster-in frame?
It measures 114mm long, 80mm wide and 43mm deep, and it weighs 0.15KG, so it adds very little load to a ceiling.
What material is the frame?
The frame is made of plaster in a white finish, so once it is finished into the ceiling it can sit under the same paint as the surrounding surface.
Will the frame show once the ceiling is finished?
A plaster-in frame is made to be finished into the ceiling, so the housing is hidden and only the small round opening for the source remains in view.
Does the frame need its own power?
No. The frame carries no electrics or light source of its own; all of the light comes from the 7W adjustable downlight source you add.
