AV:Link USC601 Full Motion Double Arm TV Wall Bracket

£3599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

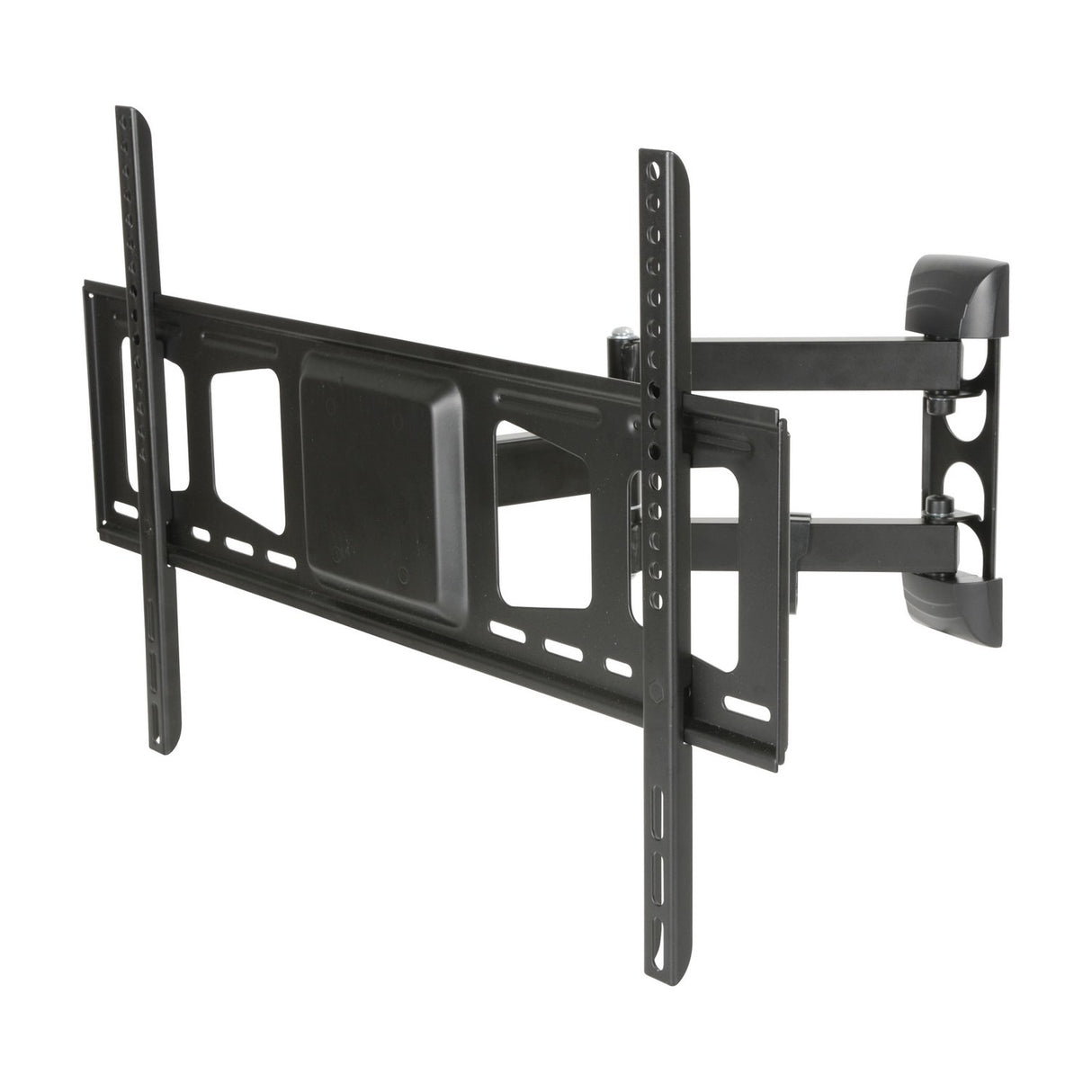

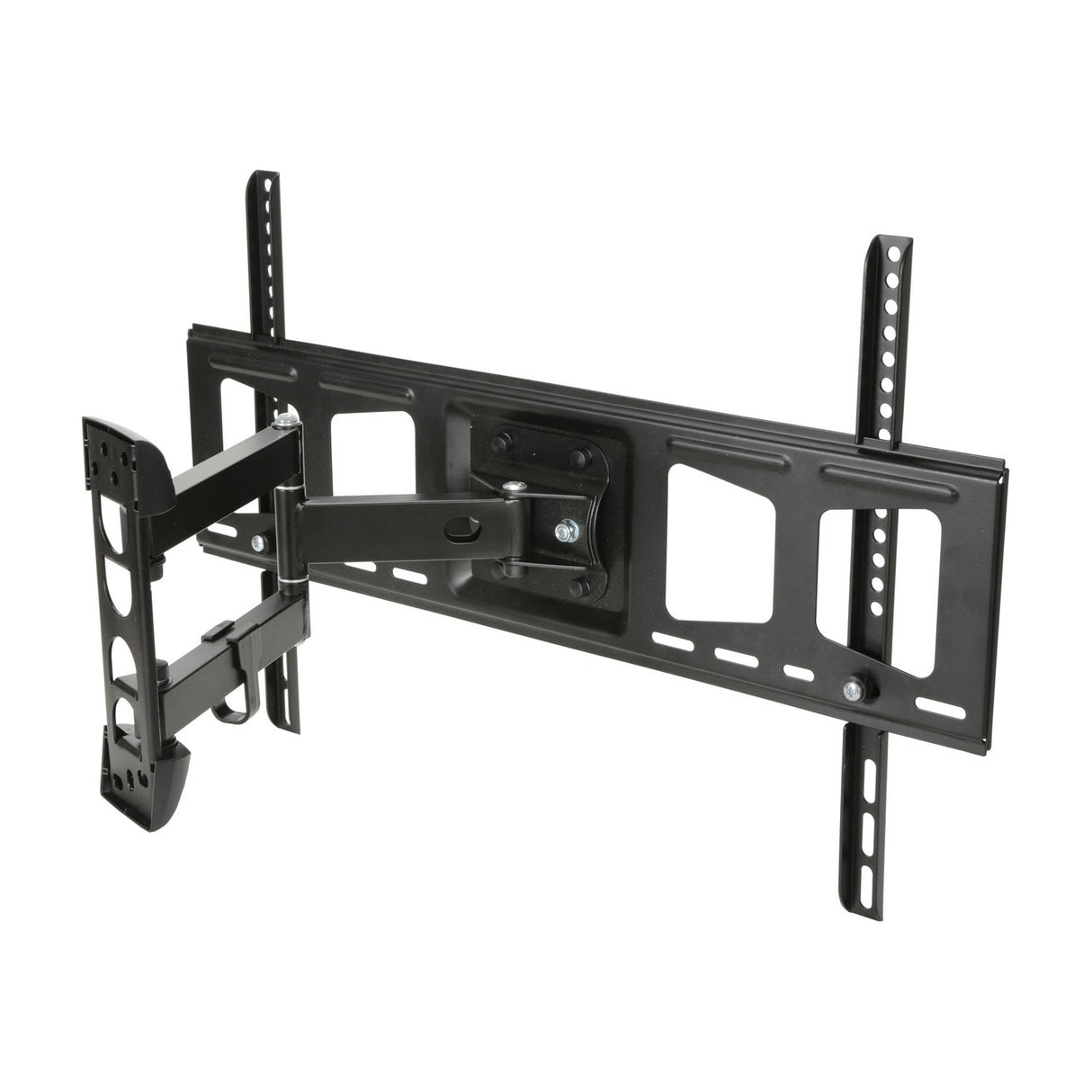

The AV:Link USC601 is a full motion double arm wall bracket for LED and LCD screens from 32" to 60". The double arm design lets you pull the screen away from the wall, angle it and turn it, so you can get a comfortable view from any seat in the room. When you're not using it, the low profile design folds the screen back close to the wall to save space.

We've built the bracket around a VESA hole pattern of up to 600 x 400mm, and it holds screens weighing up to 30kg. The tilt runs from -2 to 12 degrees, with 180 degrees of pan from the mounting plate (also called the wall plate) and 180 degrees of swivel from the centre arm joint. Distance from the wall adjusts between 55 and 390mm, so you can sit the screen flush or extend it out into the room. An integrated cable management system gathers and routes your cables to keep the setup tidy.

The wall plate measures 224 x 66mm (W x H) and the whole bracket weighs 3.985kg. It's easy to assemble, and we include the installation hardware in the box so you have what you need to fit it. Before you buy, check your TV's VESA pattern, weight and size against the figures above to make sure they fall within range.

Specification
Screen size 32" to 60"
Max. VESA 600 x 400mm
Max. weight load 30.00KG
Distance from wall 55-390mm
Tilt range -2°~12°
Wall plate dimensions 224mm x 66mm (W x H)
Weight 3.98KG
Downloads

Product Manual

Frequently Asked

What screen sizes does the USC601 fit?

It suits LED and LCD screens from 32" to 60". Always check your TV's weight and VESA pattern as well as the screen size.

What VESA pattern does it support?

It works with VESA hole patterns up to 600 x 400mm.

How much weight can it hold?

The maximum weight load is 30kg. Make sure your screen falls under this before fitting.

How far does it move from the wall?

The distance from the wall adjusts between 55 and 390mm. It also pans and swivels 180 degrees and tilts from -2 to 12 degrees.

Is the fitting hardware included?

Yes, we include the installation hardware. You may still need your own tools such as a drill for the wall fixings.

Does it help with cable tidiness?

Yes, an integrated cable management system gathers and routes your cables to keep them neat.
