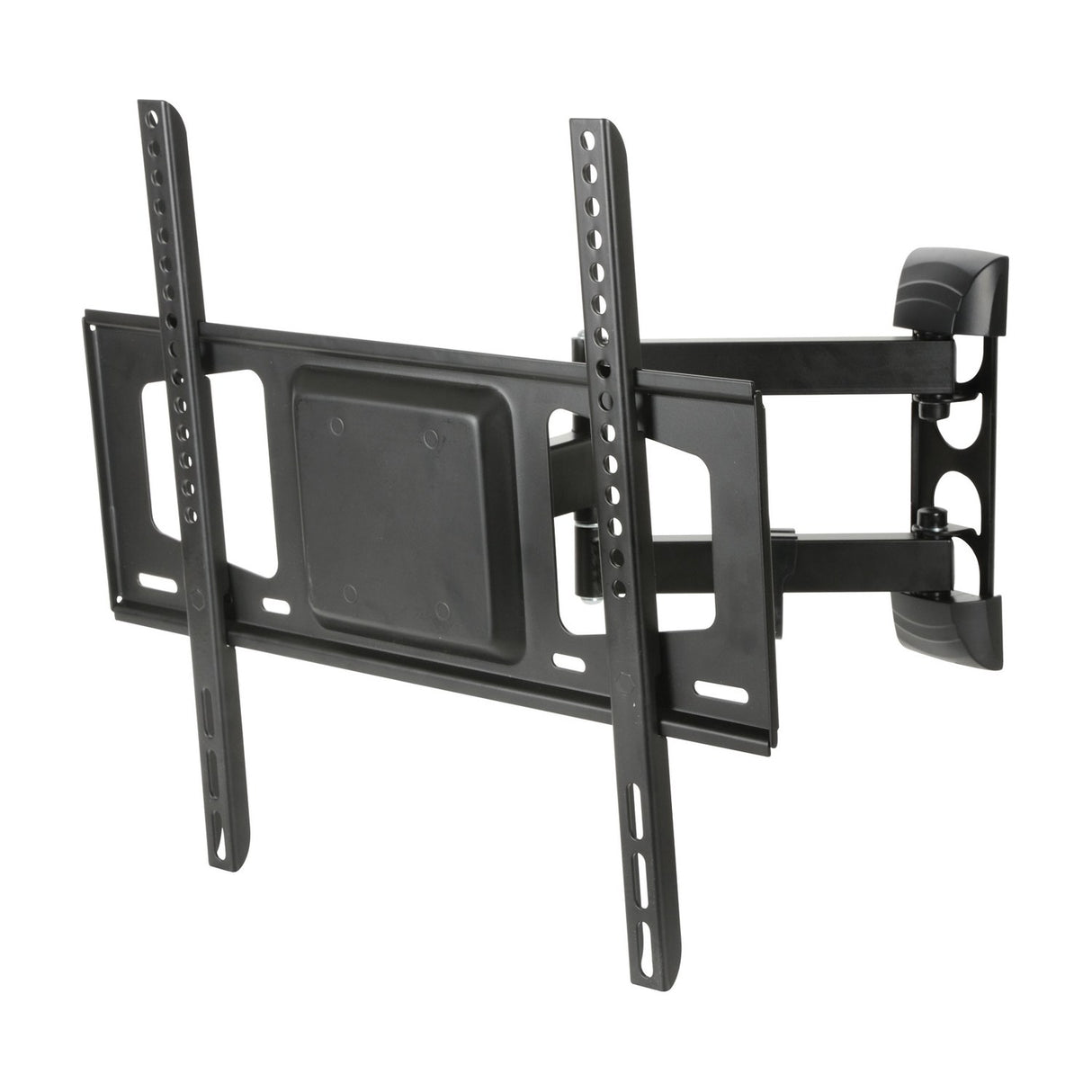

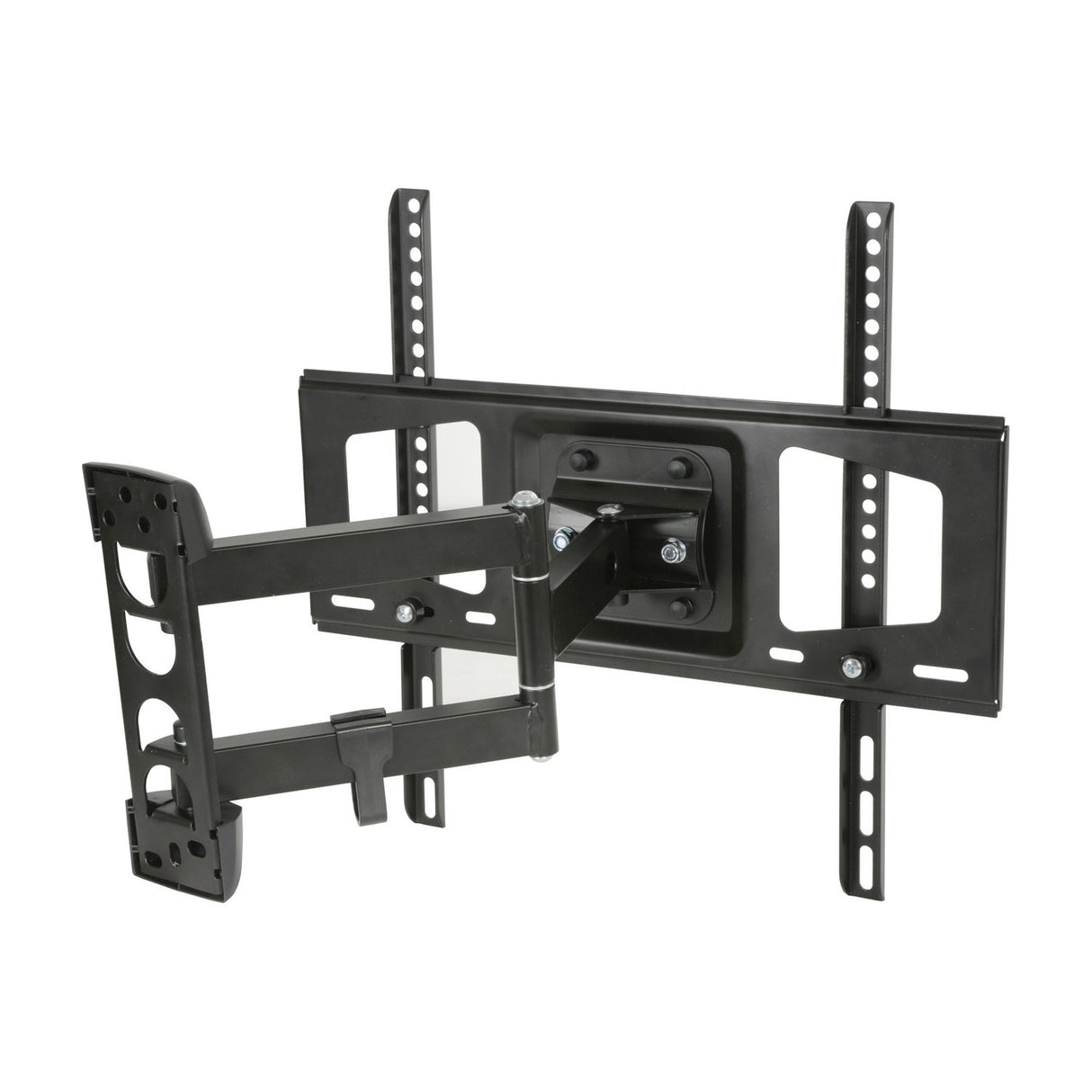

AV:Link USC401 Full Motion Double Arm TV Wall Bracket 26"-55"

£3499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Our AV:Link USC401 is a full motion double arm wall bracket (wall mount) made for LED and LCD screens from 26" up to 55". The two-arm design lets you pull the screen away from the wall, angle it and turn it, so you can set up a good view from wherever you happen to be sitting. When you're done, the arms fold back for a low profile that sits close to the wall and keeps things out of the way.

It works with VESA hole patterns up to 400 x 400mm and holds a screen weight of up to 30kg. The tilt range runs from -2° to 12°, with 180° pan from the mounting plate and 180° swivel from the centre arm joint. The bracket extends from 55mm to 390mm from the wall, giving you plenty of room to reach cables or reposition the screen. An integrated cable management system gathers and routes your cables so they stay neat behind the TV.

The wall plate measures 224 x 66mm (W x H) and the bracket itself weighs 3.3kg. It's easy to assemble and all the installation hardware is included, so you have what you need to fit it in one go. Before you buy, check your TV's VESA pattern, weight and size against the figures above to make sure it's a match. If you're not sure, measure the horizontal and vertical distance between the mounting holes on the back of your set.

Specification
Screen size 26" to 55"
Max. VESA 400 x 400mm
Max. weight load 30.00KG
Distance from wall 55-390mm
Tilt range -2°~12°
Wall plate dimensions 224mm x 66mm (W x H)
Weight 3.30KG
Downloads

Product Manual

Frequently Asked

What screen sizes does this bracket fit?

It's suitable for LED and LCD screens from 26" up to 55". Check your TV's weight and VESA pattern as well as the size before fitting.

What VESA patterns does it support?

It supports VESA hole patterns up to 400 x 400mm. Measure the distance between the mounting holes on the back of your TV to confirm the fit.

How much weight can it hold?

The maximum weight load is 30kg. Make sure your screen sits within this figure before mounting.

How far does it move from the wall?

The bracket extends from 55mm to 390mm from the wall, with 180° pan, 180° swivel and a tilt range of -2° to 12°.

Is the fitting hardware included?

Yes, all the installation hardware is included. The bracket is easy to assemble and designed to fit in one go.

Does it help with cable tidiness?

Yes, it has an integrated cable management system that gathers and routes your cables neatly behind the screen.
