AV:Link TC602 Ceiling Mount TV Bracket 32" to 70"

£5999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

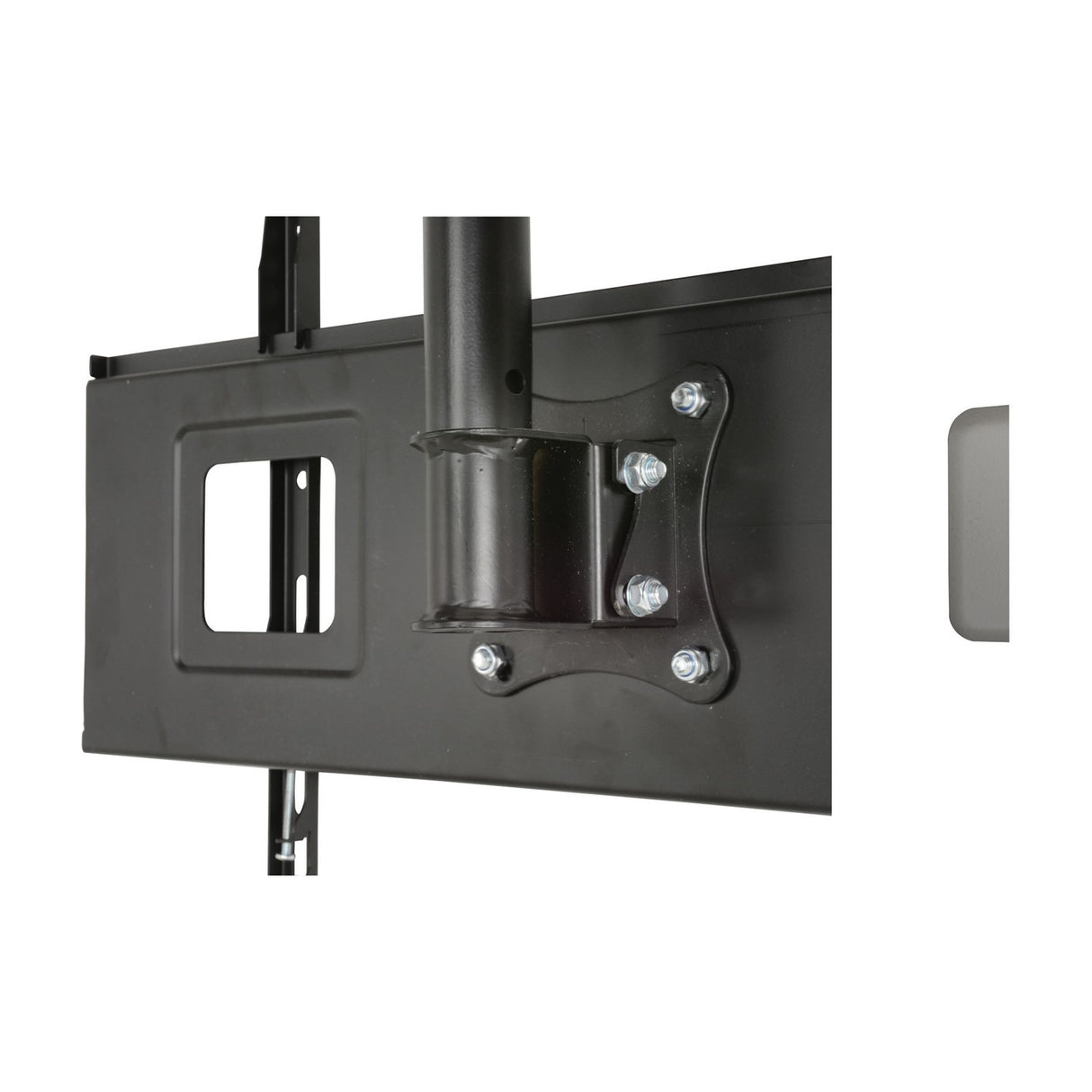

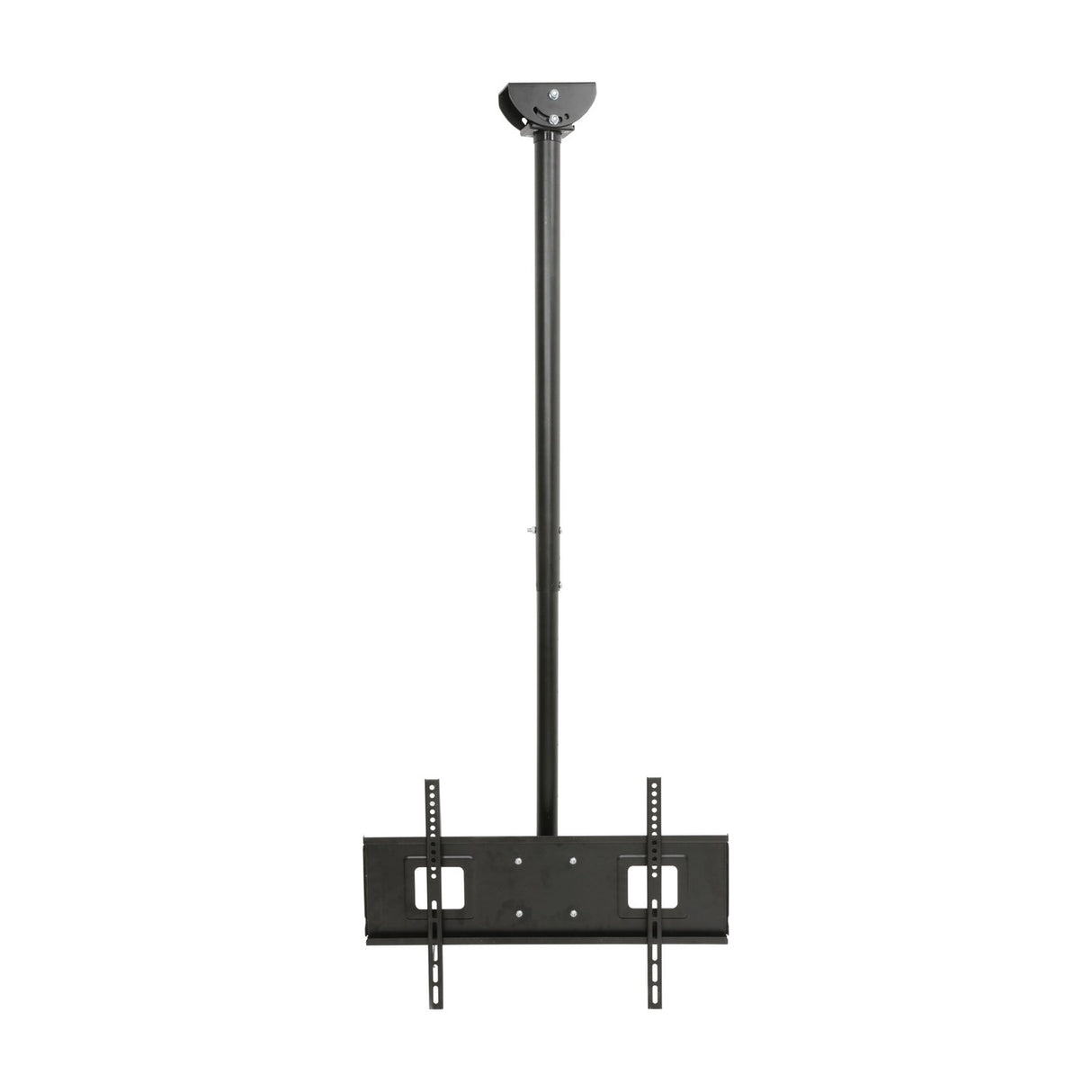

The AV:Link TC602 is a ceiling mount TV bracket built for overhead mounting where floor or wall space is limited. It suits screens from 32" to 70" and takes VESA hole patterns from 200x200 up to 600x400mm, so it fits a wide range of televisions. Made from steel alloy, it holds up to 60kg and is a practical choice for commercial installations as well as home use.

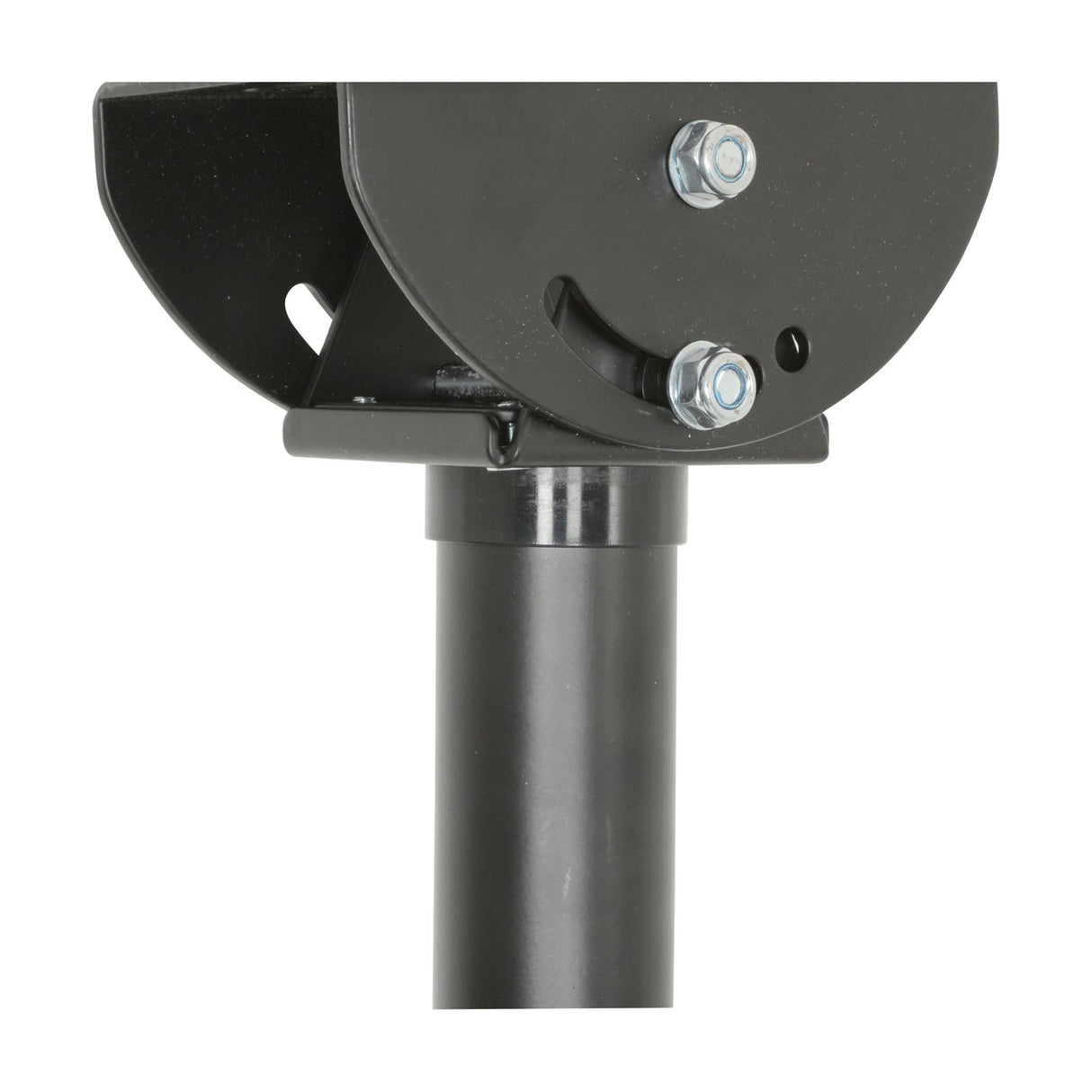

An extended pole gives a drop from the ceiling of 910 to 1510mm, useful for high ceilings or large distances between the fixing point and the screen. The head swivels a full 180° in each direction and tilts from -2° to 15°, so you can angle the picture towards seating or adjust for glare after fitting. This gives you room to fine-tune the position once the bracket is up.

The ceiling mount plate measures 152 x 80mm (W x H), and the whole unit weighs 6.55kg. All the installation hardware you need is included in the box, though we always recommend fixing into a solid structural point and checking your ceiling can take the combined load of the bracket and your television. It's a sturdy, no-fuss option for getting a screen off the wall and out into the room.

Specification
Screen size 32" to 70"
VESA 200x200, 200x300, 300x300, 300x400, 400x200, 400x300, 400x400, 600x400mm
Max. weight load 60.00KG
Tilt range -2°~15°
Swivel -180° to 180°
Drop from ceiling 910-1510mm
Ceiling mount plate size 152 x 80mm (W x H)
Weight 6.55KG
Downloads

Product Manual

Frequently Asked

What size TVs does this bracket fit?

It suits screens from 32" to 70" with a maximum weight load of 60kg. Check your TV falls within both limits before fitting.

Which VESA patterns does it support?

It covers 200x200, 200x300, 300x300, 300x400, 400x200, 400x300, 400x400 and 600x400mm. The VESA figure is the spacing between the mounting holes on the back of your TV.

How far does the pole drop from the ceiling?

The drop is adjustable between 910mm and 1510mm, so you can set the screen height to suit the room.

Can I angle the screen after fitting?

Yes. The head swivels from -180° to 180° and tilts from -2° to 15°, letting you point the picture towards seating and reduce glare.

Is the mounting hardware included?

Yes, the fixings needed to install the bracket are supplied. Fix into a solid structural point and confirm your ceiling can bear the load.

Is it suitable for commercial use?

It's built from steel alloy and rated to 60kg, making it a good fit for commercial installations as well as domestic ones.
