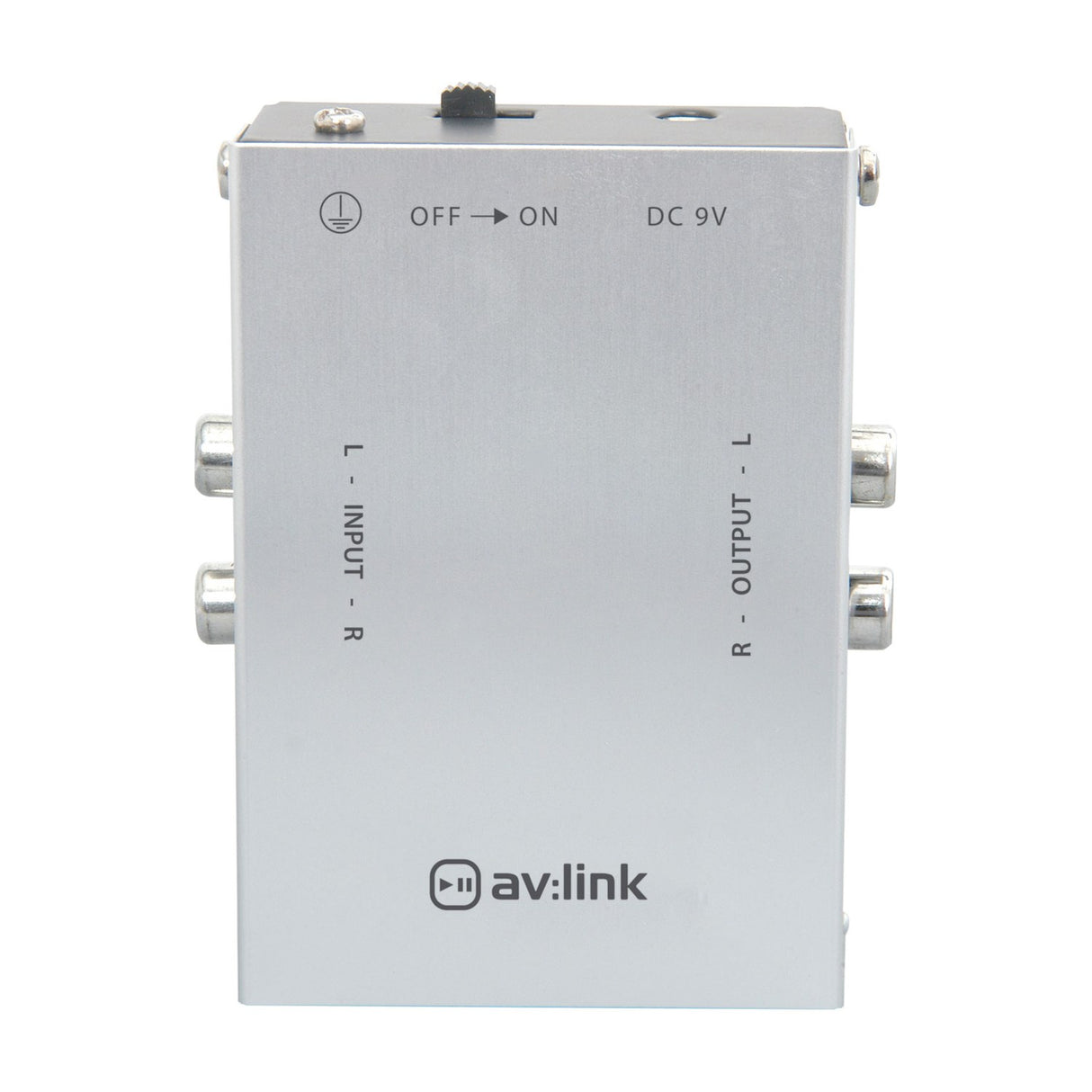

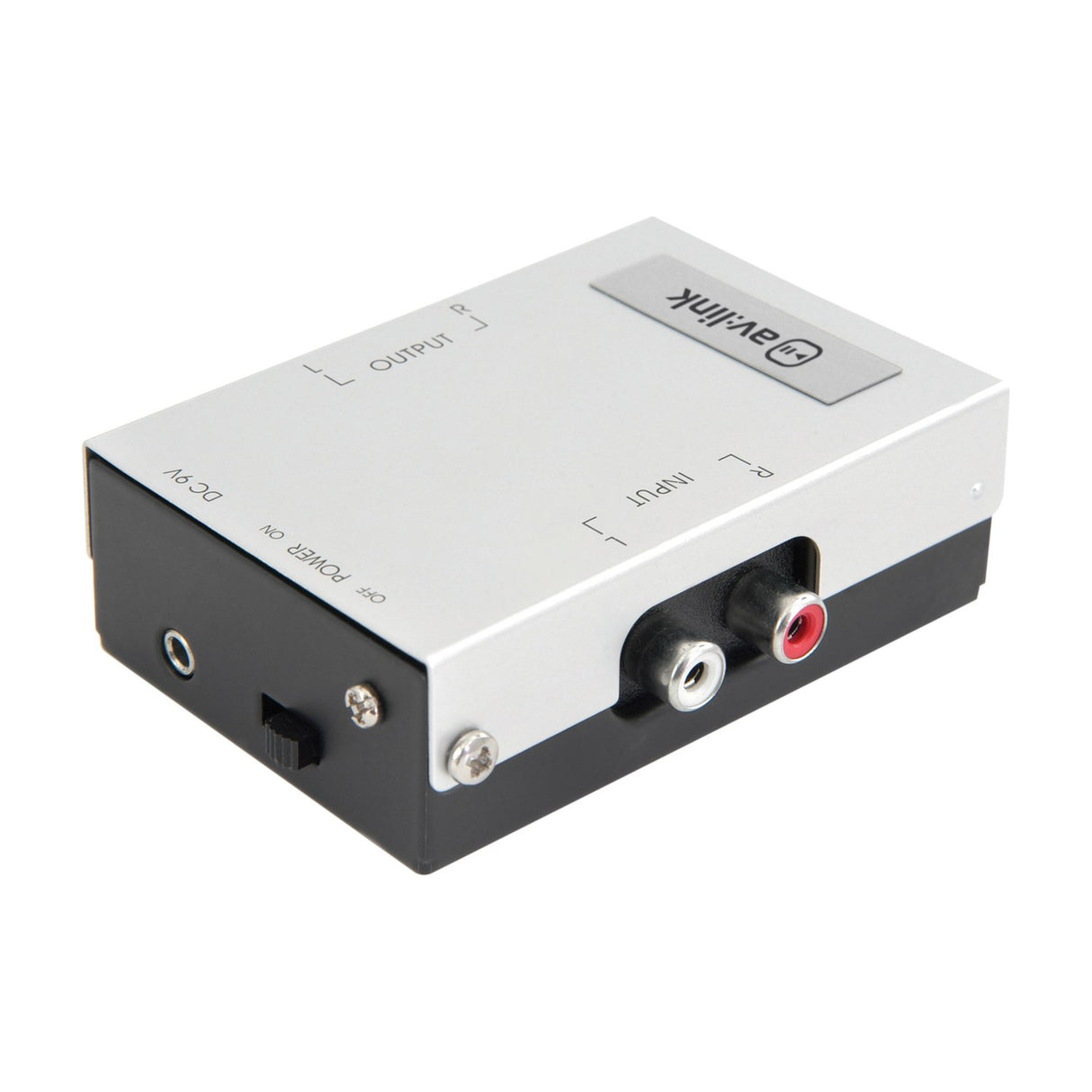

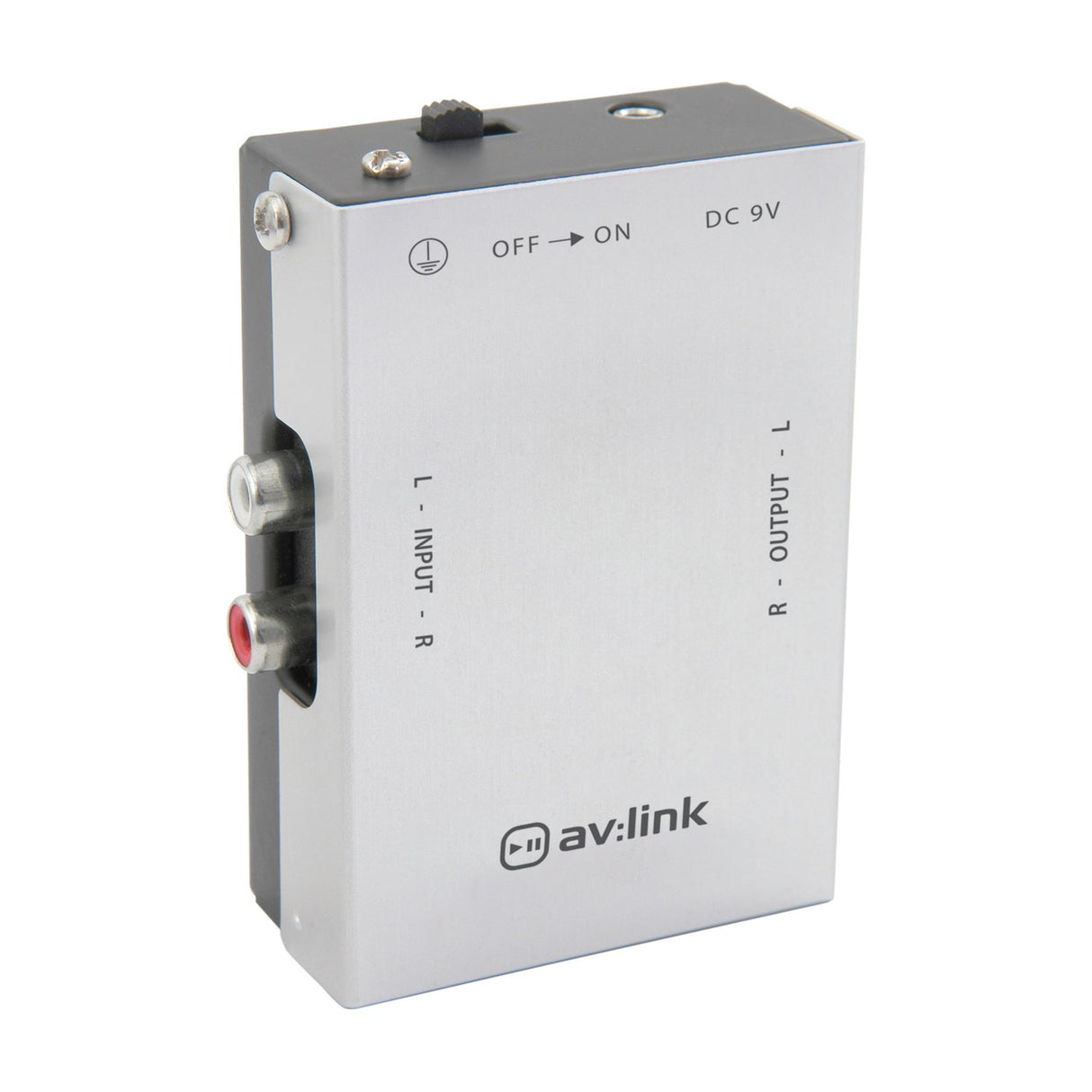

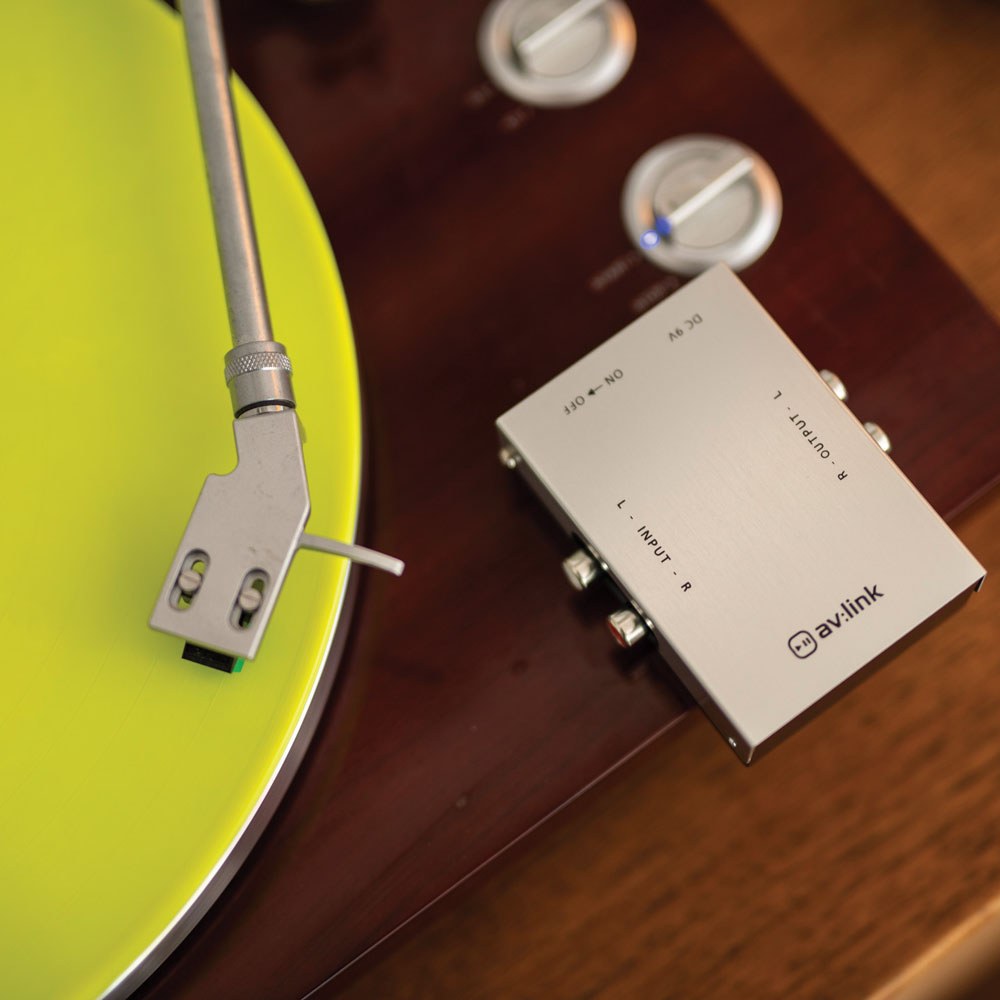

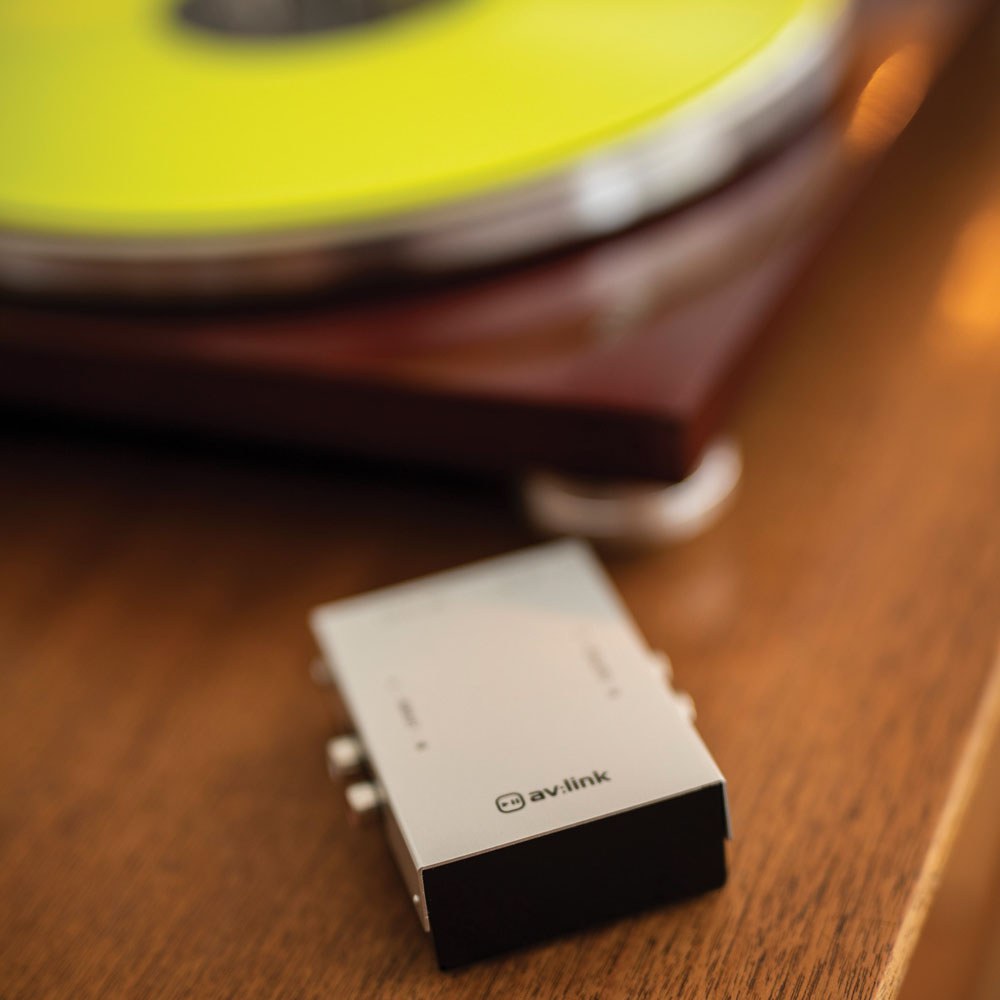

AV:Link STP-2 Phono Pre-amplifier for Turntables

£1599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The AV:Link STP-2 is a compact stereo pre-amplifier (US: preamp) built for turntables fitted with magnetic cartridges. It takes the low-level phono signal from your deck and amplifies it to line level, matching it to the line or CD input on a standard amplifier. This is what you need if your amplifier has no dedicated phono input, letting you connect a record player without hunting for a receiver that includes one.

Inside, the unit uses RIAA correction to restore the correct tonal balance from vinyl, with a frequency response of 30Hz to 20kHz and 34dB of gain. Input and output impedance both sit at 50k ohms. It runs as an ultra-low noise design, and a grounding screw is fitted to help eliminate hum and interference picked up through the earth (US: ground) connection. There's a simple on/off switch on the unit so you can leave it wired in and power it down when not in use.

Power comes from the included UK mains adaptor, or you can run it from a 9V PP3 battery if you prefer (battery not supplied), which is handy if you want to keep it away from mains noise. The STP-2 measures 30 x 70 x 90mm and weighs 250g, so it tucks neatly behind an amplifier or beside your turntable. It's a straightforward, practical way to bring an existing record player into a modern hi-fi setup.

Specification
Power supply 9V DC, 100mA
Battery (optional) 9V DC (1 x PP3)
Equalization RIAA correction
Frequency response 30Hz - 20kHz
Gain 34dB
Input impedance 50k ohms
Output impedance 50k ohms
Dimensions 30mm x 70mm x 90mm
Weight 0.25KG
Downloads

Product Manual

Frequently Asked

What does this pre-amplifier do?

It amplifies the low-level phono signal from a turntable up to line level, so you can connect a record player to an amplifier or receiver that has no built-in phono input.

Does it work with all turntables?

It's designed for turntables fitted with magnetic (moving magnet) cartridges. It won't be suited to decks with moving coil cartridges without a suitable matching stage.

How is it powered?

A UK mains adaptor is included, supplying 9V DC at 100mA. You can also run it from a 9V PP3 battery if you prefer, though the battery isn't supplied.

What is the grounding screw for?

It gives you a point to attach your turntable's earth wire, which helps eliminate hum and interference and keeps playback clean.

Does it have an on/off switch?

Yes, there's an on/off switch on the unit, so you can leave it connected and simply power it down when it's not in use.

What are the dimensions?

The unit measures 30 x 70 x 90mm and weighs 250g, small enough to sit behind an amplifier or next to your turntable.
