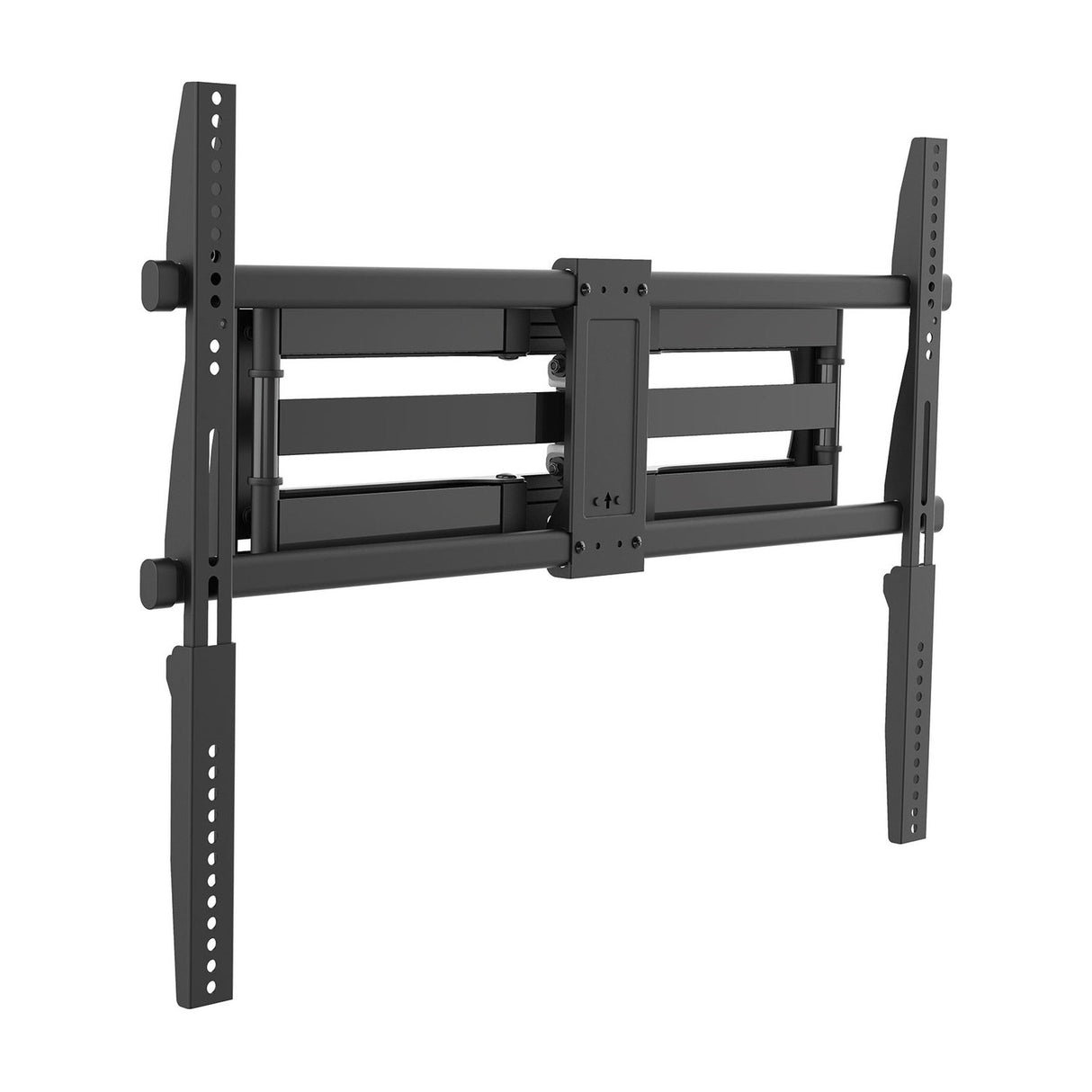

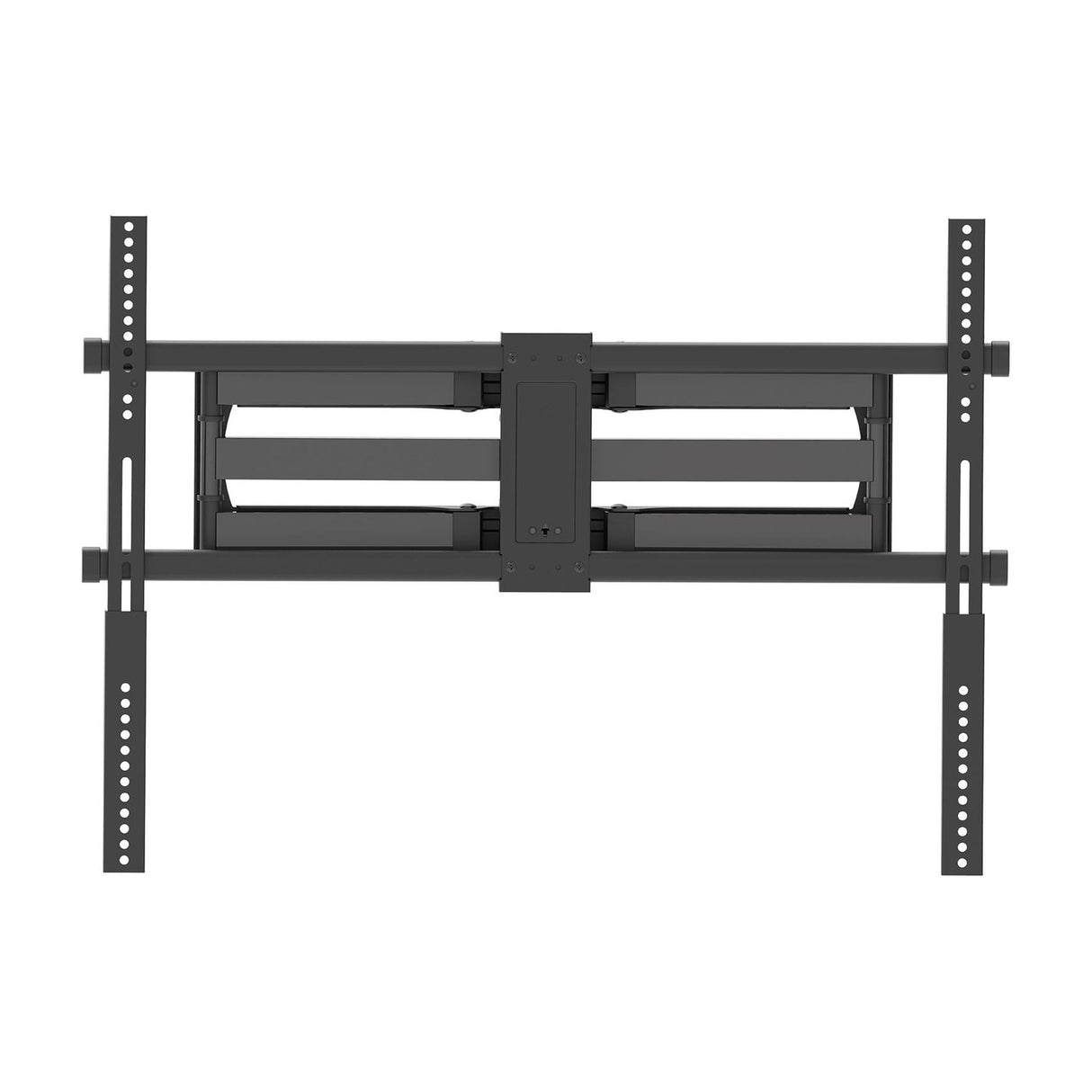

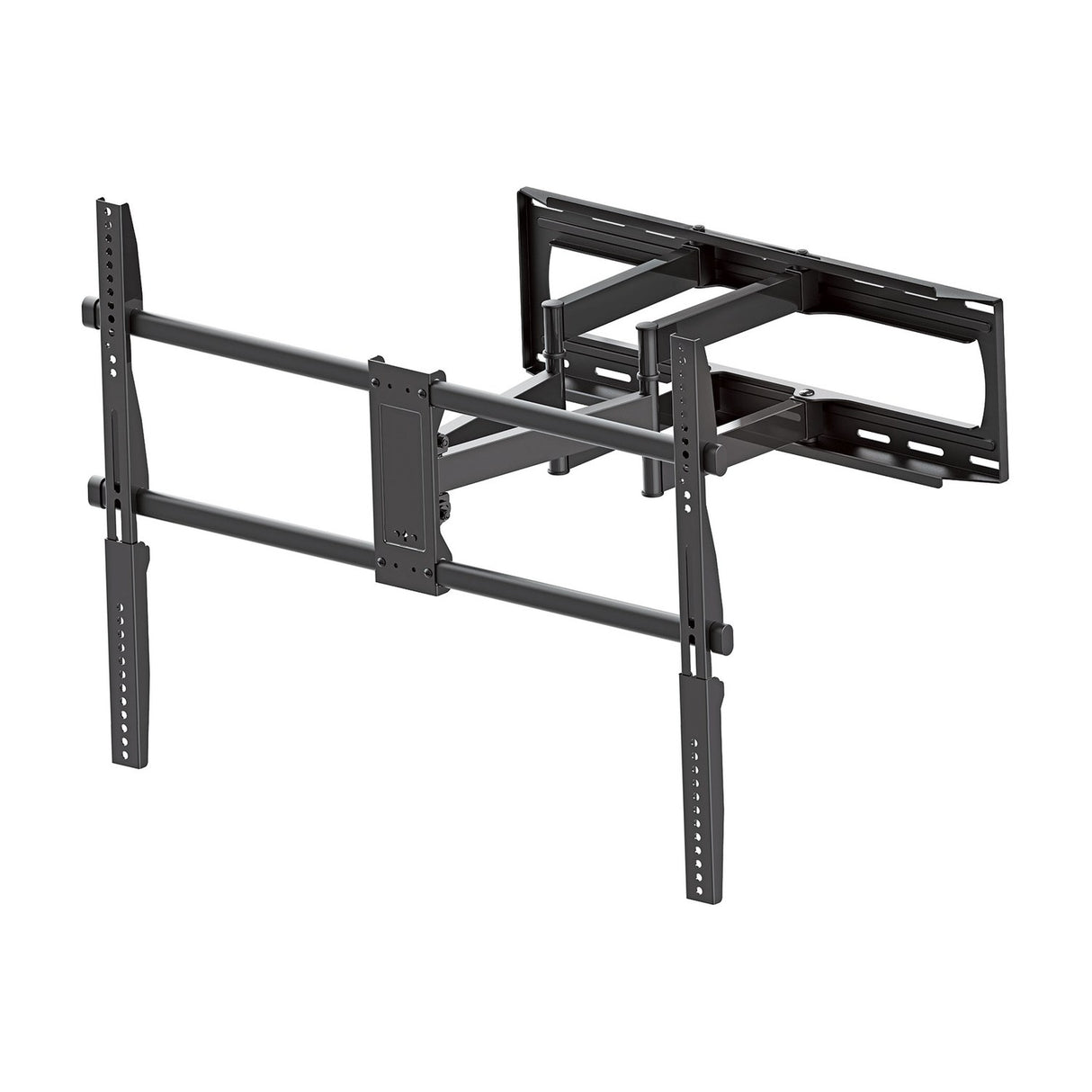

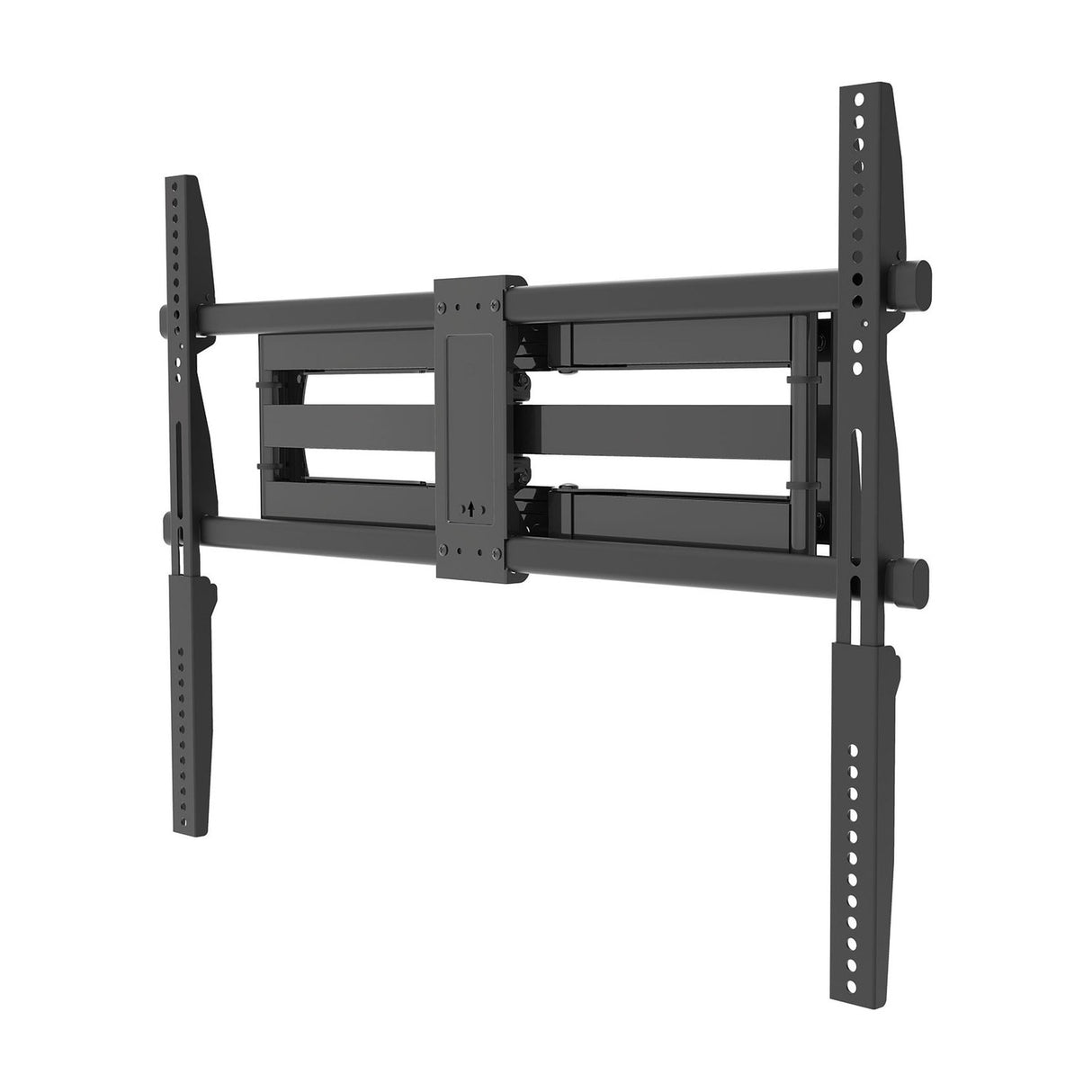

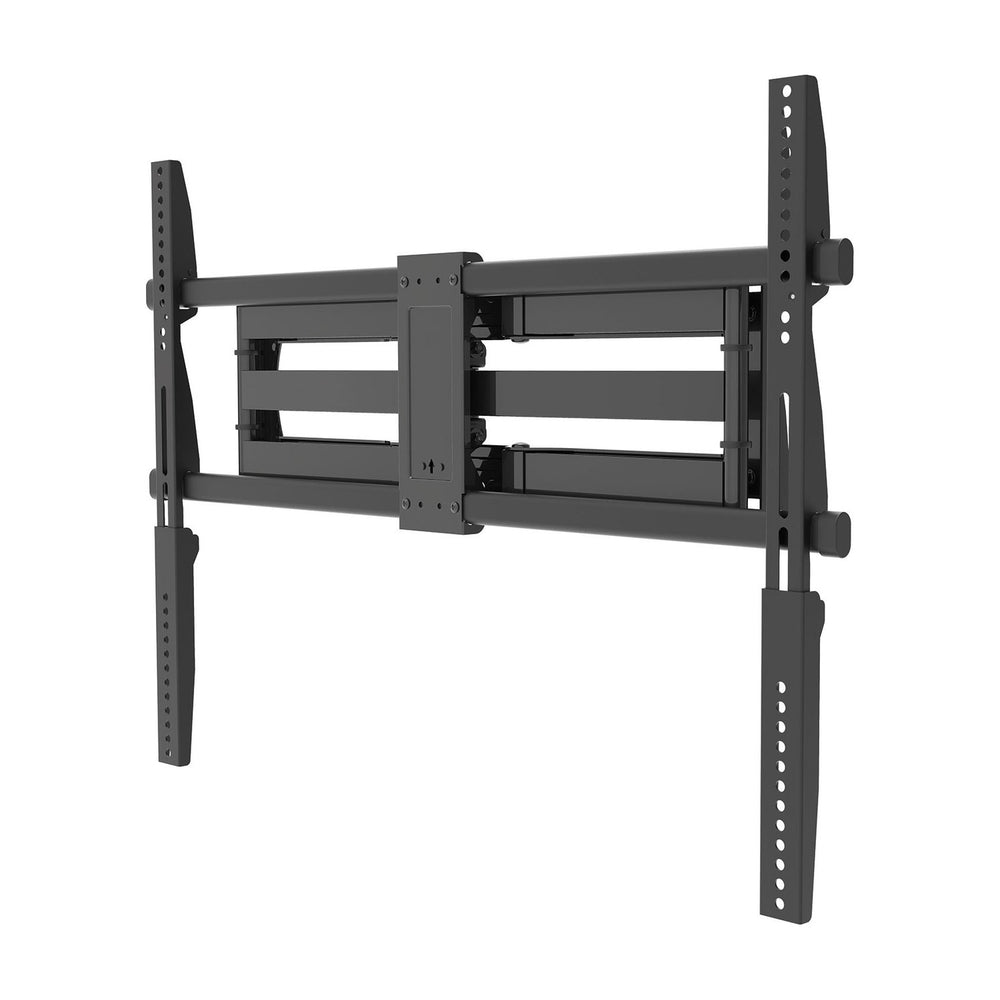

AV:Link SFMXL800 Full Motion TV Wall Bracket 47" to 90"

£6999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The AV:Link SFMXL800 is a full motion wall bracket built for larger screens between 47" and 90". It holds displays up to 70kg, so it suits most big LED and LCD TVs used in homes and business settings. The twin arm design gives you a good mix of strength and movement, letting you pull the screen away from the wall and angle it towards wherever you happen to be sitting or standing.

You get a 90° swivel range (+45° to -45°) plus a tilt range of -5° to 10°, which helps cut glare and gives you a comfortable viewing angle from different parts of the room. The arms extend from 77mm to 609mm from the wall, so you can push the TV flush when it is not in use or bring it out for viewing from the side. The wall plate measures 667 x 225mm, and the bracket itself weighs 10kg, which reflects the heavy duty build.

It fits VESA hole patterns up to 800 x 600mm, covering the mounting spacing found on most large TVs in this size bracket. All the installation hardware is included, and the bracket is straightforward to assemble and fit. Whether you are mounting a television in a living room or setting up a display in an office or shop, this bracket handles the weight and gives you the flexibility to reposition the screen as needed. As always, check your TV's own VESA spacing and weight against these figures before you buy.

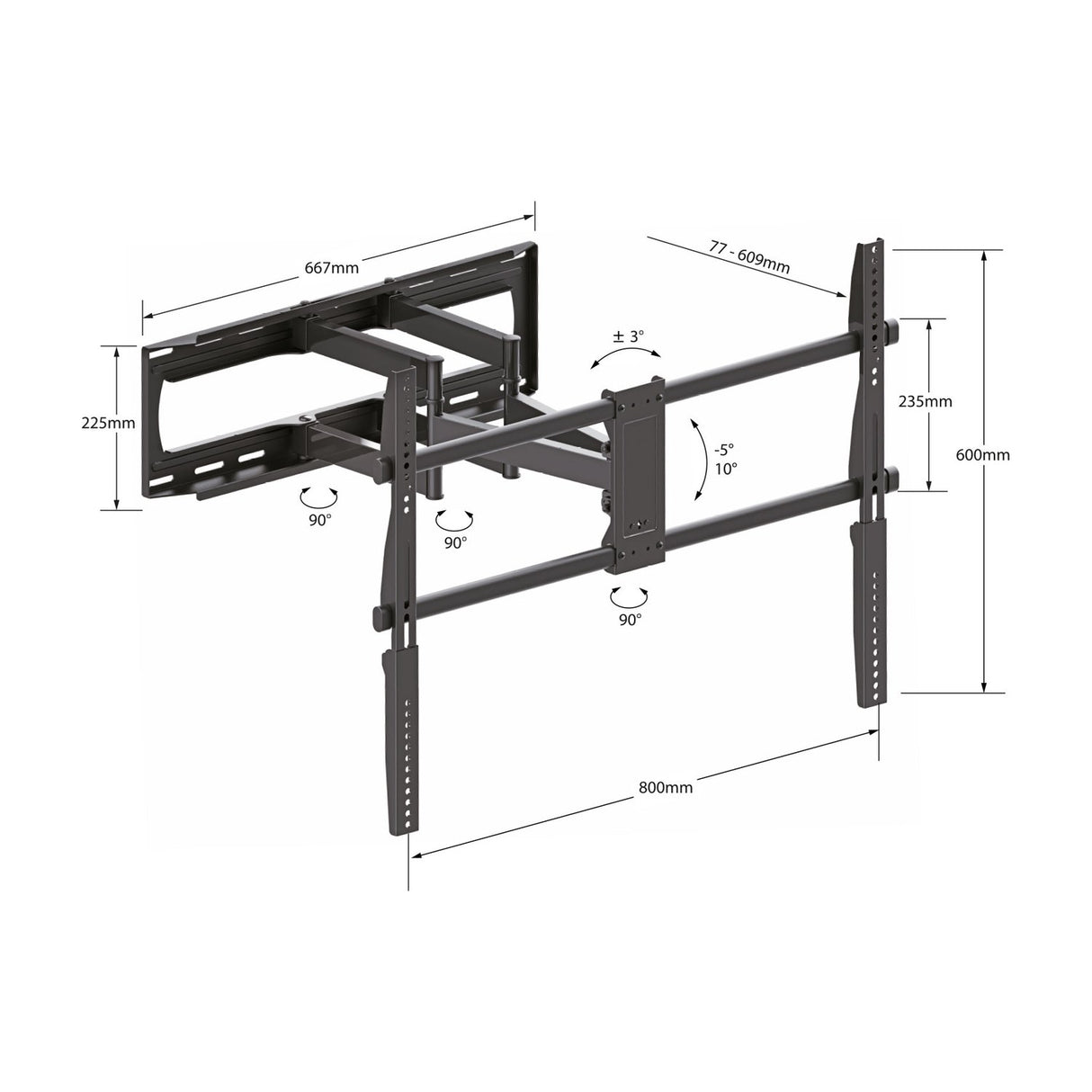

Specification
Screen size 47" to 90"
Max. VESA 800 x 600mm
Max. weight load 70.00KG
Distance from wall 77-609mm
Tilt range -5° to 10°
Swivel +45° to -45°
Wall plate dimensions 667mm x 225mm (W x H)
Weight 10.00KG
Downloads

Product Manual

Frequently Asked

What screen sizes does this bracket fit?

It suits TVs from 47" to 90" and holds screens weighing up to 70kg.

What VESA pattern is it compatible with?

It fits VESA hole patterns up to 800 x 600mm. Check your TV's spacing against this before ordering.

How far does it move from the wall?

The arms extend from 77mm to 609mm from the wall, so you can sit the screen close or pull it well out.

How much can it tilt and swivel?

It tilts from -5° to 10° and swivels through 90° in total (+45° to -45°) for adjusting your viewing angle.

Is the fixing hardware included?

Yes, all the installation hardware is supplied and the bracket is easy to assemble and fit.

Can I use it in a commercial setting?

Yes, it works well for both domestic and business use where viewing from different angles is needed.
