AV:Link PJM620 Adjustable Ceiling Projector Bracket

£1699
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

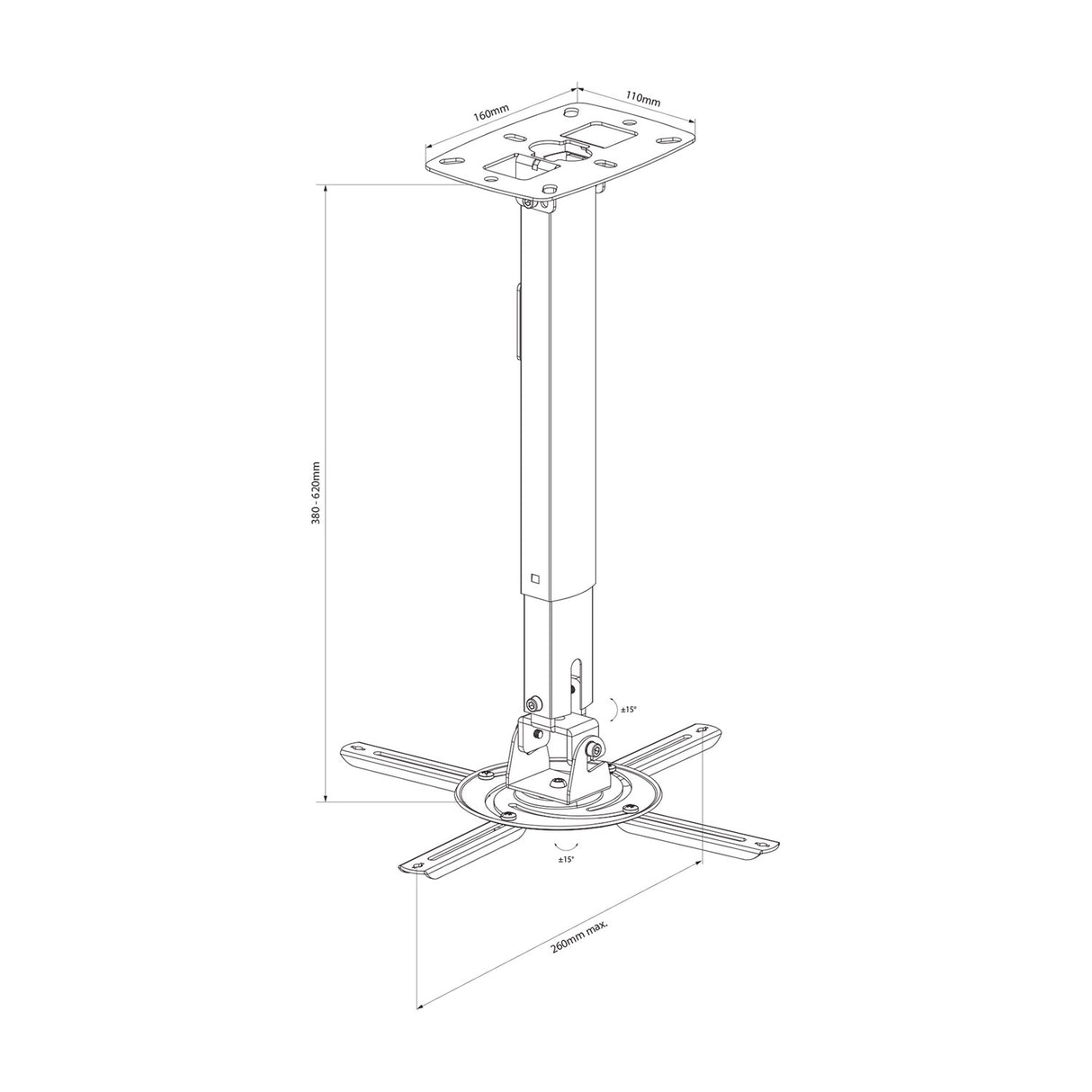

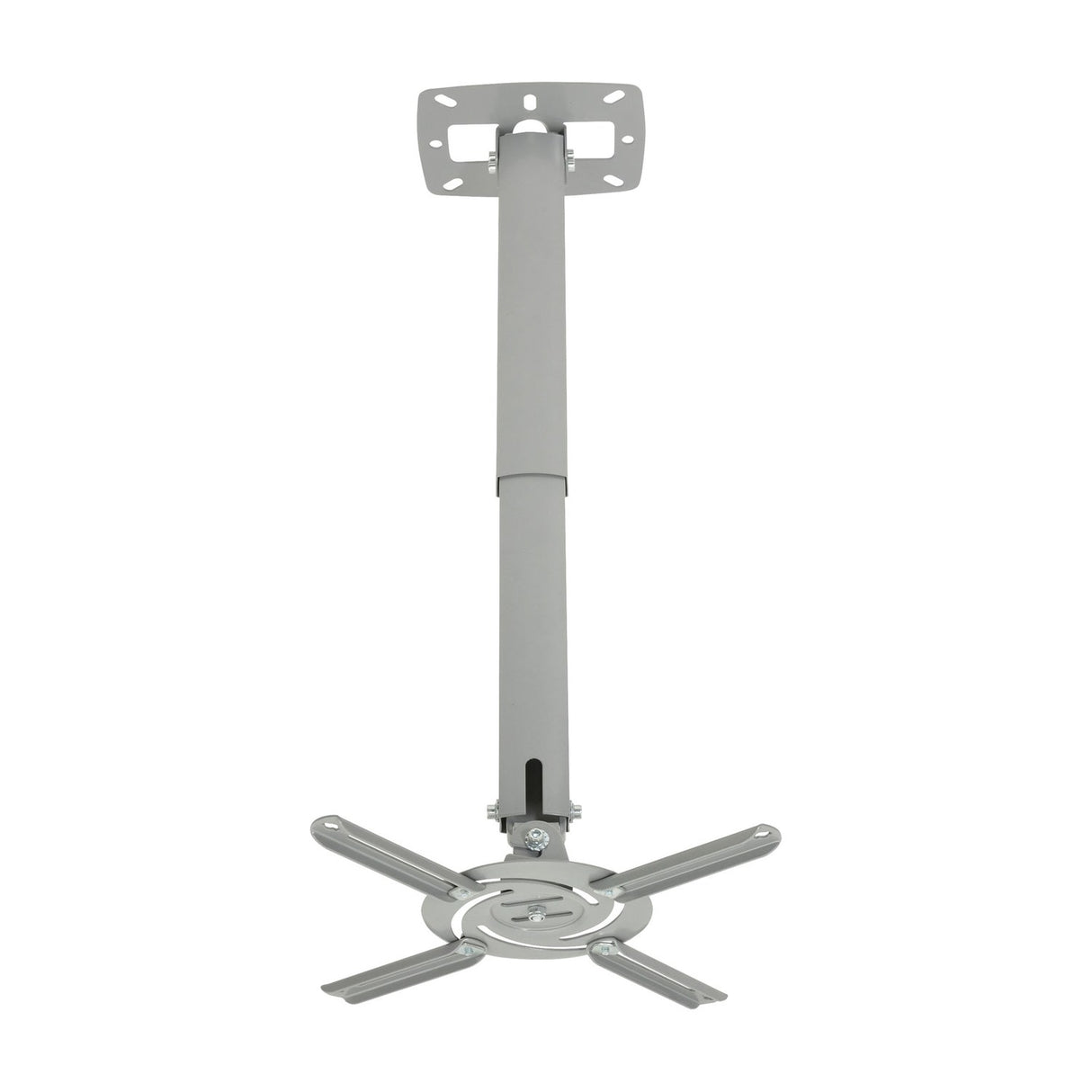

The AV:Link PJM620 is a ceiling projector bracket designed to hold most projectors securely overhead. It uses four adjustable arms with a maximum hole spacing of 310 x 310mm, so it fits a wide range of mounting patterns. The bracket supports a maximum weight load of 8kg, covering most home and commercial projectors, and the unit itself weighs just 1.1kg.

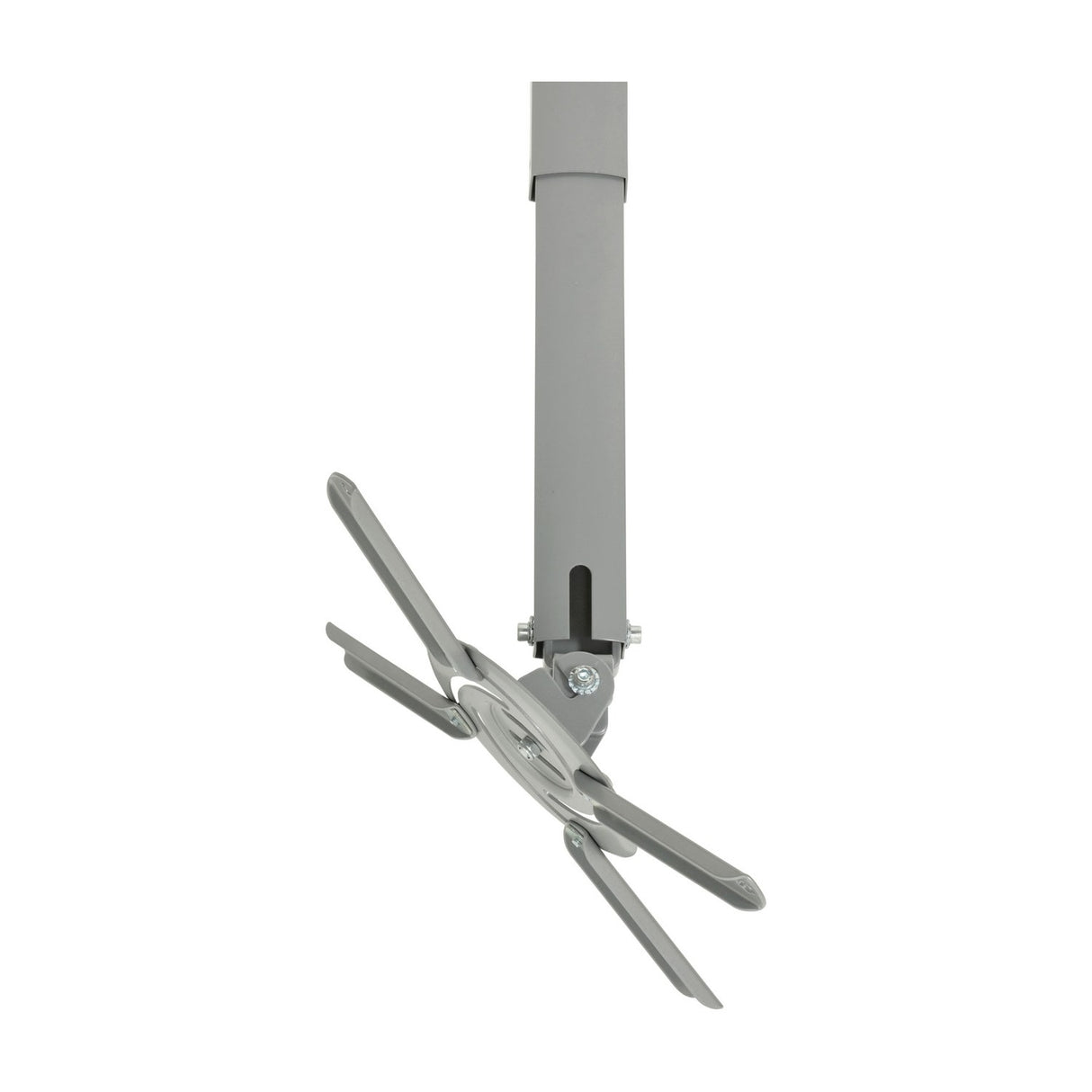

An extendable drop pole gives you a drop from ceiling of between 380 and 620mm, letting you set the projector at the right height for your throw distance and screen. You get ±15° of tilt in both the horizontal and vertical planes, which helps you square up the image and correct for slightly off-centre mounting. The ceiling mount plate measures 160 x 110mm.

The ceiling fixing bracket can also be fixed at 90°, which makes it useful for mounting to the side of beams or joists rather than a flat ceiling. Installation hardware is included, so you have the fixings needed to get started. It suits home cinemas, pubs and clubs, boardrooms and classrooms, anywhere a projector needs to hang cleanly out of the way while staying easy to adjust once it is in place.

Specification
Max. weight load 8.00KG
Drop from ceiling 380 - 620mm
Ceiling mount plate size 160mm x 110mm (W x H)
Projector mount : max. hole spacing 310 x 310mm (W x H)
Weight 1.10KG
Downloads

Product Manual

Frequently Asked

What is the maximum projector weight?

The bracket supports a maximum weight load of 8kg, which covers most home and commercial projectors.

How far does it drop from the ceiling?

The extendable drop pole gives an adjustable drop of between 380 and 620mm.

How much tilt does it offer?

You get ±15° of tilt in both the horizontal and vertical planes for squaring up the image.

Will it fit my projector?

The four adjustable arms accommodate most projectors, with a maximum mounting hole spacing of 310 x 310mm.

Can it mount to a beam or joist?

Yes. The ceiling fixing bracket can also be fixed at 90°, so it can attach to the side of beams or joists.

Is fixing hardware included?

Yes, the installation hardware needed to fit the bracket is supplied in the box.
