AV:Link MPJM40 Micro Projector Ceiling & Wall Mount

£1199
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

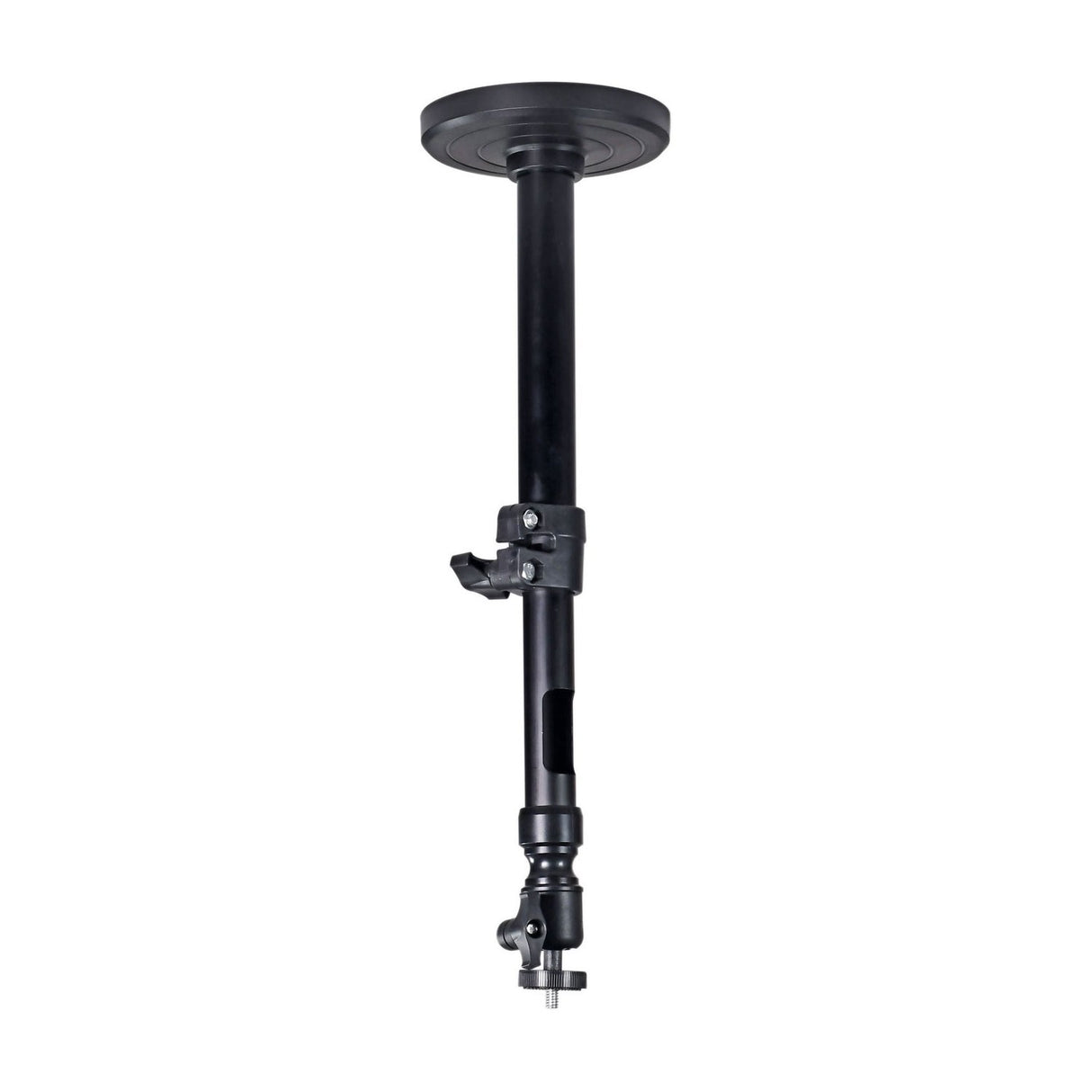

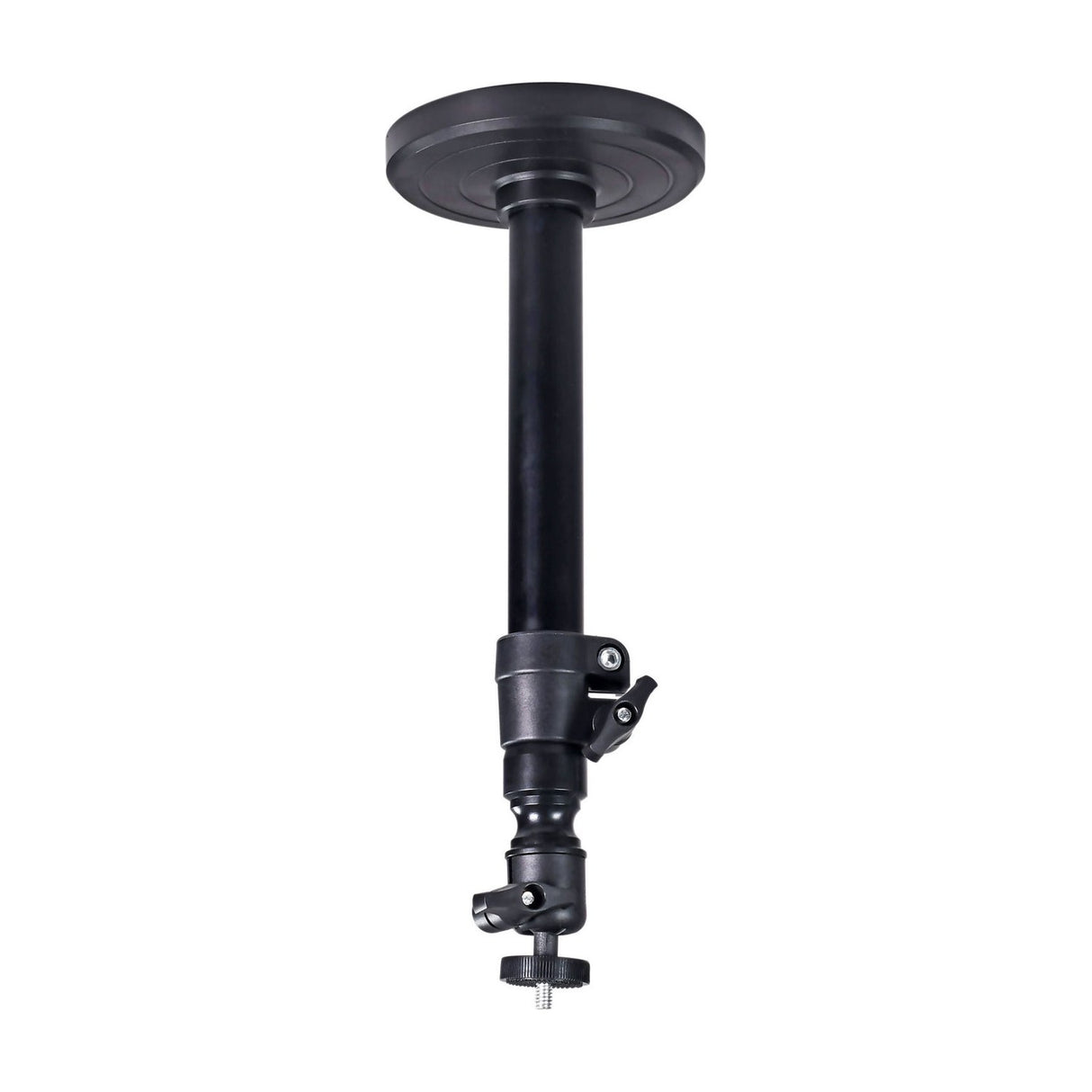

The AV:Link MPJM40 is a compact mount for the latest micro projectors, though it also works with digital cameras and camcorders. It uses a universal 1/4"-20 thread that fits most current micro projectors, so you can pair it with a wide range of kit. You can fix it to a ceiling or a wall, whichever suits your room and where you want the picture to land. The design is strong but light, weighing just 370g on its own and holding up to 5kg.

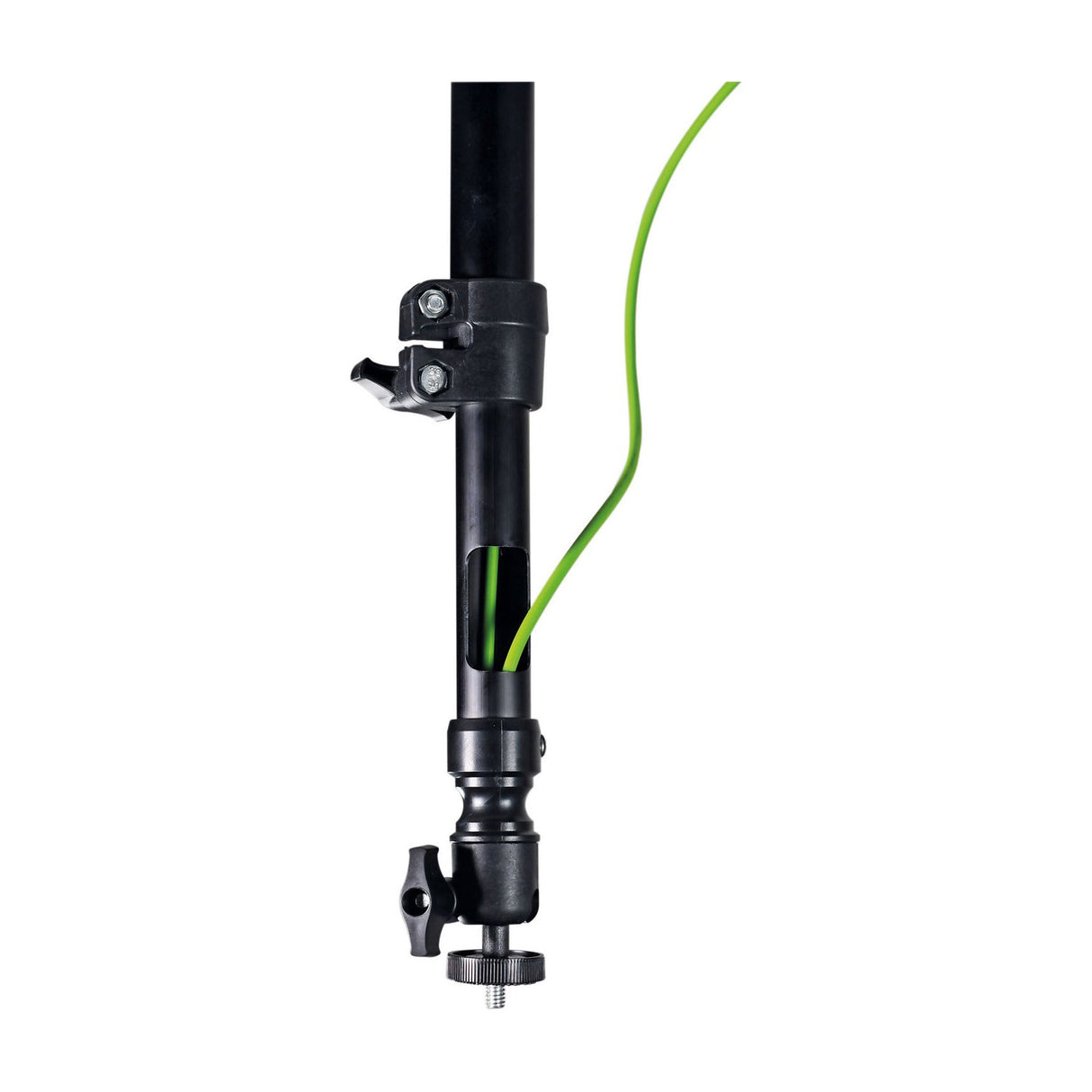

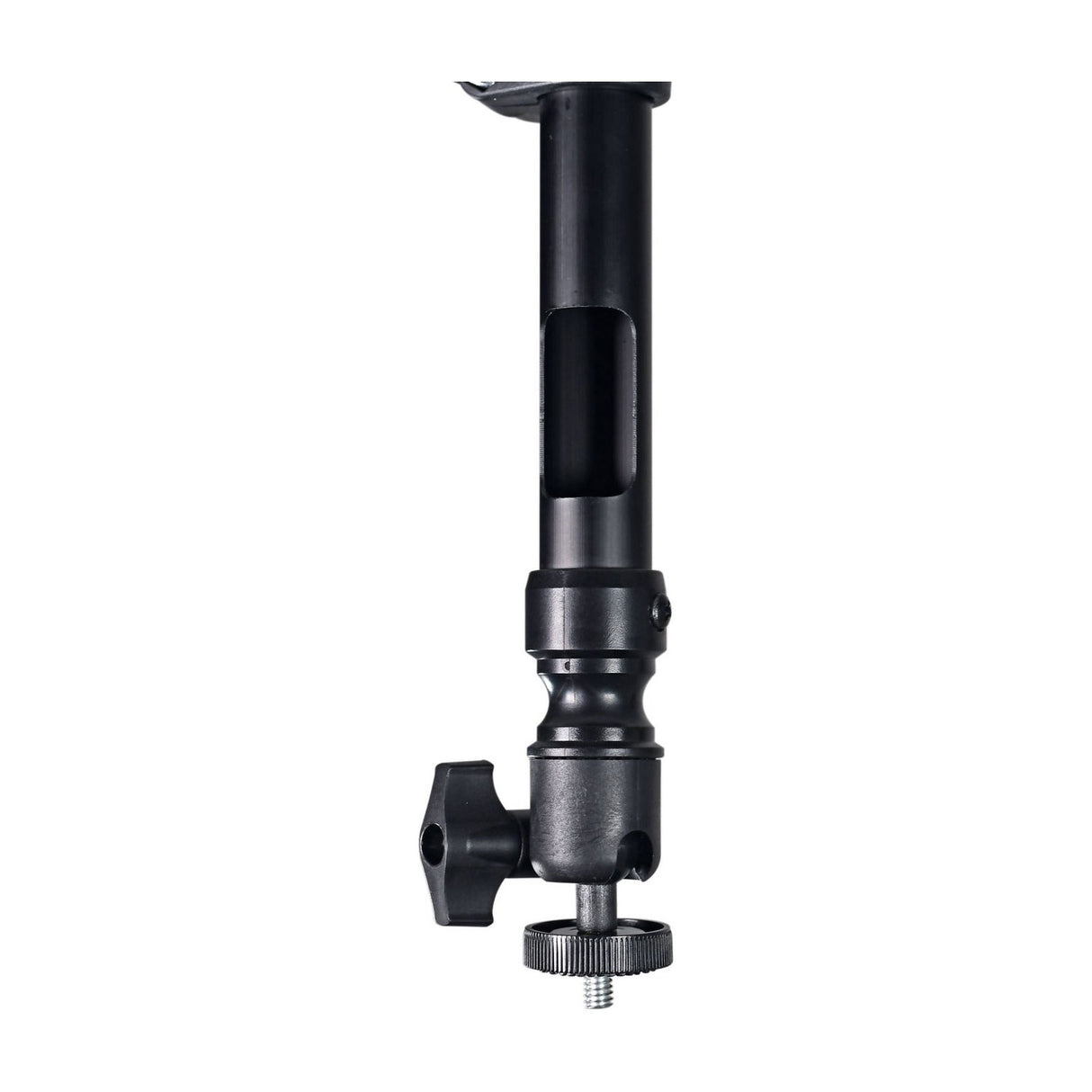

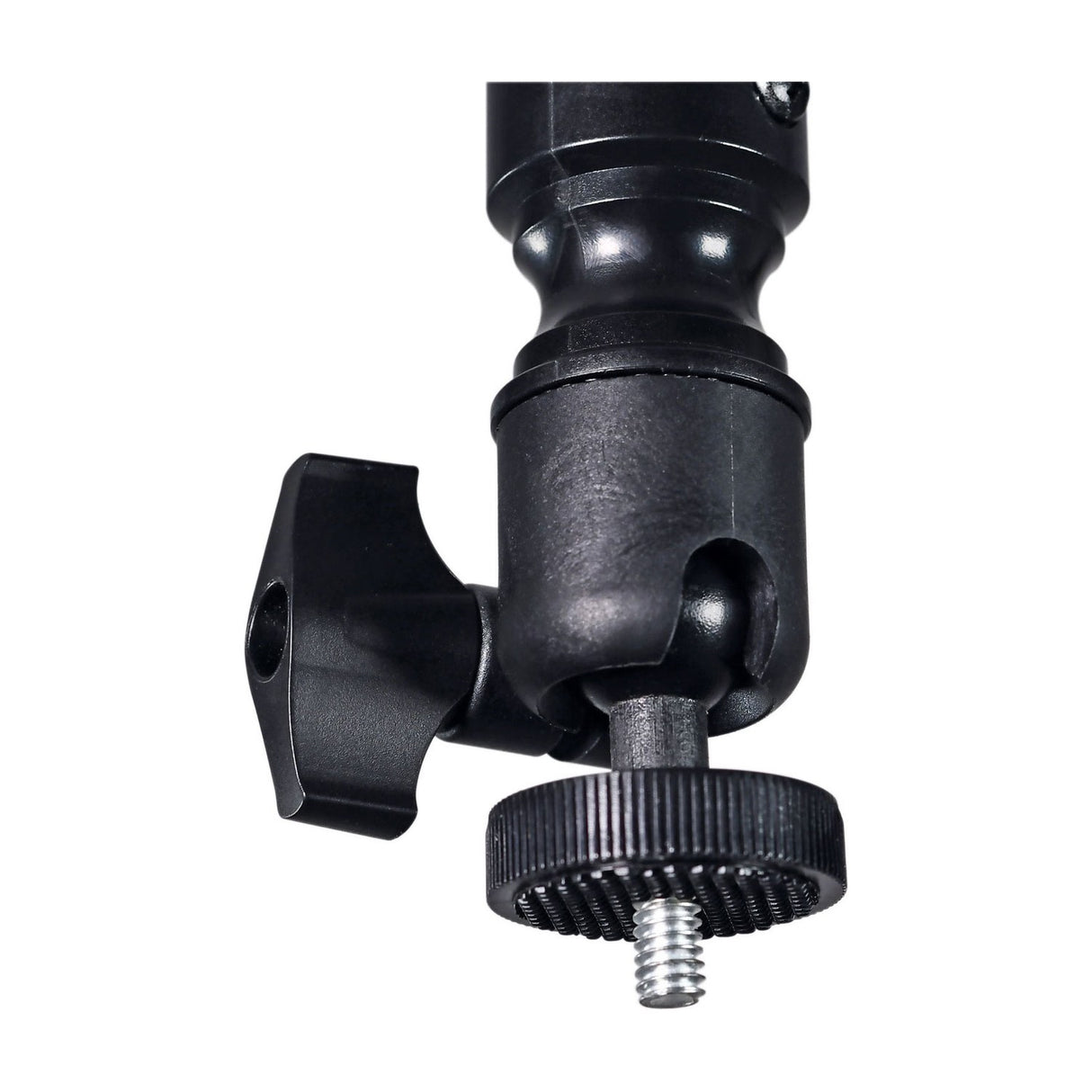

A telescopic mounting rod gives you drop adjustment from 350 to 500mm, so you can set the height to match your ceiling and throw distance. The rod also has internal cable routing, which keeps the power and video leads tidy and out of view. On top of that, the supplied ball joint fixing lets you tilt the projector from -10 to +85°, useful for sideways or angled setups where a straight downward drop won't do. Between the drop range and the tilt, you have plenty of scope to line the image up properly.

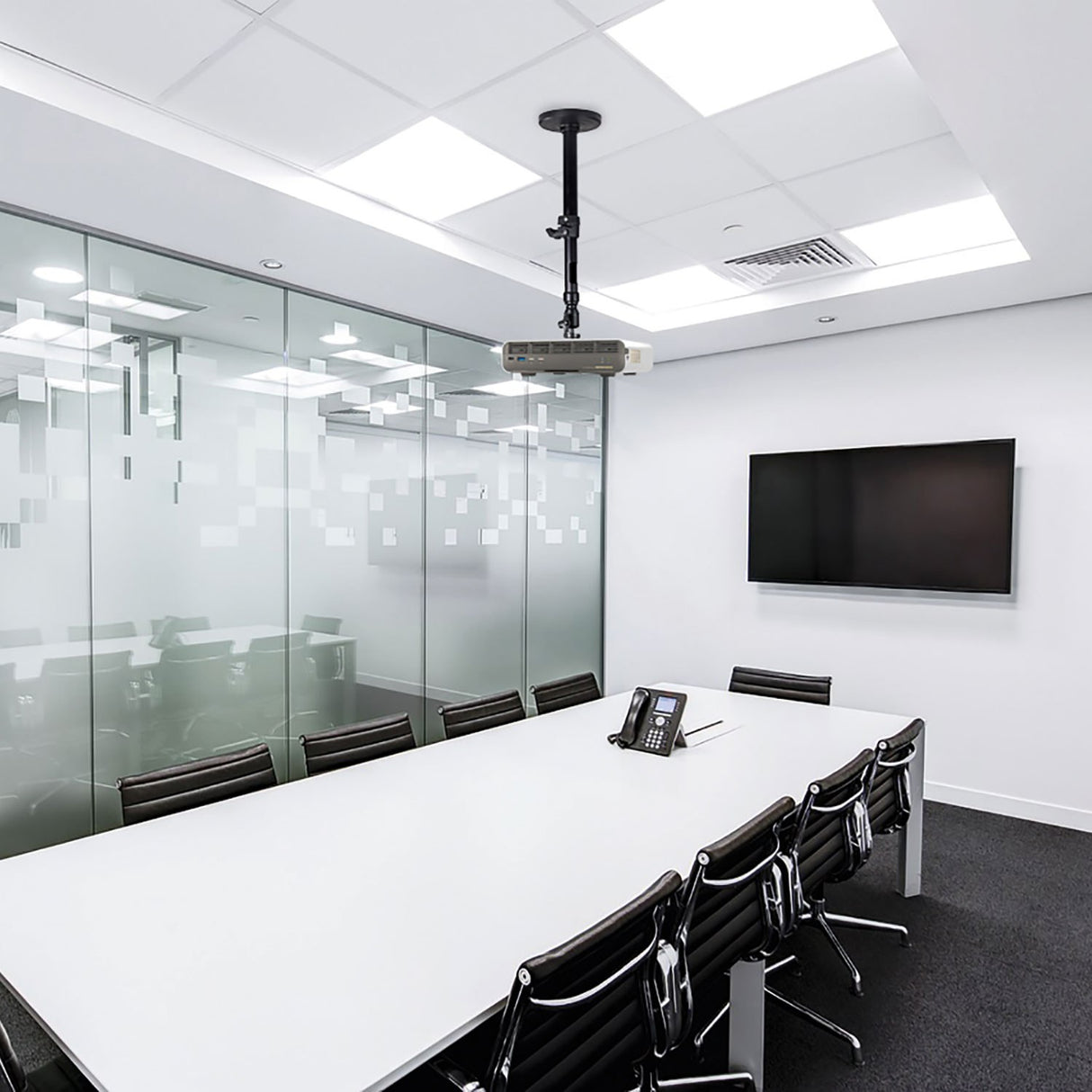

The mount is finished in satin black and comes with fixing plugs and screws, along with the rest of the installation hardware, so you have what you need to get it up in one go. The base measures 120mm across for a steady footing. It suits home, leisure and business use, whether that's a projector in a spare room, a camera at a venue or a fixed camcorder position. If you're mounting a small projector and want a neat, adjustable fit, this is a sensible option.

Specification
Max. weight load 5.00KG
Drop from ceiling 350-500mm
Tilt angle adjustment -10 to +85°
Thread fitting 1/4"-20 (UPC)
Base diameter 120mm
Weight 0.37KG
Downloads

Product Manual

Frequently Asked

What projectors does the MPJM40 fit?

It has a universal 1/4"-20 thread, which fits most new micro projectors. The same fitting also works with many digital cameras and camcorders.

How much weight can it hold?

The mount supports up to 5kg. Check your projector or camera weight against this figure before fitting.

Can I mount it on a wall as well as a ceiling?

Yes. The mount is designed for both ceiling and wall fixing, so you can choose whichever works best for your room.

How far can it drop from the ceiling?

The telescopic rod gives drop adjustment from 350 to 500mm, letting you set the height to match your ceiling and throw distance.

Can I angle the projector?

Yes. The ball joint fixing allows tilt from -10 to +85°, which helps with sideways or angled applications.

Does it come with fixings?

Yes. It's supplied with fixing plugs and screws, plus the rest of the installation hardware.
