AV:Link HDMV-41 4K HDMI Multi-viewer 4x1 Switch

£7999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

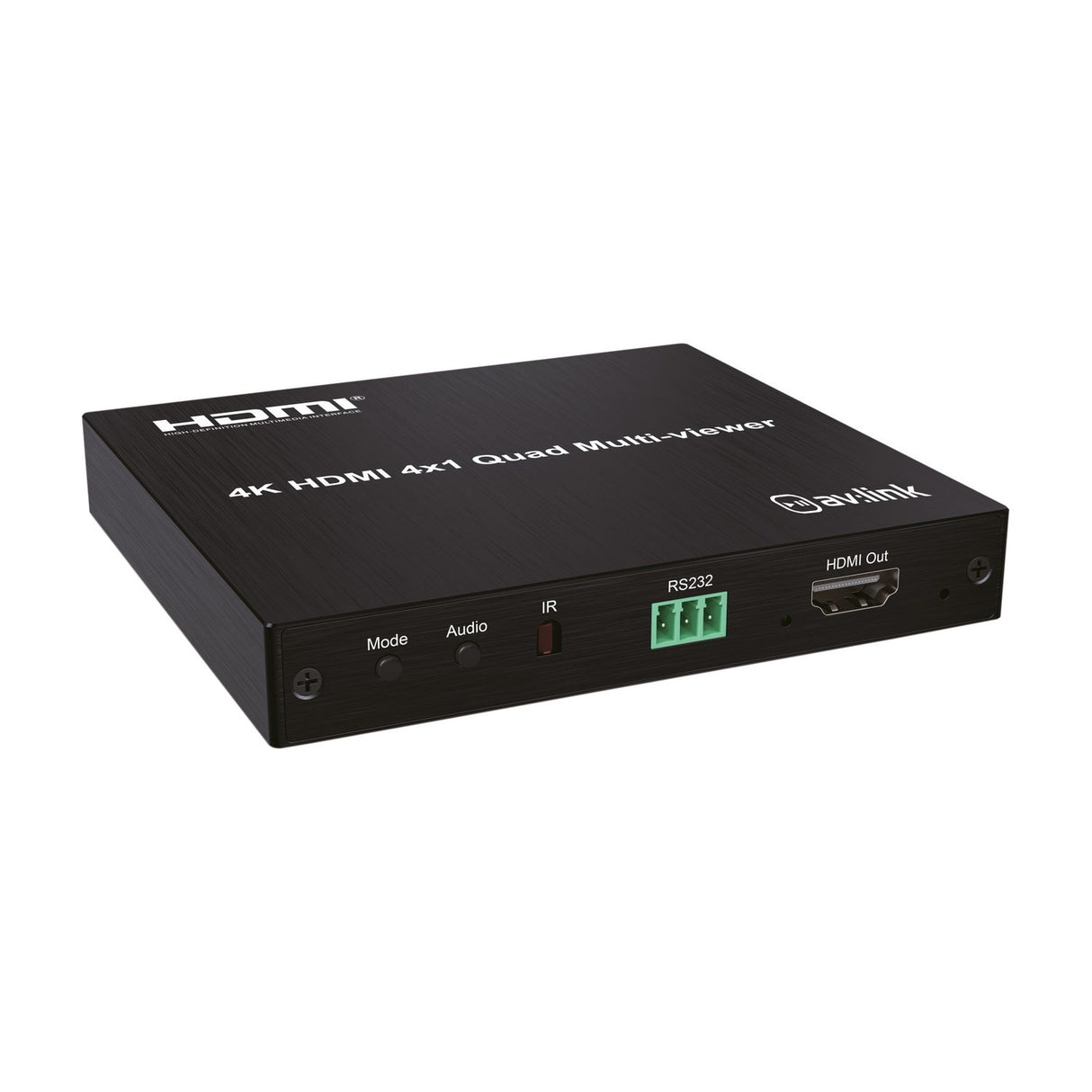

The AV:Link HDMV-41 takes up to four 4K HDMI inputs and shows them on a single 4K UHD display. Where many similar units downscale several inputs to a lower-resolution picture, this one keeps the full input resolution, so each feed holds its original detail. That matters most for CCTV work, where compressed multi-channel views can make important footage hard to read.

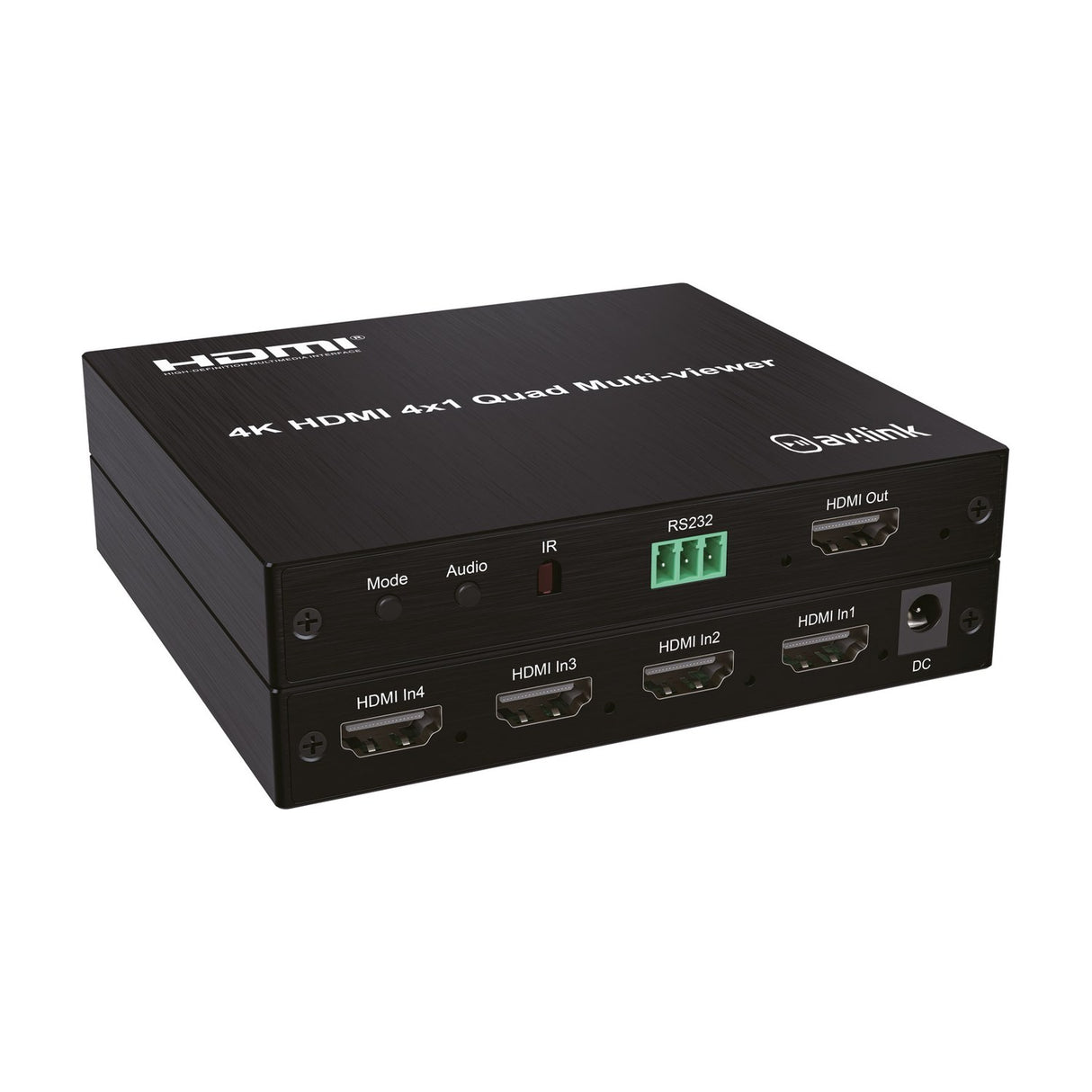

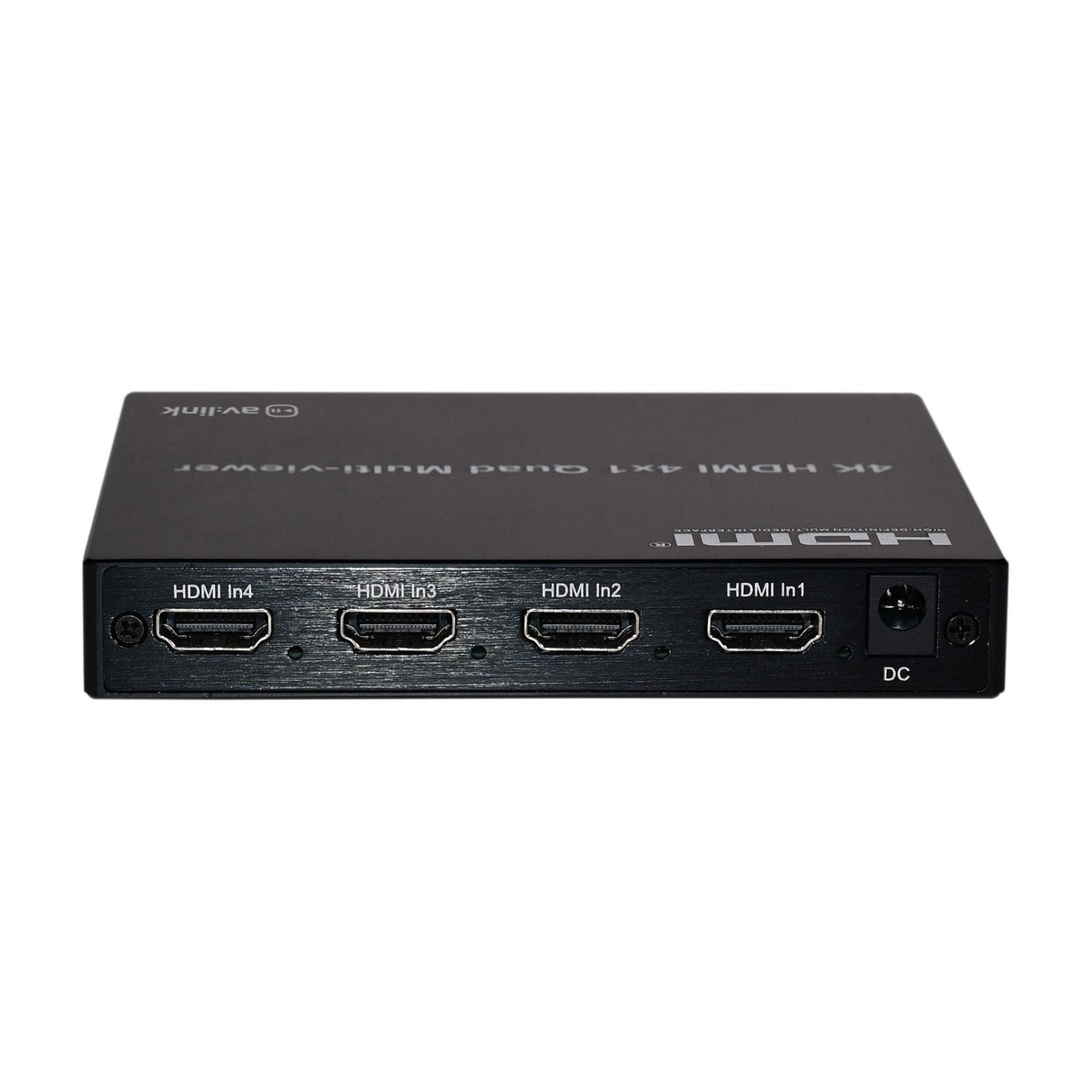

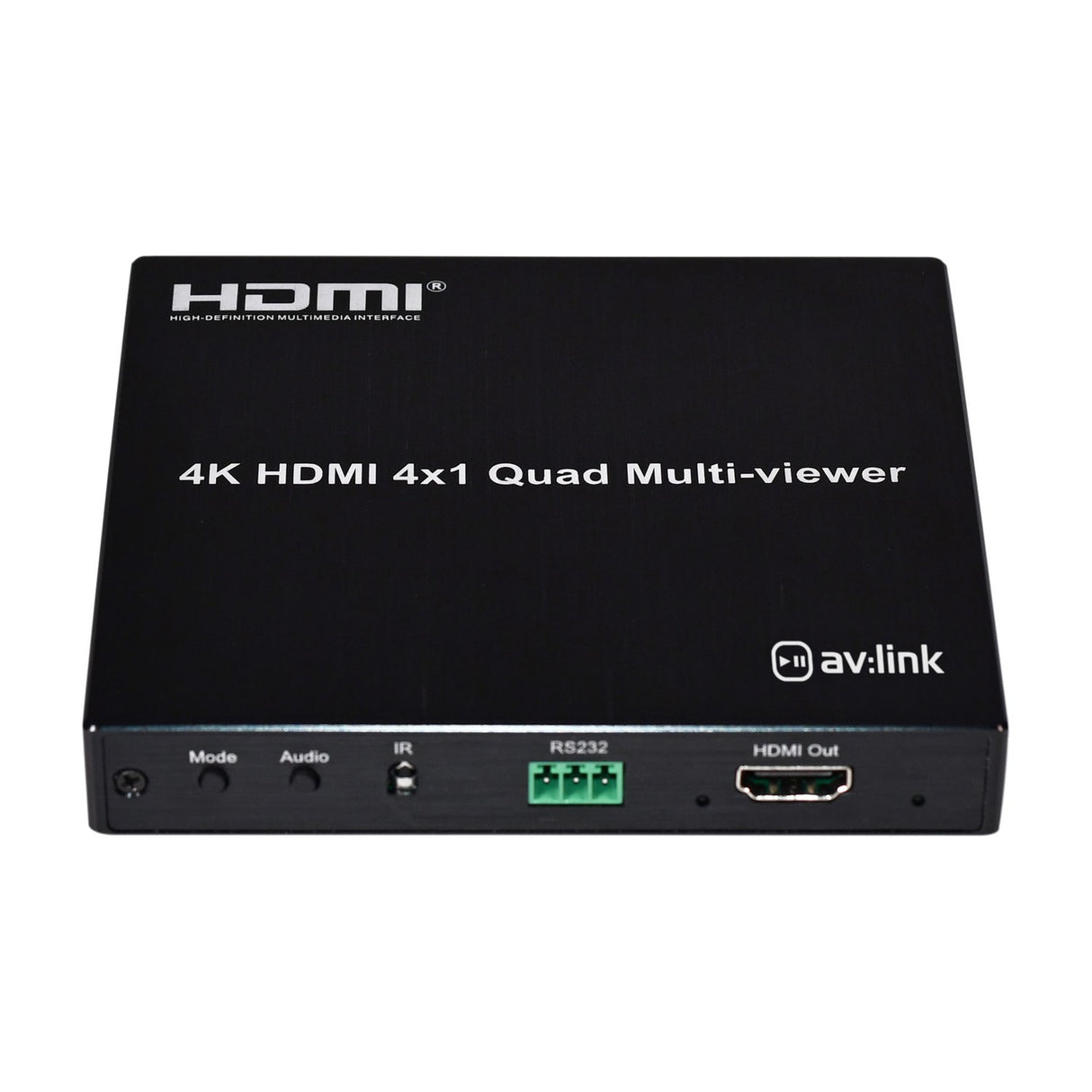

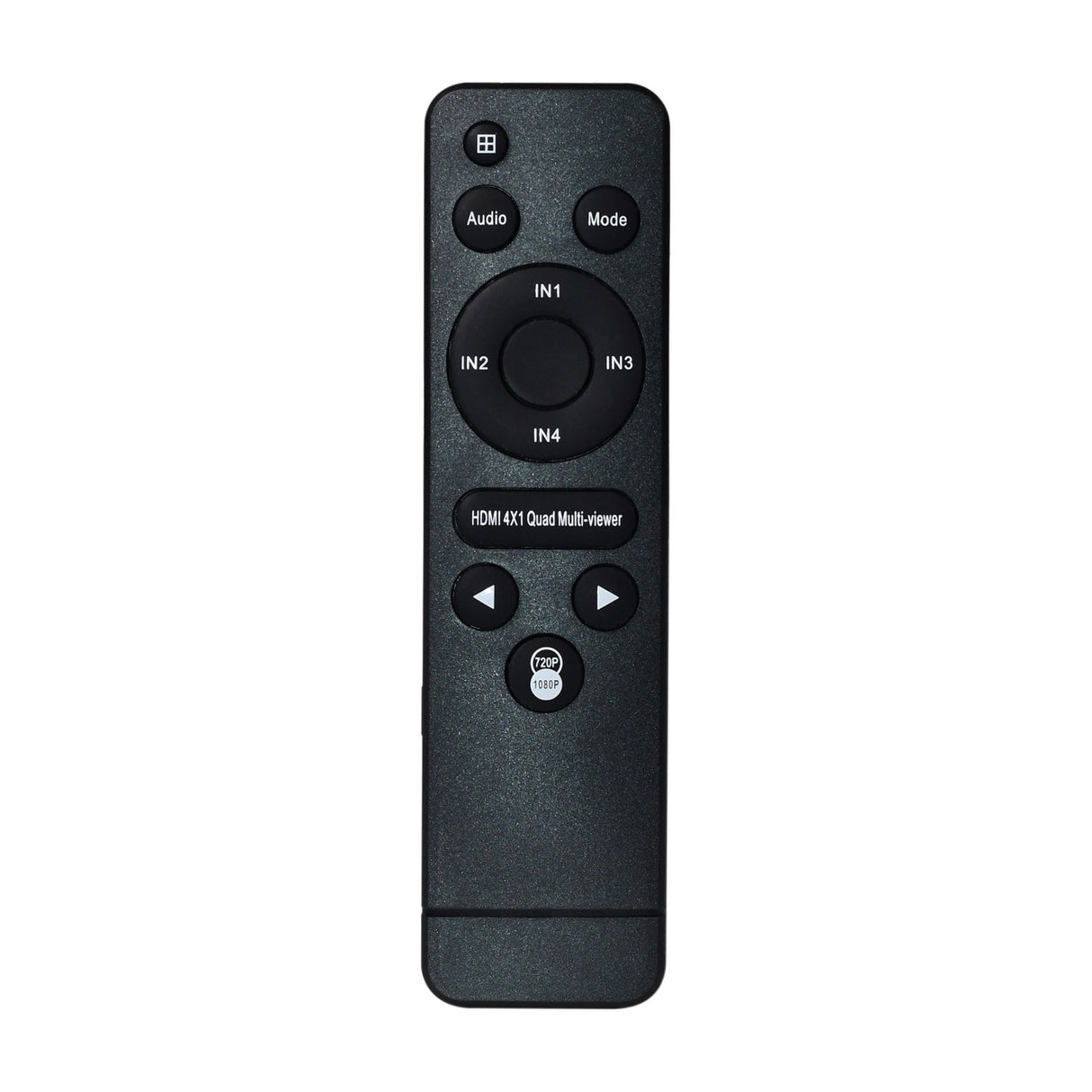

You get a choice of viewing modes to suit the job. Quad-view splits the screen into four equal panels, picture-in-picture keeps one main feed with a smaller inset, and full-screen shows a single source at a time. Switching between modes and inputs happens without a drop-out, and you can control everything from the front panel or the supplied IR remote (infrared handset). Setup is straightforward, with four HDMI inputs and a single HDMI output, plus an RS232 port for serial control.

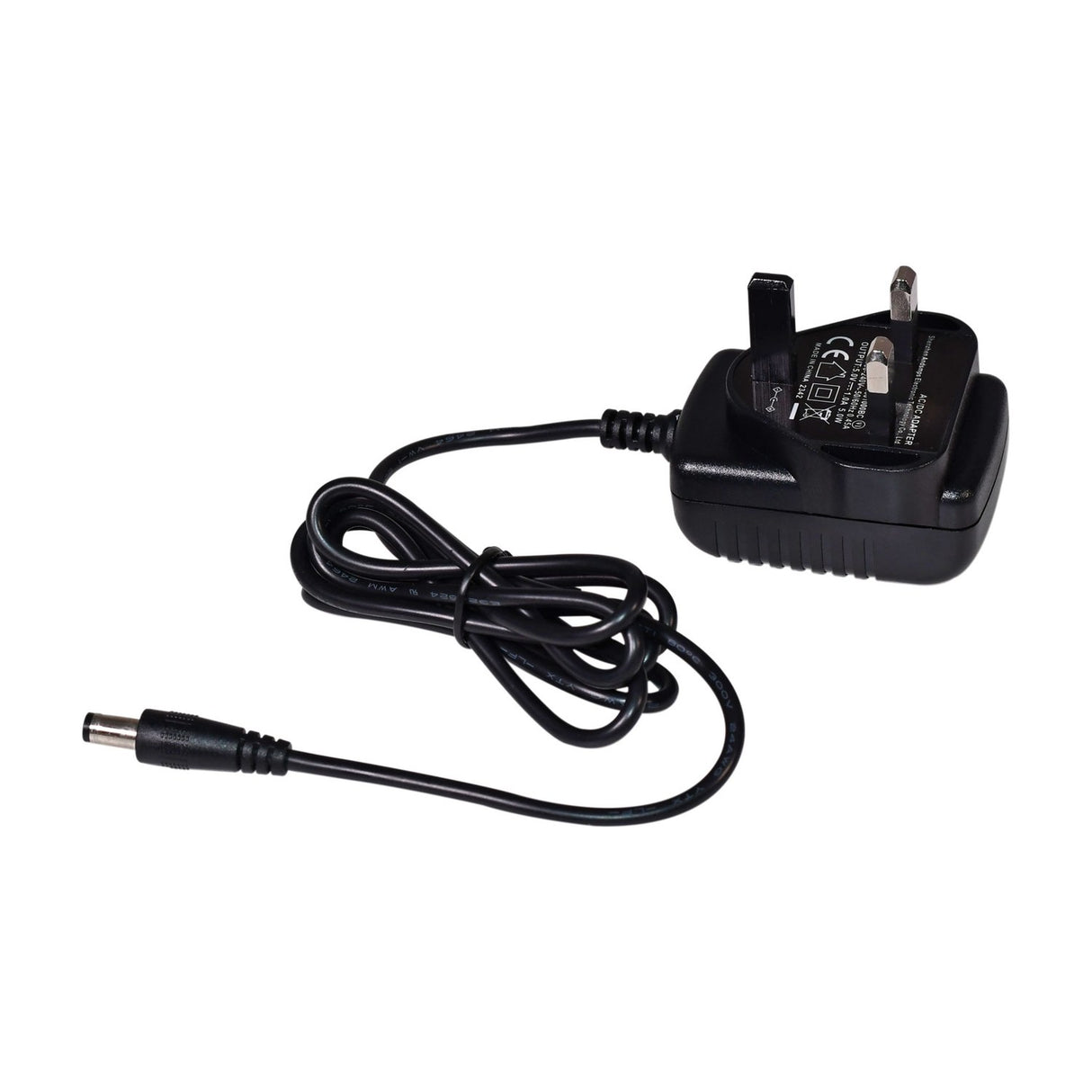

The unit supports resolutions up to 3840 x 2160 at 30Hz, with LPCM2.0 audio and a maximum bandwidth of 340MHz. It is a compact box at 121 x 102 x 19mm and 220g, finished in brushed metal, so it sits neatly in a control room, surveillance setup, broadcast rack or any AV install that needs several feeds on one screen. A UK power adaptor is included in the box. The remote takes 2x AAA batteries, which are not supplied. Operating temperature runs from -10°C to +45°C.

Specification
Max. resolution 3840 x 2160 @ 30Hz
Audio format LPCM2.0
Input connections 4x HDMI, DC5V/1A (power)
Output connections HDMI, RS232
Max. baud rate 3.4 x 3Gbps
Max. bandwidth 340MHz
Max. cable length Input: 4K/30Hz≤10m, Output: 4K/30Hz≤10m
Max. working current 0.6A
Operating temperature range -10°C to +45°C
Dimensions 121mm x 102mm x 19mm
Weight 0.22KG
Remote : battery 2x AAA (not supplied)
Power adaptor Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
Downloads

Product Manual

Frequently Asked

How many sources can it show at once?

Up to four 4K HDMI inputs on a single HDMI output. You can view all four together in quad mode, use picture-in-picture, or show one source full-screen.

Does it downscale the picture like some multi-viewers?

No. Unlike many comparable devices, this unit preserves the full input resolution rather than reducing it, so each feed keeps its original detail and clarity.

What is the maximum supported resolution?

It supports video resolutions up to 3840 x 2160 at 30Hz, with a maximum bandwidth of 340MHz and LPCM2.0 audio.

How do I control it?

You can switch inputs and viewing modes using the front panel controls or the supplied IR remote. An RS232 port is also provided for serial control.

What is supplied in the box?

The unit comes with an IR remote control and a UK power adaptor. The 2x AAA batteries for the remote are not included.

What HDMI cable length can it handle?

At 4K/30Hz the maximum cable length is 10m on both input and output.
