AV:Link EPS86-4:3 86" 4:3 Motorised Projector Screen

£9999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

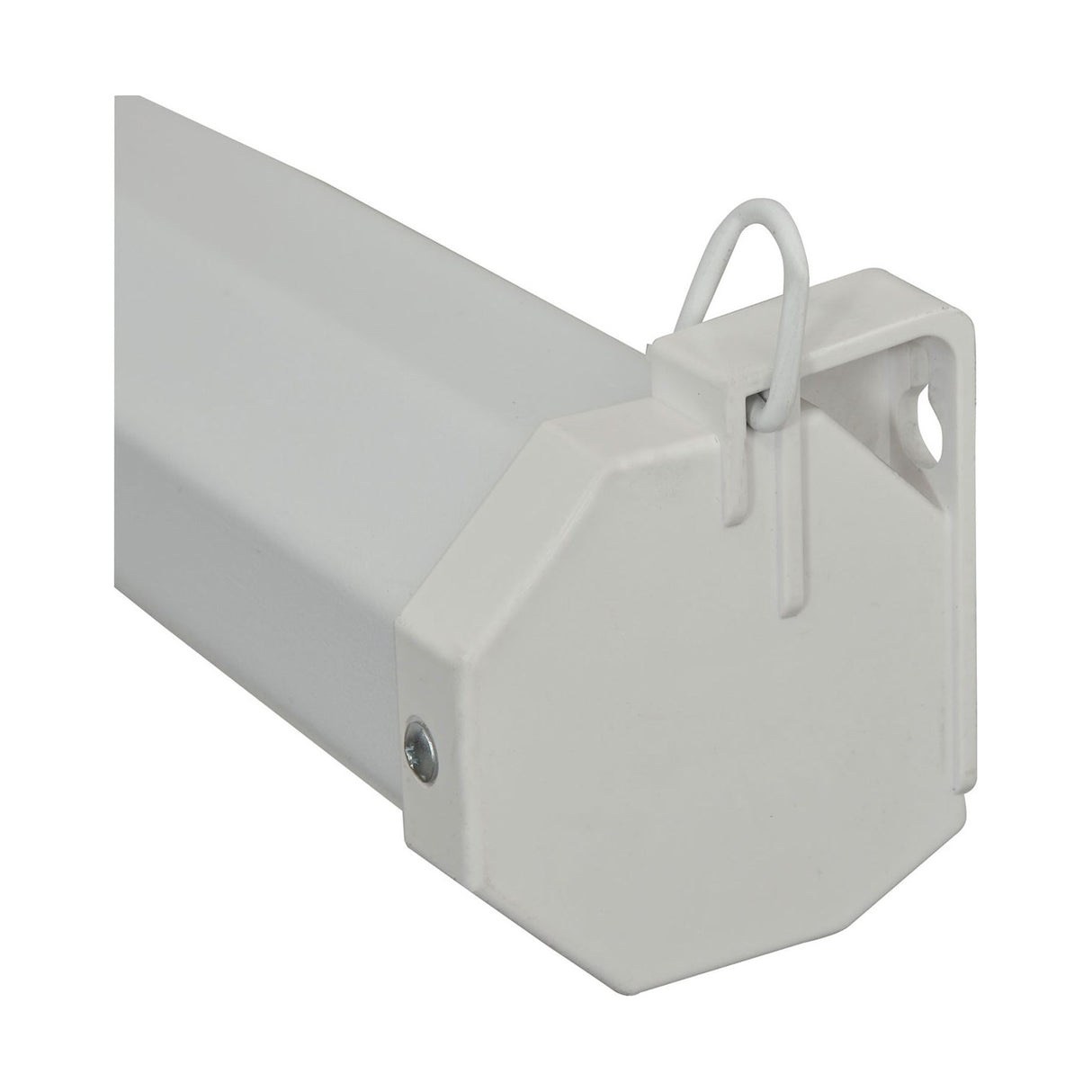

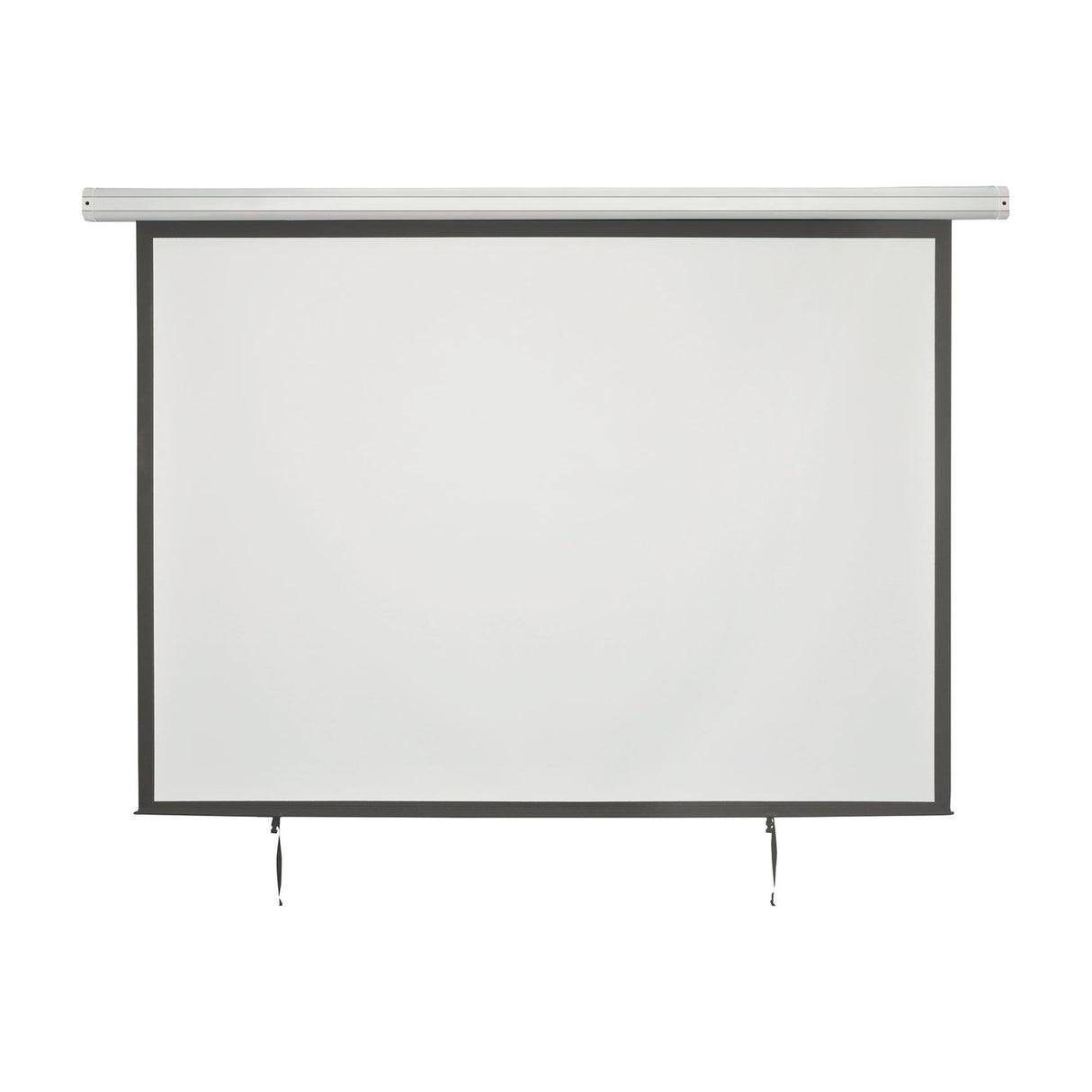

The AV:Link EPS86-4:3 is an electric projector screen with an 86" diagonal in a 4:3 aspect ratio. It houses a built-in motor that raises and lowers the screen at the touch of a button, so you can set it up in a classroom, auditorium or place of worship without wrestling with a manual pull-down. The screen sits in a white steel case with mounting brackets on either end, giving you the option to fix it to a ceiling or a wall depending on your room.

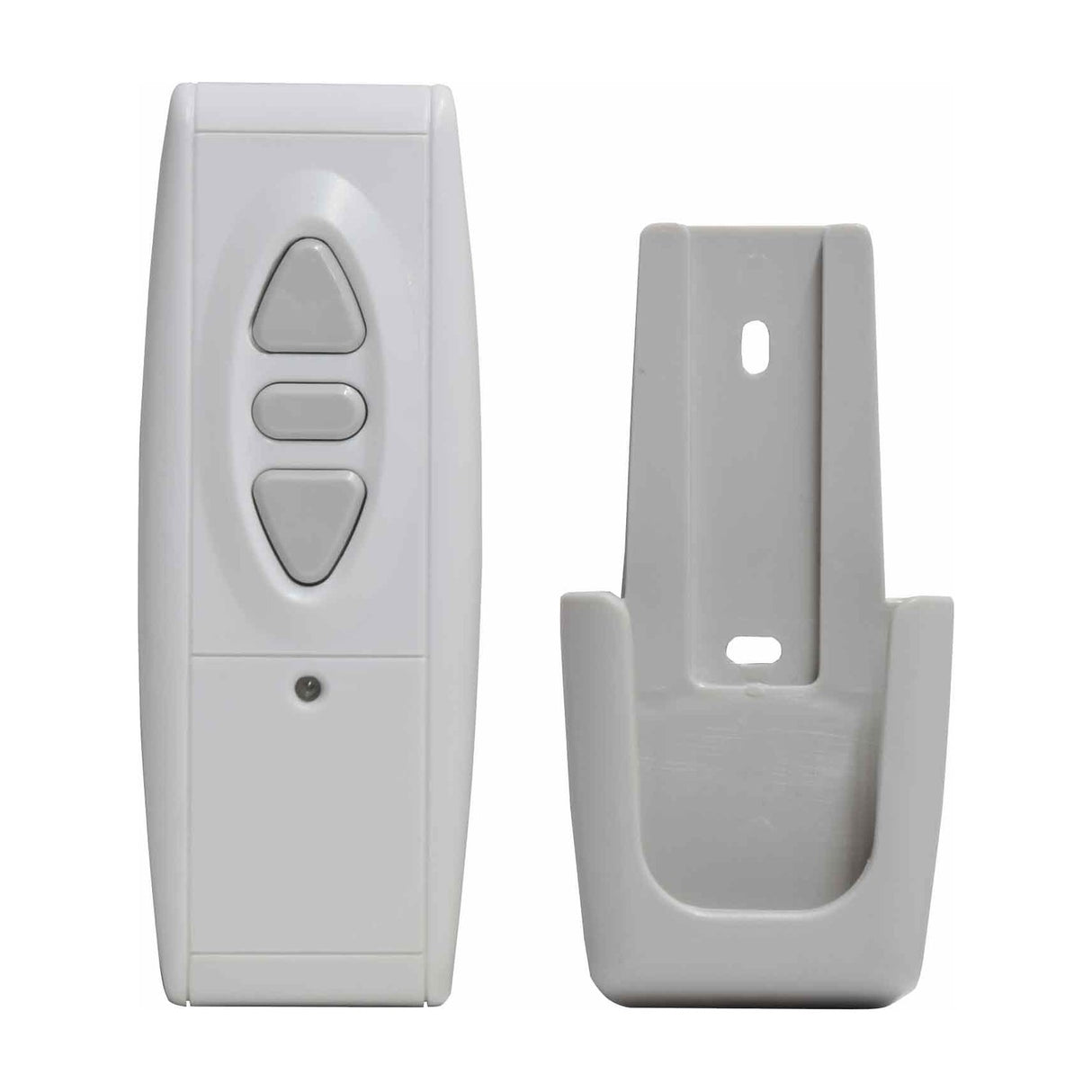

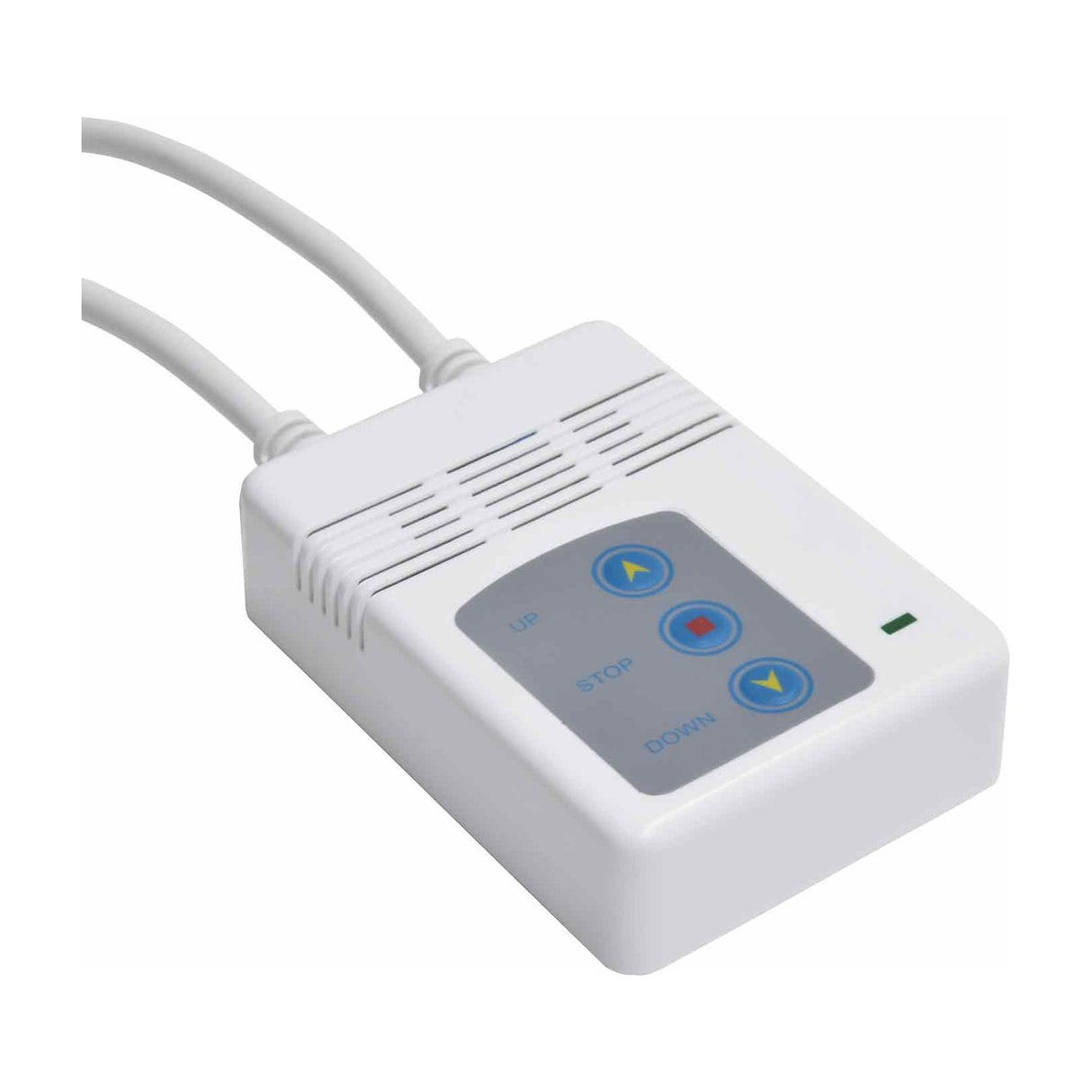

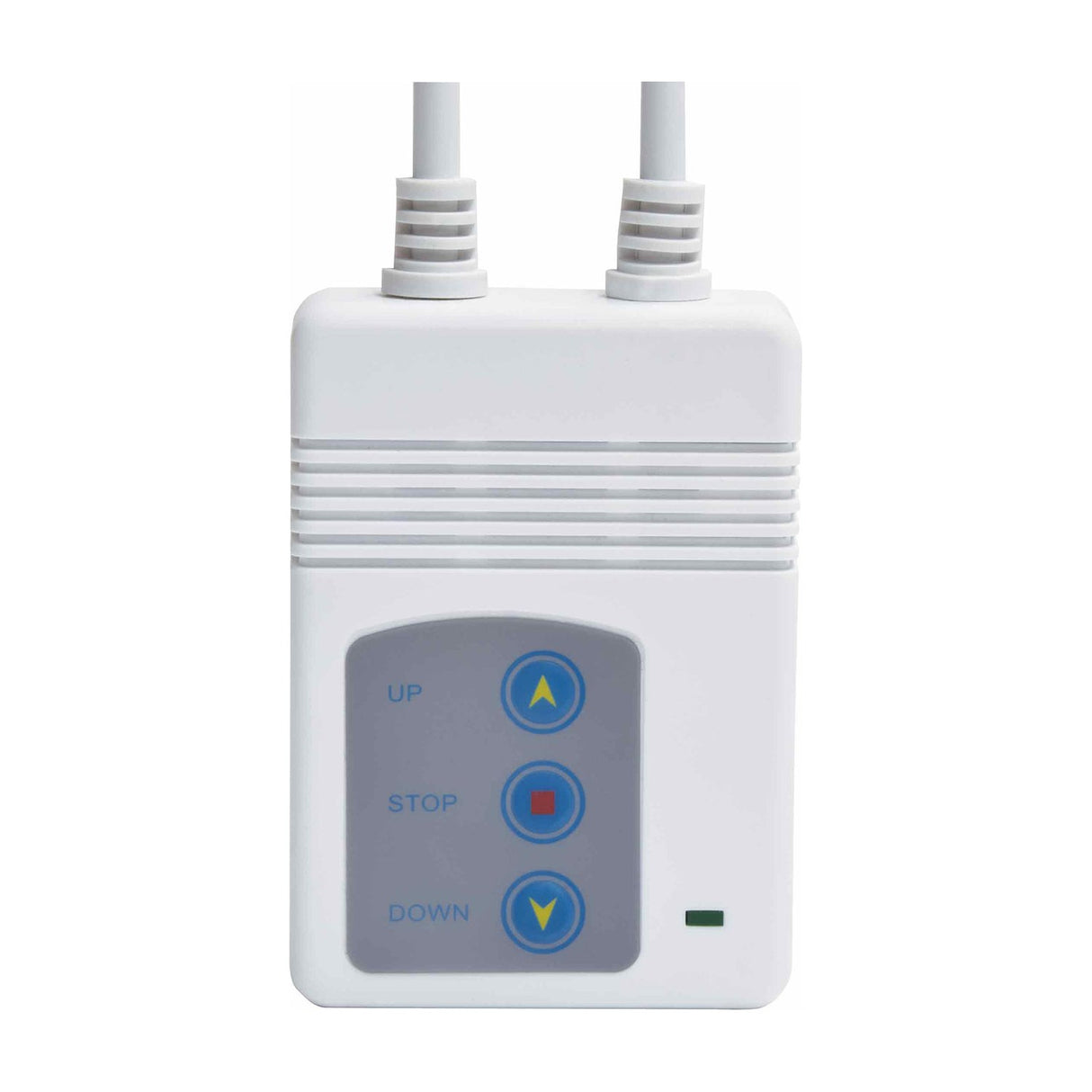

Control is handled two ways. There's an in-line switch on a 1.5m lead running from the controller to the housing, plus an RF remote that works at 433.92MHz and comes with its LR23A battery supplied. A drop and retract distance limiter lets you set exactly how far the screen travels, and the low noise motor keeps things quiet during a presentation or film. A weighted bottom bar keeps the surface flat and stops it jamming in the case or curling at the edges.

The matt white surface has a gain of 1.1 and a 100° viewing angle, so the image stays readable from across a wide room. A 40mm black border frames the picture and helps define its edges. The screen material is flame retardant and mildew proof, which matters in shared spaces. This model runs on a 230Vac, 50Hz mains supply, and the mains cable entry is on the right hand side of the unit. The same range comes in 4:3 and 16:9 formats and various sizes to suit different installations.

Specification
Weight 10.00KG
Housing dimensions 2040mm x 88mm x 88mm
Screen dimensions 1720mm x 1300mm
Max. drop 1595mm
Screen ratio 4:3
Screen size 1660mm x 1230mm
Power supply 230Vac, 50Hz
Gain 1.1
Border size 40mm
Viewing angle 100°
Screen colour Matte white
Remote control frequency 433.92MHz
Battery : remote LR23A (supplied)
Lead length plug to controller: 1.5m
Downloads

Product Manual

Frequently Asked

How do I control the screen?

You can use the in-line switch wired to the controller or the included RF remote, which works at 433.92MHz. The remote's LR23A battery is supplied in the box.

Can I limit how far the screen drops?

Yes. The screen has an adjustable drop and retract distance limiter, so you can set the exact travel to match your projector and room height.

Can it be fitted to a ceiling or a wall?

Both. The white steel case has mounting brackets on either end, so you can install it on a ceiling or a wall to suit your space.

What screen quality does it offer?

The matt white surface has a gain of 1.1 and a 100° viewing angle, with a 40mm black border to help frame and define the projected image.

Is the material safe for shared rooms?

The screen material is flame retardant and mildew proof, which makes it suited to classrooms, auditoriums and places of worship.

Which side does the mains cable enter?

The mains cable entry is on the right hand side of the unit. It runs on a 230Vac, 50Hz supply with 1.5m leads from plug to controller and controller to housing.
