AV:Link EPS100-16:9 100" 16:9 Electric Projector Screen

£11999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

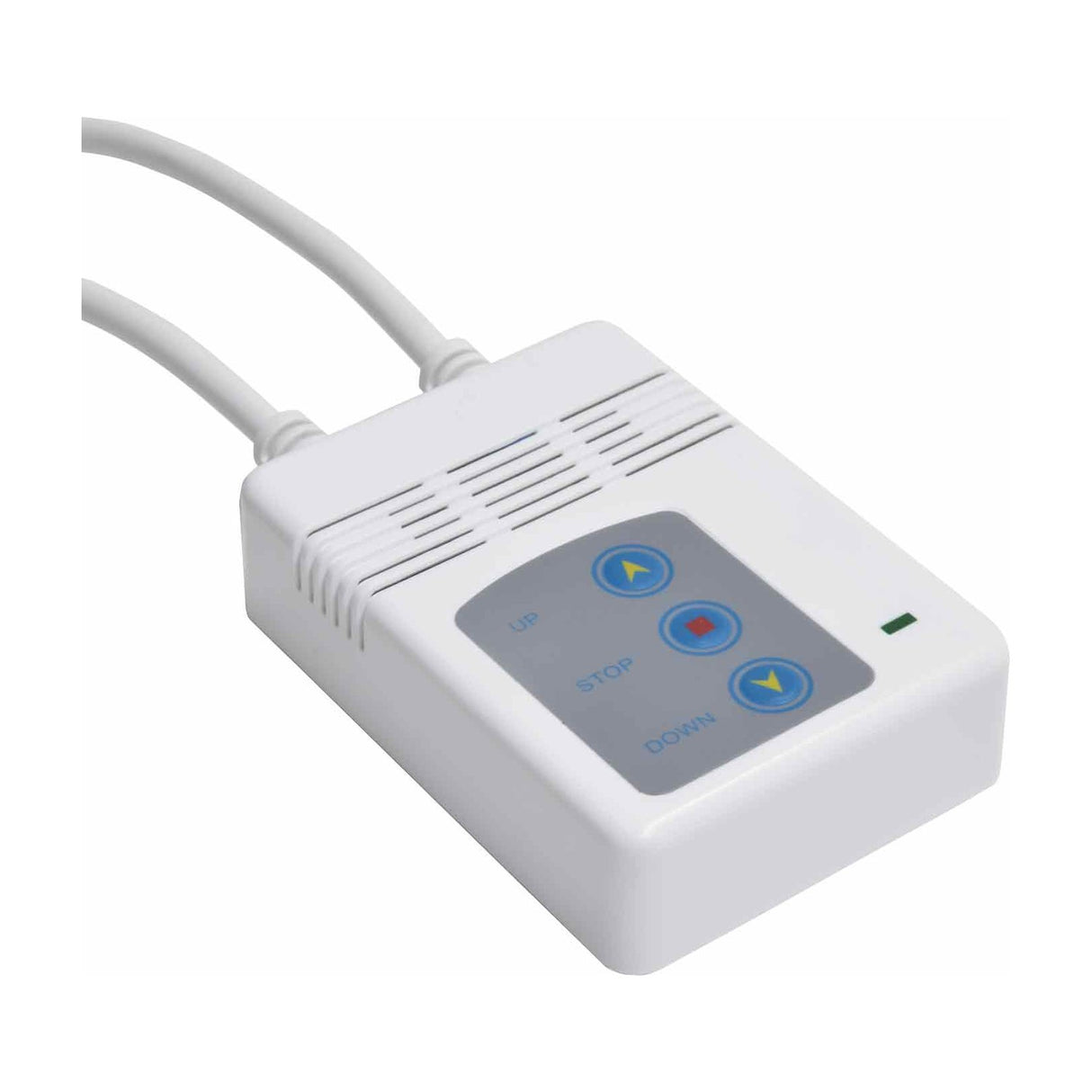

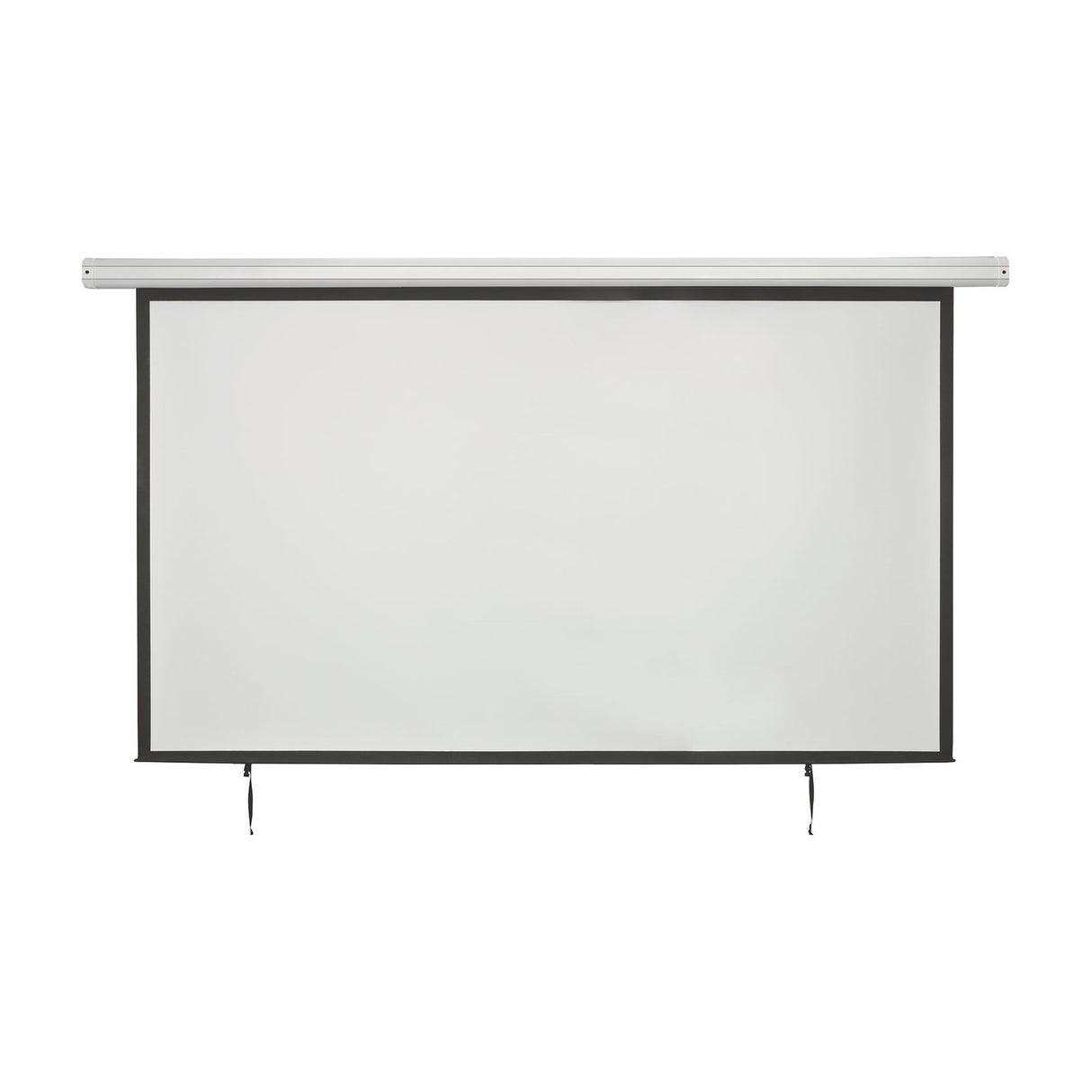

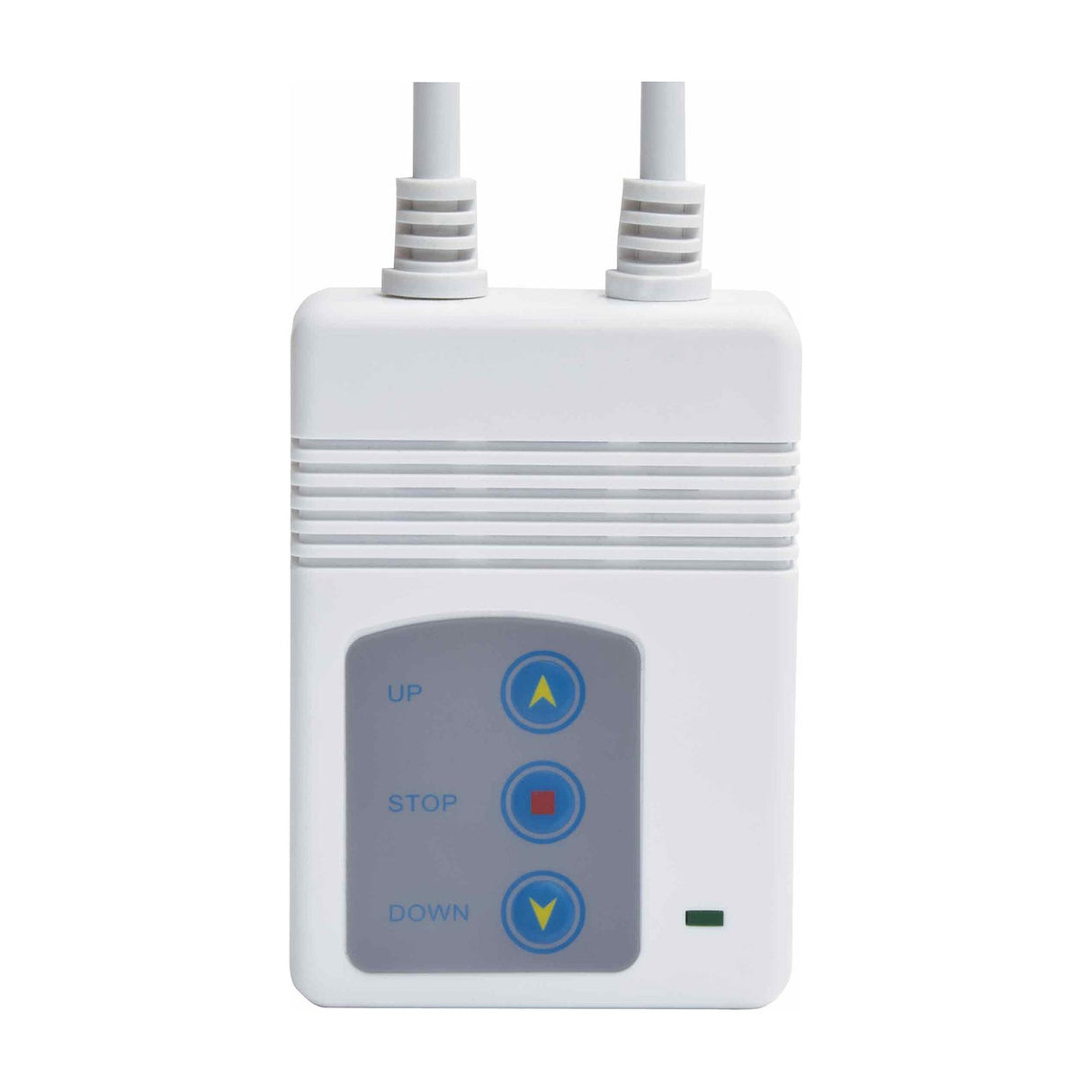

This AV:Link electric projector screen gives you a 100" viewing area in a 16:9 widescreen format, driven by a built-in motor. You can raise and lower the screen using the in-line control switch or the supplied RF remote, so you don't need a clear line of sight to operate it. The unit forms part of our range of large format screens, with sizes to suit classrooms, auditoriums and places of worship.

The screen is housed in a white steel case with mounting brackets on either end, letting you fit it to a ceiling or a wall. A weighted bottom bar keeps the screen flat and stops it jamming or curling in the case. The matt white surface has a gain of 1.1 and a 100° viewing angle, while the 40mm black border helps define the edges of the projected image. The material is flame retardant and mildew proof, and the motor runs quietly during operation.

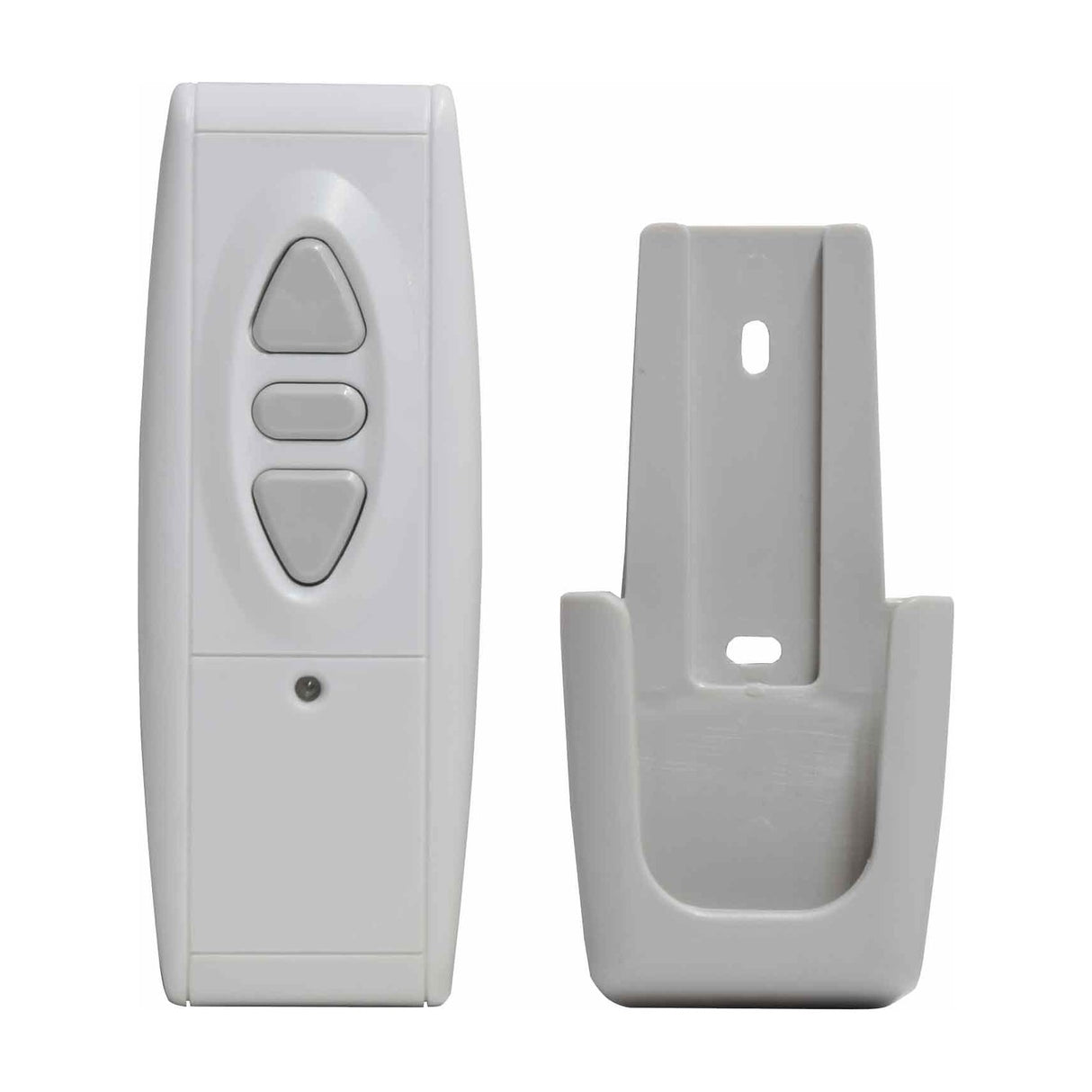

An adjustable drop and retract limiter lets you set exactly how far the screen travels, so it stops at the height you want each time. The mains cable enters on the right hand side of the unit, which is worth noting when you plan your installation. Power is 230Vac at 50Hz, with a 1.5m lead from the plug to the controller and a further 1.5m from the controller to the housing. The remote works at 433.92MHz and takes an LR23A battery, which we supply in the box.

Specification
Weight 13.00KG
Housing dimensions 2520mm x 88mm x 88mm
Screen dimensions 2210mm x 1230mm
Max. drop 1545mm
Screen ratio 16:9
Screen size 100" (254cm)
Power supply 230Vac, 50Hz
Gain 1.1
Border size 40mm
Viewing angle 100°
Screen colour Matte white
Remote control frequency 433.92MHz
Battery : remote LR23A (supplied)
Lead length plug to controller: 1.5m
Downloads

Product Manual

Frequently Asked

How do I control the screen?

You can operate it with the fitted in-line control switch or the supplied RF remote control, which works at 433.92MHz.

Can I mount this on a ceiling or a wall?

Yes. The steel case has mounting brackets on either end, so you can fit it to a ceiling or a wall depending on your setup.

What size is the viewing area?

This model gives a 100" screen in a 16:9 widescreen format. Other sizes and a 4:3 format are available in the range.

Does the remote need a battery?

Yes, it uses an LR23A battery. We supply one in the box so it's ready to use.

Which side does the mains cable enter?

The mains cable entry is on the right hand side of the unit, so plan your cable run accordingly.

Can I limit how far the screen drops?

Yes. The adjustable drop and retract distance limiter lets you set the exact travel so the screen stops where you want it.
