AV:Link Cat6 Inline Coupler - White

£399
The RRP is the manufacturer's recommended retail price of the item.
51 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

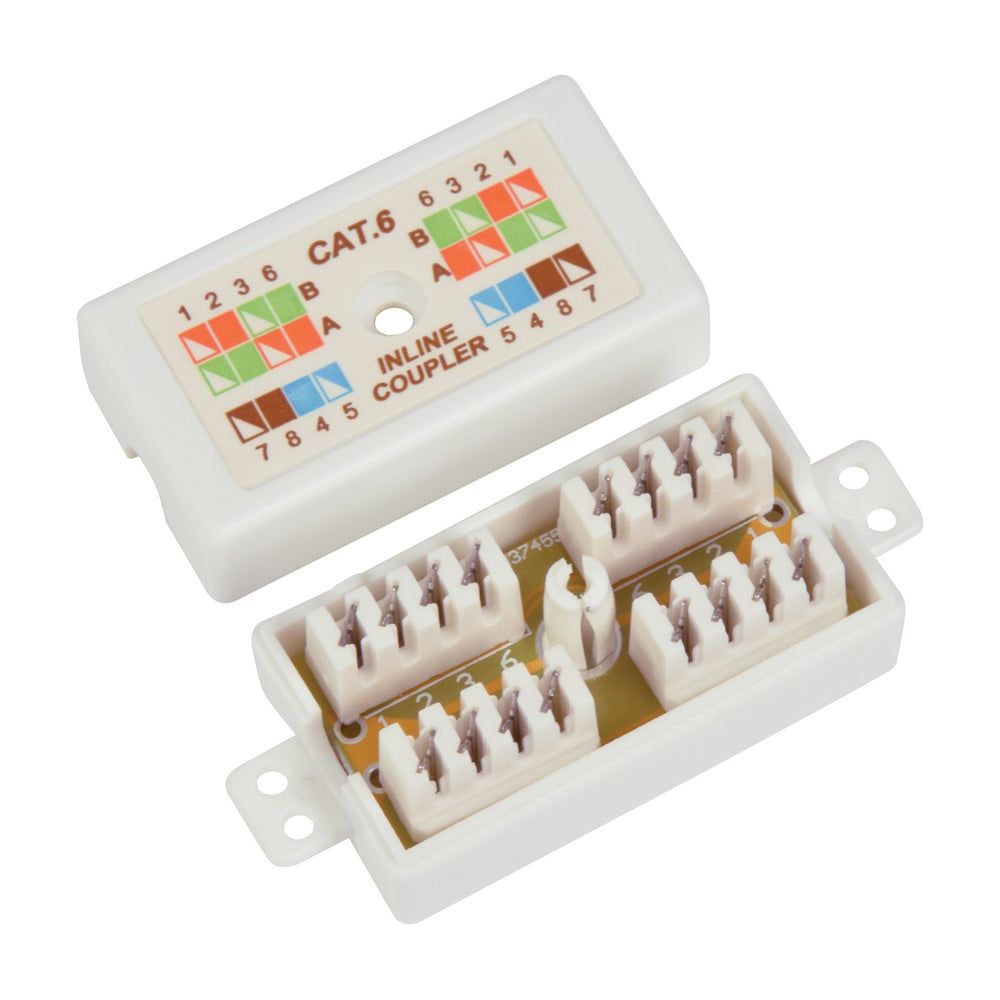

The AV:Link Cat6 inline coupler is a compact white junction box that joins two solid network cables end-to-end, extending cable runs or repairing cables cut too short during installation. The coupler accepts Cat6, Cat5e and Cat5 solid-core cables and provides punch-down terminations on both sides, with a colour-coded wiring diagram printed on the top of the housing.

Designed for fixed network installations in domestic, office and light commercial environments, the coupler suits situations where pre-terminated patch leads cannot reach or where a cable has been cut during building work and needs rejoining without replacing the entire run. The 63mm length and 26mm width allow the coupler to be surface-mounted or placed inside cable trunking, and it ships with cable ties for securing the incoming cables to the housing.

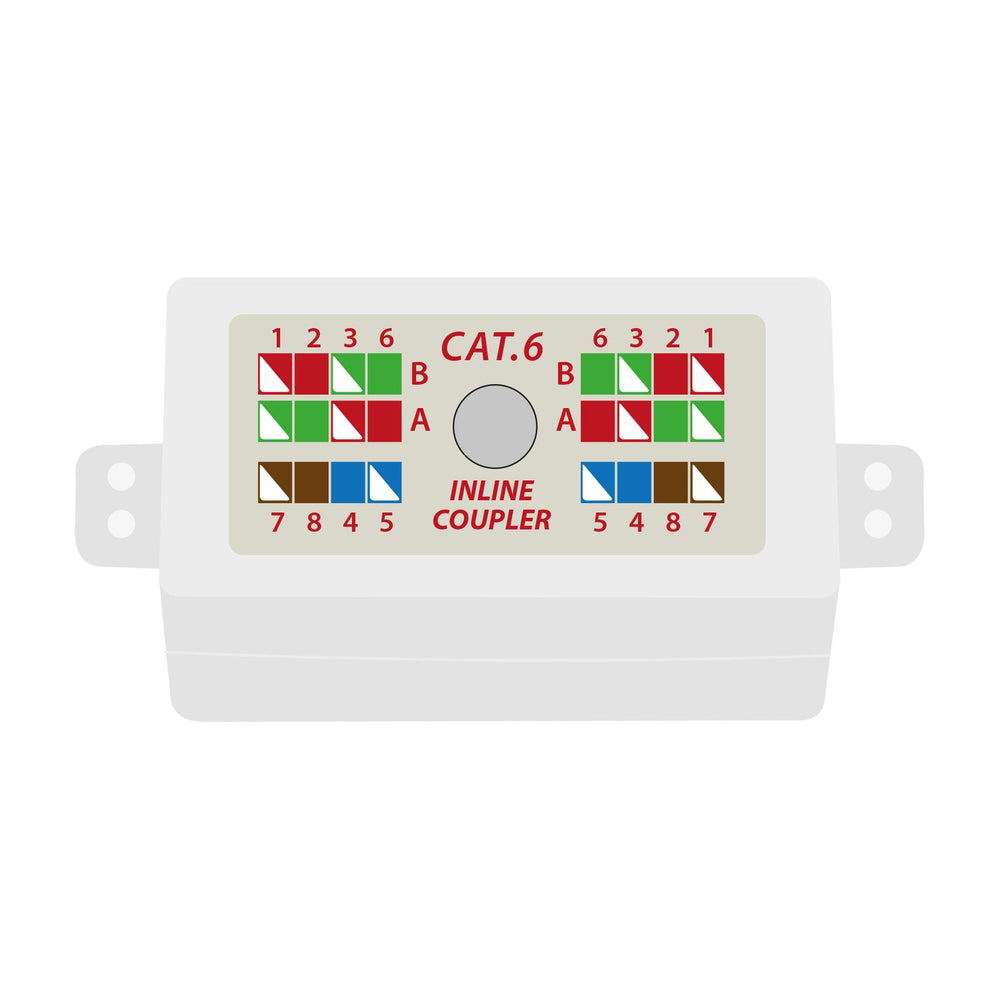

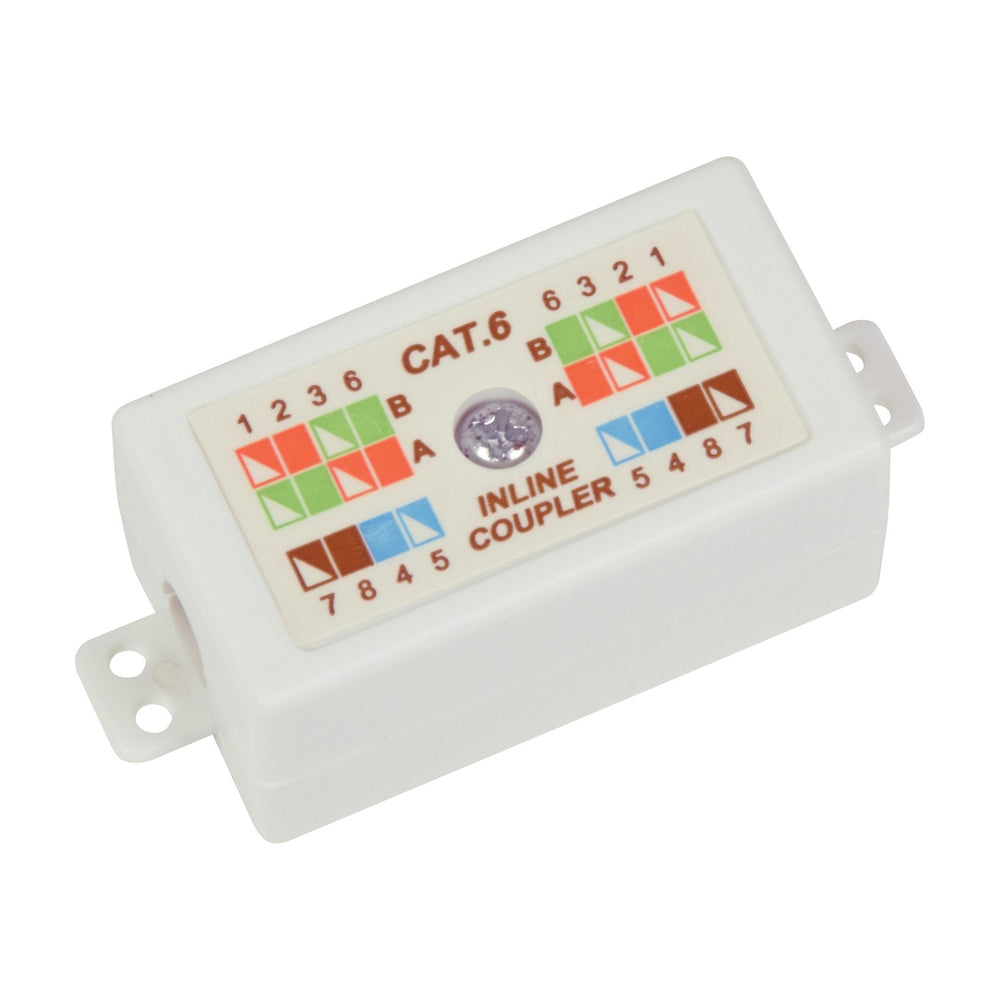

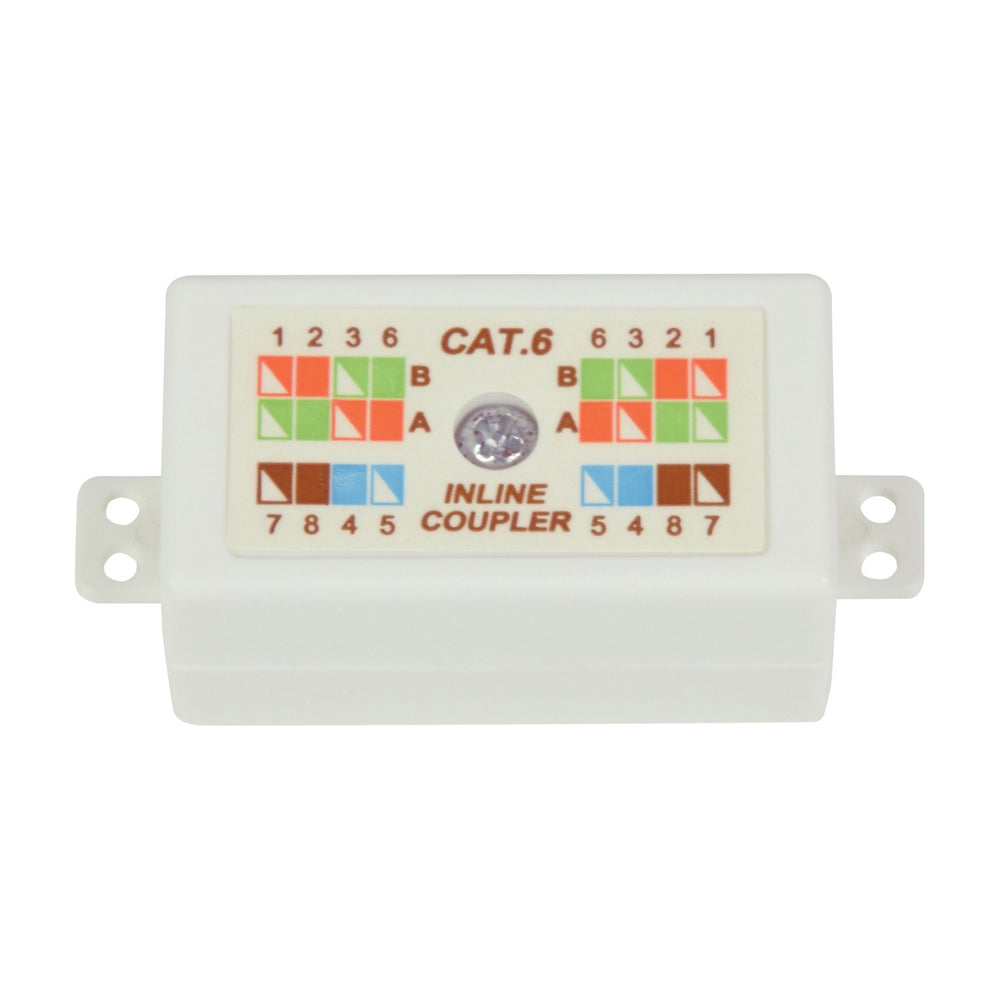

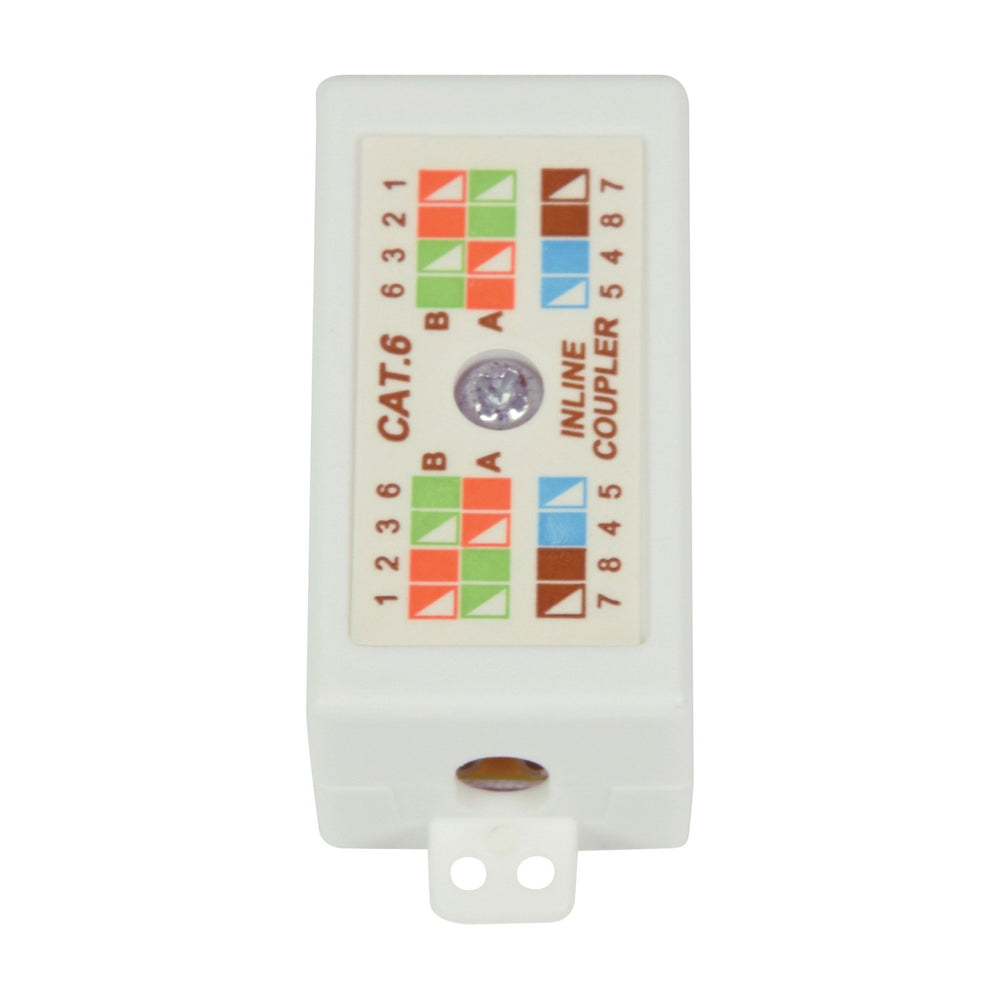

The top label shows the T568A and T568B wiring standards in colour, allowing installers to match the wire pairs from both incoming cables to the correct punch-down positions. The white ABS housing measures 63 x 26 x 25mm and weighs 20g, making it straightforward to handle during installation. The coupler maintains the rated performance of Cat6 cabling when wired correctly, supporting Gigabit Ethernet over the joined cable run.

Specification
Dimensions 26mm x 63mm x 25mm
Weight 0.02
Frequently Asked

What cable types does this coupler accept?

The coupler is rated for solid-core Cat6, Cat5e and Cat5 network cables. It is not designed for stranded patch cable. Use RJ45 inline couplers for joining patch leads.

Does it come with termination tools?

No. You will need a punch-down tool (Krone or 110-type) to terminate the cables into the coupler. The coupler ships with cable ties for strain relief but no tools or cables.

What wiring standard should I follow?

The top label shows both T568A and T568B standards. Use whichever standard matches the rest of your installation, and ensure both sides of the coupler are wired to the same standard to maintain correct pin-out.

Can this be used outdoors?

The coupler has no IP rating and the ABS housing is not UV-stabilised, so it is intended for indoor installation only. For outdoor runs, use a weatherproof junction box enclosure around the coupler or specify an outdoor-rated inline connector.
