AV:Link 8K HDMI Audio Extractor with VRR & HDR10

£5999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This 8K HDMI audio extractor pulls audio out of a single HDMI source and sends it where you need it. It splits off digital audio via HDMI, Toslink (optical) and coaxial, plus analogue stereo through a 3.5mm jack, while passing the video signal on to your screen. Video resolutions run up to 7680 x 4320 at 60Hz, with a maximum baud rate of 40Gbps and 8/10/12 bit deep colour support.

Setup is plug and play, so you connect your source, output and audio device, and the unit syncs without delay. It handles newer formats including Variable Refresh Rate (VRR) and HDR10, which makes it a sensible match for the latest PCs and games consoles. Audio output over HDMI covers PCM2.0, LPCM5.1/7.1, Dolby Digital, Dolby True HD, Dolby Atmos and the full DTS range up to DTS:X. Optical and coaxial outputs carry LPCM and Dolby Digital up to 5.1, while the 3.5mm jack gives you analogue stereo.

Power comes from the supplied UK mains adaptor at DC5V/1A, with a USB-C connection handling the input. The housing has a brushed metal finish and measures 121 x 57 x 19mm, weighing 118g, so it sits neatly on a desk or in an AV rack. For best results, keep input cables at 3m or less and output cables at 5m or less when running 8K at 60Hz. It is a straightforward way to separate audio from your source when your amplifier or speakers do not share the same connections as your display.

Specification
Input connections HDMI (8K), USB-C (DC/5V power input)

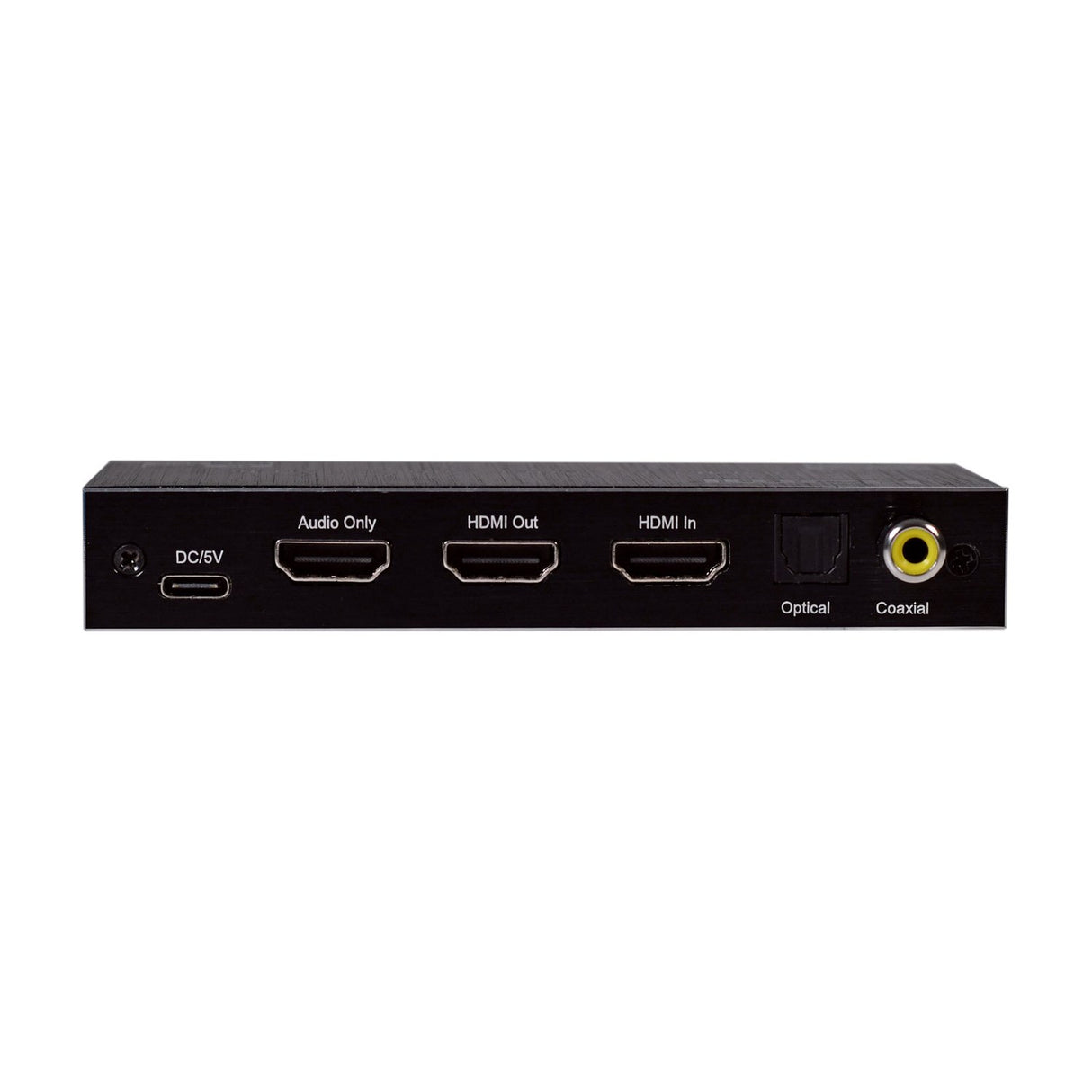

Output connections HDMI (8K), HDMI (audio only), Optical (Toslink), Coaxial, 3.5mm (Stereo)
Video resolution Up to 7680 × 4320 @ 60Hz
Max. baud rate 40Gbps
Audio output HDMI: PCM2.0, LPCM5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
Audio output SPDIF/COAX: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1
Audio output 3.5mm Jack: Analogue stereo 2.0ch
Max. cable length Input: 8K/60Hz≤3m, Output: 8K/60Hz≤5m
Power supply Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Dimensions 121mm x 57mm x 19mm
Weight 0.12KG
Video format 8/10/12 bit deep colour
Downloads

Product Manual

Frequently Asked

What audio outputs does it have?

It offers HDMI (audio only), optical Toslink, coaxial and a 3.5mm stereo jack, so you can route audio to a range of amplifiers, soundbars and speakers.

Does it support 8K video?

Yes. It passes video up to 7680 x 4320 at 60Hz with a 40Gbps baud rate and 8/10/12 bit deep colour, while extracting the audio.

Will it work with Dolby Atmos?

Yes, Dolby Atmos is supported over the HDMI audio output, along with LPCM5.1/7.1, Dolby True HD and DTS formats up to DTS:X.

How is it powered?

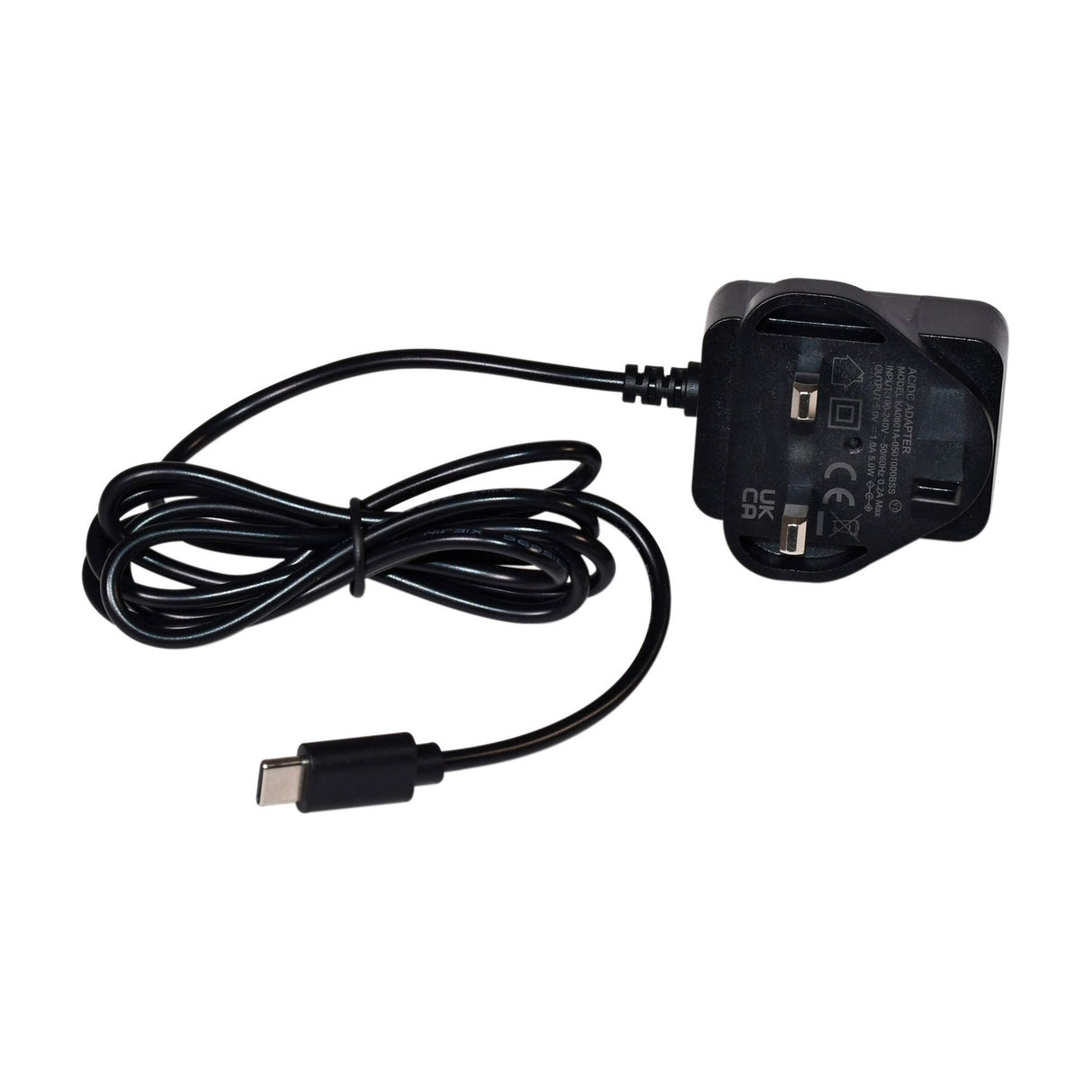

A UK mains adaptor is supplied, giving DC5V/1A. The power connects via the USB-C input on the unit.

What cable lengths does it support at 8K?

For 8K at 60Hz, keep input cables to 3m or less and output cables to 5m or less for a reliable signal.

Is it suitable for games consoles?

Yes. With VRR and HDR10 support, it suits the latest games consoles and PCs where you want to separate audio from the video feed.
