AV:Link 4K HDMI 2.0 Repeater - 60Hz at 10m

£1299
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

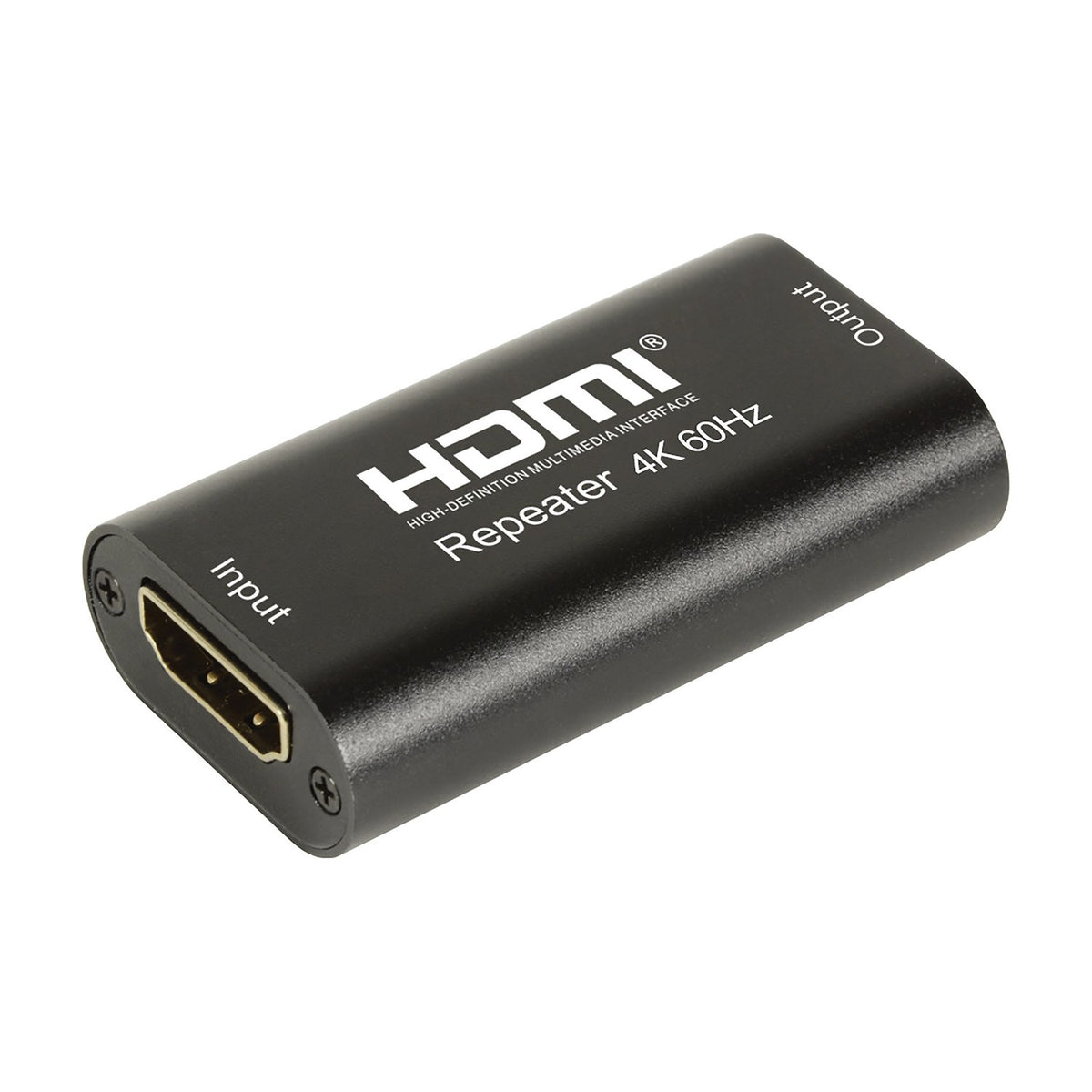

The AV:Link 4K HDMI 2.0 repeater is a 50mm inline signal booster that extends HDMI connections beyond standard cable length limits without introducing signal degradation. It supports 4K resolution at 60Hz over a combined 10m cable run (5m input + 5m output) or Full HD and 4K@30Hz over 40m (20m input + 20m output), allowing source devices to connect to displays at greater distances than a single HDMI cable can reliably achieve.

Designed for home cinema installations, commercial AV setups, digital signage and gaming rigs where the display sits more than 5m from the source, the repeater sits inline between two HDMI cables and draws power directly from the HDMI bus, eliminating the need for external power supplies or wall adapters. The unit passes HDCP 2.2 handshake data between source and display, maintaining compatibility with protected 4K streaming content from Netflix, Amazon Prime Video and UHD Blu-ray players.

The aluminium housing measures 50 x 30 x 18mm and weighs 21g, small enough to tuck behind a wall-mounted TV or inside an AV cabinet without adding visible bulk to the cable run. The repeater supports high-bitrate audio formats including Dolby TrueHD, DTS-HD Master Audio, Dolby AC3 and DSD, passing multi-channel soundtracks to AV receivers and soundbars without downmixing or compression. Maximum bandwidth of 600MHz and 18Gbps aggregate data rate (3 x 6Gbps lanes) ensures compatibility with HDR10, HDR10+ and Dolby Vision metadata where supported by the connected devices.

The unit operates on the HDMI 2.0b specification and is backward-compatible with HDMI 1.4 and earlier devices, automatically negotiating the highest common resolution and refresh rate between source and display. For maximum distance and signal integrity, pair the repeater with certified high-speed HDMI cables rated for 18Gbps — lower-quality cables may limit effective distance or introduce handshake failures at 4K@60Hz.

Specification
HDMI version v2.0b
HDCP version 2.2
Video resolution Up to 3840 x 2160P @ 60Hz
Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
Max. bandwidth 600Mhz
Max. baud rate 3x 6Gbps
Transmission distance 10m 4K@60Hz (5m input/5m output), 40m 4K@30Hz and 1080p (20m input/20m output)
Max. working current 300mA
Dimensions 50 x 30 x 18mm
Weight 21g
Frequently Asked

Does this repeater need external power?

No. The repeater draws up to 300mA directly from the HDMI bus, so no external power supply or USB cable is required. It operates purely from the power carried within the HDMI connection itself.

What's the maximum distance for 4K at 60Hz?

The repeater supports 4K@60Hz over a combined 10m cable run — typically 5m from source to repeater and 5m from repeater to display. For longer runs up to 40m combined, resolution drops to 4K@30Hz or Full HD@60Hz depending on the source device output.

Will it work with Netflix and Amazon Prime 4K content?

Yes. The repeater passes HDCP 2.2 handshake data, maintaining compatibility with copy-protected 4K streaming content from Netflix, Amazon Prime Video, Disney+ and UHD Blu-ray players.

Does it support HDR?

Yes, the HDMI 2.0b specification supports HDR10, HDR10+ and Dolby Vision metadata where both the source device and display support those formats. The repeater passes the HDR signal without modification.
