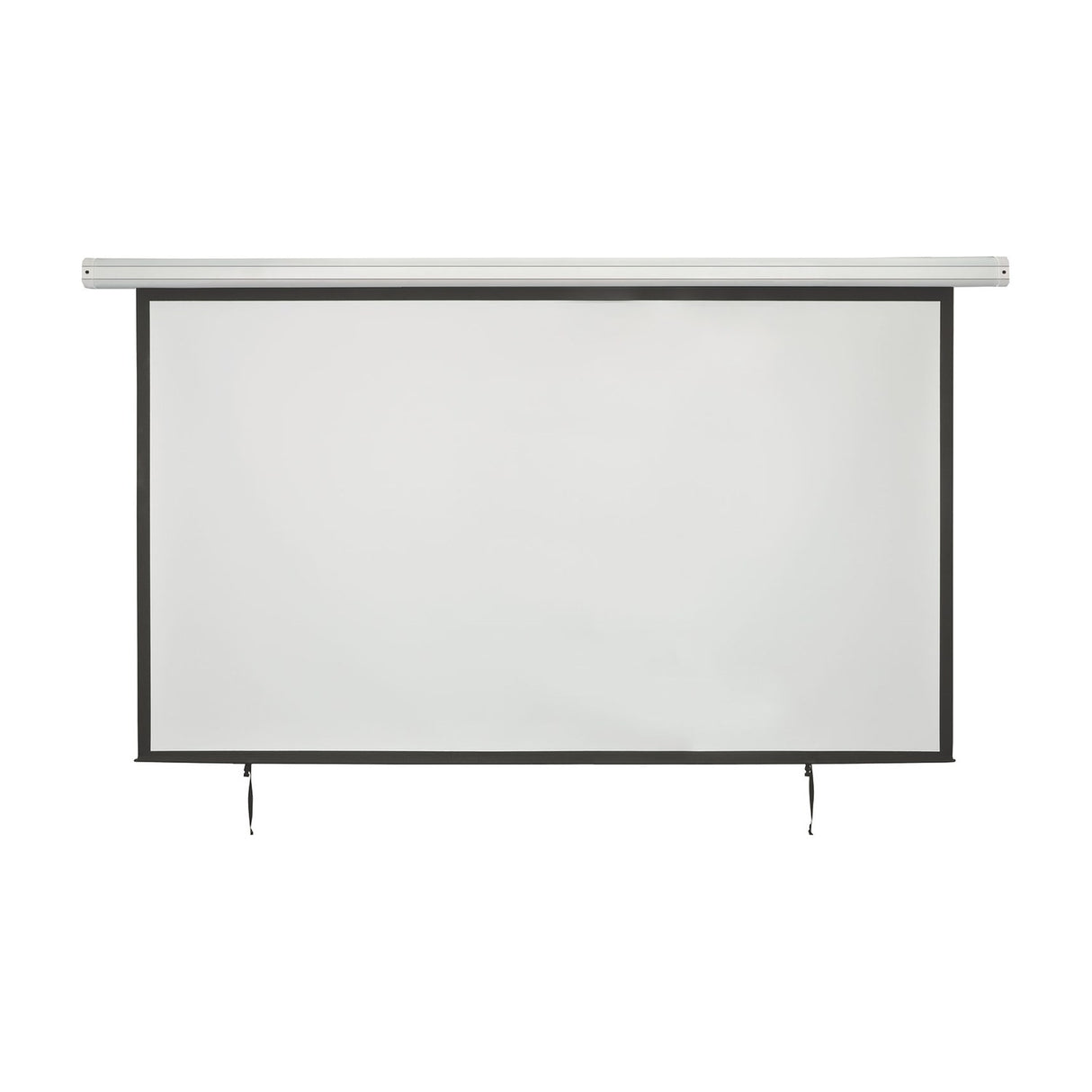

AV:Link 100" 16:9 Electric Motorised Projector Screen

£11999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This electric projector screen gives you a large 100" viewing area in a 16:9 format, ready for classrooms, auditoriums or places of worship. The screen is housed in a white steel case with mounting brackets on either end, so you can fit it to a ceiling or a wall to suit your room. A built-in electric motor lowers and raises the screen, and you can control it with the in-line switch or the supplied RF remote control.

The matt white surface has a gain of 1.1 and a 100 degree viewing angle, with a 40mm black border around the edge to sharpen the definition of the projected image. A weighted bottom bar keeps the screen flat and stops it jamming in the case or curling over time. You can set the drop and retract distance with the adjustable limiter, so the screen always stops where you need it. The material is flame retardant and mildew proof, and the low noise motor keeps operation quiet during use.

The screen runs on a 230Vac, 50Hz mains supply, with a 1.5m lead from plug to controller and another 1.5m from controller to housing. The RF remote works on 433.92MHz and takes an LR23A battery, which is supplied. This is the EU version, and the mains cable entry is on the right hand side of the unit. The same range comes in both 4:3 and 16:9 formats and various sizes, so you can match it to your projector and installation.

Specification
Weight 13.00KG
Housing dimensions 2520mm x 88mm x 88mm
Screen dimensions 2210mm x 1230mm
Max. drop 1545mm
Screen ratio 16:9
Screen size 100" (254cm)
Power supply 230Vac, 50Hz
Gain 1.1
Border size 40mm
Viewing angle 100°
Screen colour Matte white
Remote control frequency 433.92MHz
Battery : remote LR23A (supplied)
Lead length plug to controller: 1.5m
Downloads

Product Manual

Frequently Asked

How do I control the screen?

You can raise and lower the screen using the in-line switch or the supplied RF remote control, which works at 433.92MHz.

Can I mount it on a ceiling or a wall?

Yes. The steel case has mounting brackets on either end, so you can install it onto ceilings or walls.

What is the black border for?

The 40mm black border around the screen helps sharpen the definition of the projected image.

Can I set where the screen stops?

Yes. An adjustable drop and retract distance limiter lets you set exactly where the screen stops when lowering or raising.

Which side does the mains cable enter?

The mains cable entry is on the right hand side of the unit. This is the EU version of the screen.

Is the remote battery included?

Yes. The remote takes an LR23A battery, which is supplied with the screen.
