Description

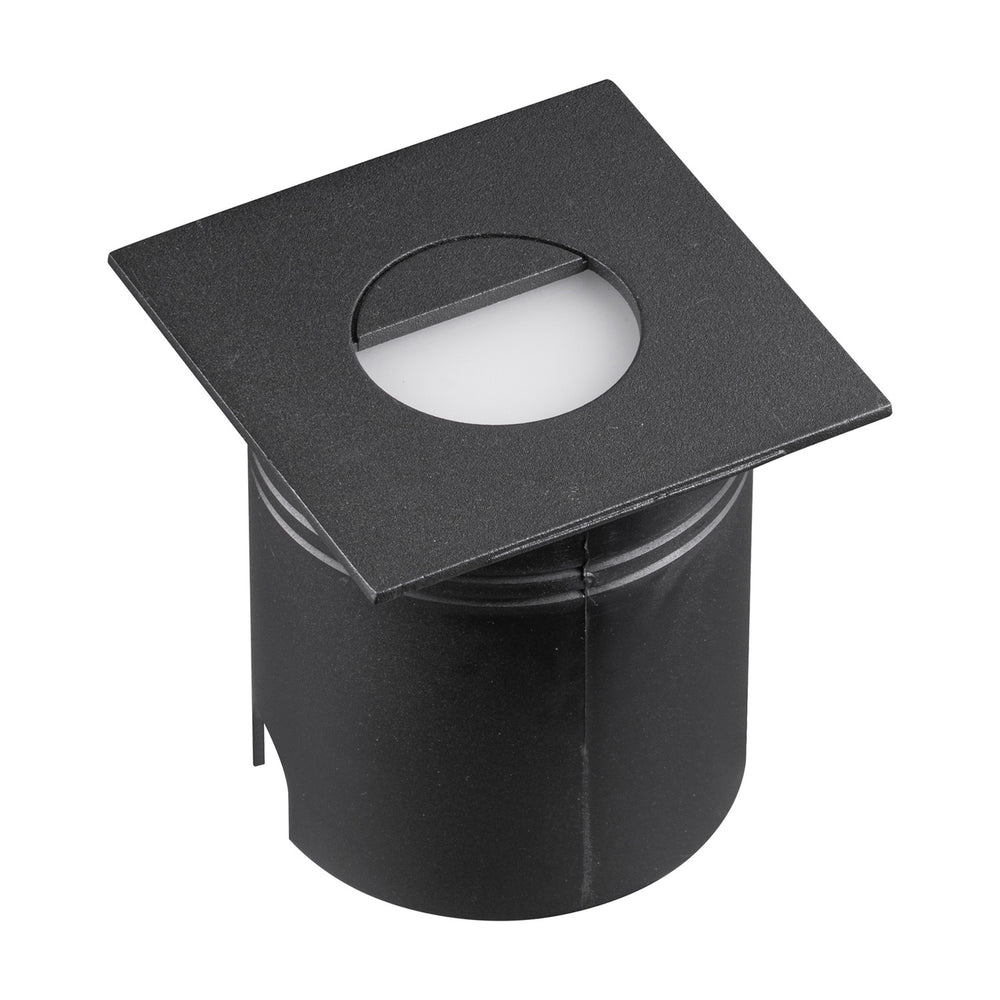

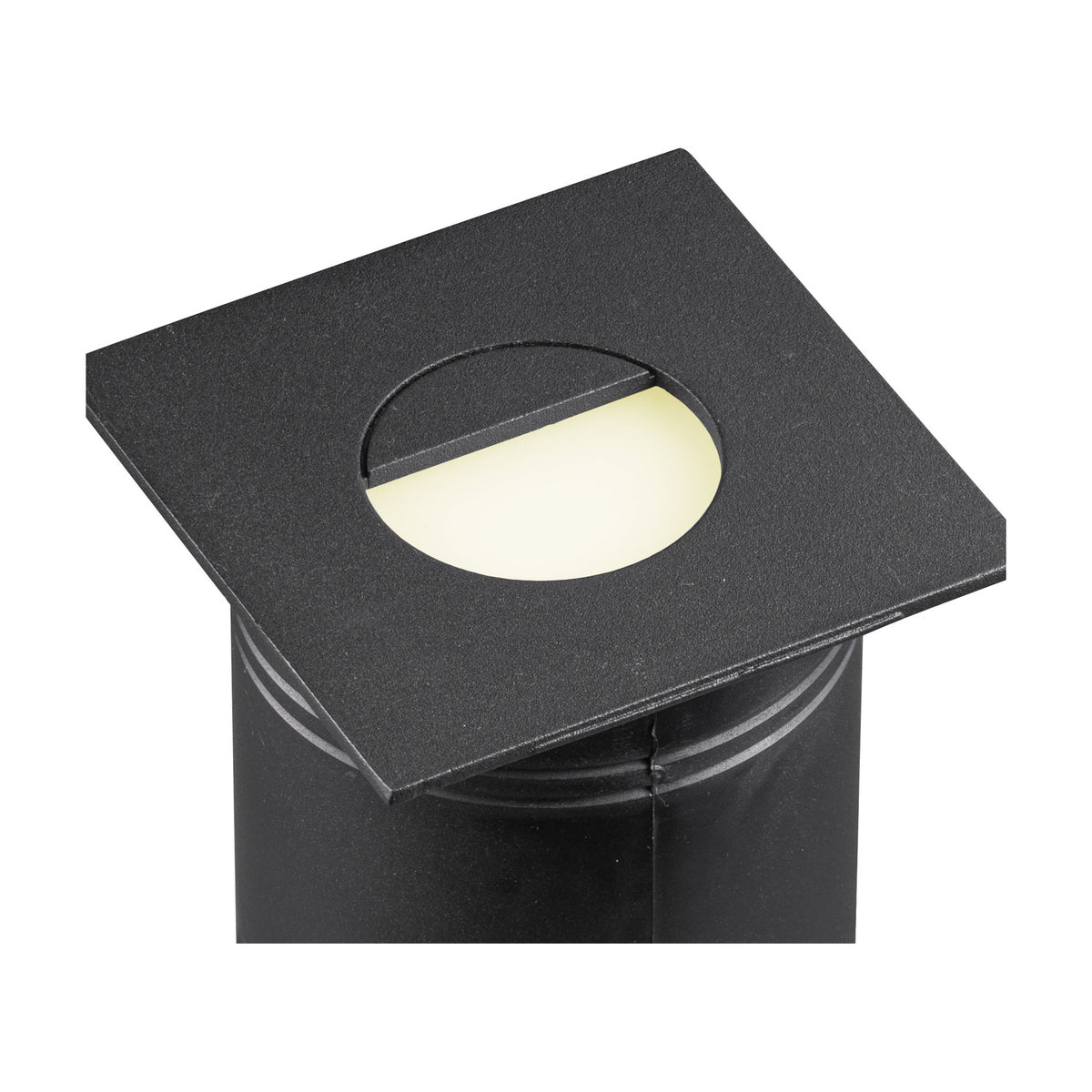

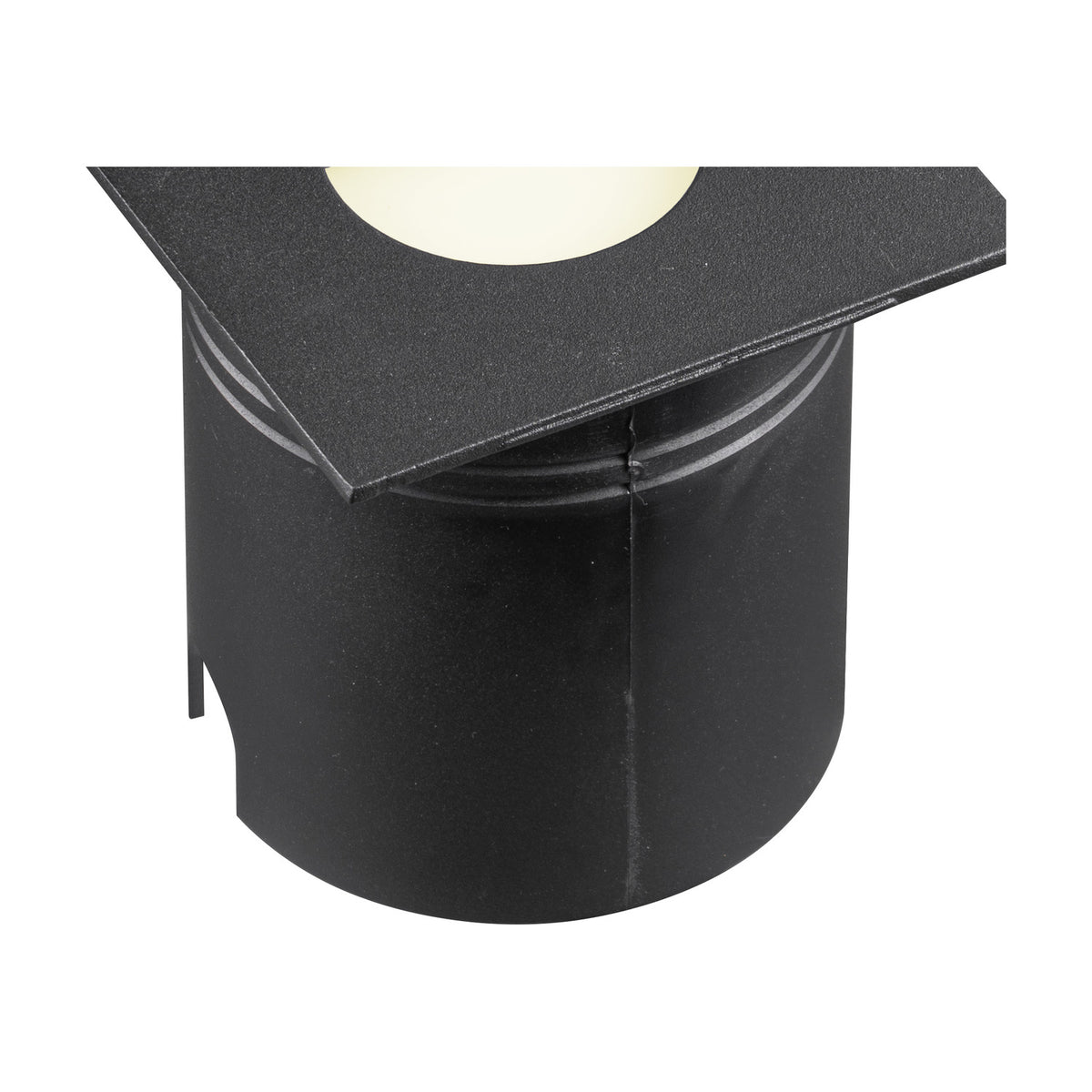

A small square face, 84mm across, with a hooded eyelid front that keeps the LED out of direct view and pushes light downward. The warm white output sits at 3000K, soft rather than clinical, and the sand black finish reads as a quiet dark square against brick or render. The driver comes with it and the LED is built in, so there is nothing to slot inside and nothing to swap later. It is switched on and off rather than dimmed.
We reach for this where a projecting fitting would be in the way: a narrow porch, the side of a step, a garden wall beside a gate, the length of a path. Set low, it grazes light across paving and marks a route without glare at eye level. Sealed against rain and dust, it copes in exposed spots as readily as under a covered entrance. Because each one gives a modest pool of light rather than broad cover, they tend to work best in a series, evenly spaced along a wall or repeated either side of a threshold.
The housing wears a fine textured sand black that hides fingermarks better than a gloss would and holds its matt look in bright sun. Keep the front clear: a wipe with a damp cloth now and then, and a soft brush to lift grit and cobwebs from under the eyelid, with the power off before you go near it. It carries a three year warranty. We stock the same fitting in anthracite and in sand white, and there is a round eyelid version if you prefer softer edges. The angled square and round variants in this range aim their light a little differently, which is useful if you want the same look at a doorway and along a path without repeating exactly the same effect.
Specification
| Colour |
Sand Black |
| Wall Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.20KG |
| Length |
84mm |
| Width |
84mm |
| Height |
85mm |
| Cut Out |
72mm |
| Materials Used |
Aluminium Die-Casting Body+Polycarbonate Diffuser |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp |
1 x 3W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
50000hrs |
| LED Brand |
KEGU |
| SMD Chipset |
2835 / 0.5W |
| LED Power |
0.5W (±5%) |
| Type of LED |
2835 |
| Lumens per Watt (lm/W) |
70lm/W (±5%) |
| Beam Angle |
97° |
| System Flux |
210lm (±5%) |
| CRI |
>80 |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
300mA |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
3W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP65 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give?
It puts out 210 lumens from a 3W integrated LED, which is a pool of light at low level rather than general illumination for a whole area. Several spaced along a wall or path give the best result.
Can I dim it?
No, this one is not dimmable. It is intended to be switched, so pair it with a standard switch, timer or daylight sensor rather than a dimmer.
Is it suitable for an unsheltered wall?
Yes. It is rated IP65, so it withstands rain and jets of water as well as dust, which covers open garden walls, gate piers and steps as well as porches.
What happens when the LED reaches the end of its life?
The LED is integral and rated at 30,000 hours, so no lamp changing is involved; at that point the fitting itself would be replaced.
How warm is the light colour?
It is 3000K warm white, a gentle yellow-toned light that flatters stone, brick and timber and sits comfortably alongside warm indoor lighting seen through windows.
How deep is the body?
The square face measures 84mm by 84mm and the body runs to 85mm deep, so it is a compact fitting overall.
