Description

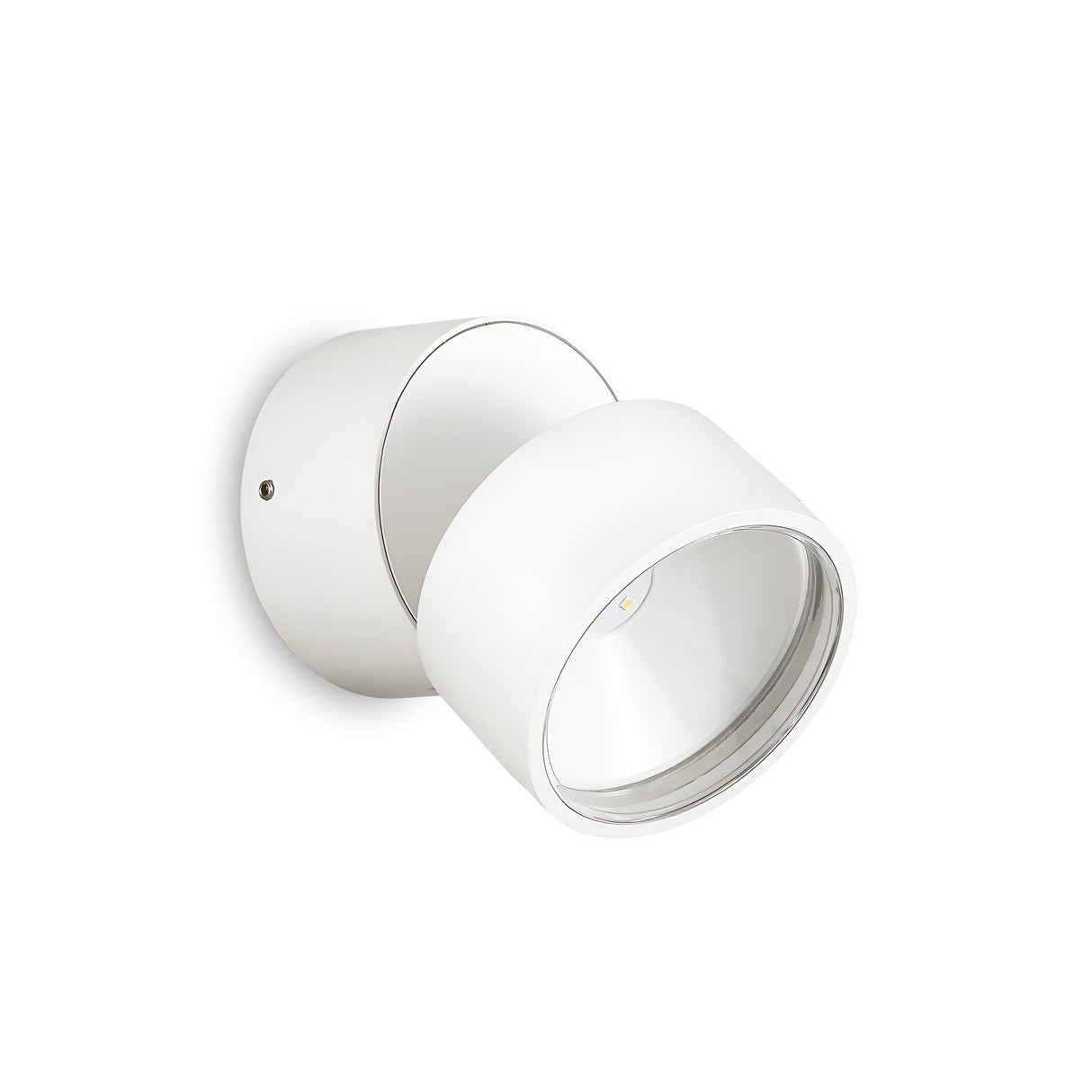

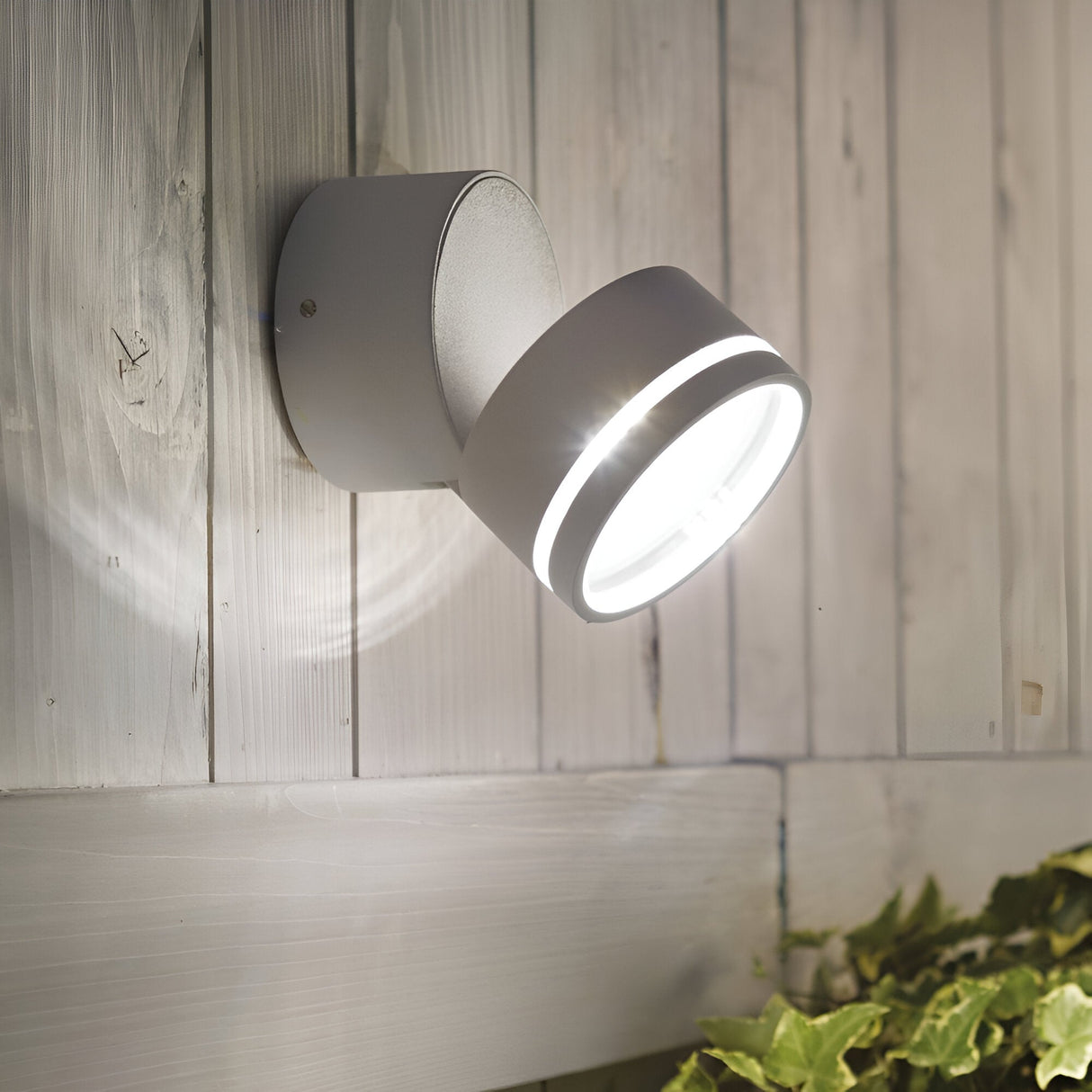

The Arcane is a 90mm diameter round outdoor LED spotlight with an integrated 7W LED casting 3000K warm white light through a cylindrical white metal housing. The spotlight head pivots on a ball-joint mount fixed to a circular 90mm wall plate, allowing the beam to be directed onto architectural features, planting, pathways or signage. The IP54 rating protects the internal LED driver and electrical components from dust ingress and water spray from any direction, making the fitting suitable for exposed walls, under eaves, beside doorways and on garden posts.
Designed for residential and light commercial outdoor lighting, the Arcane suits modern and contemporary building exteriors where a clean white finish is preferred over metallic or black options. The compact 90mm x 32mm footprint works on narrow sections of wall where larger spotlights would overwhelm the surface, such as beside entrance doors, between windows, or on timber cladding panels. The non-dimmable LED delivers consistent output from switch-on without needing a separate dimmer circuit, simplifying installation in outdoor locations where dimming is rarely required.
The white powder-coated metal housing resists corrosion in coastal and high-humidity environments better than untreated aluminium or steel, though the IP54 rating means the fitting is not submersible and should be mounted where it will not sit in standing water. The 1160mm cable length gives flexibility during installation to route the cable through wall cavities or conduit to the nearest junction box without needing an extension splice. The integrated LED removes the need for bulb replacement over the fitting's typical 25,000-hour lifespan, reducing maintenance frequency compared to GU10 or E27 spotlight equivalents.
Specification
| Diameter (mm) |
90 |
| Height (mm) |
32 |
| Cable Length (mm) |
1160 |
| Dimmable |
No |
| Number Of Bulbs |
1 |
| Bulb Type |
LED |
| Colour Temperature |
3000K |
| IP Rating |
IP54 |
| Warranty |
5 Years |
Frequently Asked
Can the Arcane be used in bathrooms or wet areas?
The IP54 rating protects against water spray from any direction, so the Arcane is suitable for outdoor use and covered outdoor areas. It is not rated for direct immersion or for use inside shower enclosures, where an IP65 or IP67 rating would be required.
Is the LED replaceable?
No. The LED is integrated into the fitting and designed to last approximately 25,000 hours under typical use. When the LED eventually fails, the entire fitting would need replacement rather than just a bulb.
What beam angle does it produce?
The Arcane produces a focused directional beam rather than a wide flood. The exact beam angle is not specified in the data provided, but the cylindrical housing and single 7W LED suggest a narrow to medium beam suitable for accent lighting rather than area illumination.
How is it mounted and wired?
The 90mm circular wall plate fixes to an outdoor wall or post using screws through mounting holes. The 1160mm cable runs back to a suitable outdoor-rated junction box or directly to mains wiring. Installation should be carried out by a qualified electrician to ensure IP rating integrity and safe weatherproof connections.
