Adastra V12-VR 100V Volume Control, Relay Fitted

£2999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

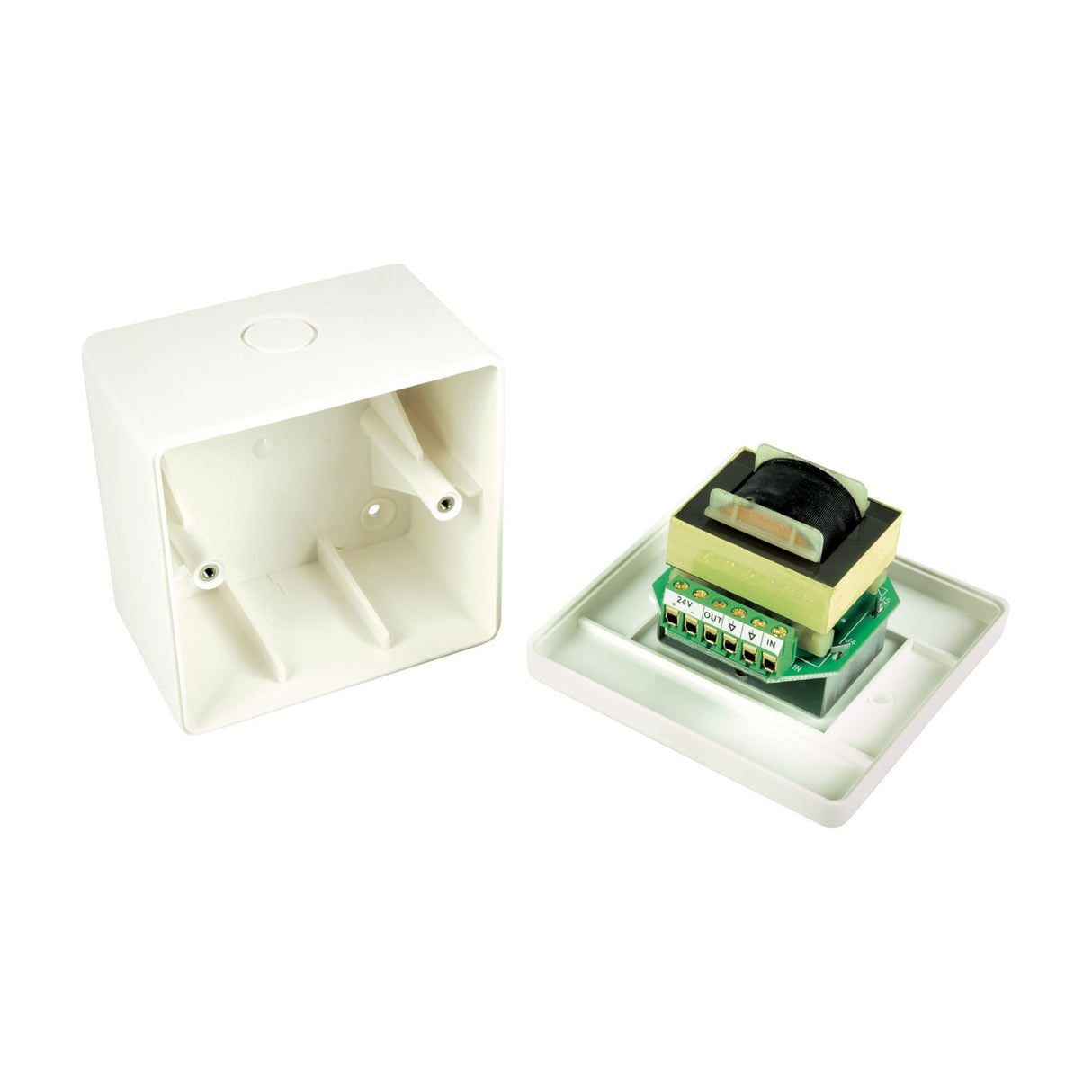

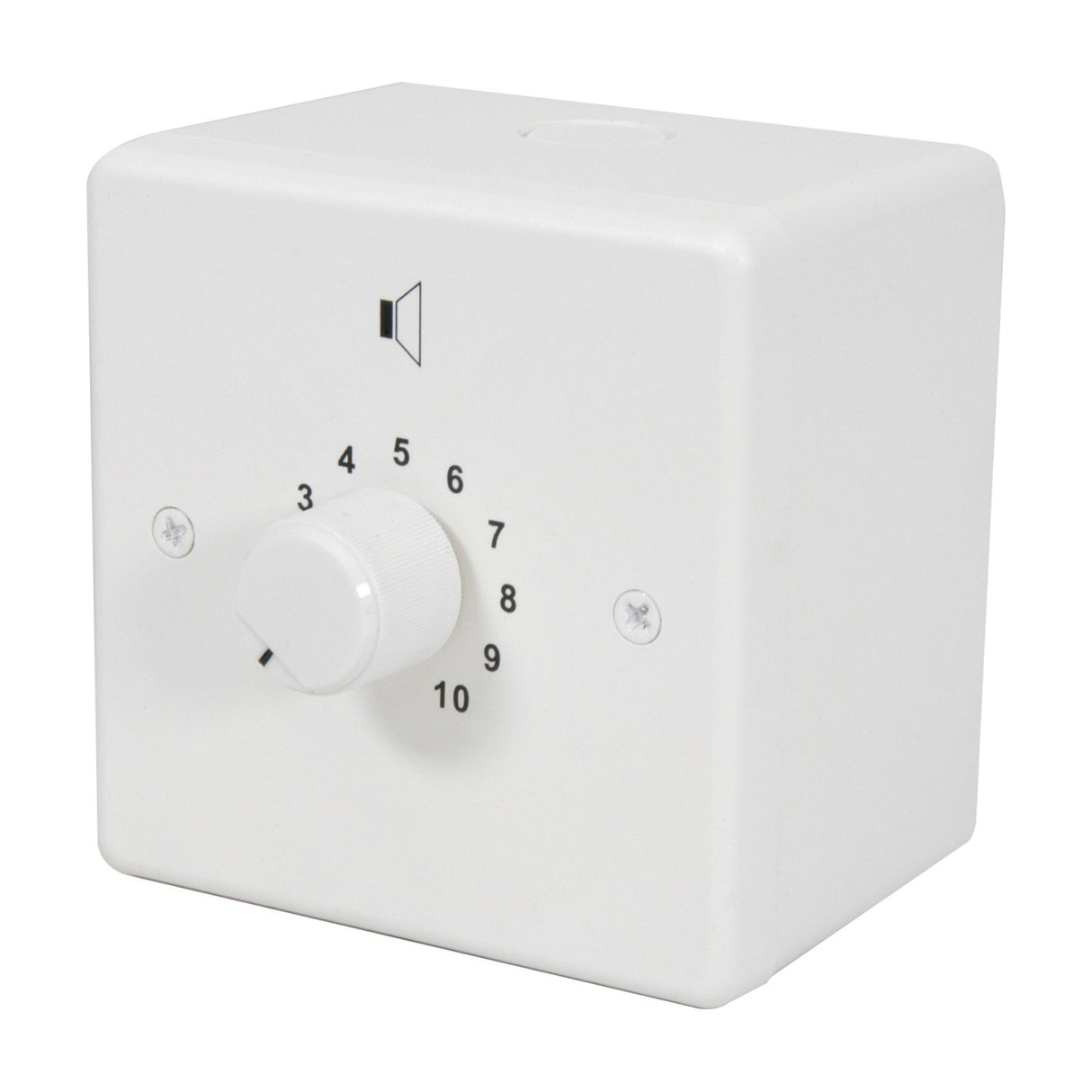

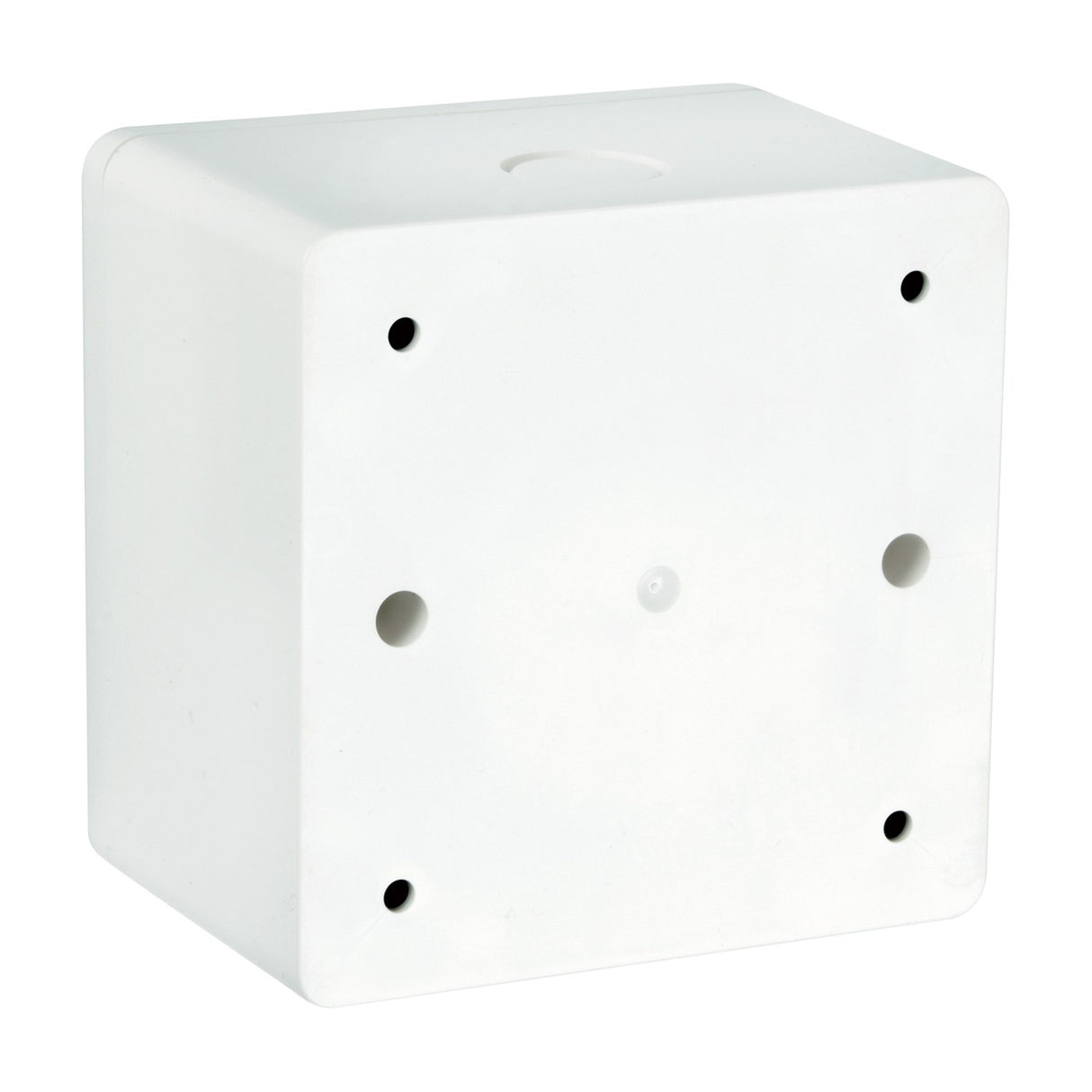

The Adastra V12-VR is a 100V line volume control (or attenuator) built for commercial and multi-room audio setups. It handles up to 12W and adjusts level across 10 steps, made up of eight 3dB steps and two 6dB steps, so you can set the right volume for each zone. The unit comes complete with a plastic surface mount back box, an ABS faceplate and a matching plastic knob, giving you everything needed to fit it in one go.

What sets this model apart is the built-in 24V relay. When triggered from a fire alarm panel, the relay bypasses the attenuator and returns the speakers to full volume. This means announcements and alarm signals are heard clearly regardless of where the control was set, which is a common requirement for public address and emergency systems in commercial buildings. The relay runs at 24V, 50mA.

The frequency response covers 35Hz to 20kHz, so it works well across the audio range used in background music and paging. Assembled dimensions are 85 x 85 x 75mm including the back box, with a mounting depth of 47mm, making it straightforward to plan around when wiring a 100V line system. It suits pubs, shops, offices, hotels and any site where you want local level control alongside a fire alarm override.

Specification
Attenuation 3dB per graduation
Frequency response 35Hz - 20kHz
Relay 24V, 50mA
Dimensions (assembled) 85mm x 85mm x 75mm (inc. back bo x )
Mounting depth 47mm
Downloads

Product Manual

Frequently Asked

What does the 24V relay do?

The relay bypasses the attenuator and sets the speakers to full volume when triggered from a fire alarm panel. This makes sure alarm signals and announcements are heard even if the volume was turned down.

How many attenuation steps does it have?

It offers 10 steps in total: eight 3dB steps and two 6dB steps, giving you a wide range of level adjustment for each zone.

What power rating does the V12-VR handle?

It is rated for up to 12W on a 100V line audio system.

Does it come with a back box?

Yes. It is supplied complete with a plastic surface mount back box, an ABS faceplate and a matching plastic knob.

What are the assembled dimensions?

The assembled unit measures 85 x 85 x 75mm including the back box, with a mounting depth of 47mm.

What is the frequency response?

The frequency response runs from 35Hz to 20kHz.
