Adastra UX120 Compact 100V Mixer-Amplifier 120W

£25999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

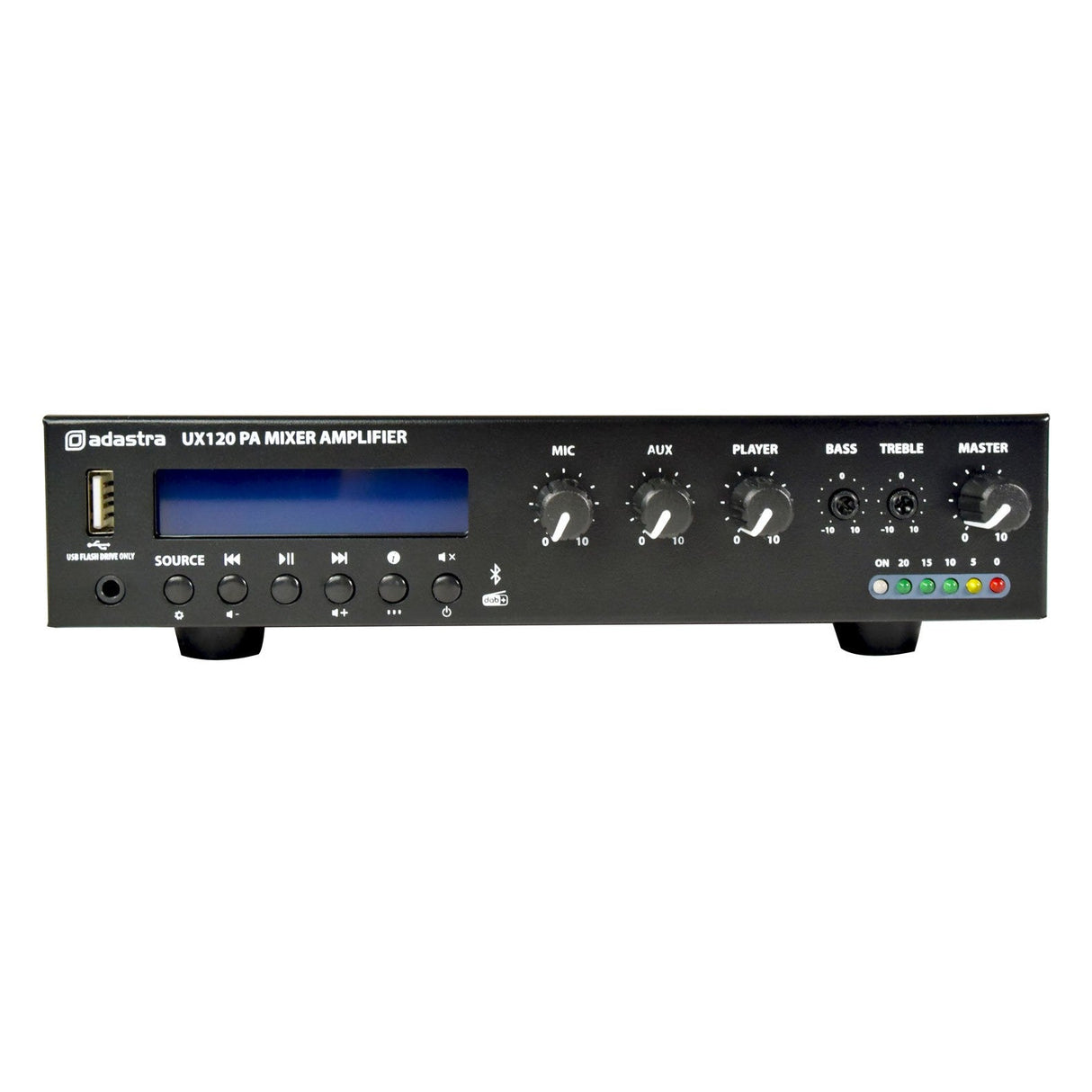

The Adastra UX120 is a compact 100V mixer-amplifier with a built-in media player, giving you a single unit that handles both source and amplification for public address work. Music playback comes from the internal player, with selectable sources including USB MP3, a DAB+ or FM radio tuner, Bluetooth 5.0, or a front-mounted 3.5mm Aux input. There is also an Aux line input with its own volume control on the front panel, so you can balance background music against announcements.

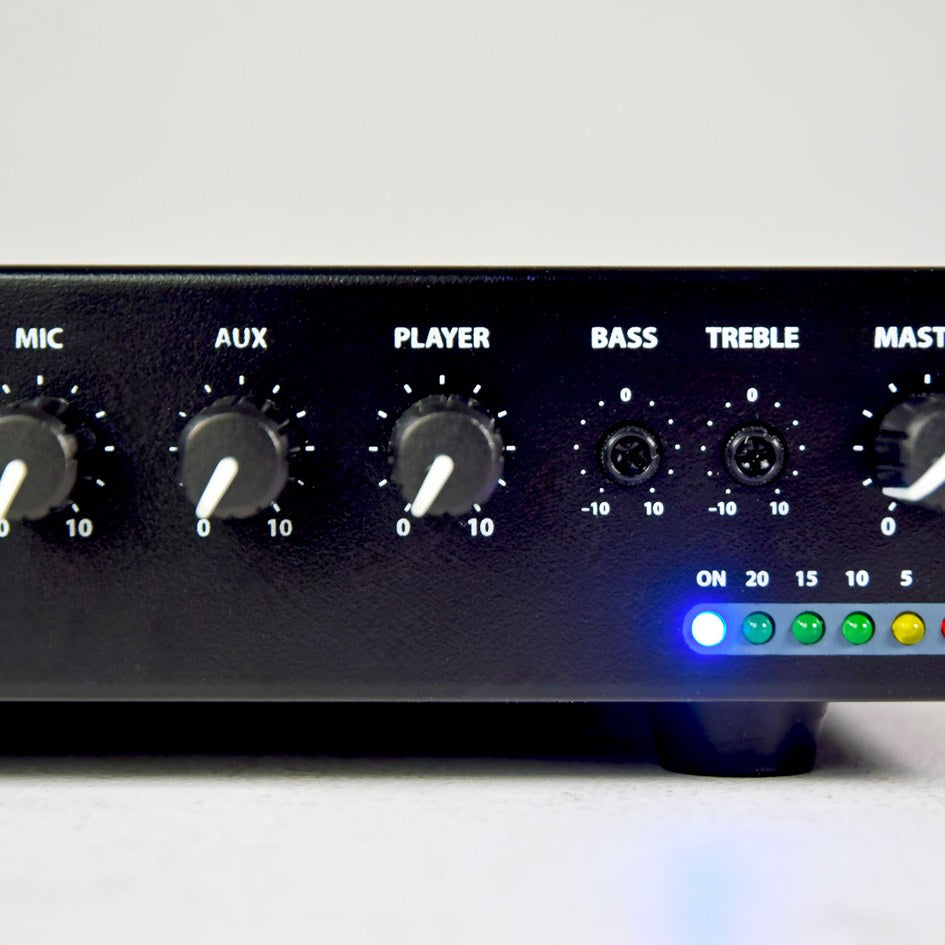

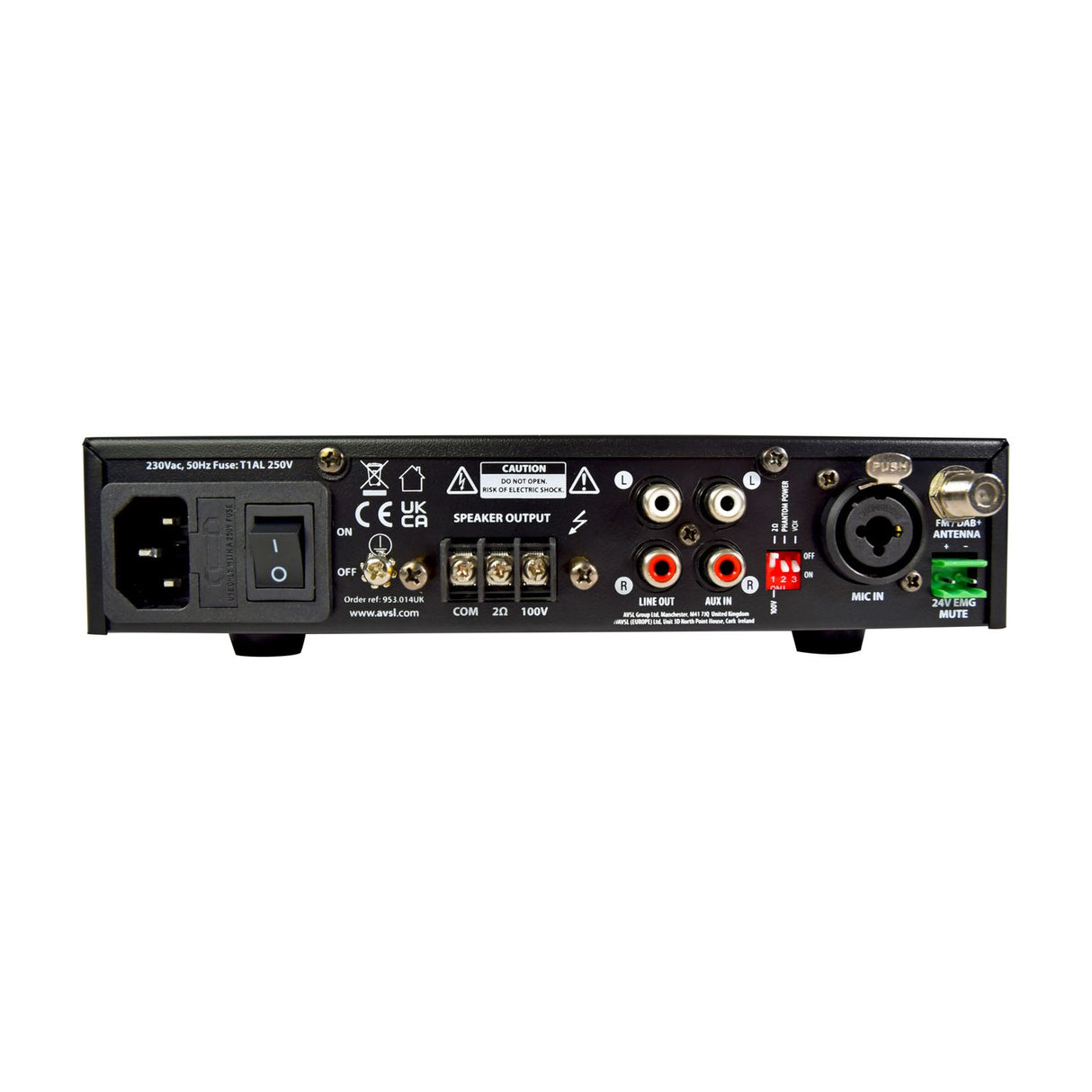

A combination jack/XLR microphone input includes switchable phantom power and an optional Vox priority function, which ducks the music when someone speaks into the mic. The amplifier produces a 120W output to either 100V line or low impedance speaker loads down to 2 ohms, switchable via a DIP switch and connected on screw terminals. Level is set with a Master volume control, and tone is handled by mini Bass and Treble rotary controls. The rear panel carries connections for a DAB+ or FM antenna (aerial in the UK) and 24V mute contacts for triggering from a fire panel or emergency evacuation system.

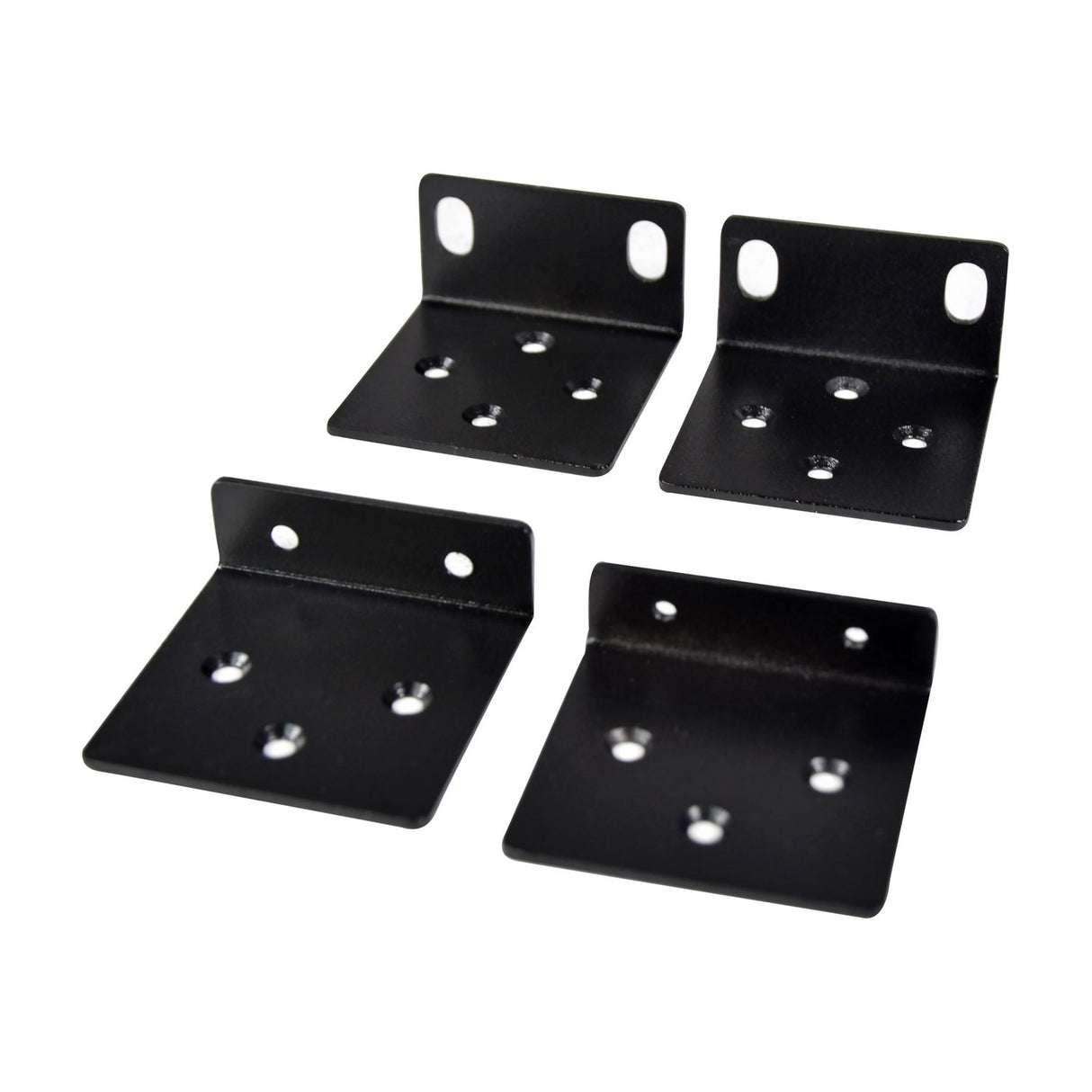

Each amplifier comes with brackets that let you mount two units side by side in a 1U 19" rack, or flat-mount a single unit against a wall or under a counter. The Class D design with transformer output keeps the control footprint small while still delivering the power needed for medium-sized areas. It works well on its own or paired with further amplifiers as part of a wider sound system, making it a practical starting point for a straightforward PA installation.

Specification
Power supply 170-264Vac, 50Hz (IEC)
Amplifier : construction Class D + transformer output
Audio source Internal USB/DAB+/FM/BT player
Inputs 1 x Mic (jack/XLR), 1 x Line (2 x RCA), 1 x Aux (3.5mm)
Line output 2 x RCA (mono)
Speaker outputs Screw terminals - 100V / 2 Ohms / Com
Mute 24V relay contacts
Input impedance 1k Ohms (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
Bluetooth version 5.0
Downloads

Product Manual

Frequently Asked

Can the UX120 drive both 100V line and low impedance speakers?

Yes. A DIP switch selects between 100V line operation and low impedance loads down to 2 ohms, with speakers connected on screw terminals.

What music sources are built in?

The internal media player offers USB MP3 playback, a DAB+ or FM radio tuner, Bluetooth 5.0, and a front-mounted 3.5mm Aux input, plus a separate Aux line input on RCA.

Does it support microphone announcements over music?

Yes. The combination jack/XLR mic input has switchable phantom power and an optional Vox priority function that lowers the music when the mic is used.

How is it mounted?

It is half-width 1U. Supplied brackets let you fit two units side by side in a 19" rack, or flat-mount a single unit on a wall or under a counter.

Can it connect to a fire alarm system?

Yes. The rear panel has 24V mute relay contacts for triggering from a fire panel or emergency evacuation system.
