Adastra UM30 Ultra Compact 100V Mixer-Amplifier

£16999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

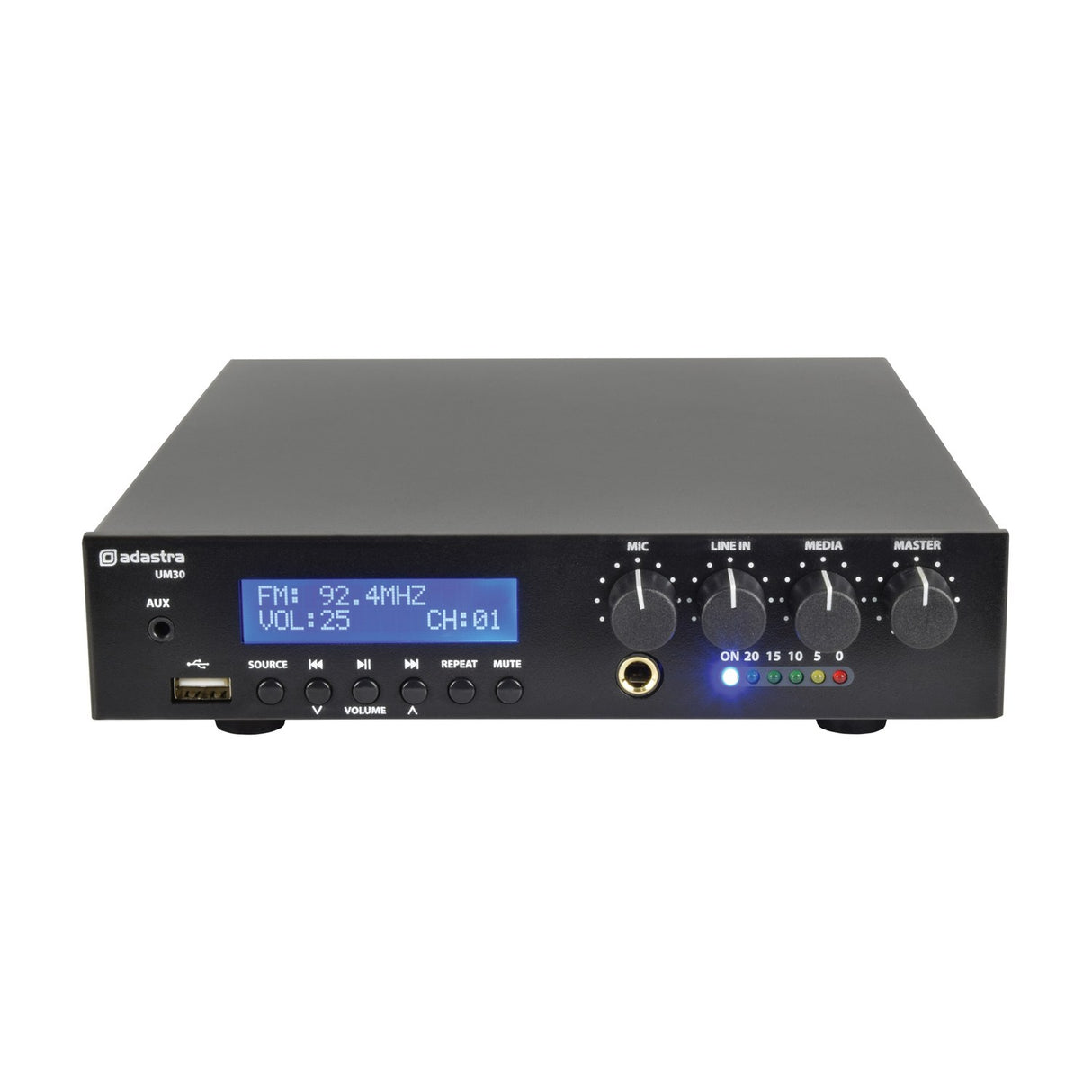

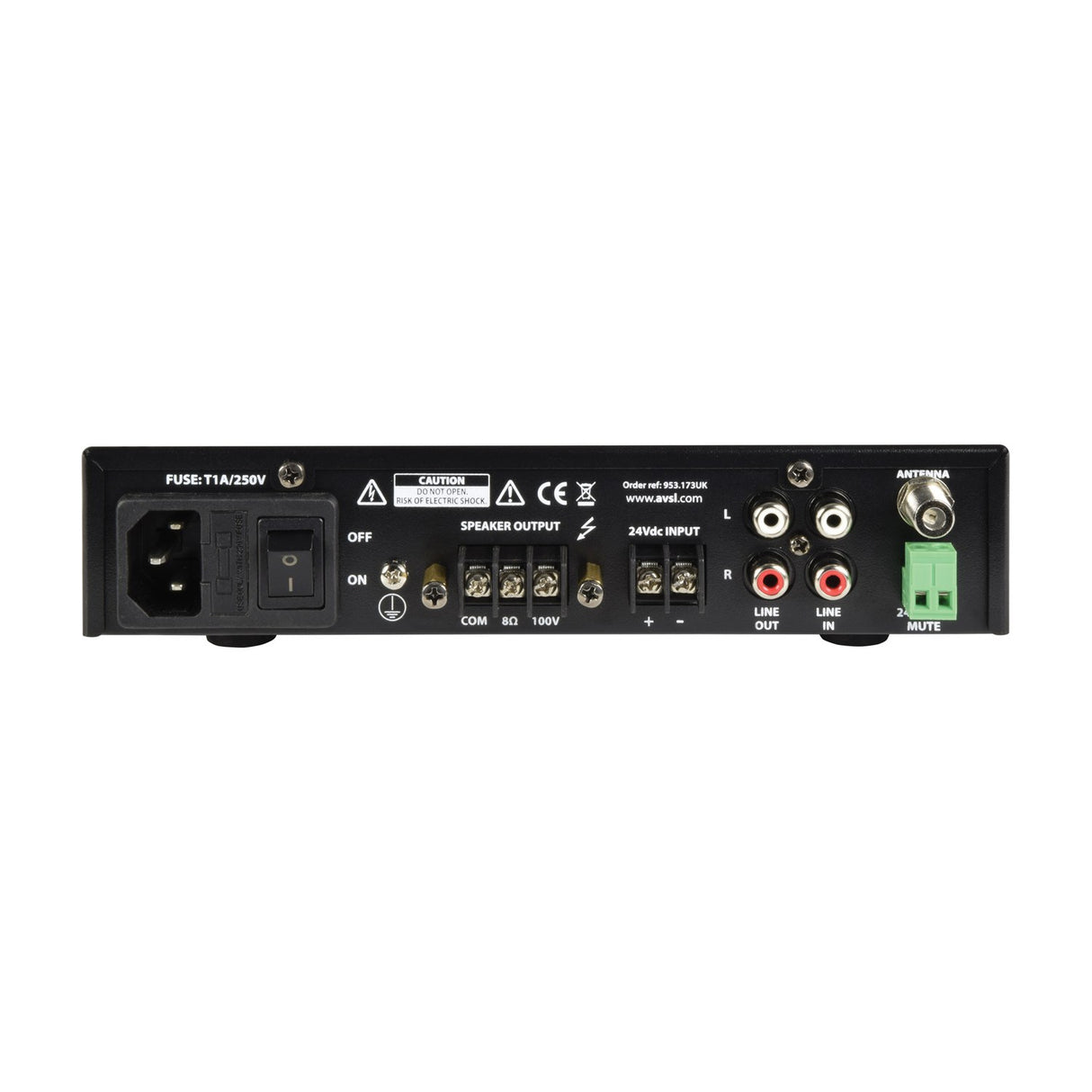

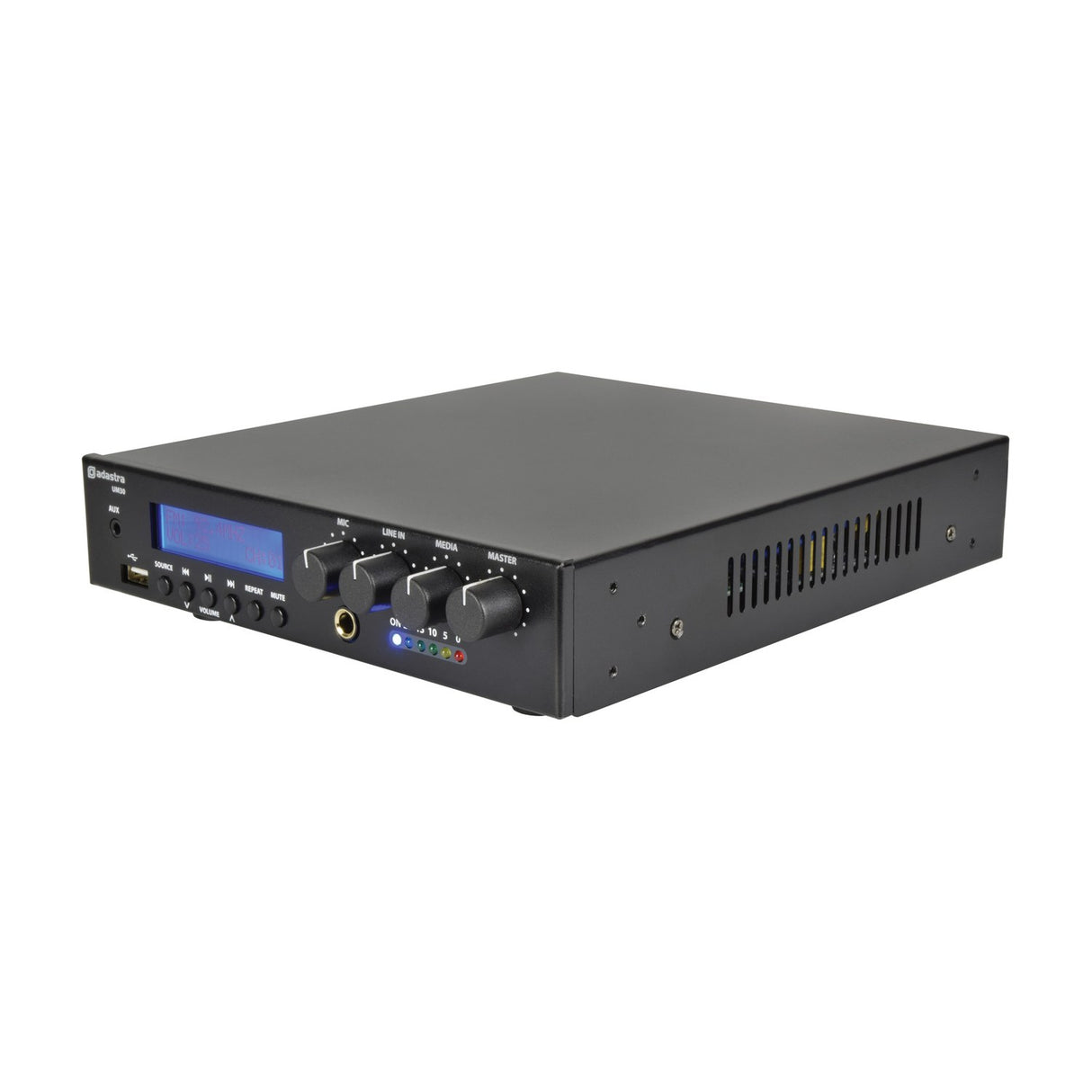

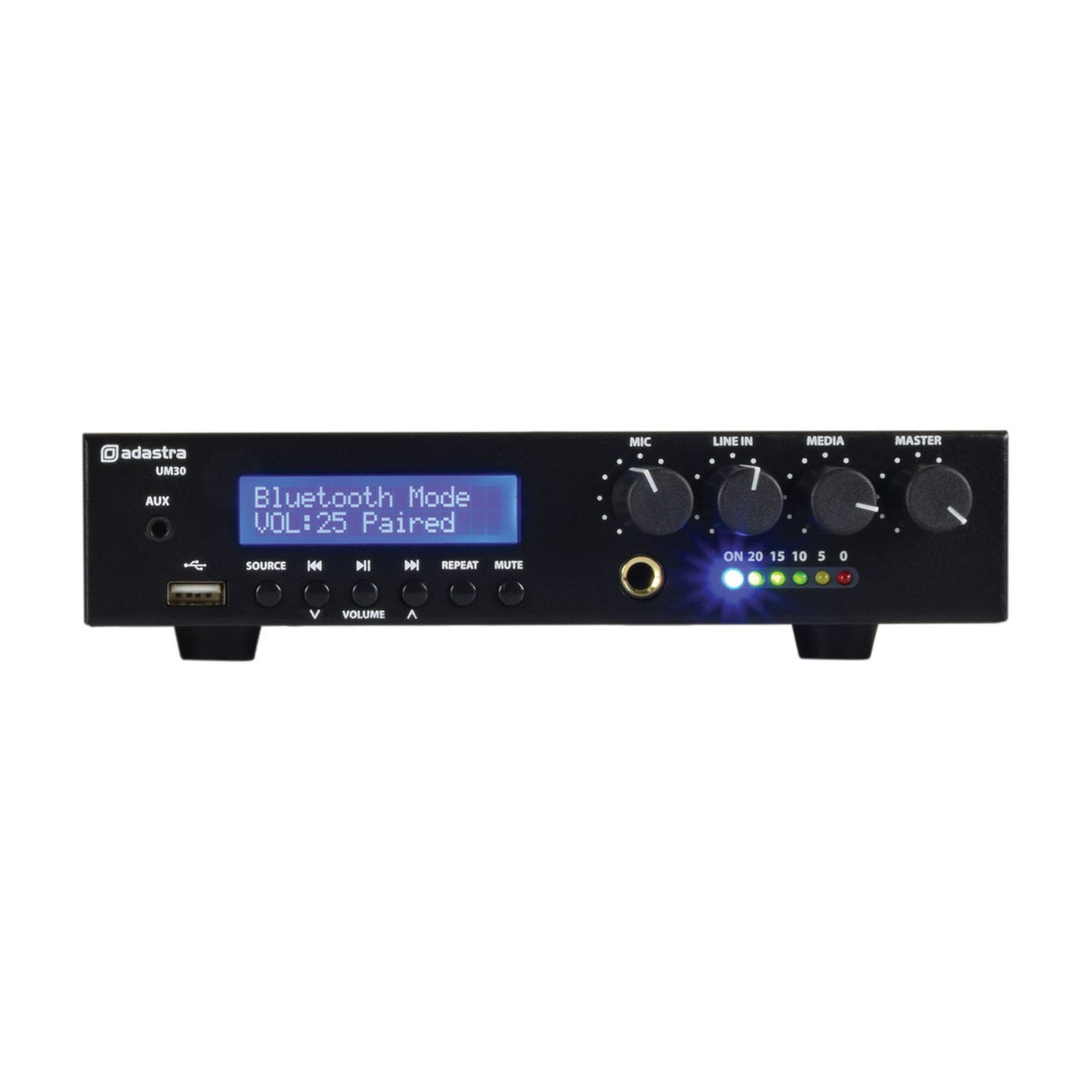

The Adastra UM30 is an ultra compact 100V mixer-amplifier built for small to medium PA installations. It pairs a class D amplifier with a transformer output stage, so you can drive either a 100V line or an 8 Ohm speaker load. Connections are made through screw terminals on the rear panel, and the mono output keeps wiring straightforward for background music and paging jobs.

Audio sources are covered by an internal USB/FM/BT player, giving you a USB input, an FM tuner and a Bluetooth 5.0 wireless receiver in one unit. Bluetooth comes with a programmable ID, which helps when you have more than one amp in the same building and want to keep pairing tidy. On the input side there is a microphone input on 6.3mm jack, a line input on twin RCA (phono) and a 3.5mm aux input. Each section has its own front panel volume control, with a master volume over the top, so setting levels for a room is quick.

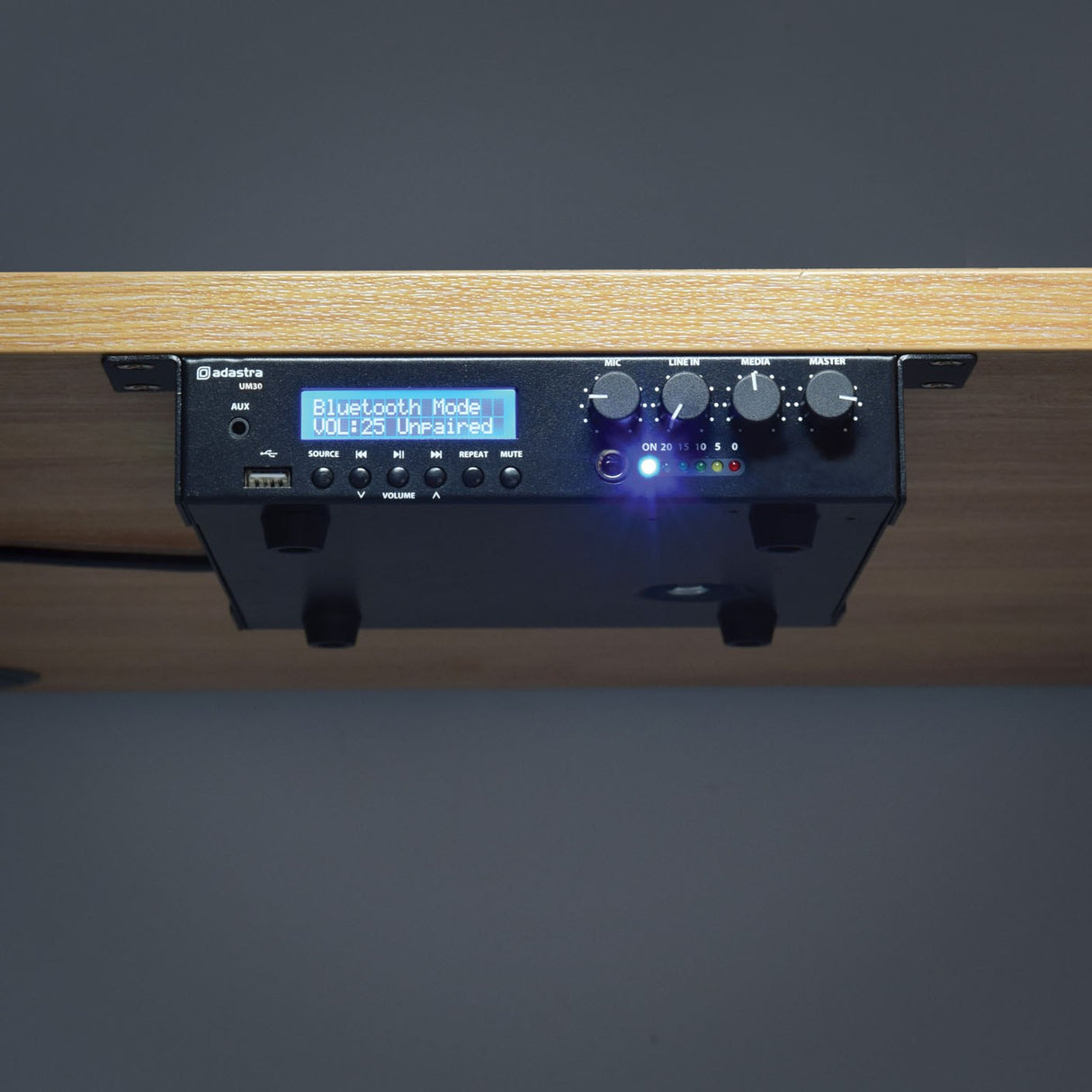

Housed in a small chassis, the UM30 ships with hardware for mounting two units side by side in a 1U 19 inch rack space. It runs from 170-264Vac mains via IEC or from 24Vdc through screw terminals, with 24V relay contacts for mute. THD sits below 0.4% at 1kHz and frequency response runs from 100Hz to 18kHz. Line output is provided on twin RCA (mono) for feeding another amplifier or a recorder. For shops, offices and similar spaces it offers a lot in a small footprint.

Specification
Weight 2.35KG
Dimensions 249mm x 210mm x 44mm
Output power : rms 30W
Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
Amplifier : construction Class D + transformer output
Audio source Internal USB/FM/BT player
Bluetooth version 5.0
Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Line output 2 x RCA (mono)
Speaker outputs Screw terminals - 100V / 8 Ohm / Com
DC power 24Vdc screw terminals
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohm (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Downloads

Product Manual

Frequently Asked

Can the UM30 drive both 100V and low impedance speakers?

Yes. The rear screw terminals give you a 100V line output and an 8 Ohm output, so you can use it with either 100V line speakers or a standard low impedance speaker load.

What audio sources are built in?

There is an internal player covering USB, FM radio and Bluetooth 5.0. Each is fed through the front panel volume controls alongside the mic, line and aux inputs.

Can I rack mount the UM30?

Yes. It comes with hardware to mount two units side by side in a single 1U 19 inch rack space.

What inputs does it have?

One microphone input on 6.3mm jack, one line input on twin RCA (phono) and one aux input on 3.5mm.

Can it run from a DC supply?

Yes. As well as 170-264Vac mains via IEC, it accepts 24Vdc through screw terminals, with 24V relay contacts provided for mute.
