Adastra UA60 Compact 5-Channel 100V Mixer-Amplifier

£16999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

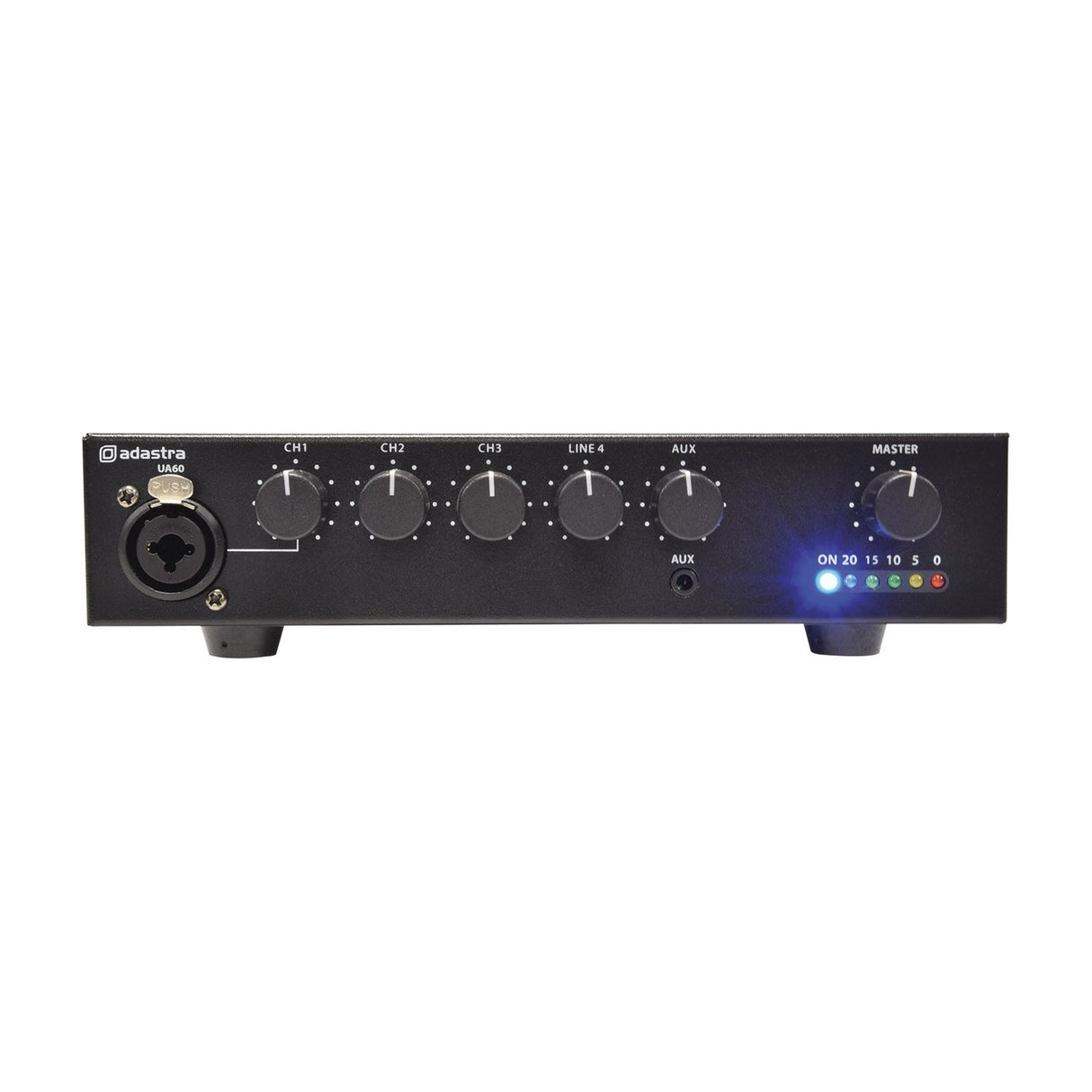

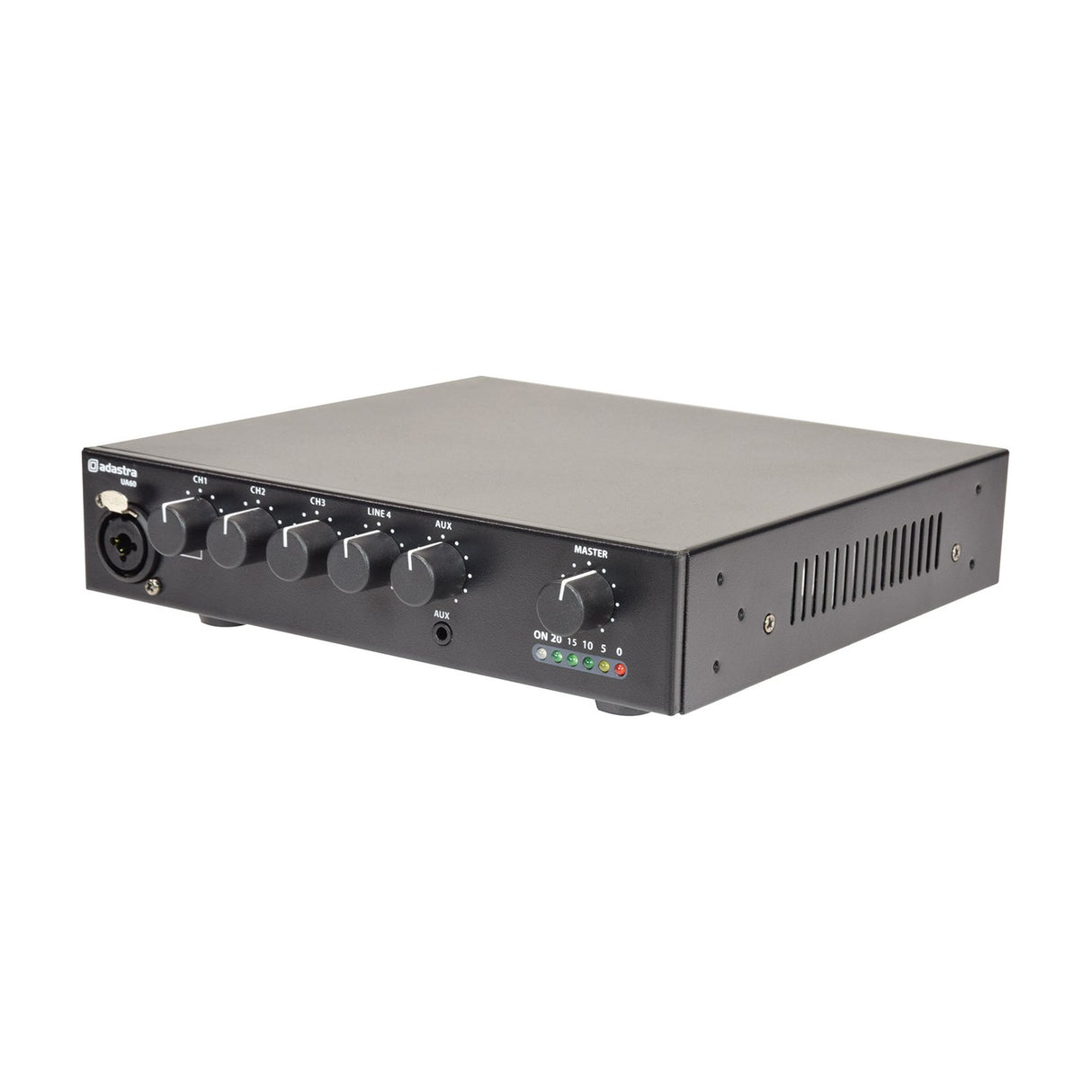

The Adastra UA60 is a compact 100V mixer-amplifier built for small to medium PA installations. It packs a 5-input mixer into a half-width 1U housing, so it fits neatly into tight spaces. Three switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are each handled by front panel volume controls, with a Master output control to set the overall level. The design keeps things simple for background music, paging and general announcement work.

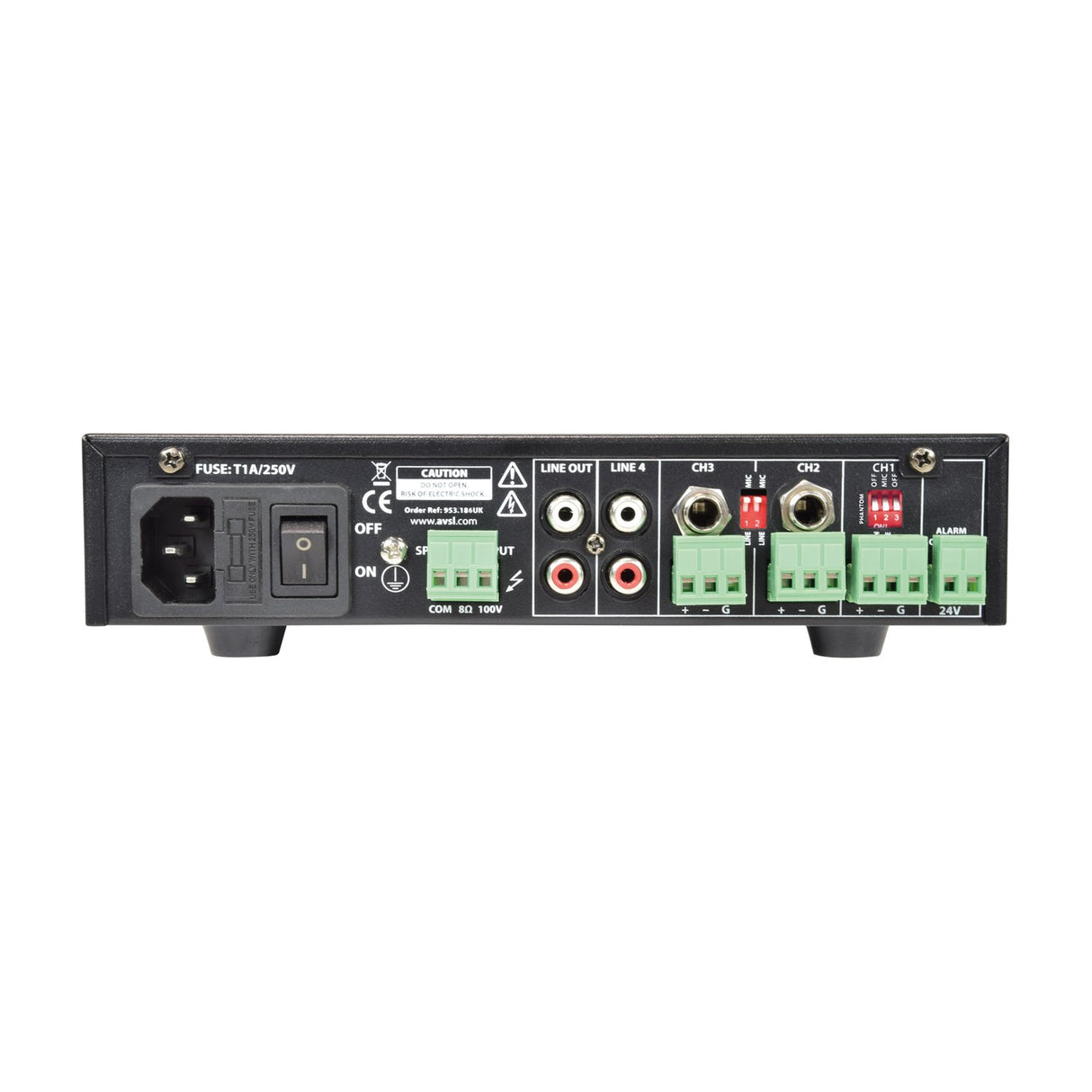

Output is mono and runs to either a 100V line or an 8 ohm speaker load, connected via a removable screw terminal (Euroblock) connector on the rear panel. This gives you the flexibility to drive long cable runs across a building on 100V line, or connect low impedance speakers where that suits the job better. Channel 1 has switchable +20V phantom power for condenser microphones, available on both the XLR and the rear terminals. Amplifier construction is Class D with a transformer output, and there are 24V relay contacts for fire alarm mute.

The UA60 is supplied with rack-mounting hardware that can be configured to mount a single unit against a wall or under a worktop, so you are not limited to a standard rack. The same hardware also lets you mount two units side by side across a full 1U rack space. Technical figures include THD below 0.4% at 1kHz, a frequency response of 100Hz to 18kHz, and a signal to noise ratio of 80dB on line and 75dB on mic. Input sensitivity is -10dB on line and -45dB on mic, with a 1k ohm mic/line input impedance.

Specification
Output power : rms 60W
Weight 2.47KG
Dimensions 269mm x 210mm x 44mm
Power supply 170-264Vac, 50Hz (IEC)
Amplifier : construction Class D + transformer output
Inputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
Phantom power +20V CH1 (XLR or rear terminals)
Line output 2 x RCA (mono)
Speaker output Euroblock terminals: 100V / 8 Ohm or 2 Ohm / Com
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohm (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Downloads

Product Manual

Frequently Asked

Can the UA60 drive both 100V line and low impedance speakers?

Yes. The mono output connects via a removable screw terminal on the rear and works with either a 100V line system or an 8 ohm low impedance speaker load, so you can choose whichever suits the installation.

How many inputs does it have?

Five input channels: three switchable mic/line inputs, one RCA line input and one 3.5mm Aux input. Each has its own front panel volume control, plus a Master output control.

Does it support phantom power for condenser microphones?

Channel 1 has switchable +20V phantom power, available on both the XLR input and the rear terminals, so you can use a condenser mic where needed.

Can I rack-mount the UA60?

Yes. It comes with rack-mounting hardware that can be set up to mount a single unit against a wall or under a worktop, or to fit two units side by side in a 1U rack space.

Is there a fire alarm mute function?

Yes. The UA60 has 24V relay mute contacts, so it can be tied into a fire alarm system to mute audio when triggered.

What is the frequency response and distortion figure?

The frequency response runs from 100Hz to 18kHz, with total harmonic distortion below 0.4% at 1kHz.
