Adastra RX45 Multi-Zone Audio Matrix Unit

£49999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

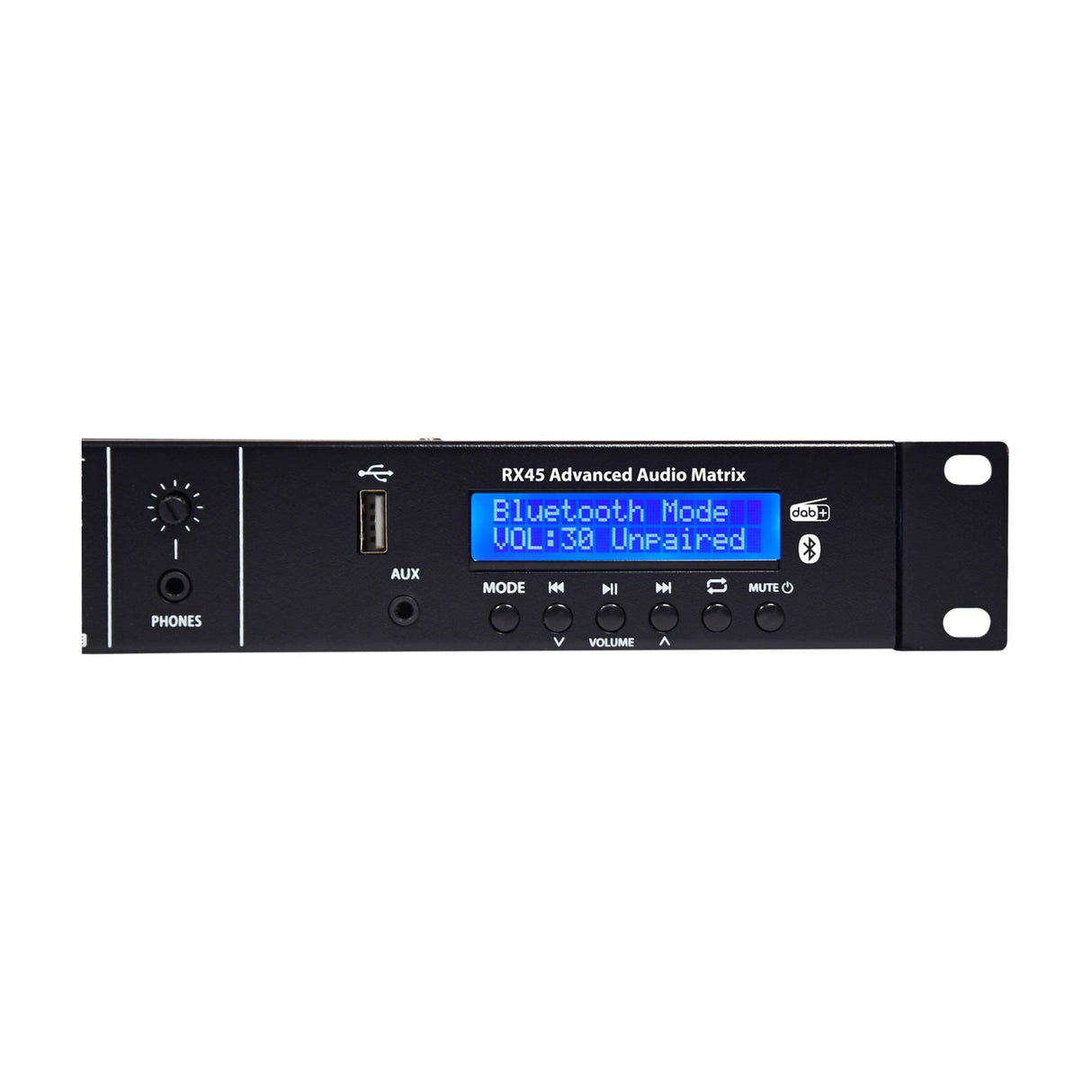

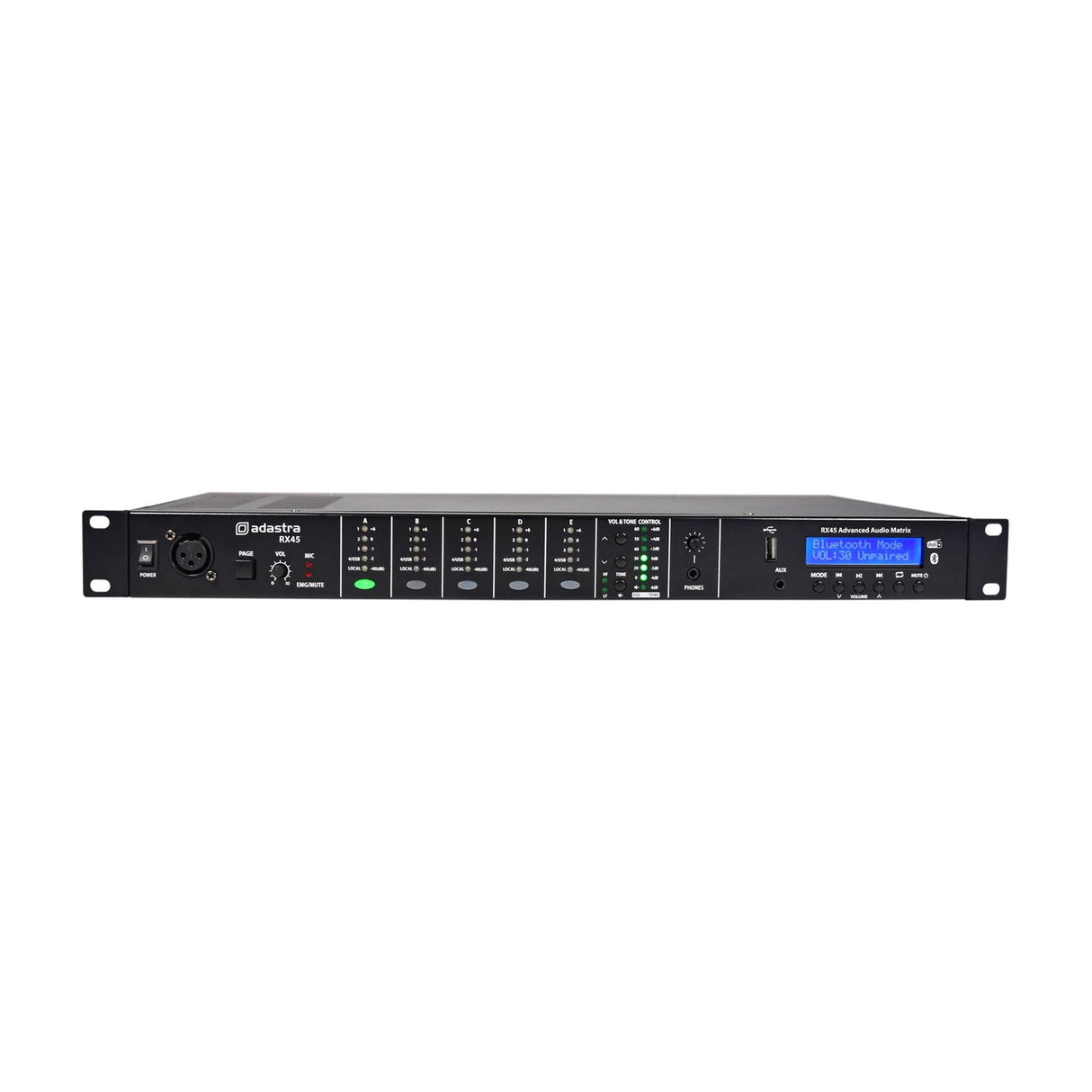

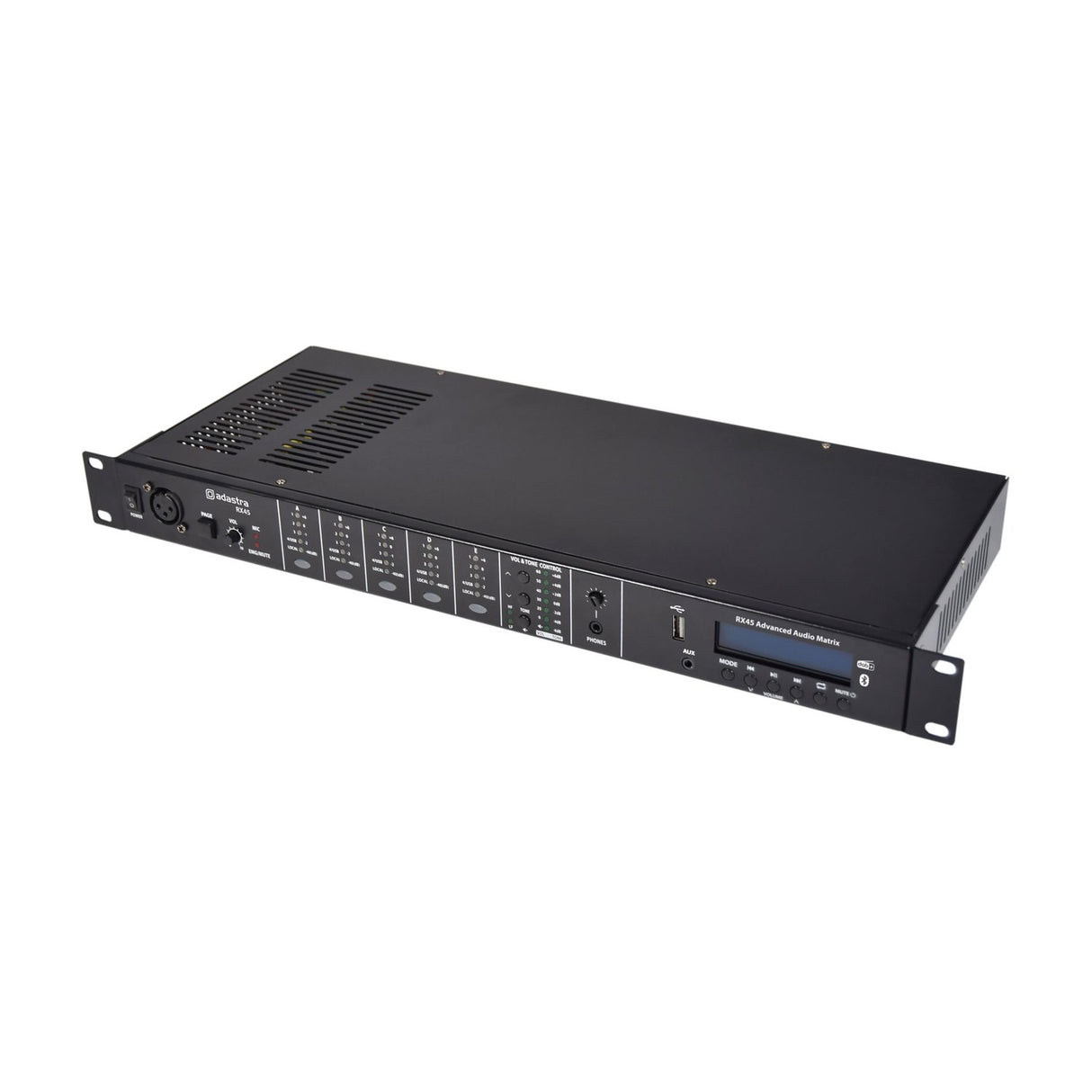

The Adastra RX45 is a 1U rack-mountable audio matrix that feeds 4 selectable inputs to 5 stereo outputs. It includes an inbuilt audio player with playback from USB media, a DAB+ tuner or Bluetooth 5.0, so you can run background music without a separate source unit. Each zone output has its own push button and LED ladder on the front panel, letting you pick the input source and adjust level and tone from the master section. A stereo 3.5mm headphone jack lets you monitor the selected zone directly.

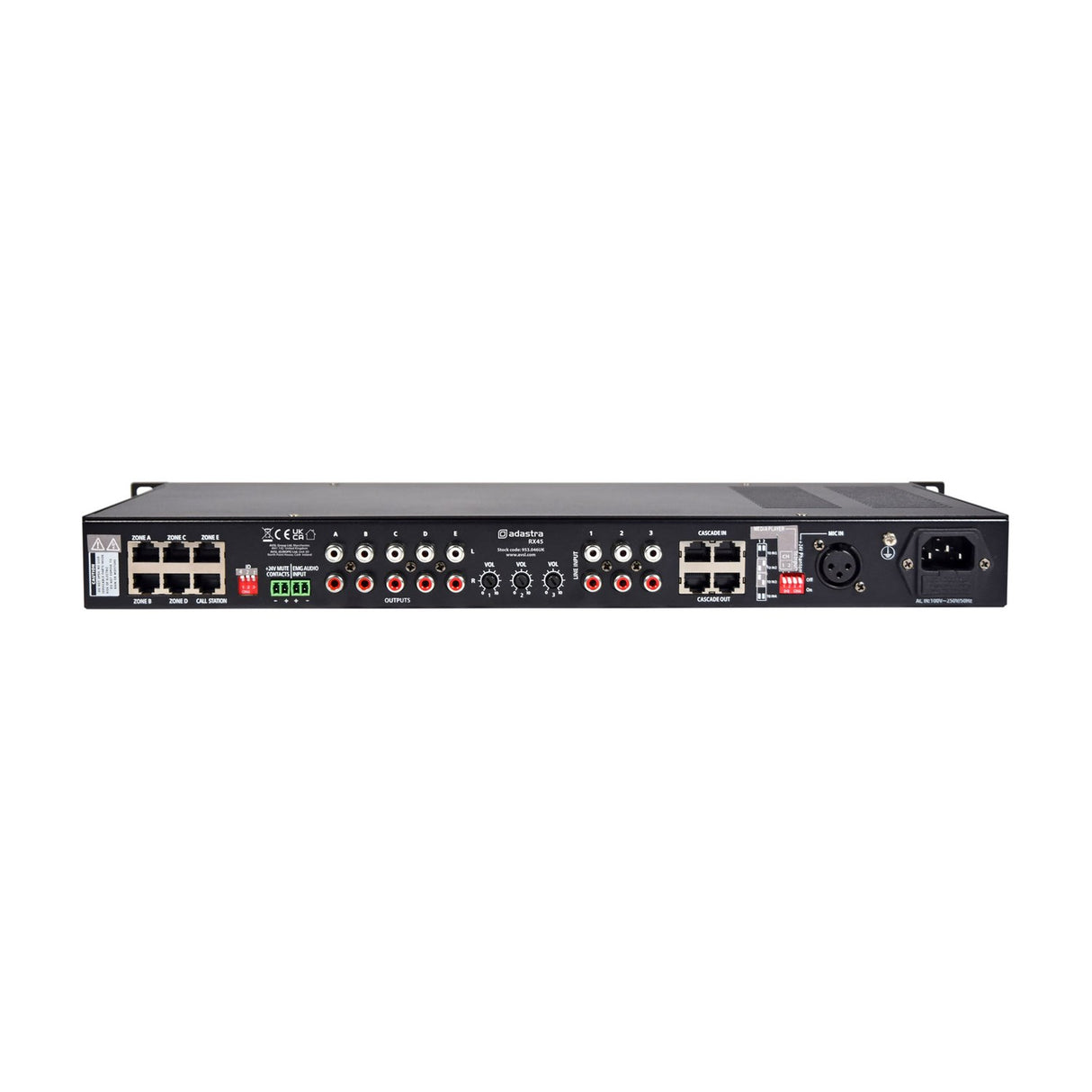

For remote operation, connect optional TR86 wall plates over standard CAT5 cable and control source and level for any zone from the wall. A local audio connection is also available at each TR86 plate. On the input side you get a paging microphone on XLR with switchable +24V phantom power, three stereo line inputs on RCA (phono), and a call station input on RJ45. Emergency handling is covered by 24V mute contacts and a dedicated emergency audio input, useful where the system needs to override during an alert.

The RX45 grows with your site. Cascade up to 8 units using dual CAT5 links, with DIP switches assigning one of 8 IDs per unit, giving up to 40 individual zones in total. Further DIP switches let you share the audio player from one unit across one or more connected slaves. Line signal to noise ratio is 73dB, THD+N is under 0.1% at 1kHz and frequency response runs 20Hz to 20kHz within ±3dB. The unit measures 44 x 190 x 483mm and weighs 2.608kg, with an IEC lead included for the 100-250Vac supply.

Specification
Power supply 100-250Vac, 50/60Hz (IEC lead included)
Fuse T1AL
Audio source USB/DAB+/Bluetooth audio player
Bluetooth version 5.0
Inputs Paging mic. (XLR), 3 x stereo line (RCA) + call station (RJ45)
Microphone : input sensitivity -41dBV
Line input : sensitivity -12.5dBV
Call station input : sensitivity +4dBV
Emergency control 24V mute contacts and emergency audio input
EMG input: sensitivity -10dBV
Signal to noise ratio : mic 65dB
Signal to noise ratio : line 73dB
Outputs 5 x stereo zones (RCA)
Output impedance : line 600 ohms
THD +N <0.1% @ 1kHz
Monitor outputs Stereo 3.5mm headphone jack (selected channel)
Phantom power +24V switchable for paging mic.
Remote control connection 8P8C (RJ45)
Link connection 2 x 8P8C (RJ45)
Frequency response : ±3dB 20Hz - 20kHz
Attenuation -30dB (paging)
Dimensions 44mm x 190mm x 483mm
Weight 2.61KG
Downloads

Product Manual

Frequently Asked

How many zones can the RX45 support?

A single RX45 provides 5 stereo zone outputs. By cascading up to 8 units over dual CAT5 links, you can reach up to 40 individual zones in one system.

What audio sources are built in?

The inbuilt player handles USB media, a DAB+ tuner and Bluetooth 5.0, alongside the paging microphone, three stereo line inputs and a call station input.

Can I control zones remotely?

Yes. Connect optional TR86 wall plates via standard CAT5 cable for remote source and level selection on any zone. A local audio connection is available at each plate too.

Does it support emergency override?

It does. The RX45 has 24V mute contacts and a dedicated emergency audio input, so the system can be muted or overridden during an alert.

How do I link multiple units together?

Use standard CAT5 cable on the dual link connections and set the DIP switches to assign each unit one of 8 IDs. Extra DIP switches share the audio player across slave units.

What are the dimensions and rack size?

The RX45 is a 1U rack-mount unit measuring 44 x 190 x 483mm and weighing 2.608kg. An IEC lead is included for the 100-250Vac supply.
