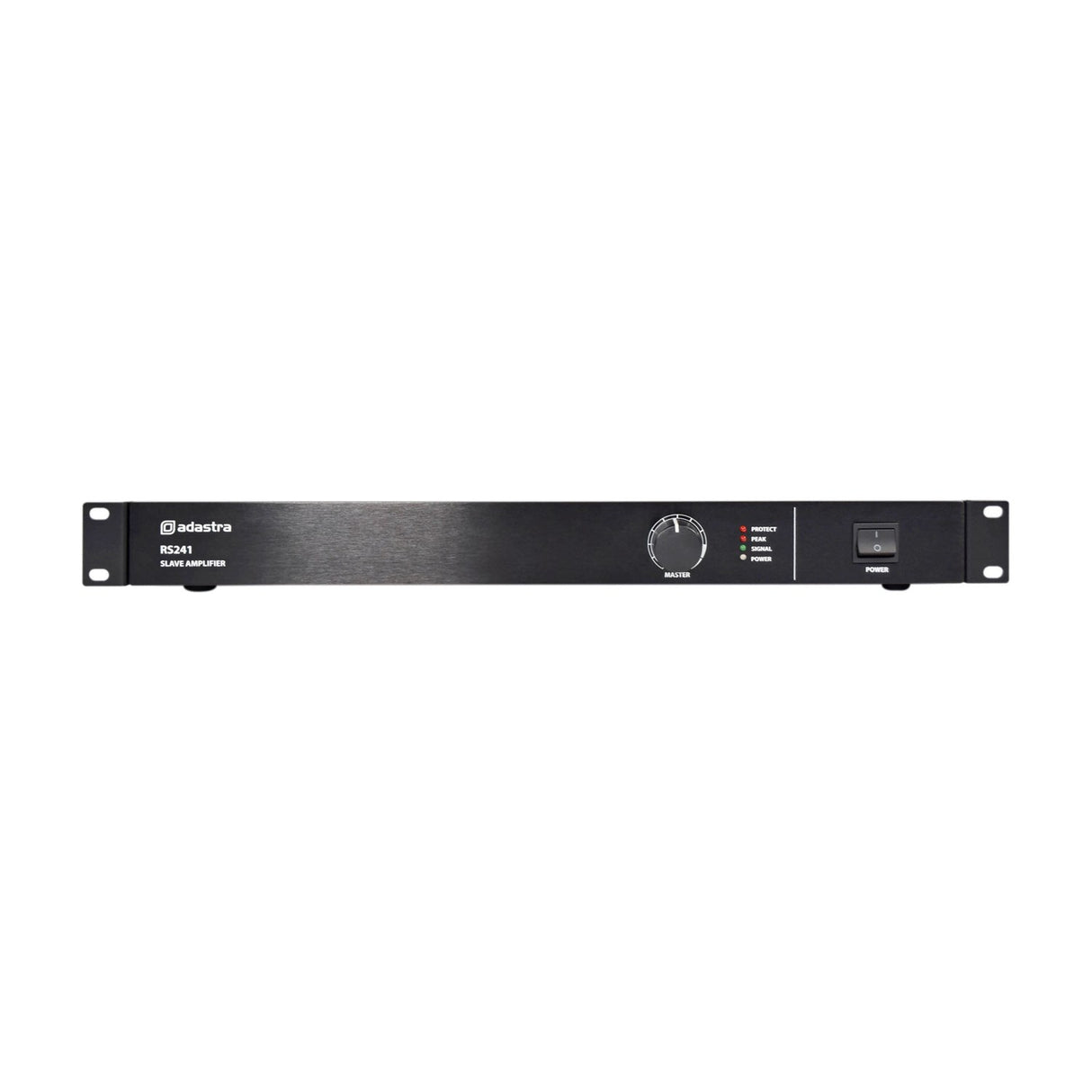

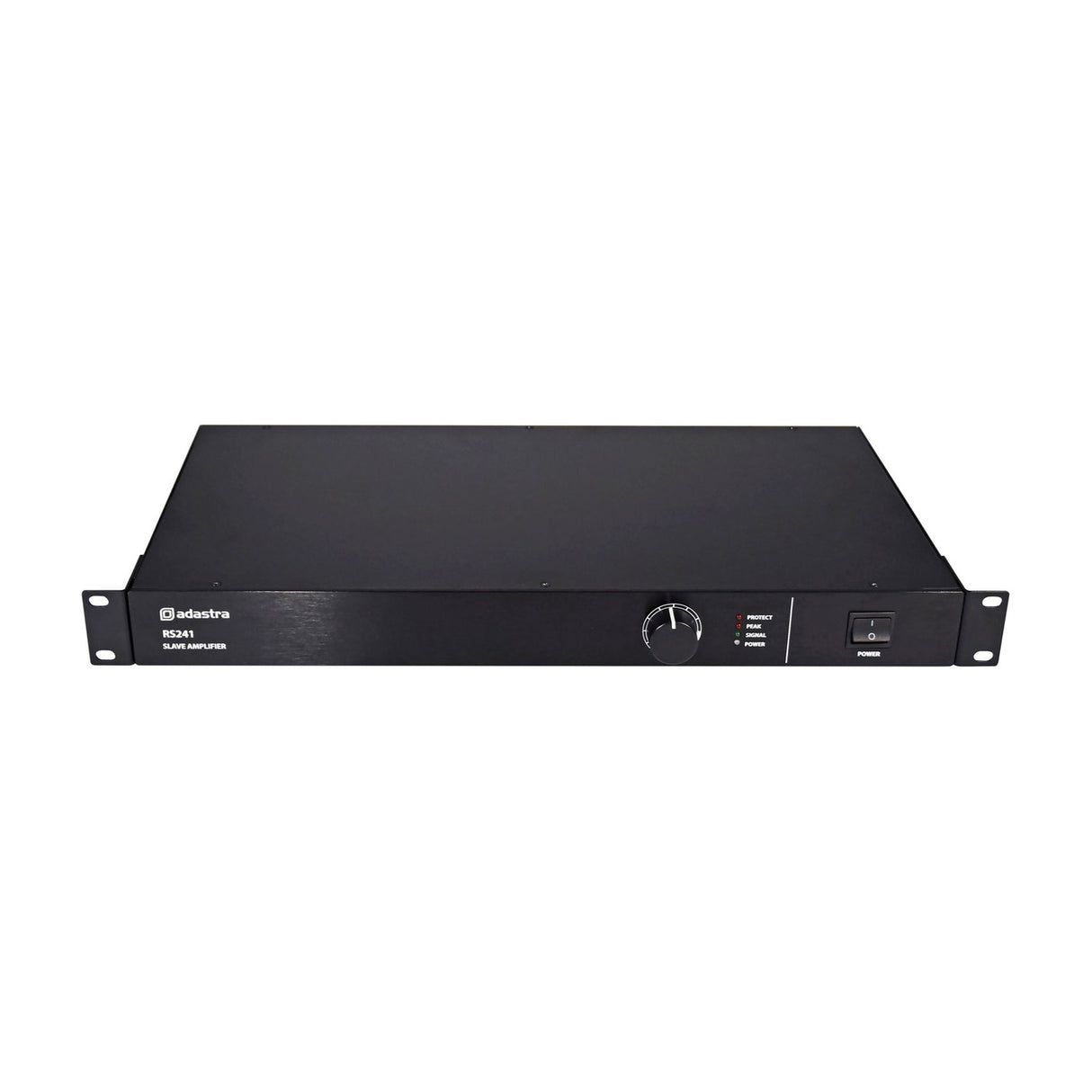

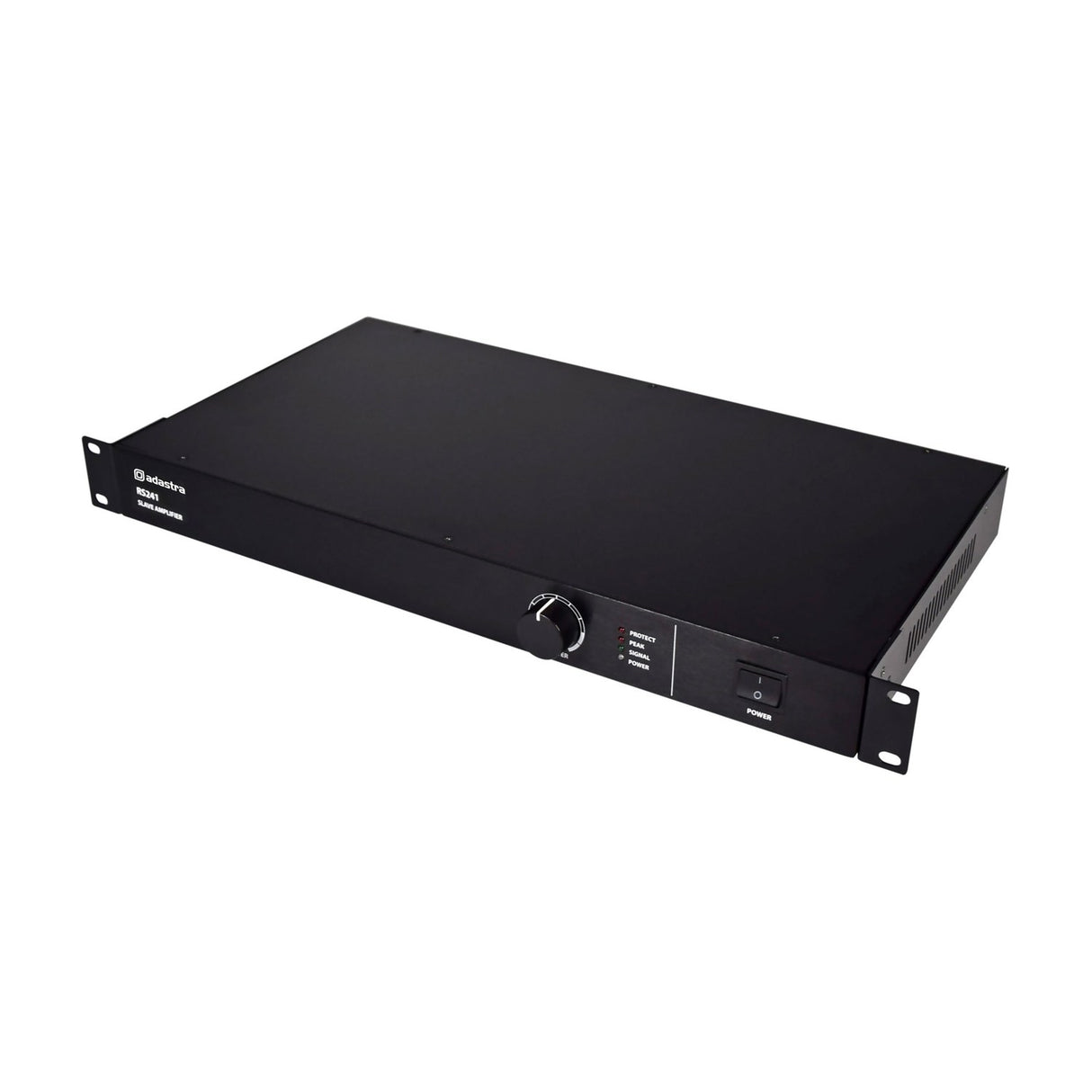

Adastra RS241 100V Line Class-D Slave Amplifier

£28999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Adastra RS241 is a 100V line slave amplifier built for medium to large installations. It sits in a 19" rack and uses a Class-D design that keeps it efficient and lightweight, so it won't add much weight or heat to your rack. Slave inputs accept standard line level audio from a mixer or an RM series mixer amplifier, and slave outputs can be cascaded onto further RS slaves when you need to build out a larger system.

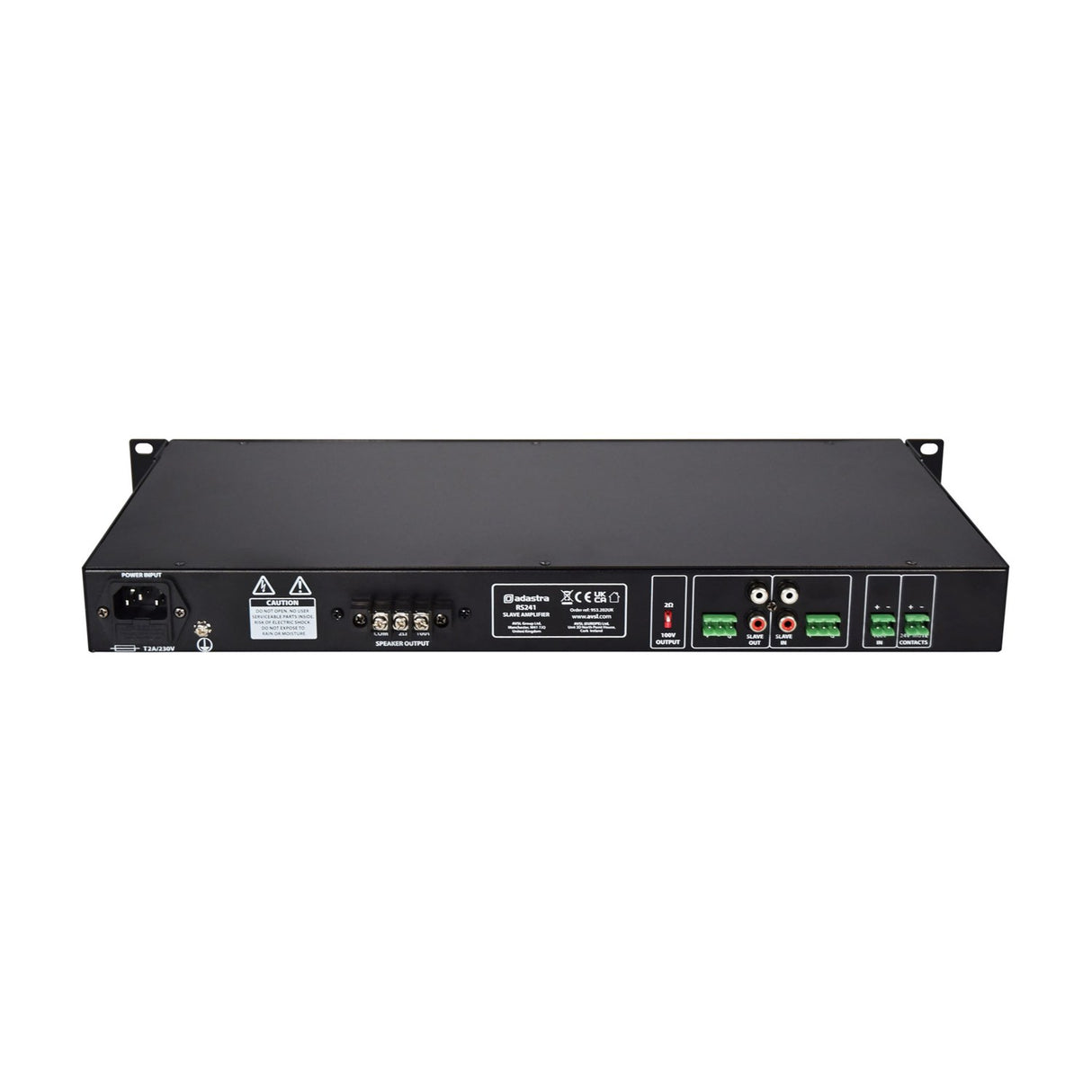

All line level inputs connect via RCA sockets (phono in the UK) or hard-wired through removable screw terminals, also called Euroblock connectors. A separate removable screw terminal handles the 100V input, which lets the RS241 extend an existing 100V installation by connecting straight to the 100V speaker feed, or picking up a long-distance 100V feed over standard double-insulated cable. There's also a 24V terminal for connection to a security or alert panel, so the output mutes when an alarm is triggered. Speaker outputs run at 100V or low impedance, switchable and stable down to 2 Ohms, which means you can connect multiple low impedance speakers if you prefer.

Power comes from a 175-264Vac 50Hz IEC supply, with a master volume control on the front and THD held below 1.0%. Frequency response is 90Hz-20kHz on the 100V setting and 17Hz-90kHz at 2 Ohms. The RS241 is one of a range of RS slave amplifiers, so you can pick the power rating that suits the job and add more units later as the system grows. It's a practical choice for powering a new install from a mixer output or for expanding a setup you already have in place.

Specification
Fuse rating T2A
Output power : rms 240W
Dimensions 433mm x 267mm x 44mm
Weight 5.80KG
Power supply 175-264Vac 50Hz (IEC)
Input signal Slave line in (RCA/screw terminal), 100V in (screw terminal)
Output : signal Slave line out (RCA/screw terminal)
Outputs : speaker 100V or 2 Ohm min. (screw terminals)
Controls Master volume
Mute 24V alarm contacts (screw terminal)
THD <1.0%
Frequency response 90Hz-20kHz (100V), 17Hz-90kHz (2Ω)
Downloads

Product Manual

Frequently Asked

What inputs does the RS241 accept?

It takes slave line level audio on RCA or screw terminals, plus a separate 100V input on a screw terminal for extending an existing 100V run.

Can I connect low impedance speakers instead of 100V?

Yes. The speaker output is switchable between 100V and low impedance, and it's stable down to 2 Ohms, so you can run multiple low impedance speakers if you prefer.

How does the alarm mute work?

A 24V terminal connects to a security or alert panel. When an alarm is triggered, the amplifier output mutes.

Can I link several RS slaves together?

Yes. Slave outputs can be cascaded onto further RS slaves, letting you build a larger system from one mixer or mixer amplifier feed.

How much rack space does it need?

The RS241 is 19" rack-mountable. The RS series runs at 1U for the 120W and 240W models and 2U for the 360W and 480W models.

What power supply does it require?

It runs on 175-264Vac 50Hz via an IEC connection.

Shipping & Returns

Delivery UK delivery is £14.99, and delivery is free on all orders of £99 or more, in the UK and internationally.

Returns If you change your mind, you have 14 days from delivery to tell us, and a further 14 days to send the goods back. Return postage for a change-of-mind return is paid by you. Change-of-mind returns are subject to an inspection and handling deduction. See our full returns policy.

To arrange a return, call us on 020 8149 5199 or use our contact page.
