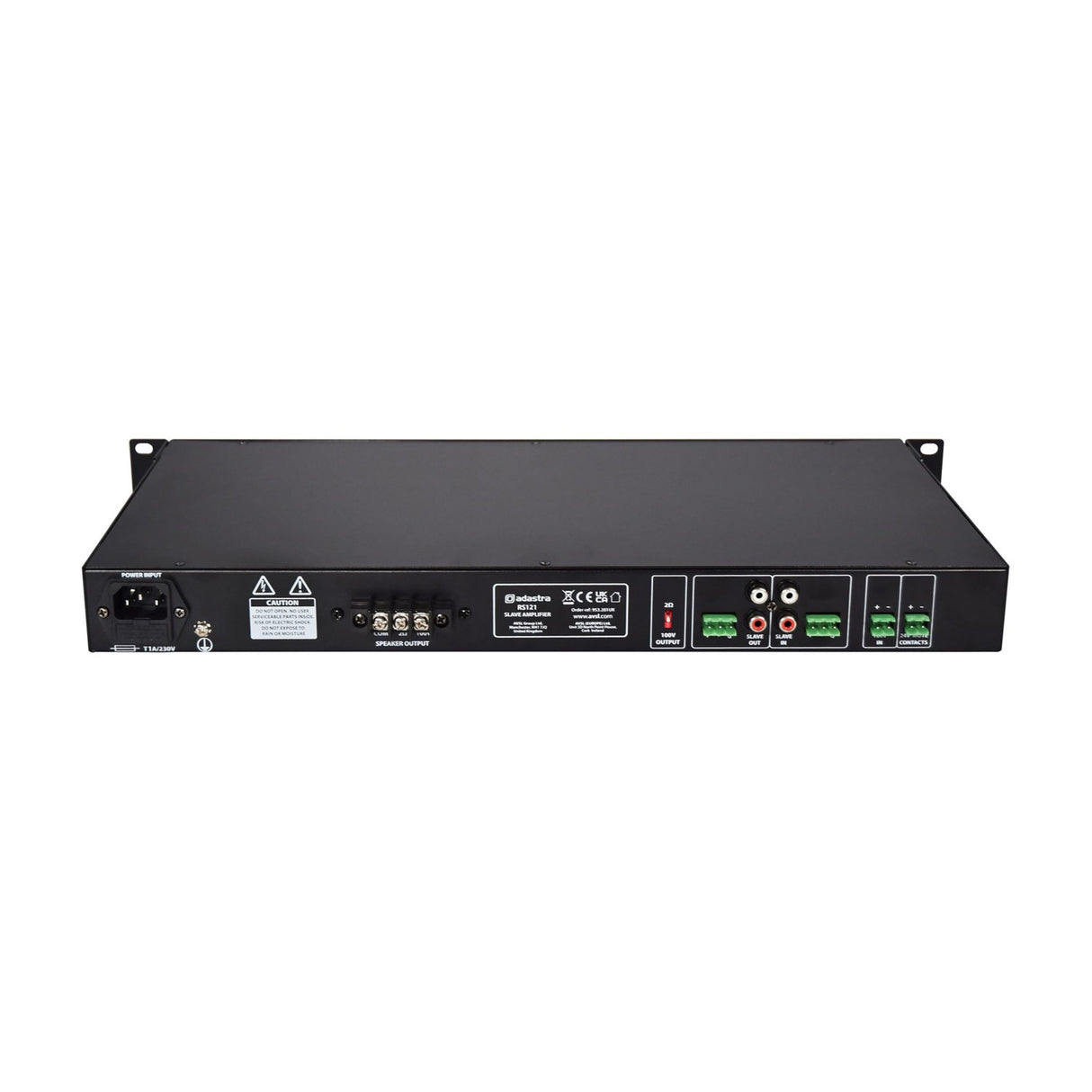

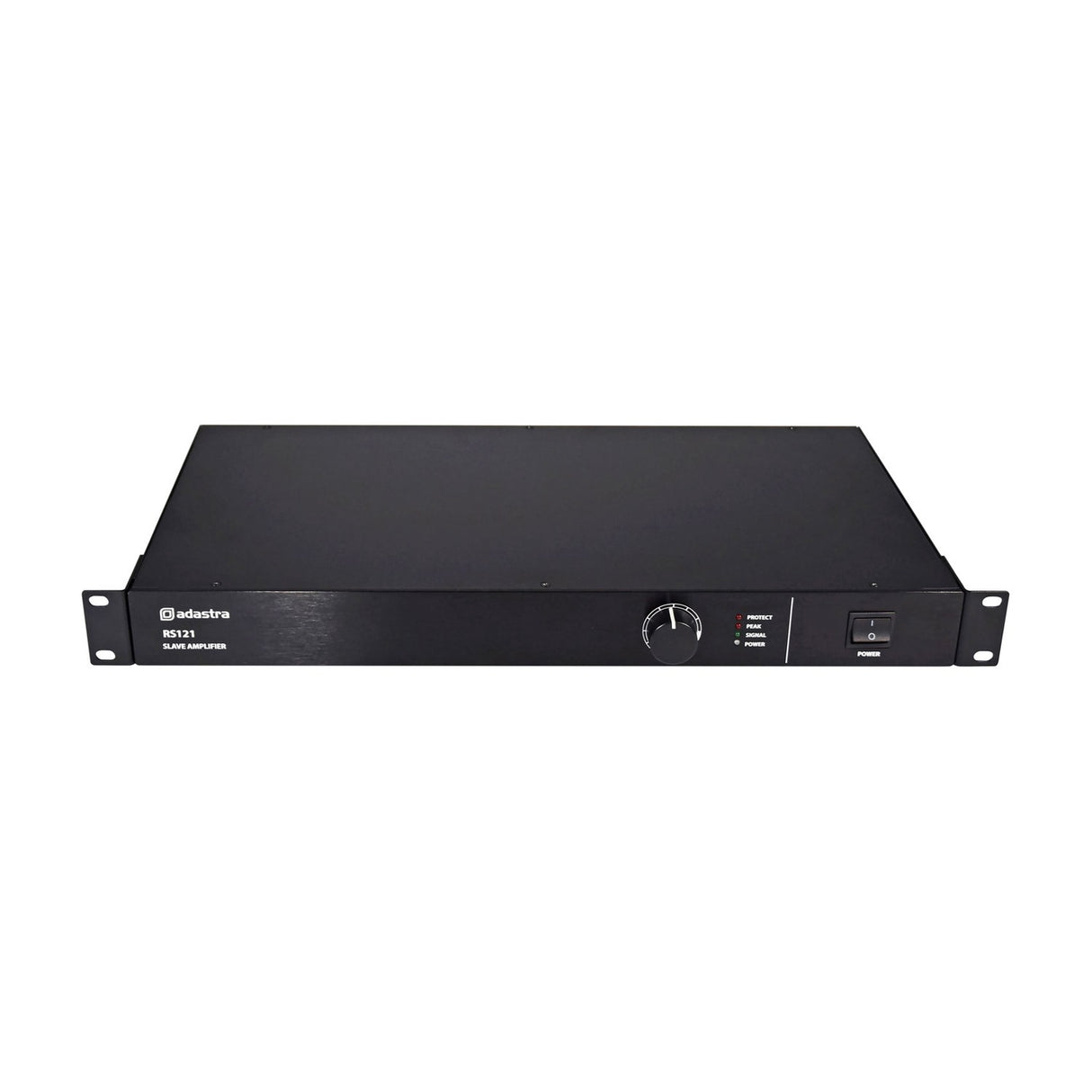

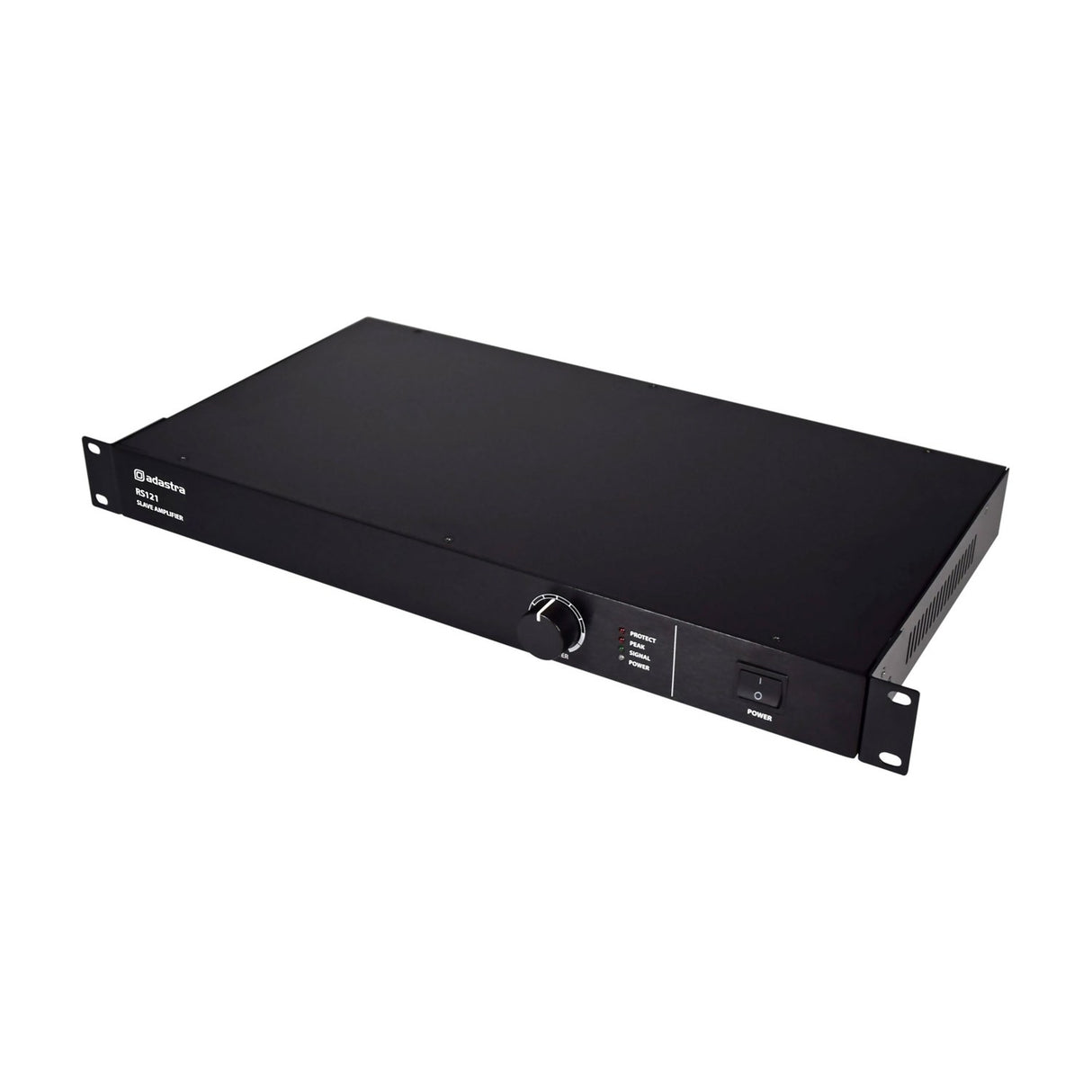

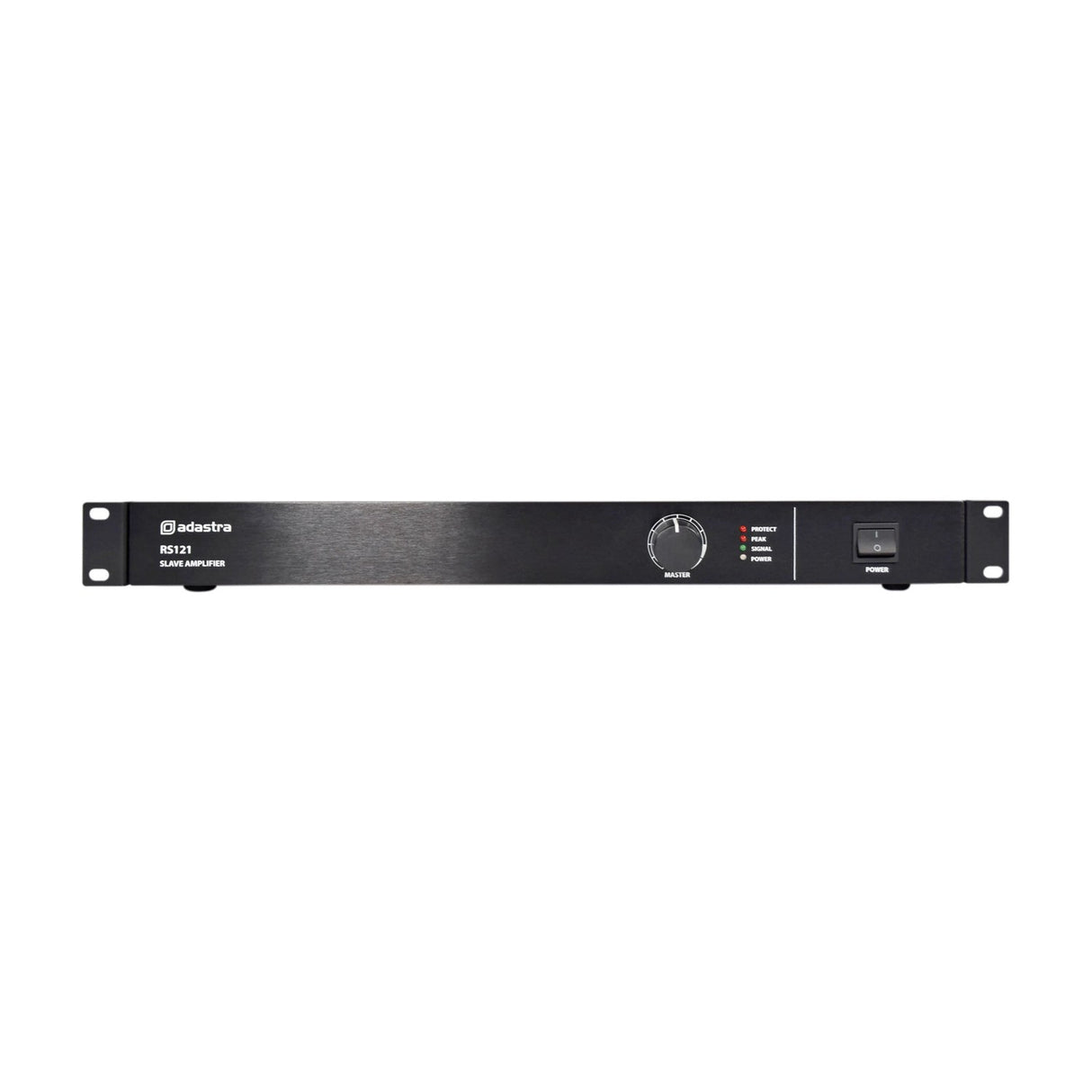

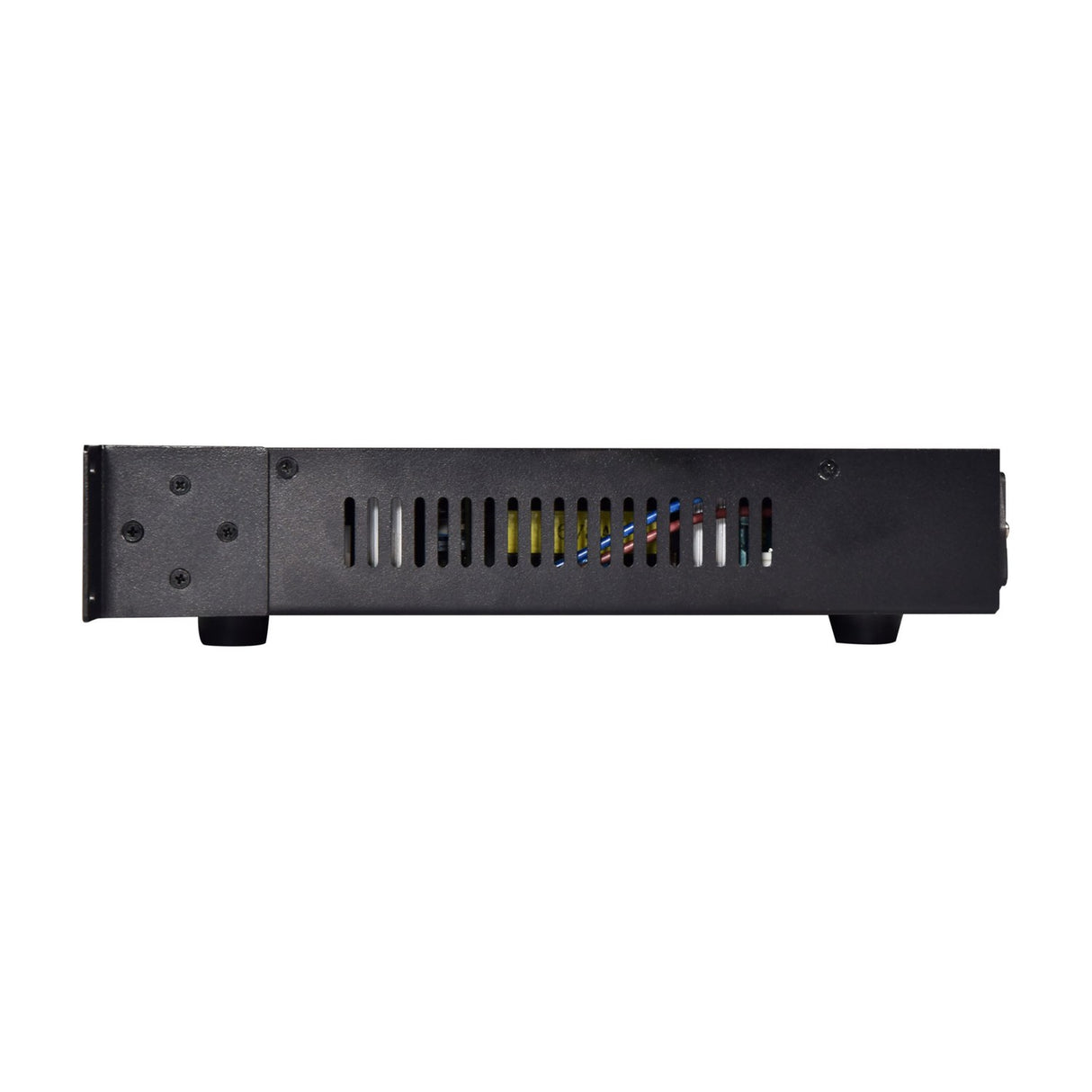

Adastra RS121 100V Line Class-D Slave Amplifier

£24999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Adastra RS121 is a 100V line slave amplifier built for medium to large installations. It takes standard line level audio from a mixer or an RM series mixer amplifier, then drives your speaker runs from a compact, rack-mountable housing. As a Class-D design it stays efficient and lightweight, so it slots into a 19" rack without adding needless weight or heat to the system.

Connections are flexible. Line level inputs run through RCA sockets (phono) or hard-wired removable screw terminals, also known as Euroblock, so you can wire it your way. A separate screw terminal handles 100V input, which lets the RS121 extend an existing 100V installation by connecting straight to the speaker feed, including long distance feeds over standard double-insulated cable. Slave outputs can be cascaded onto further RS slaves, so you can build larger systems as your needs grow. A 24V terminal connects to a security or alert panel and mutes the output during alarm triggering.

Speaker outputs are switchable between 100V and low impedance on the RS121, with low impedance stable down to 2 Ohms. That means you can connect multiple low impedance speakers if you prefer, or stay on the 100V line for longer runs and simpler wiring. Frequency response is 90Hz-20kHz on 100V and 17Hz-90kHz at 2 Ohms, with THD below 1.0%. A single master volume control keeps operation straightforward. The RS121 runs from a 175-264Vac 50Hz IEC supply, so it fits into most standard mains setups without fuss.

Specification
Fuse rating T1A
Output power : rms 120W
Dimensions 433mm x 267mm x 44mm
Weight 4.80KG
Power supply 175-264Vac 50Hz (IEC)
Input signal Slave line in (RCA/screw terminal), 100V in (screw terminal)
Output : signal Slave line out (RCA/screw terminal)
Outputs : speaker 100V or 2 Ohm min. (screw terminals)
Controls Master volume
Mute 24V alarm contacts (screw terminal)
THD <1.0%
Frequency response 90Hz-20kHz (100V), 17Hz-90kHz (2Ω)
Downloads

Product Manual

Frequently Asked

What does the RS121 slave amplifier do?

It takes line level audio from a mixer or RM series mixer amplifier and drives 100V or low impedance speakers. It can also extend an existing 100V system or expand a setup by cascading onto further RS slaves.

Can I use low impedance speakers as well as 100V?

Yes. Speaker outputs on the RS121 are switchable between 100V and low impedance, and the low impedance side is stable down to 2 Ohms, so you can run multiple speakers if preferred.

What connections are available for the inputs?

Line level inputs use RCA sockets (phono) or removable screw terminals (Euroblock). A separate screw terminal accepts 100V input for extending an existing installation.

How does the alarm mute work?

A 24V terminal connects to a security or alert panel. When an alarm is triggered, it mutes the amplifier output.

How is the RS121 mounted?

It fits a standard 19" rack. The RS121 is a 1U unit, part of a range that also includes 2U models in the RS series.

What power supply does it need?

It runs from a 175-264Vac 50Hz mains supply via IEC connector, suiting most standard installations.
